How to Install the Auxiliary Countershaft Bearing Cover

Special Instructions

None

Special Tools

• Typical Service Tools

Procedure -

1. Thoroughly clean and inspect the sealing surfaces on the transmission case and the output bearing cover for gouges or distortion. Replace if necessary.

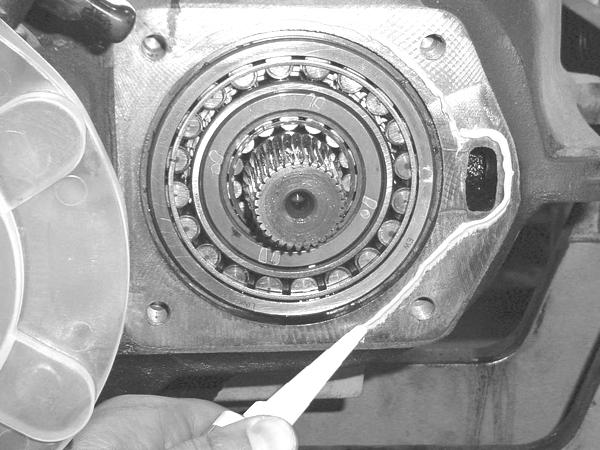

2. Apply RTV sealant per application guidelines to the transmission case.

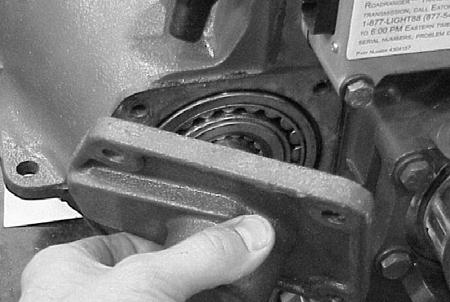

3. Install the bearing cover on the case with the lube slot in the cover lined up with the lube hole in the case.

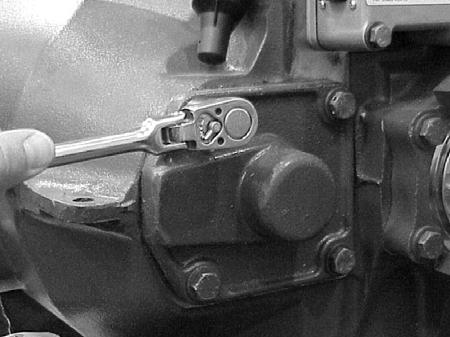

4. Install the four bearing cover capscrews. Torque to 47-52 lbft (63-70 Nm).
