How to Remove Output Yoke

Special Instructions

None

Special Tools

• Output Yoke Puller (Tool ref. ID T1)

Procedure -

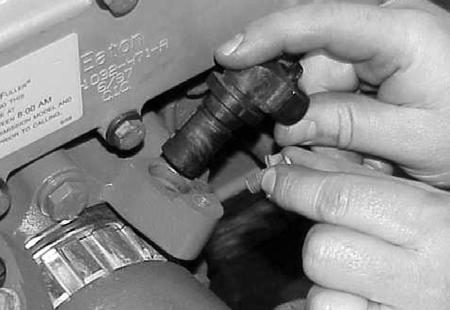

1. Remove the speedometer sensor retaining capscrew and the speedometer sensor from the rear bearing cover.

2. Remove the output nut using a 70 mm or 2 3/4" socket.

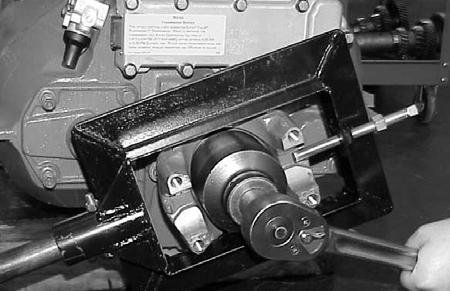

TIP:To prevent the output shaft and yoke from rotating while removing the nut, use a fixture to hold the yoke.

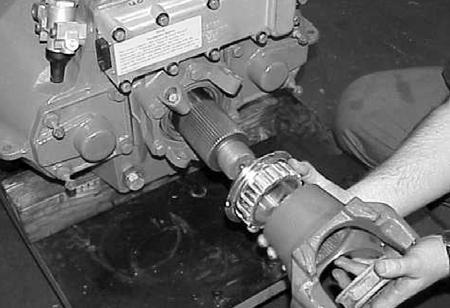

3. Remove the output yoke. Use the output yoke puller (Tool ref. ID T1).

4. Remove the speedometer rotor and O-ring from the output shaft.
