Query of saved “Headland values”

14

When the working position has been reached, the display changes to “Working Position” (Fig.14).

Caution!

Do not engage the PTO shaft before the machine has reached at least the headland position.

• Engage the tractor's PTO shaft. (Fig.12,13,14,15)

15

16

17 11.2.2Query of saved “Headland values”

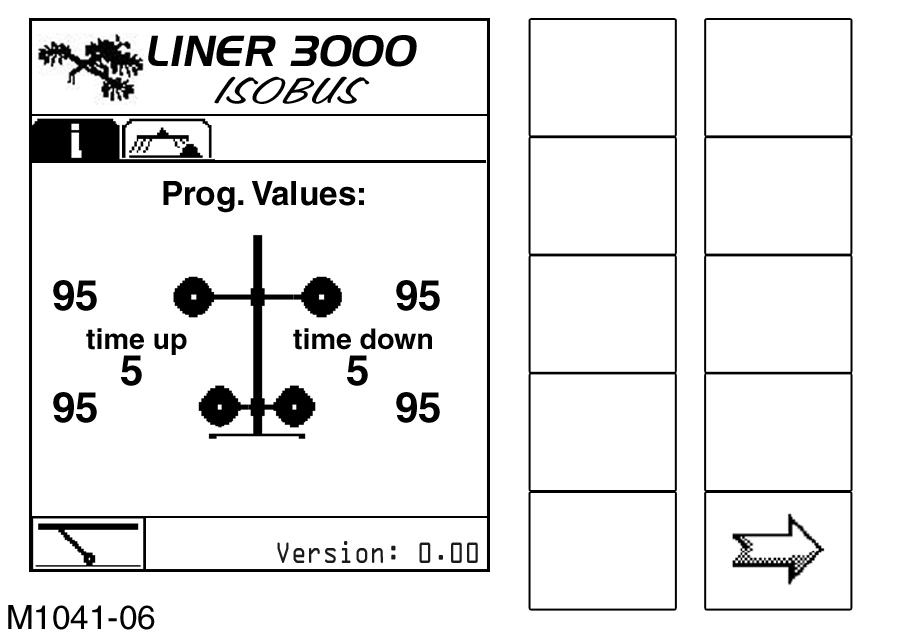

As an example, the following describes the call up of the stored “Headland values” (Prog. Values) from the screen “Working Position”. Press the “Soft Key” (Fig.16).

– The submenu “Info” is called –the “Info” icon is shown inverted (Fig.17). • time up = delay period to raise the rotor • time down = delay period to lower the rotor Press the “Soft Key” (Fig.17).

– Pressing the “forwards” soft key returns you to the

“Working position” screen.

Note!

Querying is possible in all menus in which the “Soft Key” is available or if the tab is shown in the menu bar.
