Software management

S1

S2

P

13 10.2.6Software management Memory management

The tab “Software management” should only be called by experienced users. Incorrect entries may cause the Communicator to fail.

Note!

The program for control of the attached machine (attachment e.g. LINER3000) is stored in this menu. The memory may become full after changing machines or attachments a few times. The CLAAS Communicator has sufficient memory for several machine control programs (attachments). If the memory is full, a program that is no longer used must be deleted from the memory before saving another one.

Note!

If a deleted program is required again, it will be automatically uploaded to the CLAAS Communicator next time it is connected to the machine or attachment, provided that sufficient memory is available.

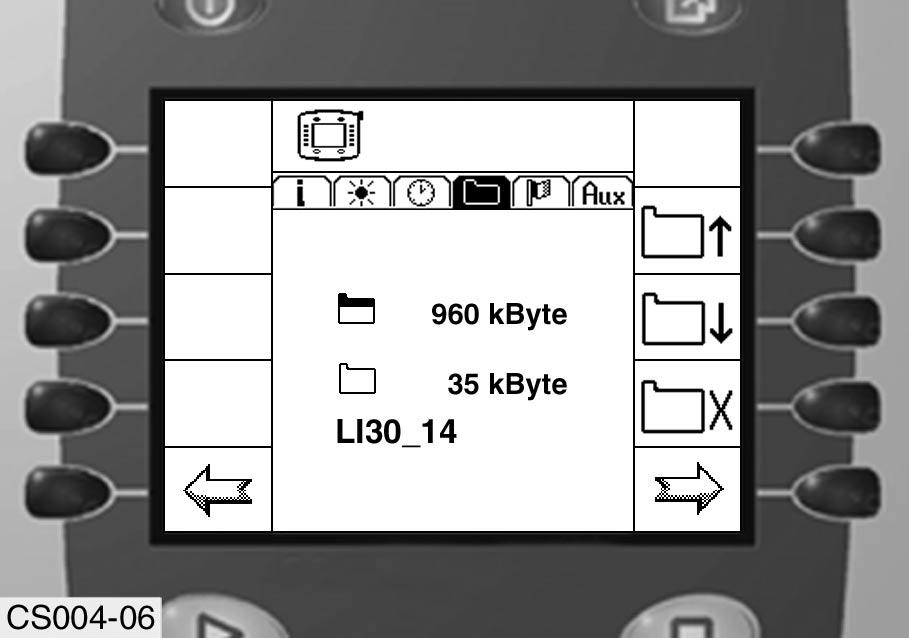

The following memory information is shown: S1 = remaining free memory in Kbytes S2 = memory required in Kbytes for the selected program. P = name/identification of the program The example in Figure 13 must be read as follows:

There are still 960Kbytes of memory free.

The selected programme LI30_14 (LI30=LINER3000, 14=Software version 1.4) requires 35kbytes of memory.

Deleting memory space

Use the “Soft Key” to call the next program.

Use the “Soft Key” to call the previous program. Use the “Soft Key” to delete the selected program from the memory.

(Fig.13)
