Fitting the drive shaft(F) ................................................ 8.8

A

B

C

B

C

A

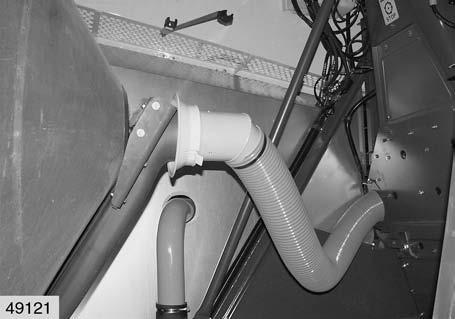

Unlock the hose(A) on the radiator cage and pull off. Hinge up the radiator cage. (Fig.36)

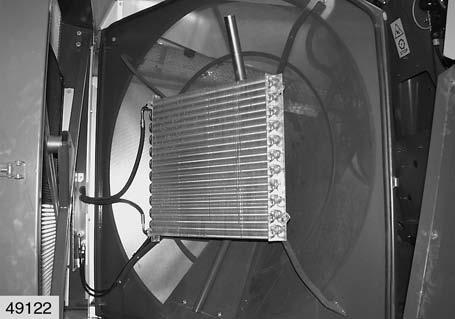

Unscrew the hose lines(B) from the condenser(C) and close off on both sides with plugs. Unscrew the condenser(C) from the radiator cage. (Fig.37)

36

37

Fitting the condenser

1.Screw the condenser(C) to the radiator cage. 2.Screw the hose lines(B) to the condenser(C) using new round seal rings. When doing this, observe the relevant tightening torque –see page1.4.3, Tightening torques hydraulic fittings. (Fig.38)

38

3.Push the hose(A) onto the spigot on the radiator cage(C) and lock. (Fig.39)

39
