How to operate the feeder breaker —

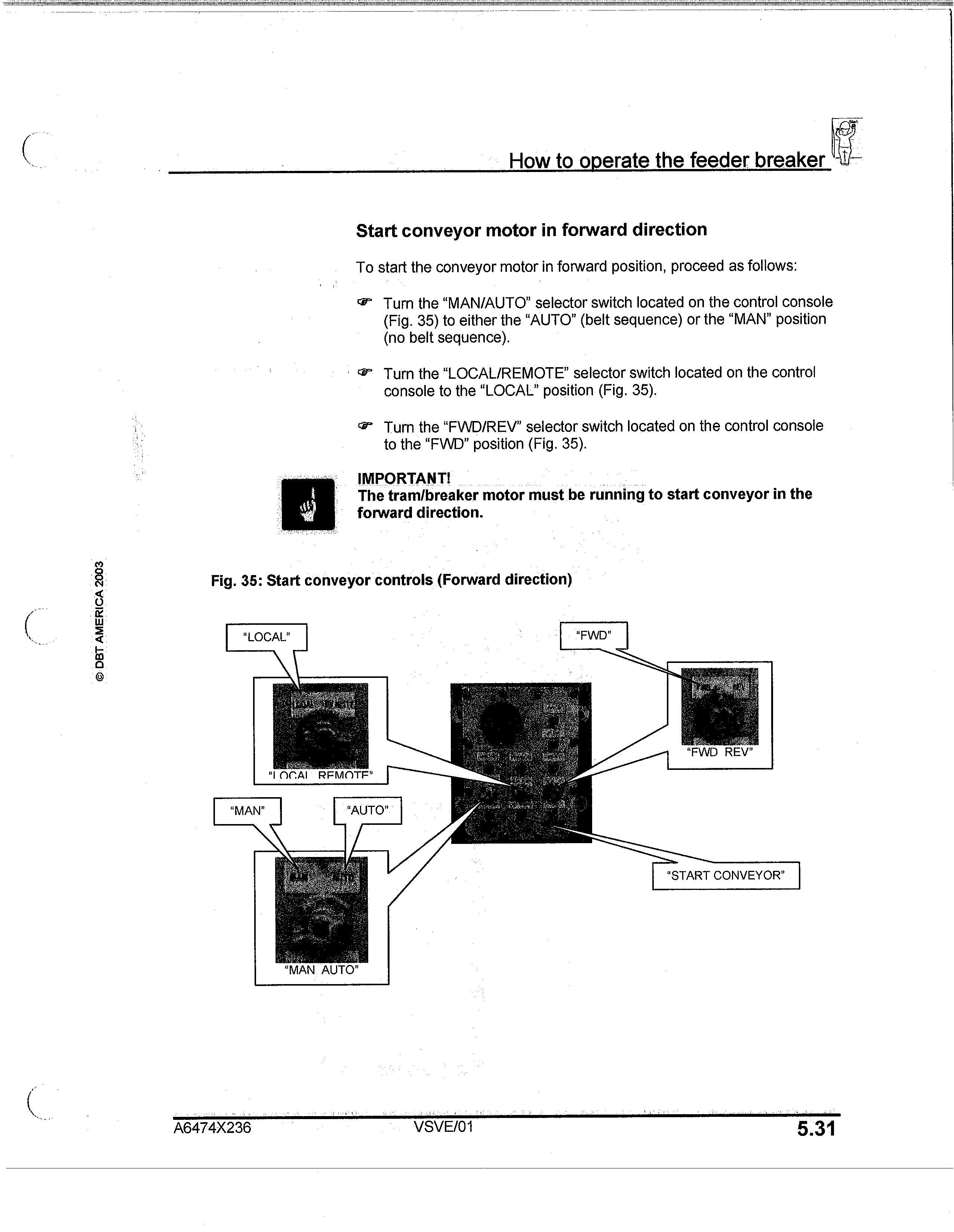

Start conveyor motor in forward direction

To start the conveyor motor in forward position, proceed as follows:

e2r Turn the "MAN/AUTO" selector switch located on the control console (Fig. 35) to either the "AUTO" (belt sequence) or the "MAN" position (no belt sequence).

Turn the "LOCAL/REMOTE" selector switch located on the control console to the "LOCAL" position (Fig. 35).

®' Turn the "FWD/REV" selector switch located on the control console to the "FWD" position (Fig. 35).

IMPORTANT! The tram/breaker motor must be running to start conveyor in the forward direction.

Fig. 35: Start conveyor controls (Forward direction)

A6474X236 VSVE/01

"START CONVEYOR"

5.31

q —How to operate the feeder breaker

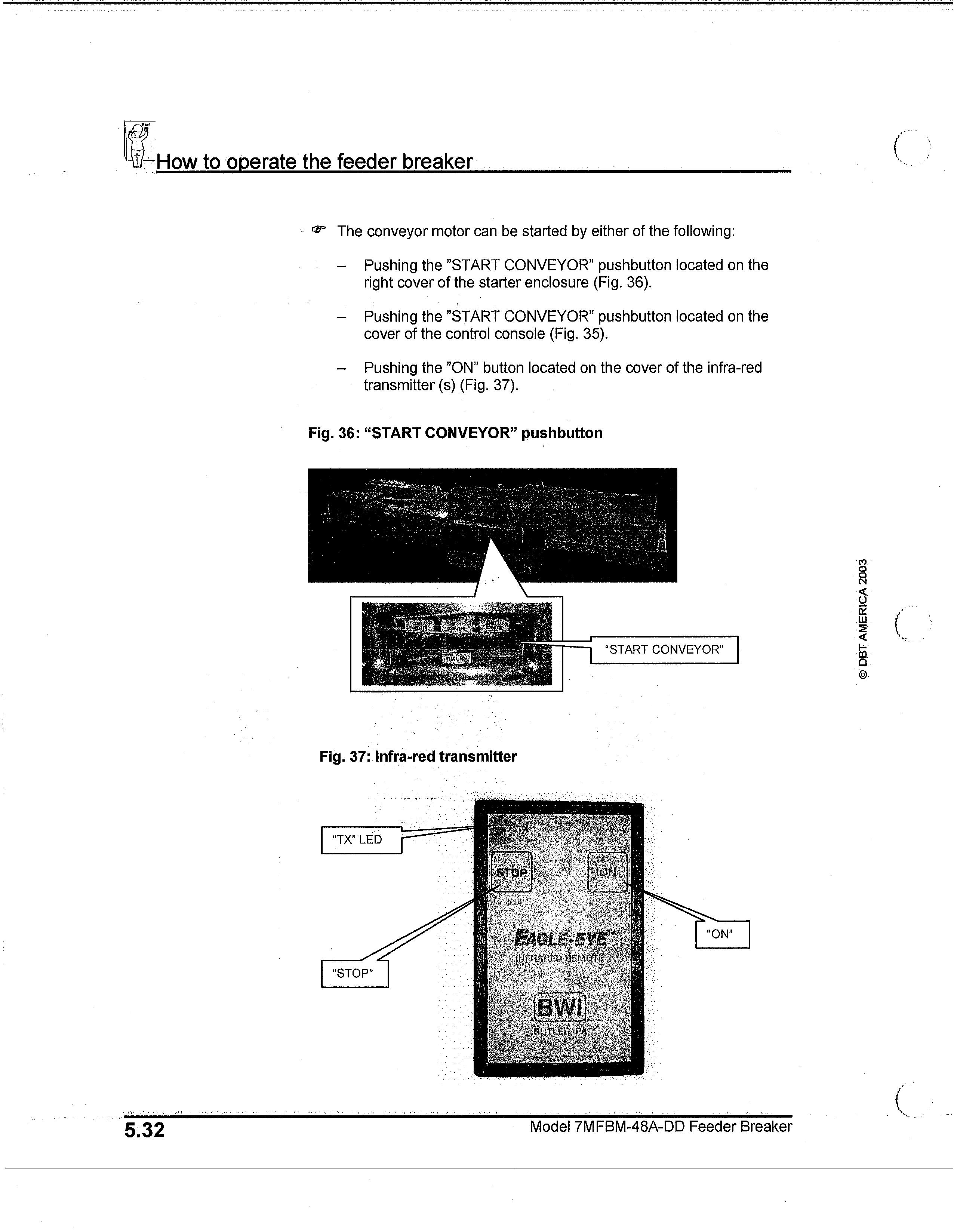

The conveyor motor can be started by either of the following:

Pushing the "START CONVEYOR" pushbutton located on the right cover of the starter enclosure (Fig. 36).

Pushing the "START CONVEYOR" pushbutton located on the cover of the control console (Fig. 35).

Pushing the "ON" button located on the cover of the infra-red transmitter (s) (Fig. 37).

Fig. 36: "START CONVEYOR" pushbutton

Fig. 37: Infra-red transmitter

RI CA DBT AME

5.32

Model 7MFBM-48A-DD Feeder Breaker
