Chapter 5: Operation 2

-fit-How to operate the feeder breaker

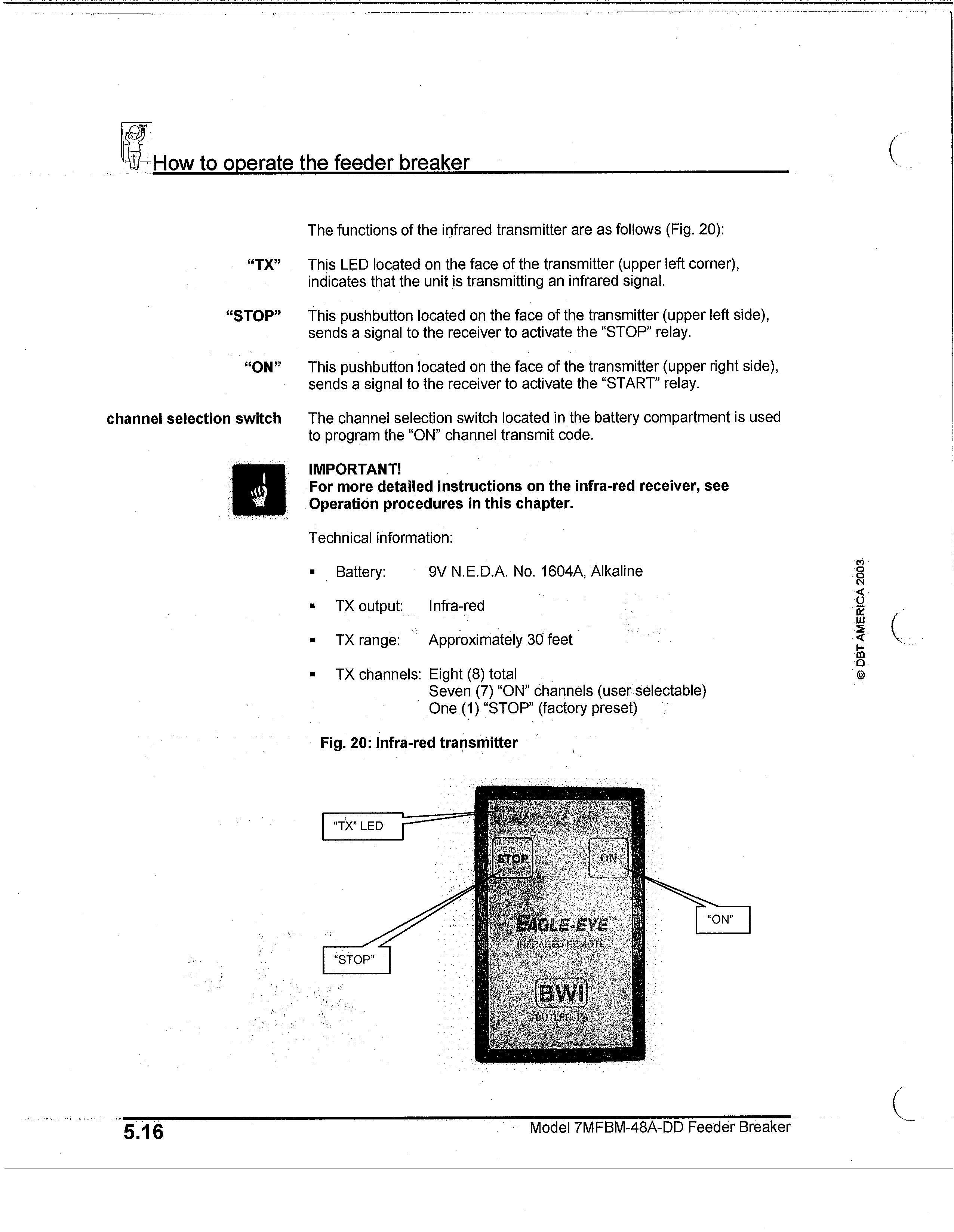

The functions of the infrared transmitter are as follows (Fig. 20):

"TX" This LED located on the face of the transmitter (upper left corner), indicates that the unit is transmitting an infrared signal.

"STOP" This pushbutton located on the face of the transmitter (upper left side), sends a signal to the receiver to activate the "STOP" relay.

"ON" This pushbutton located on the face of the transmitter (upper right side), sends a signal to the receiver to activate the "START" relay.

channel selection switch The channel selection switch located in the battery compartment is used to program the "ON" channel transmit code.

IMPORTANT! For more detailed instructions on the infra-red receiver, see Operation procedures in this chapter.

Technical information:

• Battery: 9V N.E.D.A. No. 1604A, Alkaline

• TX output: Infra-red

• TX range: Approximately 30 feet

• TX channels: Eight (8) total Seven (7) "ON" channels (user selectable) One (1) "STOP" (factory preset)

Fig. 20: Infra-red transmitter

CA DBT AMERI

5.16

Model 7MFBM-48A-DD Feeder Breaker
