How to operate the feeder breaker

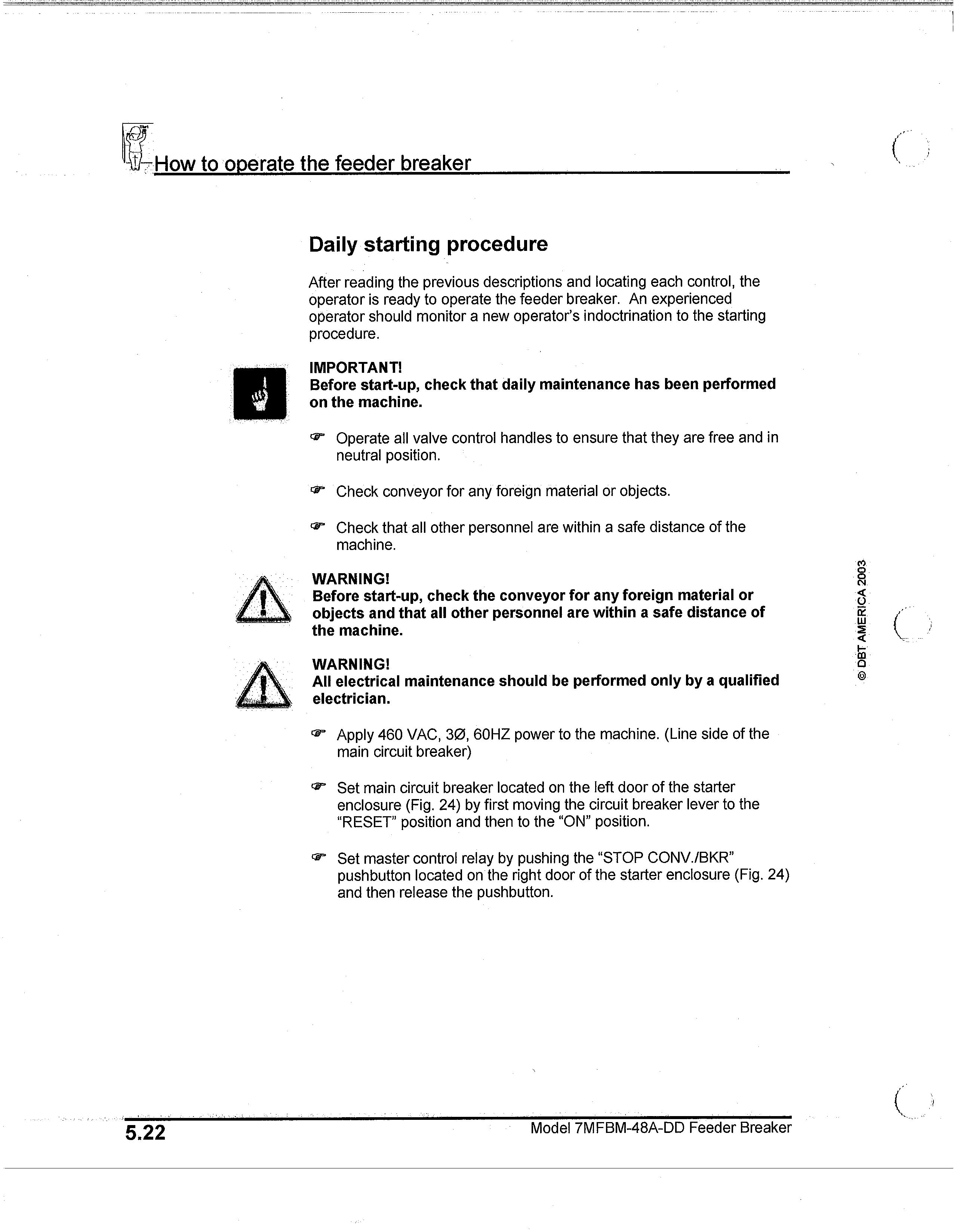

Daily starting procedure

After reading the previous descriptions and locating each control, the operator is ready to operate the feeder breaker. An experienced operator should monitor a new operator's indoctrination to the starting procedure.

IMPORTANT! Before start-up, check that daily maintenance has been performed on the machine.

Operate all valve control handles to ensure that they are free and in neutral position.

Check conveyor for any foreign material or objects.

riff' Check that all other personnel are within a safe distance of the machine.

WARNING! Before start-up, check the conveyor for any foreign material or objects and that all other personnel are within a safe distance of the machine.

WARNING! All electrical maintenance should be performed only by a qualified electrician.

cr. Apply 460 VAC, 30, 60HZ power to the machine. (Line side of the main circuit breaker)

rZF' Set main circuit breaker located on the left door of the starter enclosure (Fig. 24) by first moving the circuit breaker lever to the "RESET" position and then to the "ON" position.

ce Set master control relay by pushing the "STOP CONV./BKR" pushbutton located on the right door of the starter enclosure (Fig. 24) and then release the pushbutton.

ICA 0 CET AMER

5.22

Model 7MFBM-48A-DD Feeder Breaker

2

a.

How to operate the feeder breaker

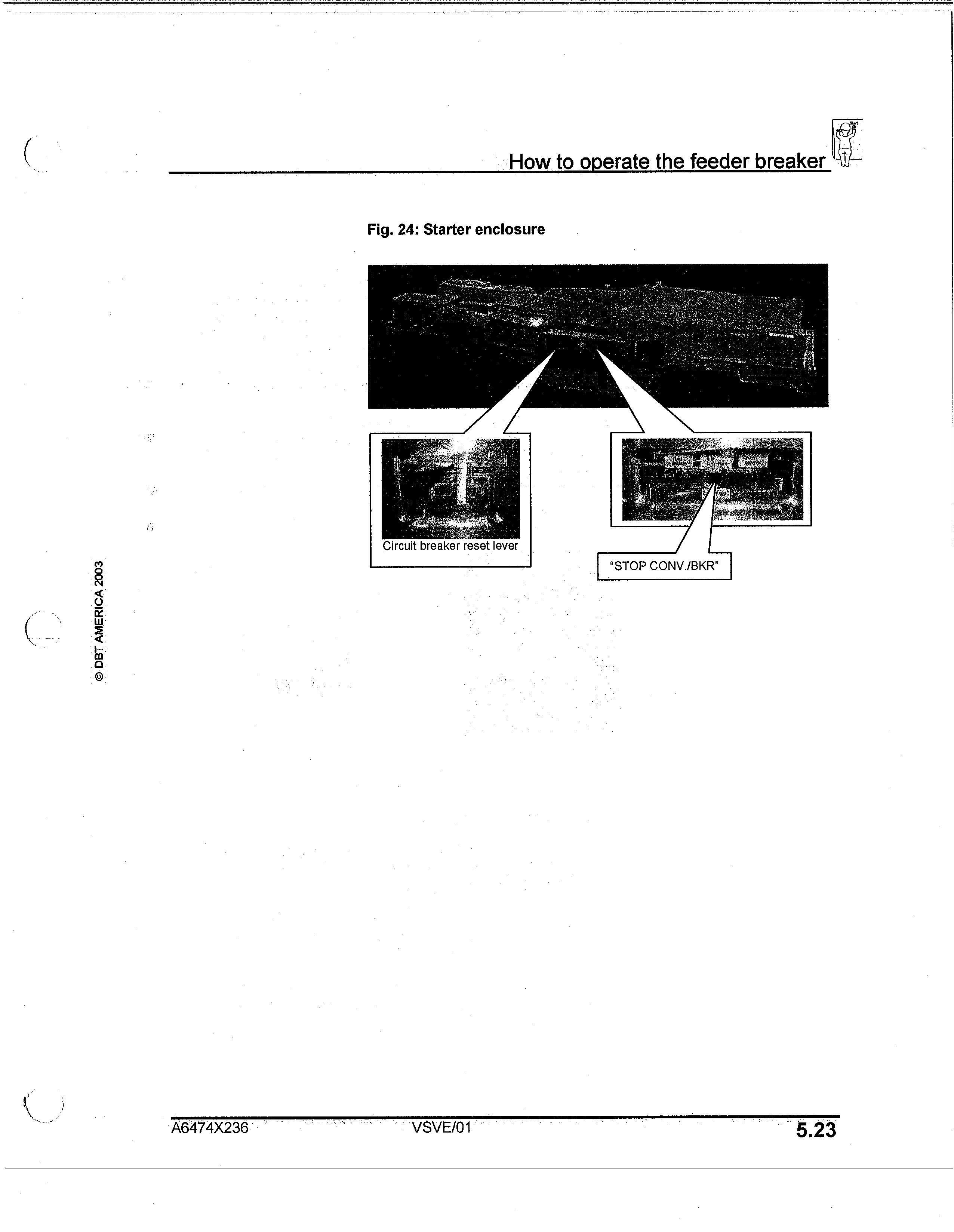

Fig. 24: Starter enclosure

A6474X236 VSVE/01

5.23
