—How to operate the feeder breaker

steer right in the direction of the receiving end, push the left tram control lever away from the operator while the right tram control lever is in the neutral position or for tighter turns, pull the right tram control lever towards the operator.

NOTICE! The feeder breaker has skid type steering; it is capable of turning within its own limits.

"PTO" The first lever from the operator's left controls the "PTO". To actuate the "PTO", push the control lever away from the operator.

"RIGHT FRAME LIFT" The sixth lever from the operator's left controls the movement of the right cylinder at the pivot point of the crawler, which adjusts the ground clearance on the right side of the machine. To increase the ground clearance, slowly push the control lever away from the operator and to decrease the ground clearance, slowly pull the control lever towards the operator.

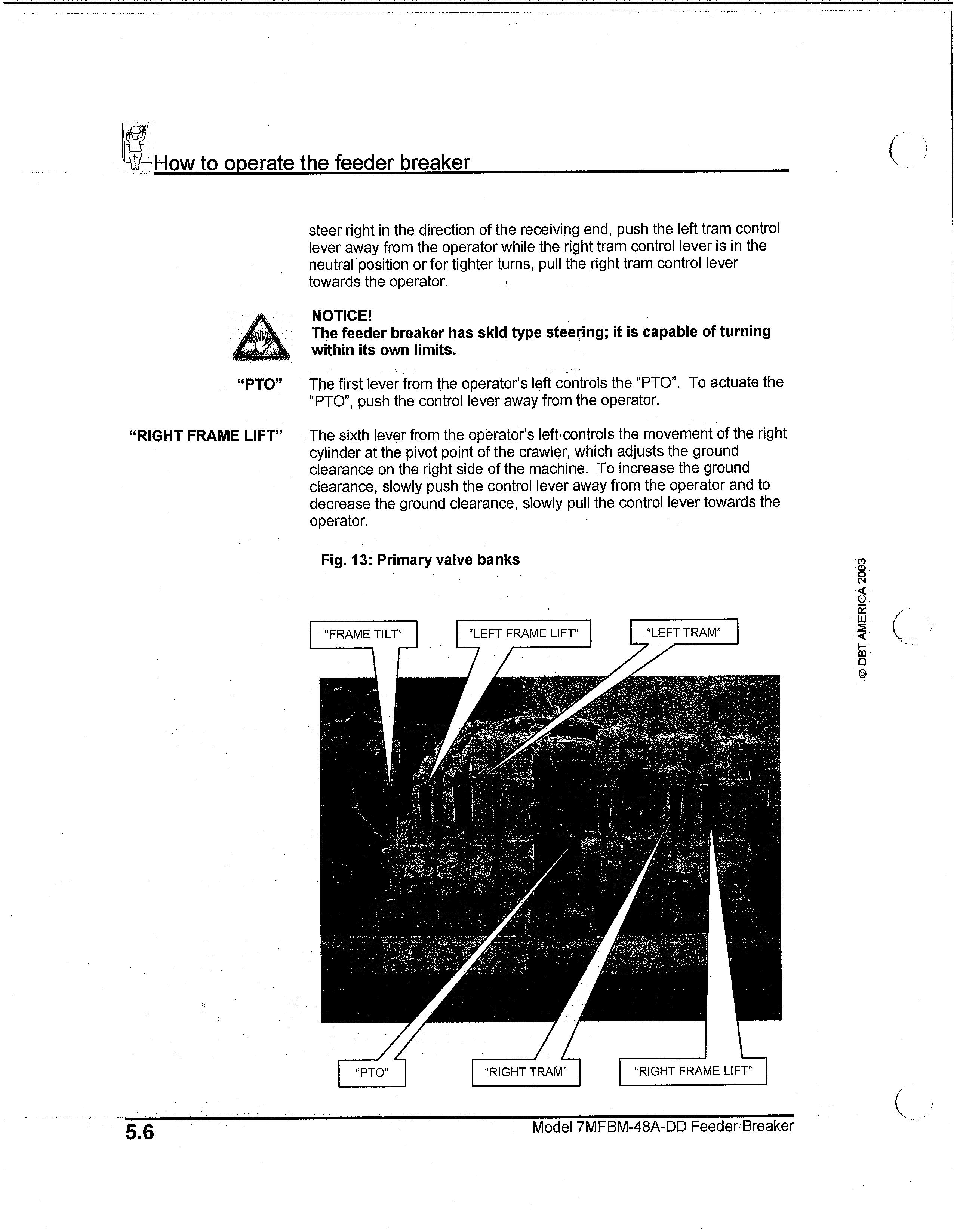

Fig. 13: Primary valve banks

C,) 0 0

2

0.

5.6

Model 7MFBM-48A-DD Feeder Breaker
