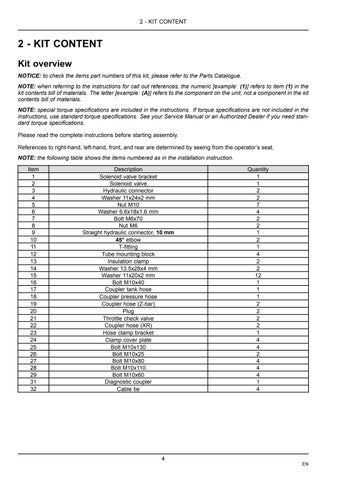

2 - KIT CONTENT
2 - KIT CONTENT Kit overview NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: when referring to the instructions for call out references, the numeric [example: (1)] refers to item (1) in the kit contents bill of materials. The letter [example: (A)] refers to the component on the unit, not a component in the kit contents bill of materials. NOTE: special torque specifications are included in the instructions. If torque specifications are not included in the instructions, use standard torque specifications. See your Service Manual or an Authorized Dealer if you need standard torque specifications. Please read the complete instructions before starting assembly. References to right-hand, left-hand, front, and rear are determined by seeing from the operator’s seat. NOTE: the following table shows the items numbered as in the installation instruction. Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32
Description Solenoid valve bracket Solenoid valve Hydraulic connector Washer 11x24x2 mm Nut M10 Washer 6.6x18x1.6 mm Bolt M6x70 Nut M6 Straight hydraulic connector, 10 mm 45° elbow T-fitting Tube mounting block Insulation clamp Washer 13.5x28x4 mm Washer 11x20x2 mm Bolt M10x40 Coupler tank hose Coupler pressure hose Coupler hose (Z-bar) Plug Throttle check valve Coupler hose (XR) Hose clamp bracket Clamp cover plate Bolt M10x130 Bolt M10x25 Bolt M10x80 Bolt M10x110 Bolt M10x60 Diagnostic coupler Cable tie
Quantity 1 1 2 2 7 4 2 2 1 2 1 4 2 2 12 1 1 1 2 2 2 2 1 4 4 2 4 4 4 1 4
4 EN
