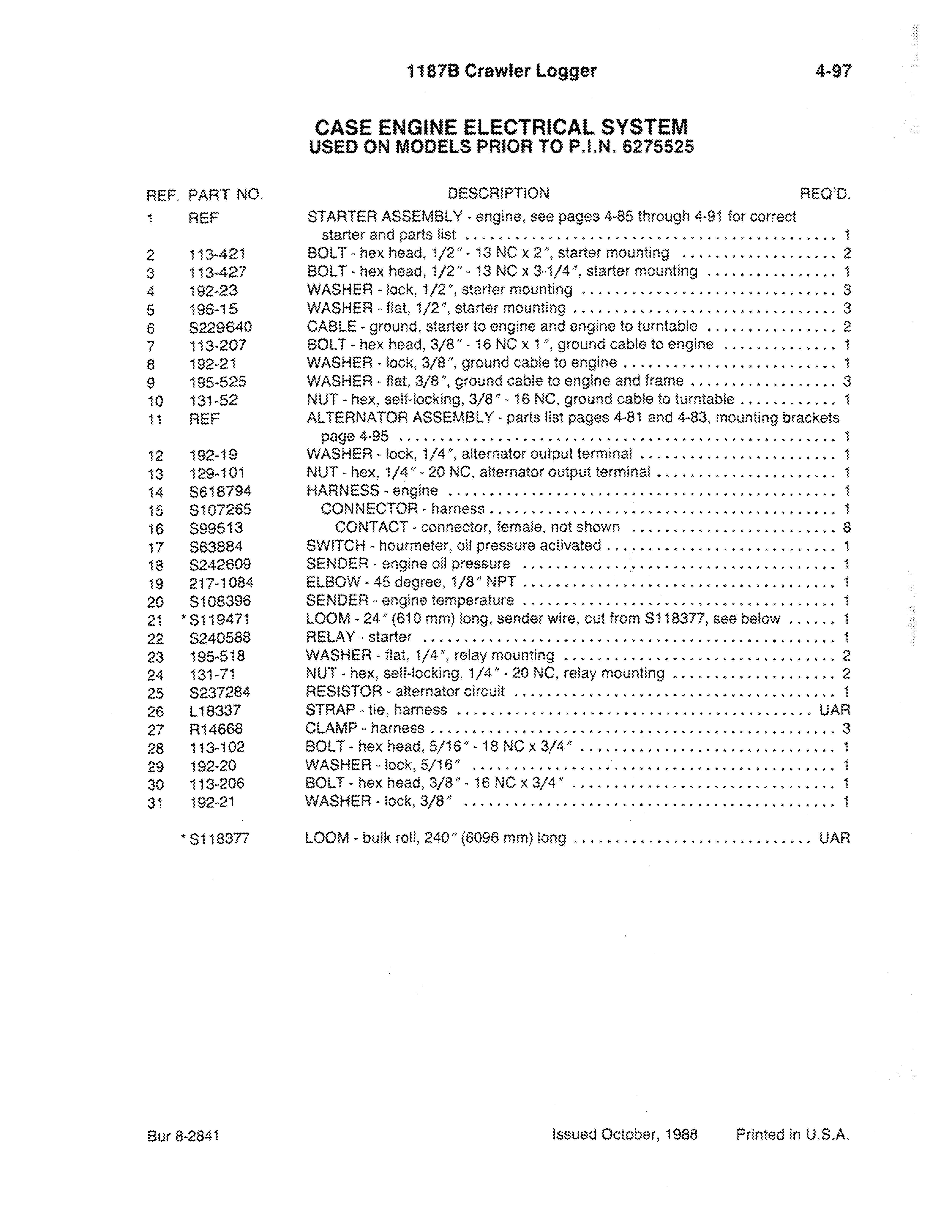

CASE ENGINE ELECTRICAL SYSTEM
USED ON MODELS PRIOR TO PJ.N. 6275525
DESCRIPTION
REO'D. STARTER ASSEMBLY - engine, see pages 4-85 through 4-91 for correct starter and parts list ....• .. ...••......•.••...•.•..•............•. 1 BOLT - hex head, 1/2" - 13 NC x 2", starter mounting ...•..• ....• . ...... 2 BOLT - hex head, 1/2" - 13 NC x 3-1/41<, starter mounting .•..•... .. . ...•. 1 WASHER -lock, 1/2", starter mounting •........•.•.... .. . ....... .. .•. 3 WASHER· flat, 1/2", starter mounting . .. ....•....•.•..... •..........• 3 CABLE - ground, starter to engine and engine to turntable ........•..•.... 2 BOLT - hex head, 3/8 It - 16 NC x 1 II, ground cable to engine .•.........•.. 1 WASHER . lock, 3/8 11 , ground cable to engine .•.•.•..•..•...••••.....•. 1 WASHER - flat, 3/8", ground cable to engine and frame ....•••..•.....•.. 3 NUT - hex, self-locking, 3/8" - 16 NC, ground cable to turntable .••..•....•. 1 AL TERNATOR ASSEMBLY - parts list pages 4-81 and 4-83, mounting brackets page 4-95 •. . •. . •........... .• ...•.......•.••.........••.....•• 1 WASHER -lock, 1/4", alternator output terminal .. .. ••..... ... ....•.•..• 1 NUT - hex, 1/4" - 20 NC, alternator output terminal •...•..••...•......... 1 HARNESS - engine •.... .•... ...• ...•.•... • , .. .................... 1
CONTACT - connector, female, not shown ..•..•..•..•••.•..... , .•• 8 SWITCH· hourmeter, oil pressure activated. . • . • • • . . • • • . . • . . . . . . . • . . • .. 1 SENDER - engine oil pressure .....•.......•••.•.•...•.•...••.....•. 1 ELBOW - 45 degree, 1/8" NPT ....•..••..•...•...•...•••......... , " 1 SENDER - engine temperature • . ...••.• .•......•...........••.....•. 1 LOOM - 24" (610 mm) long, sender wire, cut from S118377, see below ...• " 1 RELAY - starter ..•.•...•....••..•......••••.•.....•......... ,.... 1 WASHER - flat, 1/4", relay mounting ..•....••.•..•..•................ 2 NUT - hex, self-locking, 1/4" - 20 NC, relay mounting ......••.. • . ....•.•. 2 RESISTOR· alternator circuit ....•.......•...•..••....•.....•....... 1 STRAP - tie, harness •..•..•.. •• .....•....•...•.....•....•..•... UAR CLAMP - harness ....••.•......•..•...•.............•..•..•....•.. 3 BOLT - hex head, 5/16" - 18 NC x 3/4" ..•..•...•......••...•••....... 1 WASHER -lock, 5/16" ......•.....•...•...••.....•..•.••••....• , .. 1 BOLT - hex head, 3/8" - 16 NC x 3/4" . ...... , ........................ 1 WASHER - lock, 3/8" •......• .. ..••............ ..• .. • . •..•.....••• 1
Bur 8-2841 Issued October, 1988 Printed in U,S.A.

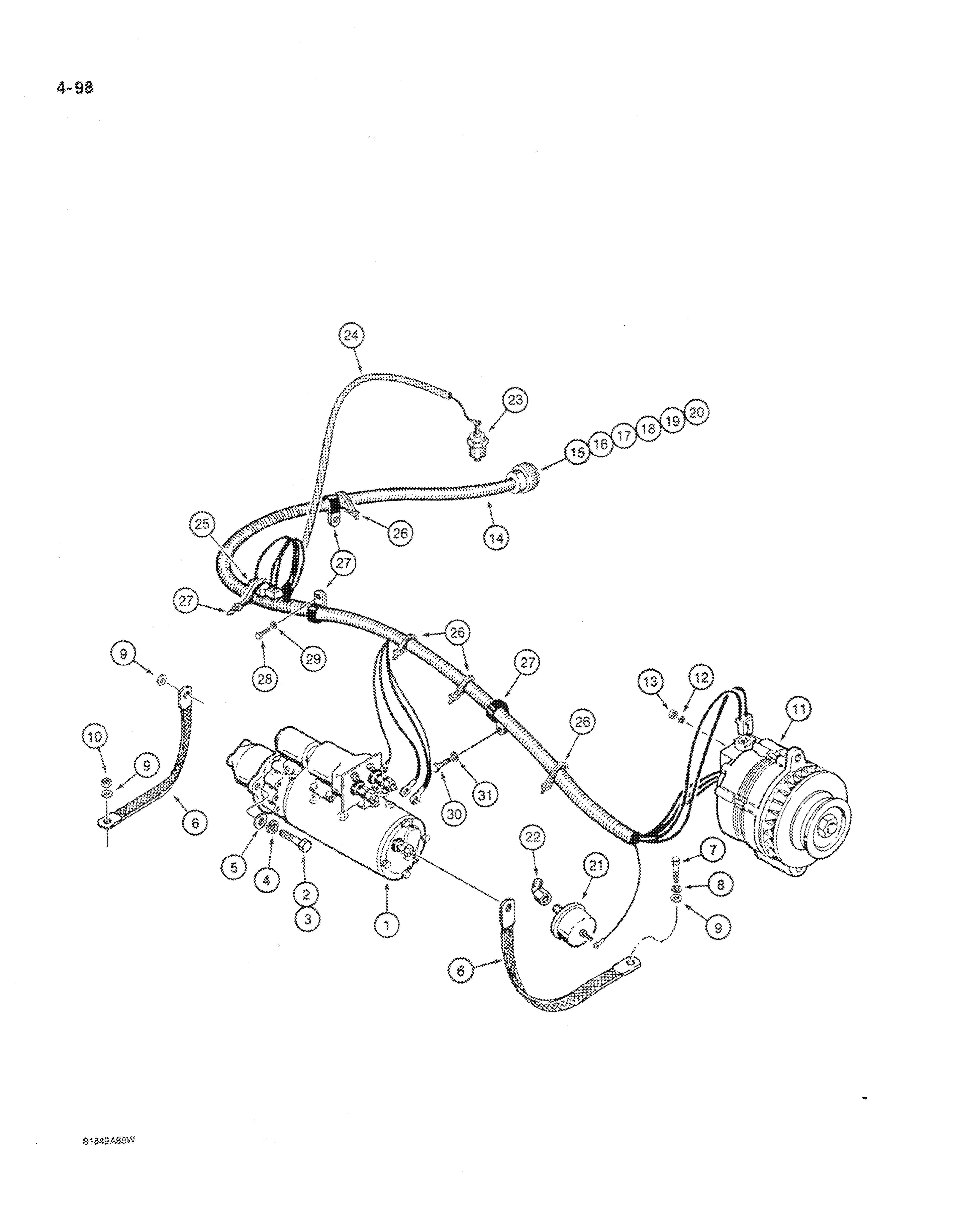

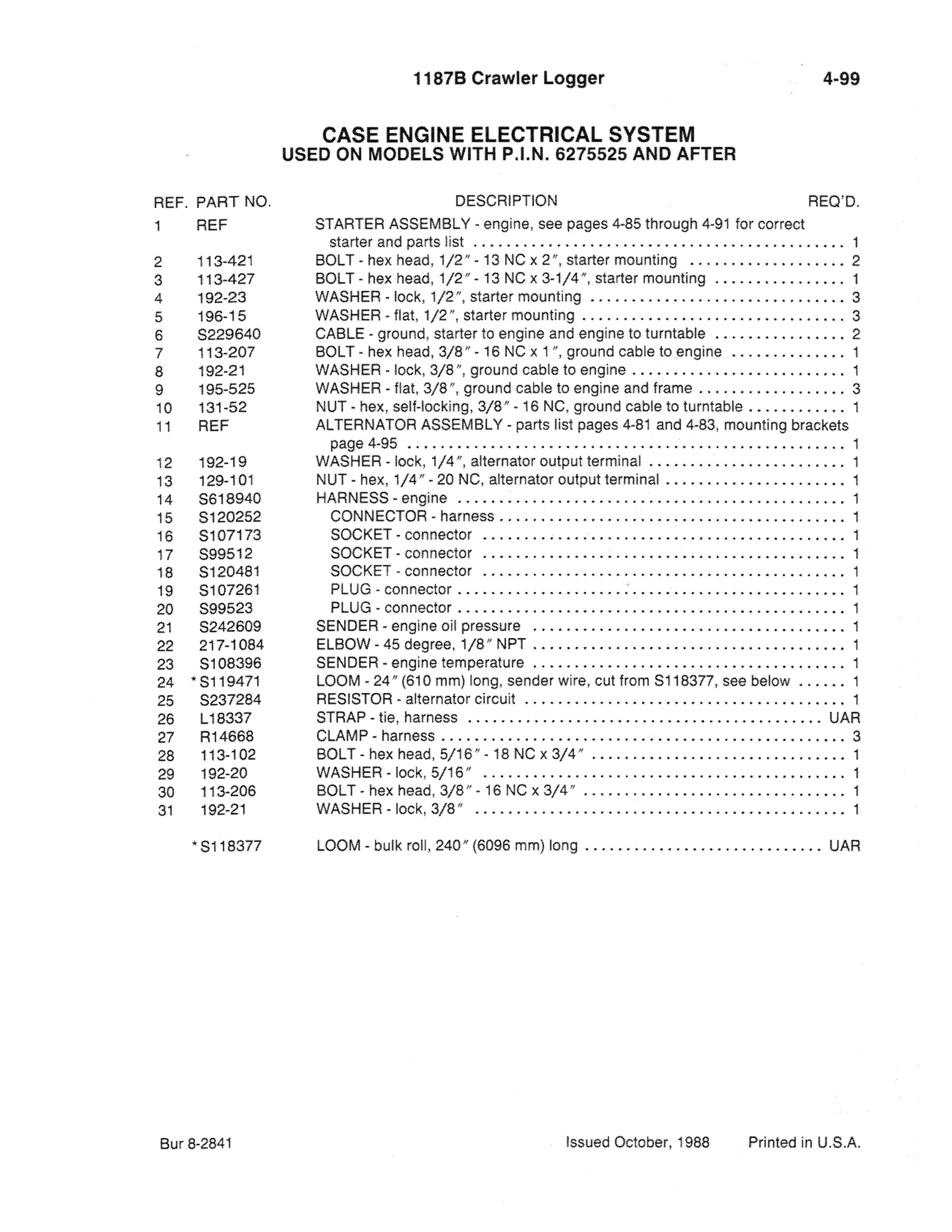

CASE ENGINE ELECTRICAL SYSTEM
USED ON MODELS WITH P.I.N. 6275525 AND AFTER
REF. PART NO. REF
2 113-421 3 113-427 4 192·23 5 196-15 6 S229640 7 113-207 8 192-21 9 195-525 10 131-52 11 REF
12 192-19 13 129-101 14 S618940 15 S120252 16 S107173 17 S99512 18 S120481 19 S107261 20 S99523 21 S242609 22 217-1084 23 S108396 24 * S119471 25 S237284 26 L18337 27 R14668 28 113-102 29 192-20 30 113-206 31 192-21
* S118377 DESCRIPTION
REQ'D. STARTER ASSEMBLY - engine, see pages 4-85 through 4-91 for correct starter and parts nst .....•...•.•.•......••............•.•....•••. 1 BOLT - hex head, 1/2" - 13 NC x 2", starter mounting .........•••....... 2 BOLT· hex head, 1/2ft - 13 NC x 3-1/4", starter mounting ..•..••.....•... 1 WASHER - lock, 1/2", starter mounting •..•..•..•............ •. . " ...• 3 WASHER - flat, 1/2", starter mounting ....... .. - ............•.••...•.. 3 CABLE - ground, starter to engine and engine to turntable .•. . •...••...... 2 BOLT - hex head, 3/8" - 16 NC x 1 fI, ground cable to engine .. . . _ ..•.....• 1 WASHER· lock, 3/8 ", ground cable to engine .....•.......... .. • ..•.••. 1 WASHER - flat, 3/8", ground cable to engine and frame .. . .....•....•.••. 3 NUT· hex, self-locking, 3/8" - 16 NC, ground cable to turntable .•..•....••• 1 ALTERNATOR ASSEMBLY - parts list pages 4-81 and 4-83, mounting brackets page 4-95 •......... . ...... . .. . ..... . .. •. ..... . .. • .•• .......... 1 WASHER - lock, 1/4", alternator output terminal .••........•.•.......••. 1 NUT - hex, 1/4" - 20 NC. alternator output terminal .•.........•.....•.••• 1 HARNESS - engine .....•...................................•..••• 1
PLUG - connector ...............•......•...........•......•. .• .. 1 SENDER - engine oil pressure ...........................•.....•..•. 1 ELBOW - 45 degree, 1/8" NPT ........... ........................•.. 1 SENDER - engine temperature ...•...........•........•..•.......•.• 1 LOOM - 24" (610 mm) long, sender wire, cut from S118377, see below ... • .• 1 RESISTOR - alternator circuit . ... ........ . •.•.................. . .... 1 STRAP - tie, harness .... .• ............•........................ UAR CLAMP - harness ........................................ . .. ....... 3 BOLT - hex head, 5/16" - 18 NC x 3/4" .... . ............... . .........• 1 WASHER - lock, 5/16" . .. . ... . .. .. ........ .. •..•....••..•.••...... 1 BOLT - hex head, 3/8" - 16 NC x 3/4" ................................ 1 WASHER - lock, 3/8" .....................•••....................• 1

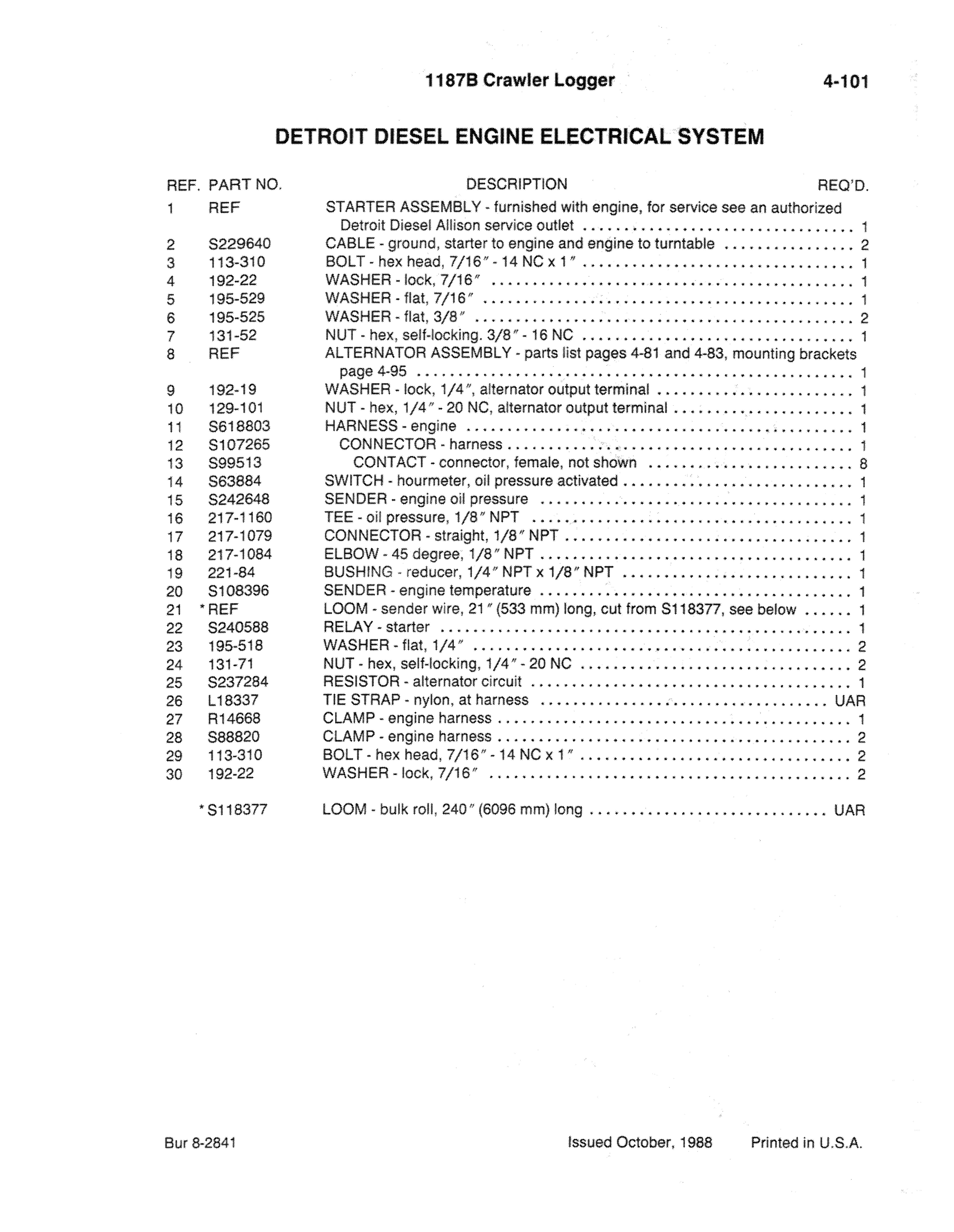

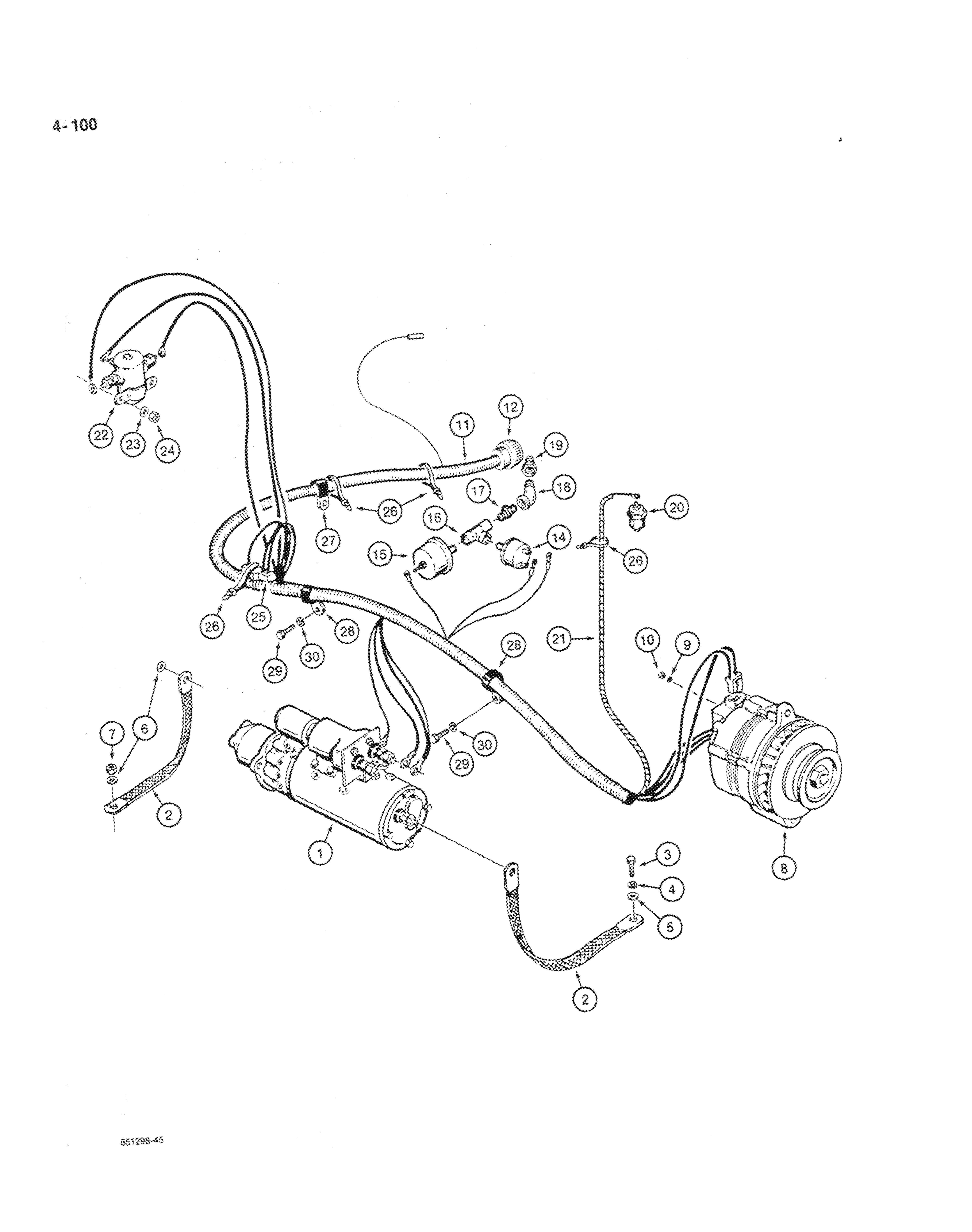

DETROIT DIESEL ENGINE ELECTRICAL SYSTEM
REF. PART NO. REF
9 192·19 10 129·101 11 S618803 12 S107265 13 S99513 14 S63884 15 S242648 16 217-1160 17 217-1079 18 217-1084 19 221-84 20 S108396 21 * REF 22 S240588 23 195-518 24 131-71 25 S237284 26 L18337 27 R14668 28 S88820 29 113-310 30 192-22
"S118377 DESCRIPTION
REQ'D. STARTER ASSEMBLY· furnished with engine, for service see an authorized
Detroit Diesel Allison service outlet •.....•..••••..•.........•..•..•• 1 CABLE - ground, starter to engine and engine to turntable •..••••.....•..• 2 BOLT - hex head, 7/16" - 14 NC x 1" .. . . . . . . . . • • • . • . . . . . . . . . . . . . . . . .. 1
