Windshield Wiper

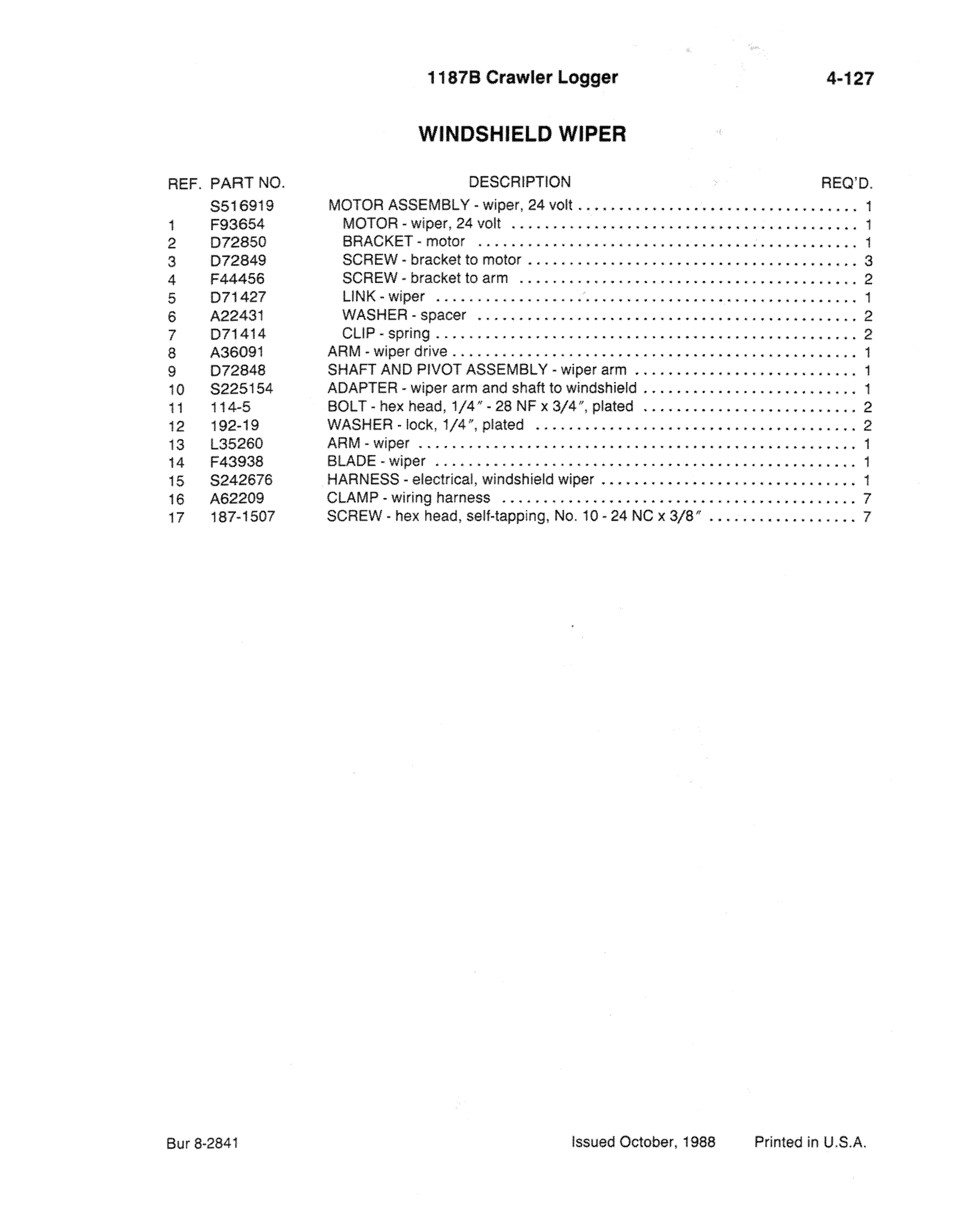

REF. PART NO. S516919 1 F93654 2 072850 3 072849 4 F44456 5 071427 6 A22431 7 071414 8 A36091 9 D72848 10 S225154 11 114-5 12 192-19 13 L35260 14 F43938 15 S242676 16 A62209 17 187-1507

DESCRIPTION

REQ'D. MOTOR ASSEMBLY - wiper, 24 volt ..•............•••..••. • ••••••.... 1

MOTOR - wiper, 24 volt ...•.••..•.............•.••••••.••••...... 1

BRACKET - motor .......••..•..•.•..••..•.••.........•....•.••. 1

SCREW - bracket to motor •.....••.•..•.•....•••........•..••••..• 3

SCREW· bracket to arm ..•...•.•..•.••....•..•...•...••.•..••• . . 2

LINK - wiper •................•...••......••.......•..•..•••.... 1

WASHER - spacer ..........•......••.•...•.•.......••...•..•... 2

CLIP - spring •......................•...•..••.•.....•.....••..•. 2 ARM - wiper drive .. . ...... _ ..•.....••••.....•.....•......•.••••... 1 SHAFT AND PIVOT ASSEMBLY - wiper arm .......•.•..• • ..•.••••.. . •. 1 ADAPTER - wiper arm and shaft to windshield . • . • . . • . . . . . . • . • . . • . . . . . .• 1 BOLT· hex head, 1/4" ·28 NF x 3/4", plated ...••..•...•...•..•.•.••.. 2 WASHER - lock, 1/4", plated .........••.....•.•...•...•..•.••.•..•. 2 ARM - wiper . . ....... _ ...........•.........•..•.•....•.•..••..... 1 BLADE· wiper ......•... _ . . . . . • . . • . • . • . • . . • . • . . • . . . • . • • . • . . . . . • •. 1 HARNESS - electrical, windshield wiper ••.• • . . . • . . • . . • • . . . . • • • • . • • . . .. 1 CLAMP - wiring harness ....... . .•..••..•.•••...••..•...••••....... 7 SCREW - hex head, self-tapping, No. 10 - 24 NC x 3/8" ............. • .... 7

REF. PART NO. 1 D51222 2 S212579 3 S86493 4 113-422 5 131-70 6 S222287 7 113-208 8 192-21 9 S212578 10 113-208 11 131-52 12 S241942 13 S241943 14 L18337

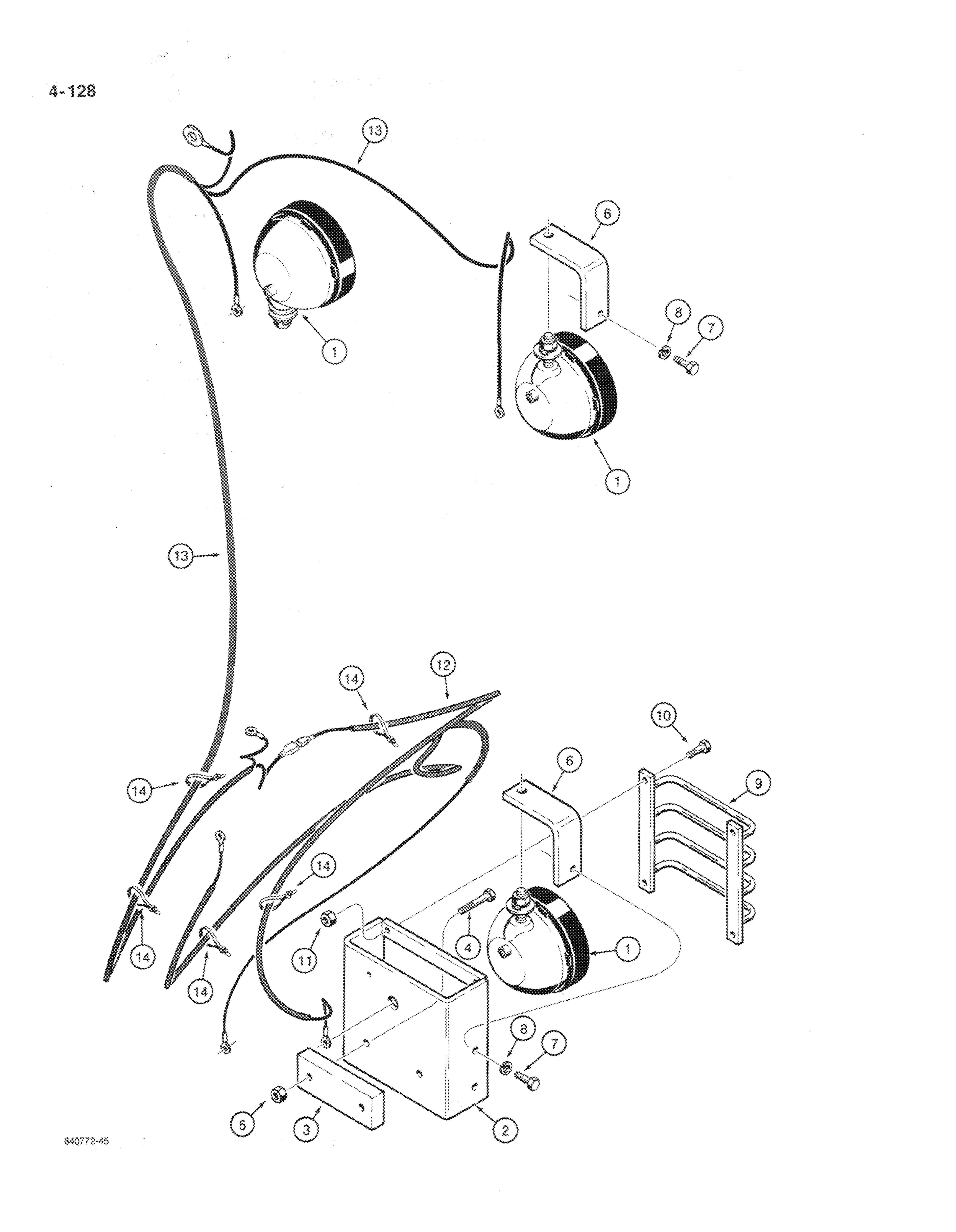

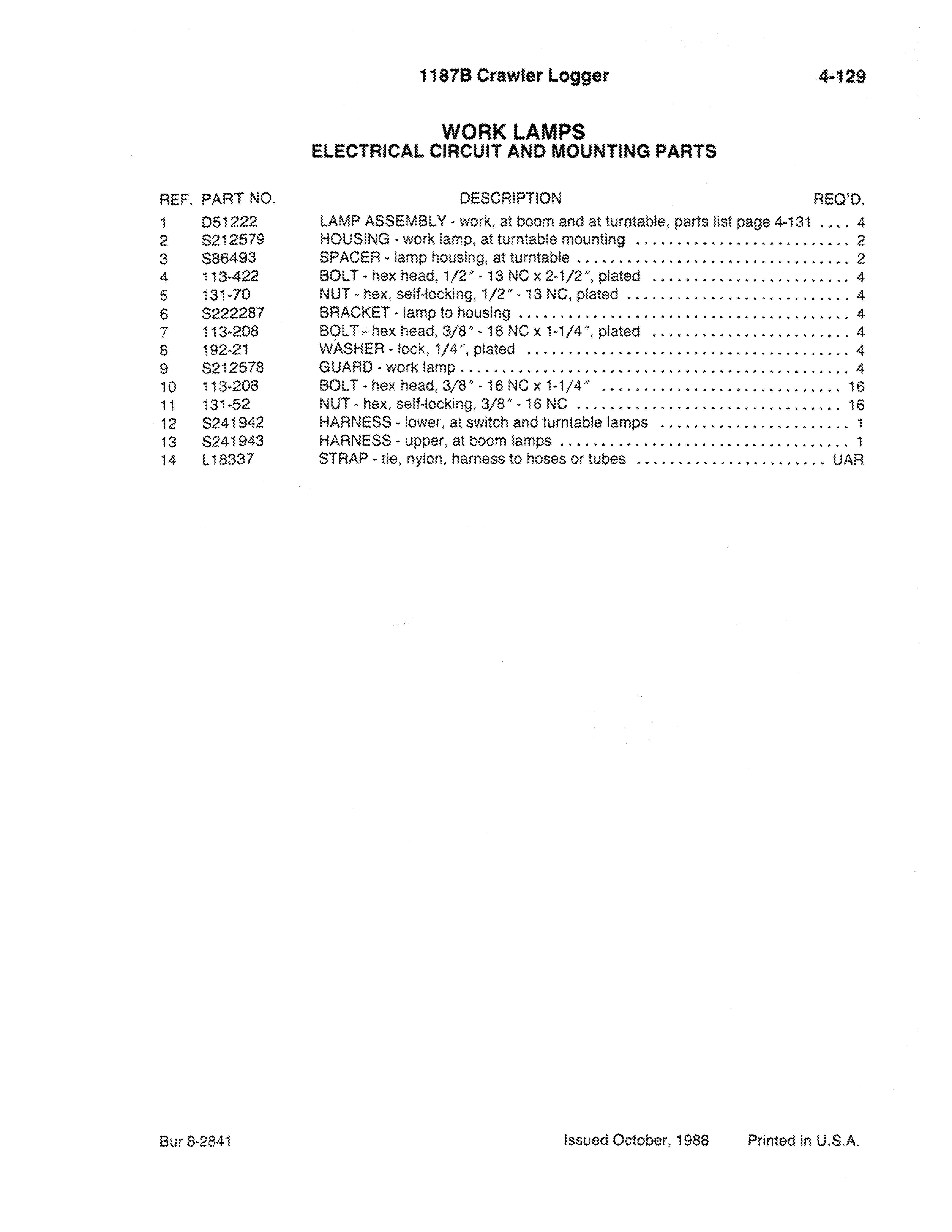

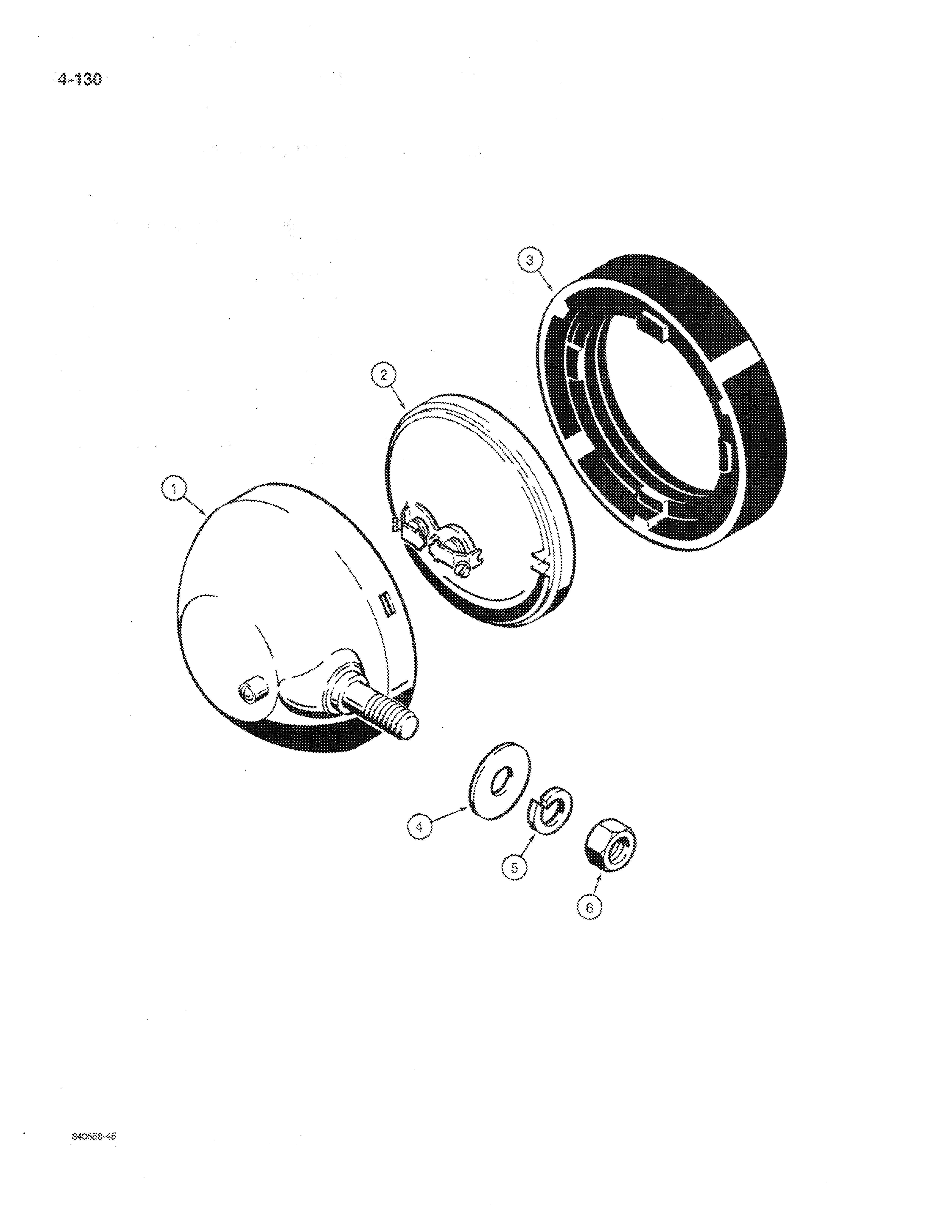

WORK LAMPS ELECTRICAL CIRCUIT AND MOUNTING PARTS

DESCRIPTION

REQ'D. LAMP ASSEMBLY - work, at boom and at turntable, parts list page 4-131 • . •• 4 HOUSING - work lamp, at turntable mounting •.•....•••.••.....•...••.• 2 SPACER - lamp housing, at turntable .....•.•.•..•...••.•.......•....• 2 BOLT· hex head, 1/2" ·13 NC x 2-1/2", plated ........................ 4 NUT - hex, self-iocktng, 1/2" - 13 NC, plated ........................... 4 BRACKET - lamp to housing •......•..•.••...•.•.•................. . 4 BOLT;· hex head, 3/8" - 16 NC x 1-1/4", plated .......••.....•..•.... . . 4 WASHER -lock, 1/4", plated .•......•. • ...•.......•.••.•..•........ 4 GUARD - work lamp .....• ••.. •• .•. . • .•.•.•.••. •. .•........••.. •. . • 4 BOLT - hex head, 3/8" - 16 NC x 1-1/4" ....... . .................... . 16 NUT - hex, self-locking, 3/8" - 16 NC ..•.•••...•...•.•........•...... 16 HARNESS - lower, at switch and turntable lamps •.. ..... •..• ..•........ 1 HARNESS - upper, at boom lamps .....••..•..•...•....•..•.......... 1 STRAP - tie, nylon. harness to hoses or tubes ••..•.....•...•. • ..•... UAR

, 840558-45
