Water Pump

REF, PART NO, 1 A154446 2 A20916 3 L10283 4 221-849 6 A58662 7 A59077 8 195-525 9 492-11038 10 25-166

14 A76322 15 A65917 16 A58895 17 A140924 18492-11038 19 131-903 23 A76351 24 195-525

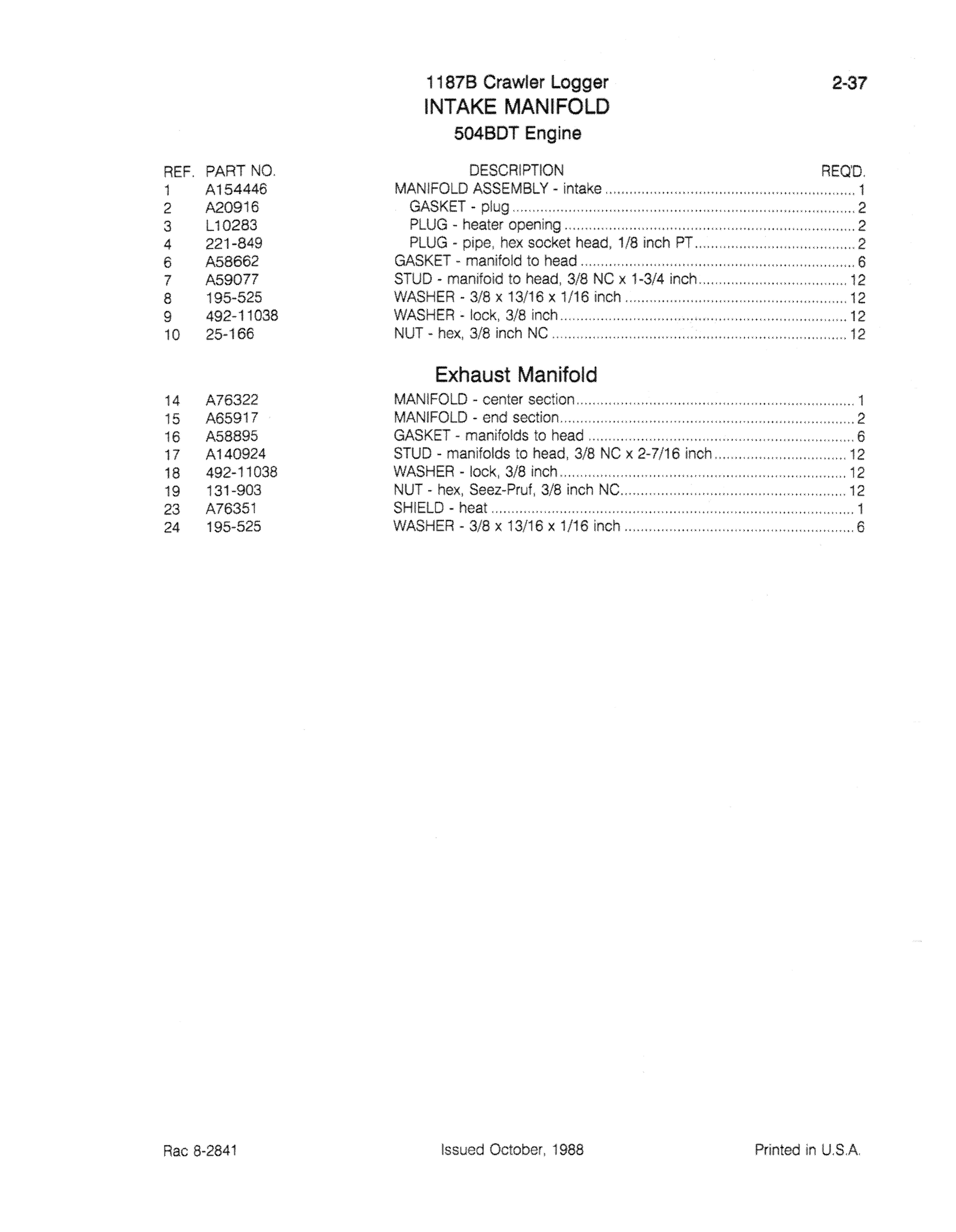

11878 Crawler Logger INTAKE MANIFOLD

5048DT Engine

DESCRIPTION

REQ'O. MANIFOLD ASSEMBLY - intake .... ,,,, "'" """'" ''''''', """." "'"'''''''''''''''''' 1

GASKET - plug ",,, .... ,,, .. ,,,, ,,,,,,,,,,,,,,,, """" '" ,,' .. " " "" .. ",,,,,.,,,,,,,,,,,,,,,,,2

PLUG - heater opening .... ,.", .. ,"'"'''".", .. "''''''''', ...... ,''', .. ,,, .. ,,''', .. ,''''' 2

PLUG - pipe, hex socket head, 118 inch PL" .. " """"" . ".",,,,,,,,,,.,,,,. 2 GASKET - manifold to head '''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 6 STUD - manifold to head, 3/8 NC x 1-3/4 inch,.",,,,,,,,,,,,,,,,,,,,,,,,,,,.,,,,, 12 WASHER -3/8 x 13/16 x 1116 inch """"""",.""."""""""."",,,,,,,,,,,,, .. 12 WASHER - lock, 3/8 inch." """ "''''''''" .. ,''" .. ,'''''''''''''''''''''''''''''''''''' 12 NUT - hex, 3/8 inch NC .. ""',, .. '" ""'","" """ .. ,," .. ,,,""',,"' .... """"", 12

Exhaust Manifold

MANIFOLD - center section ""'"'''''''''''''''''''''''''''''''''' "'" '"'''''''''' "",. 1 MANIFOLD - end section" ."".",."""""."""""""""",,,.,,,,,,,,,,,,,,,,,,,,,,,,, 2 GASKET - manifolds to head,,,,,,,,,,,,,,,,,,,,,,,,,,,,, ,,,,,,,,,,,,,,,,.,,,,,,,,,,,,,,,,,,, 6 STUD - manifolds to head, 3/8 NC x 2-7/16 inoh."",,,,,,,,,,,,,,,,,,,,, .. ,,,,.12 WASHER - lock, 3/8 inCh,,,,,,,,,,,,,,,,,,,,.,,,,,,,,,,,,,,,,,,,,,,,,.,,,,,,,,,,,.,,,,,,,,,,,, 12 NUT - hex, Seez-Pruf, 3/8 inch NC,,,,,,,,,,,,,,,,,, ""'''''''''''''''''''''''''''''''''' 12 SHIELD - heat" '"'''' " " """", "" """'''''' "'" "'"'''''''' " .. " "",,,,' """,,""'" "" 1 WASHER - 3/8 x 13/16 x 1/16 inch '"'''' "" .. '". """"""""" '"'''''''''''''''''' 6

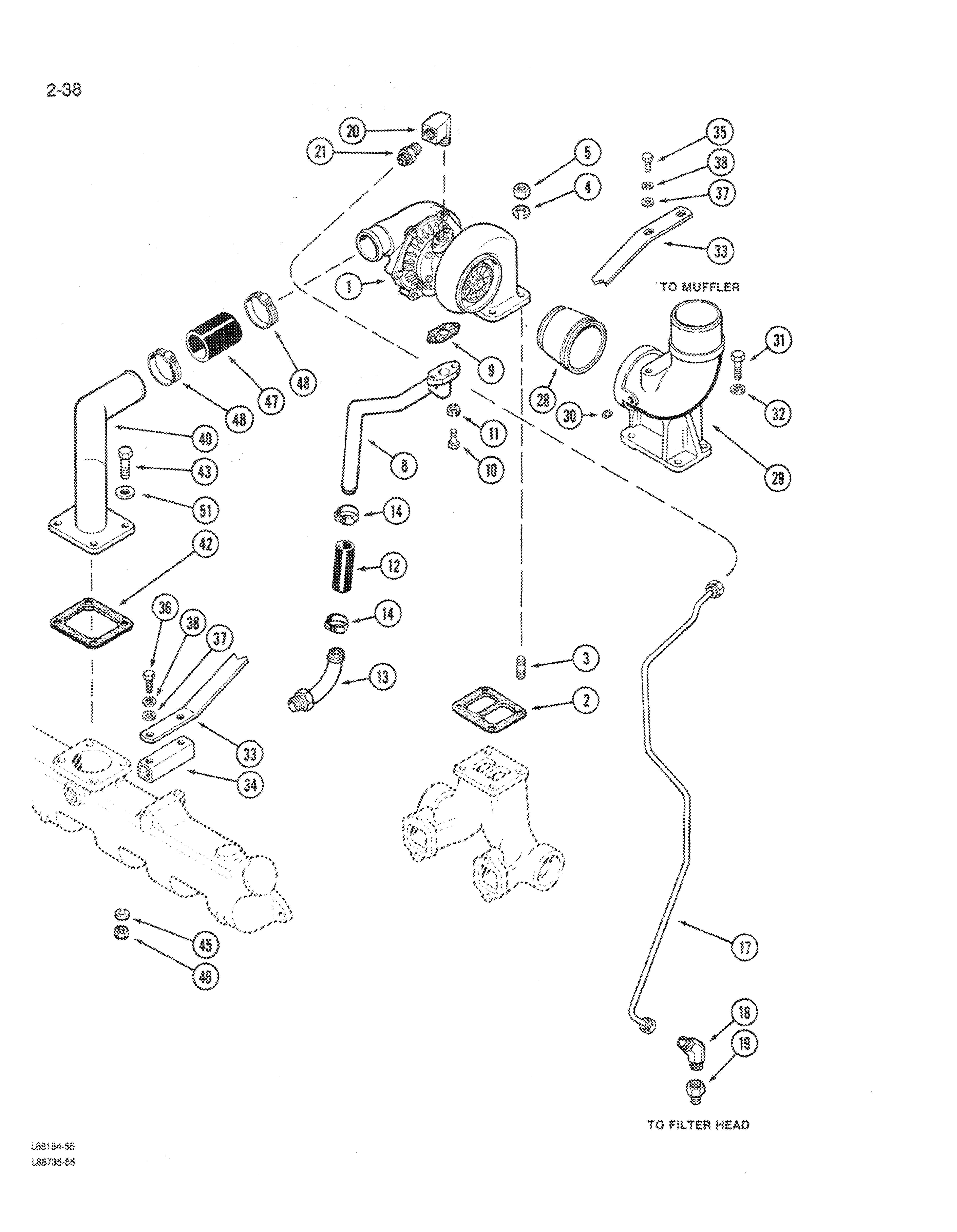

TO flL TER HEAD
