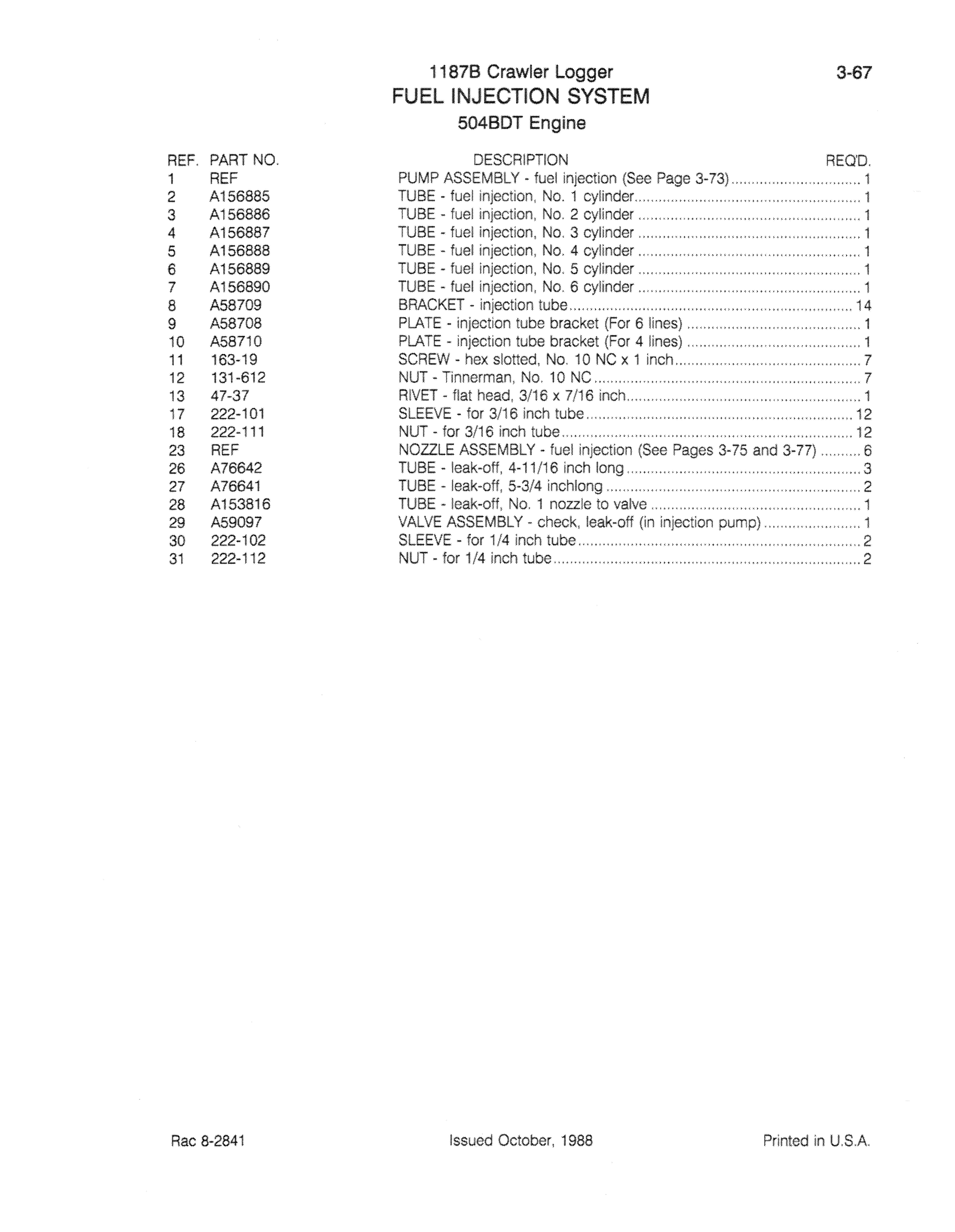

Fuel Injection System

REF, PART NO, 1 REF 2 A156885 3 A156886 4 A156887 5 A156888 6 A156889 7 A156890

8 A58709 9 A58708 10 A58710

11 163-19 12 131-612 13 47-37 17 222-101 18 222-111 23 REF 26 A76642 27 A76641 28 A153816

29 AS9097 30 222-102 31 222-112

11878 Crawler Logger FUEL INJECTION SYSTEM

5048DT Engine

DESCRIPTION REQD. PUMP ASSEMBLY - fuel injection (See Page 3-73) ................ ... " .. " .... ". 1 TUBE - fuel injection, No.1 cylindeL .. ,., ............... , ..... " .. , ... " ...... >< ... . ..... 1 TUBE - fuel injection, No, 2 cylinder ............................................... " ... " 1 TUBE - fuel injection, No.3 cylinder ... " ... " ... " .......... " ... " ... " ... " .. " ....... 1 TUBE - fuel injection, NO.4 cyHnder ...... " .. ,. ....... " .... , .. , ................. " .... 1 TUBE· fuel injection, NO.5 cylinder ......................... " ........ ................... 1 TUBE - fuel injection, NO.6 cy!inder " ...... ' ......................................... 1 BRACKET - injection tube ................. " ........................... " ............. " ...... 14 PLATE - injection tube bracket (For S lines) ......... .. " .. """ " ... " ... ", .... 1 PLATE - injection tube bracket (For 4 lines) ."." ..... .. ... " ..... ................. 1 SCREW - hex slotted, No, 10 NC x 1 inch ............................................. 7 NUT - Tinnerman, No. 10 NC ........ " ........ "" .......... ............... " .. " ....... 7 RIVET· flat head, 3/16 x 7/16 inch ......................................................... 1 SLEEVE - for 3/16 inch tube. . ........................................ ............... 12 NUT - for 3/16 inch tube .................................... " .... ........................... 12 NOZZLE ASSEMBLY - fuel injection (See Pages 3-75 and 3-77) .......... 6

TUBE - leak-off, 4-11116 inch long ....... » ................................................. 3 TUBE - leak-off, 5-3/4 inchlong ... " ....... ........ ........... ......... .................. 2 TUBE· leak-off, No.1 nozzle to valve ......... ...... 1 VALVE ASSEMBLY - check, leak-off (in injection pump) ......... ........ " .... 1 SLEEVE- for 1/4 inch tube .......... " ........... " ... .. " .................................... 2 NUT - for 1/4 inch tube .................................... ... ................................ 2
