Air Cleaner

REF. PART NO. A184169 1 NSS 2 N6660 3 S231996 4 L35499 5 L30936 6 N8431 7 N6661 8 S221314 9 383734R2 10 R21180

Bur 8-2841

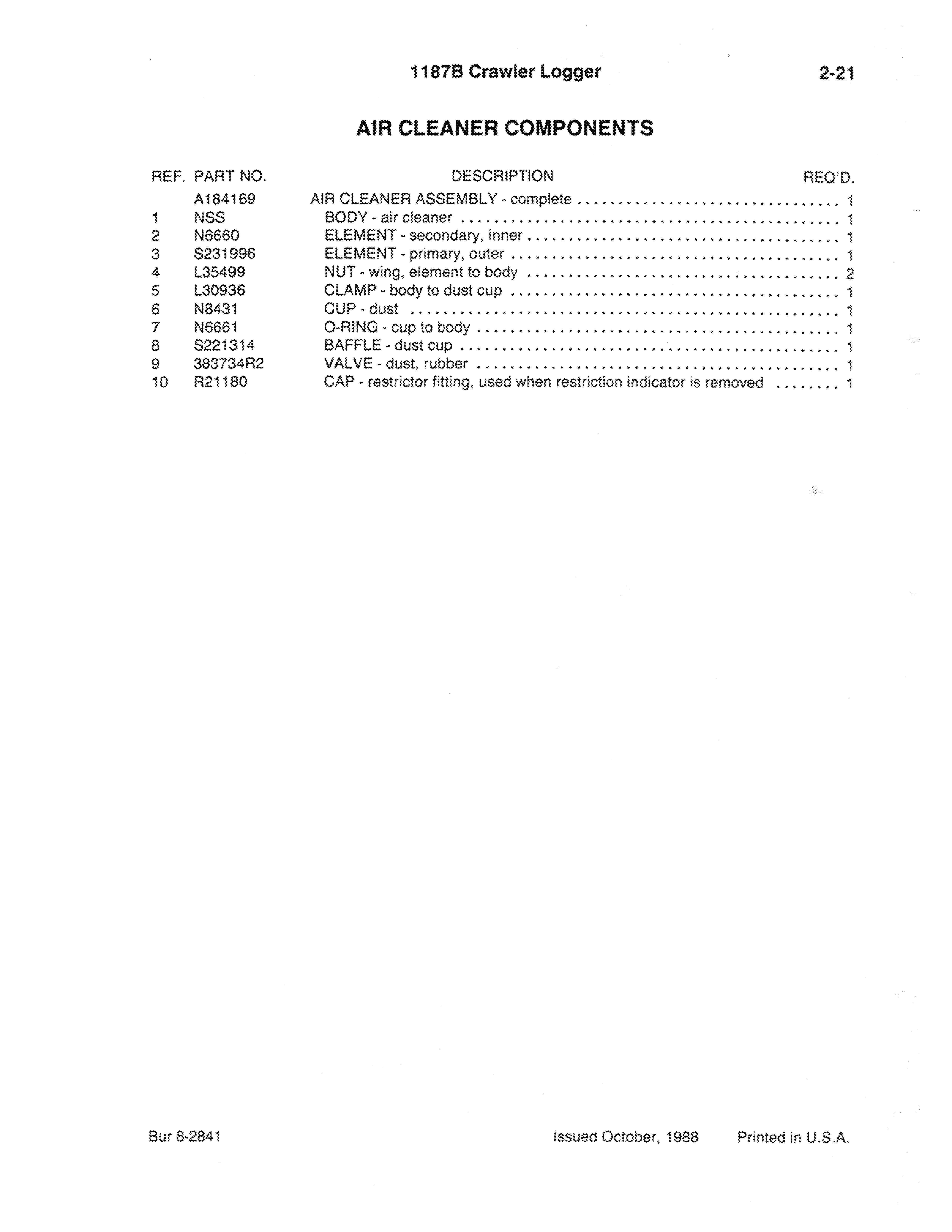

A1R CLEANER COMPONENTS

DESCRIPTION REQ'D. AIR CLEANER ASSEMBLY - complete. • • . • • • • • . • . . . .. . . • . . . . • . . • . .. .. 1 BODY - air cleaner ..•.•.•.•.••...•.•..•. .. •. . .. .. ....• .. •..••. . . 1 ELEMENT - secondary, inner •........•.••...•.•........ •...• ..•... 1 ELEMENT - primary, outer ...•... . .•.......•. . •.•.•.•...•.... . .... 1 NUT - wing, element to body . . .......•...•.•.•..•. .• ....•..• .. •... 2 CLAMP - body to dust cup •.•.... . . • . • . • . . . • . . • . . . . . • . . . . • . . • • . . •. 1 CUP - dust •.••..•....• . •.....•..••.......•..•..•....•..••....• 1 O-RING - cup to body •...•....••.••.••••.........•...... _ ....•... 1 BAFFLE - dust cup •...•.. • .....•.••.....•...•...• • . ........... " 1 VALVE - dust. rubber ......•..•.....•.... • .•.••.•.....•..•...•... 1 CAP - restrictor fitting. used when restriction indicator is removed • ....... 1

Issued October, 1988 Printed in U.S.A.

REF. PART NO. S205216 1 S116433 2 L35279 3 NSS 4 214-262 5 113-75 6 113-3 7 192-19 8 129-141 9 055767 S96079 10 NSS 11 222-650 12 222-660 13 L35283 14 • REF 055946 15 NSS 16 222-650 17 222-660 18 NSS 19 S116438 20 113-103 21 192-20 22 129-102 23 195-103 24 223-250 25 113-207 26 192-21 27 034924 28 221-84 29 ** S119702 30 L18337 31 217-1014

• S118583

... S118377

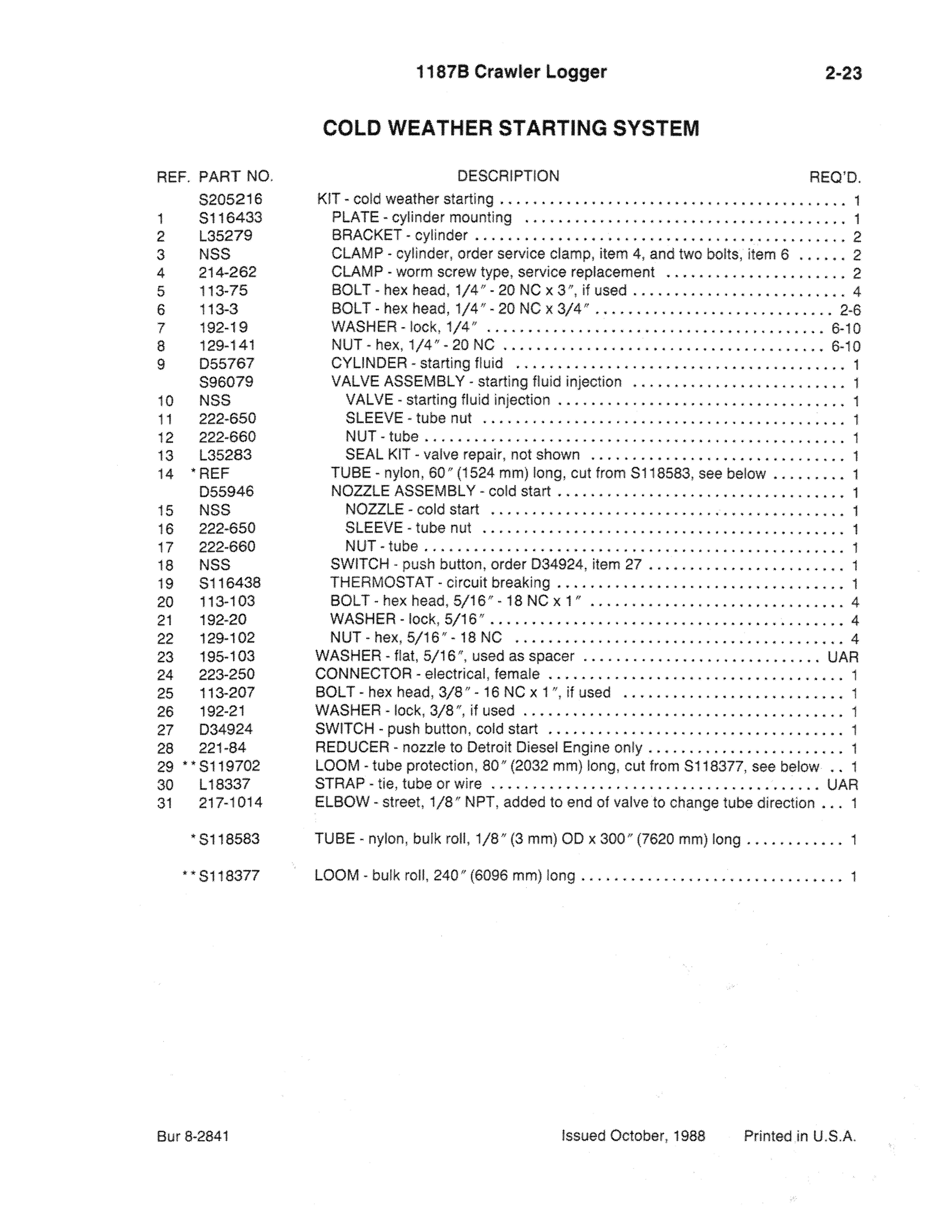

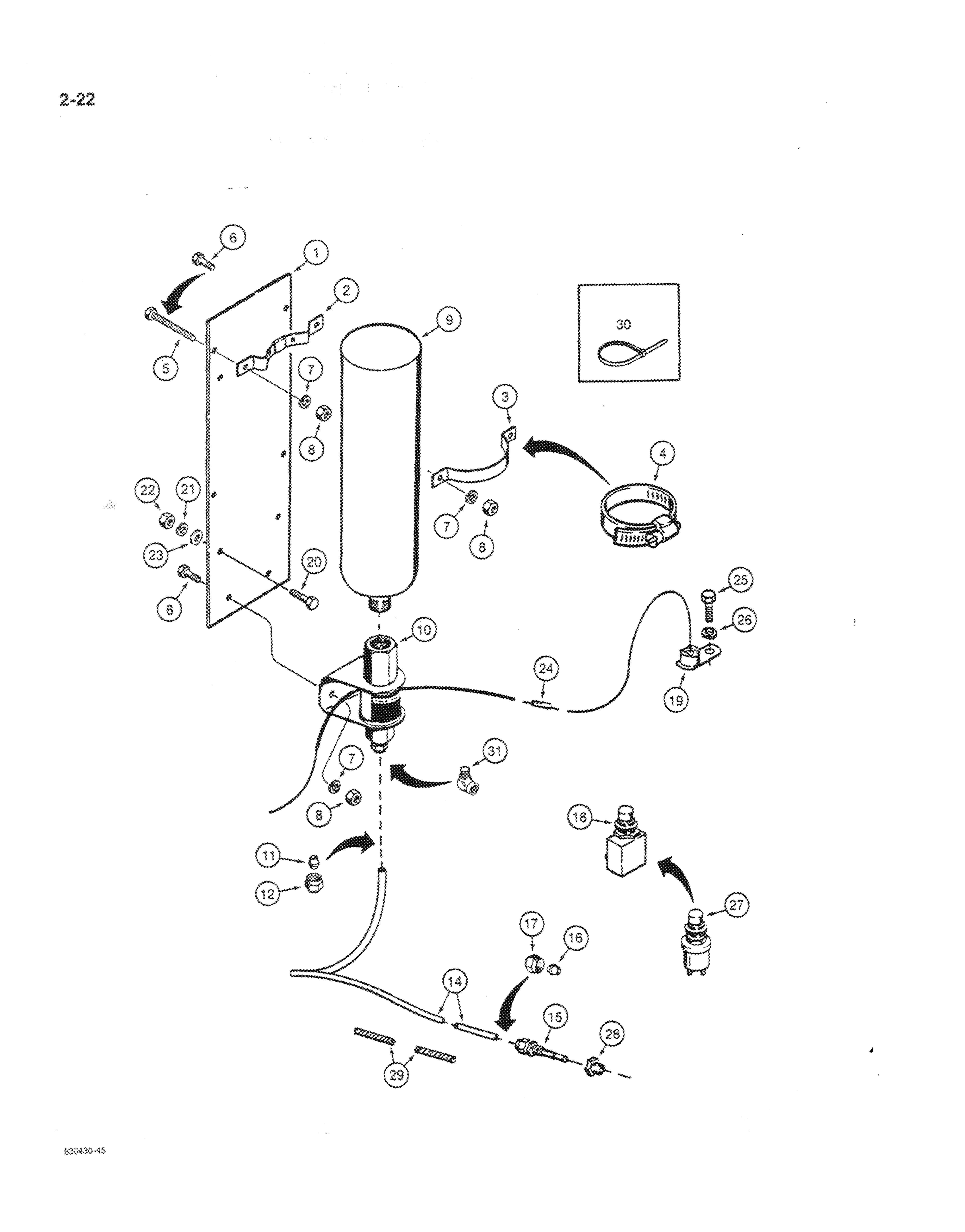

COLD WEATHER STARTING SYSTEM

DESCRIPTION

REO 'D. KIT - cold weather starting . • . . • . . . • . • . . . . . . . . • . • • . • . . . • . • . . . . . . . . • .• 1

PLATE - cylinder mounting .•...•.•••....•..•.....•.•.•...•....... 1

BRACKET - cylinder ...•.....•••.••.••..•.•••..•.....•........... 2

CLAMP - cylinder, order service clamp, item 4, and two bolts, item 6 ...••. 2

CLAMP - worm screw type, service replacement •..•...•..•...•..... . • 2

BOLT - hex head, 1/4" - 20 NC x 3", if used ............ " .. .......... 4

BOLT - hex head, 1/4" - 20 NC X 3/4" ............................. 2-6

WASHER - lock, 1/4" ..•..••.....•..•..••......•..••.•..••...• 6-10

NUT - hex, 1/4" - 20 NC •..•.••.......•.•.•.....•..........•... 6-10

CYLINDER - starting ffuid •...•..•.......••..•......•.••..••.•.... 1

VALVE ASSEMBLY - starting fluid injection •. .• • .• ........•.......•.. 1

VALVE - starting fluid injection ..•.... . • . • • . . • • . . . • • . • • • . . • . . • • . .• 1

SLEEVE - tube nut ............•.•...•...•............•........ 1

NUT - tube . ... ..• •... ..•...•..•.. •..•• .........• . ........ .. .. 1

SEAL KIT - valve repair, not shown .••..•..•.••.•....••..••...•... 1

TUBE - nylon, 60" (1524 mm) long, cut from S118583, see below .•......• 1

NOZZLE ASSEMBLY - cold start .• • . . . • . . • . . . . . • . . . . • . . . . . . . . . . . • .• 1

NOZZLE - cold start •. . • ... •.••.. . ..•.•..•........•.•••... ....• 1

SLEEVE - tube nut ..••......••.....•........•...••••.....•..•• 1

NUT - tube ... •. .••. .......•..• .. •......•.••...• .... '" ...••.. 1

SWITCH - push button, order 034924, item 27 ••.•.....• . • ....... . .. • , 1

THERMOSTAT - circuit breaking .•..•....•.•...•..........•.•.••..• 1

BOLT - hex head, 5/16" -18 NC xl fI ............................... 4

WASHER -lock, 5/16" ... ..• .•....••.........•.•.. •.....•....•..• 4

NUT - hex, 5/16" ·18 NC •.. ....••....•.••.•......••....•.• . ...•. 4 WASHER - flat, 5/16", used as spacer .....•...•....•...••••..•..•. UAR CONNECTOR - electrical, femare ..• • .. ...• .••••.... . .. •. . • .......... 1 BOLT - hex head, 3/8" - 16 NC x 1 ", if used •.•....•................... 1 WASHER - lock, 3/8 'I, if used .. •.•. •.....•.••. •.......•..•.......... t SWITCH - push button, cold start ••.....•.••....•... ..•. ••• ........•. 1 REDUCER - nozzle to Detroit Diesel Engine only ..•.......•.•..•...... " 1 LOOM - tube protection, 80" (2032 mm) long, cut from S118377, see below •. 1 STRAP - tie, tube or wire ..•......•..••.........•.......•..•....• UAR ELBOW - street, 1/8" NPT, added to end of valve to change tube direction .•. 1

TUBE· nylon, bulk roll, 1/8" (3 mm) 00 x 300" (7620 mm) long. " ......•.• 1

LOOM· bulk roll, 240" (6096 mm) long .............................. " 1

BUf 8-2841 Issued October, 1988 Printed in U.S.A.

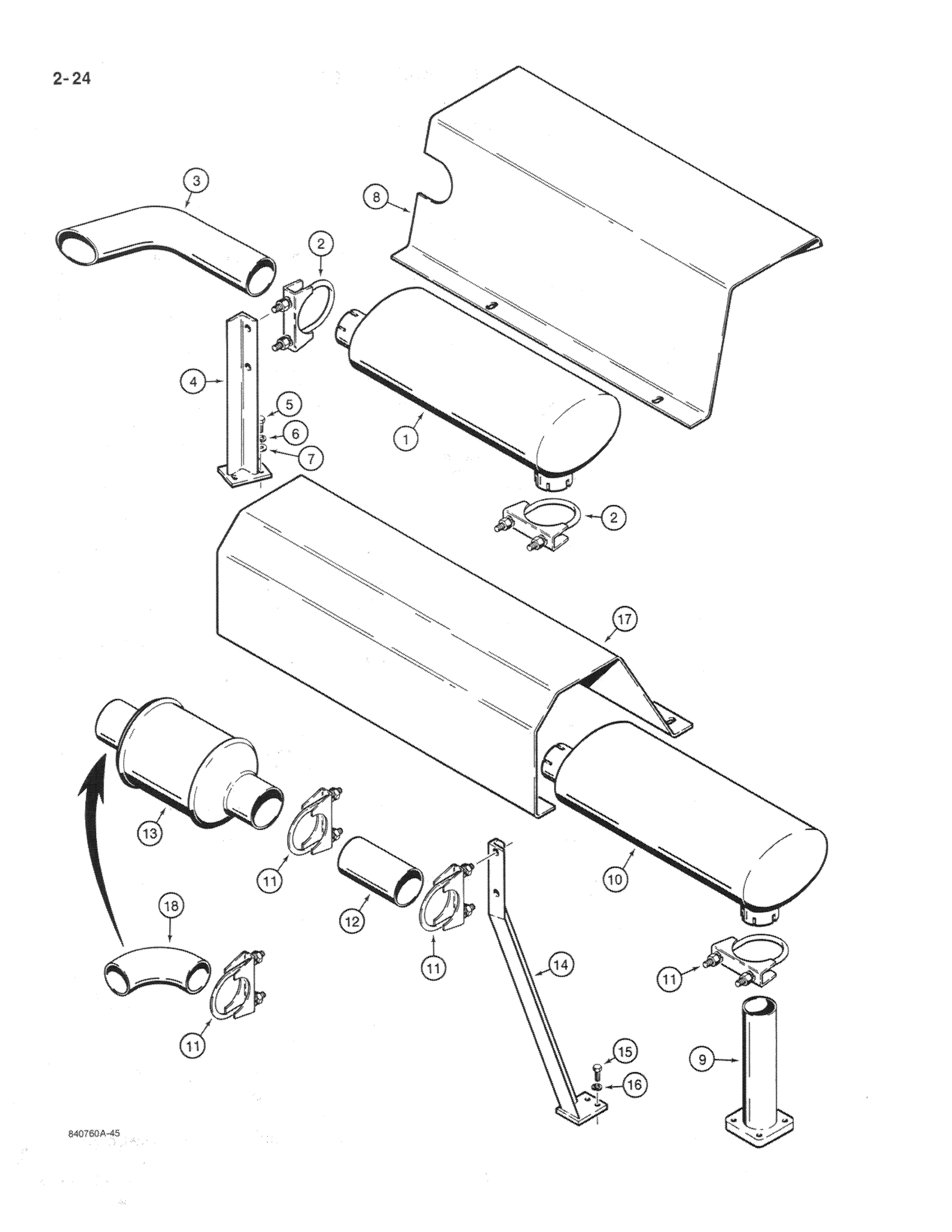

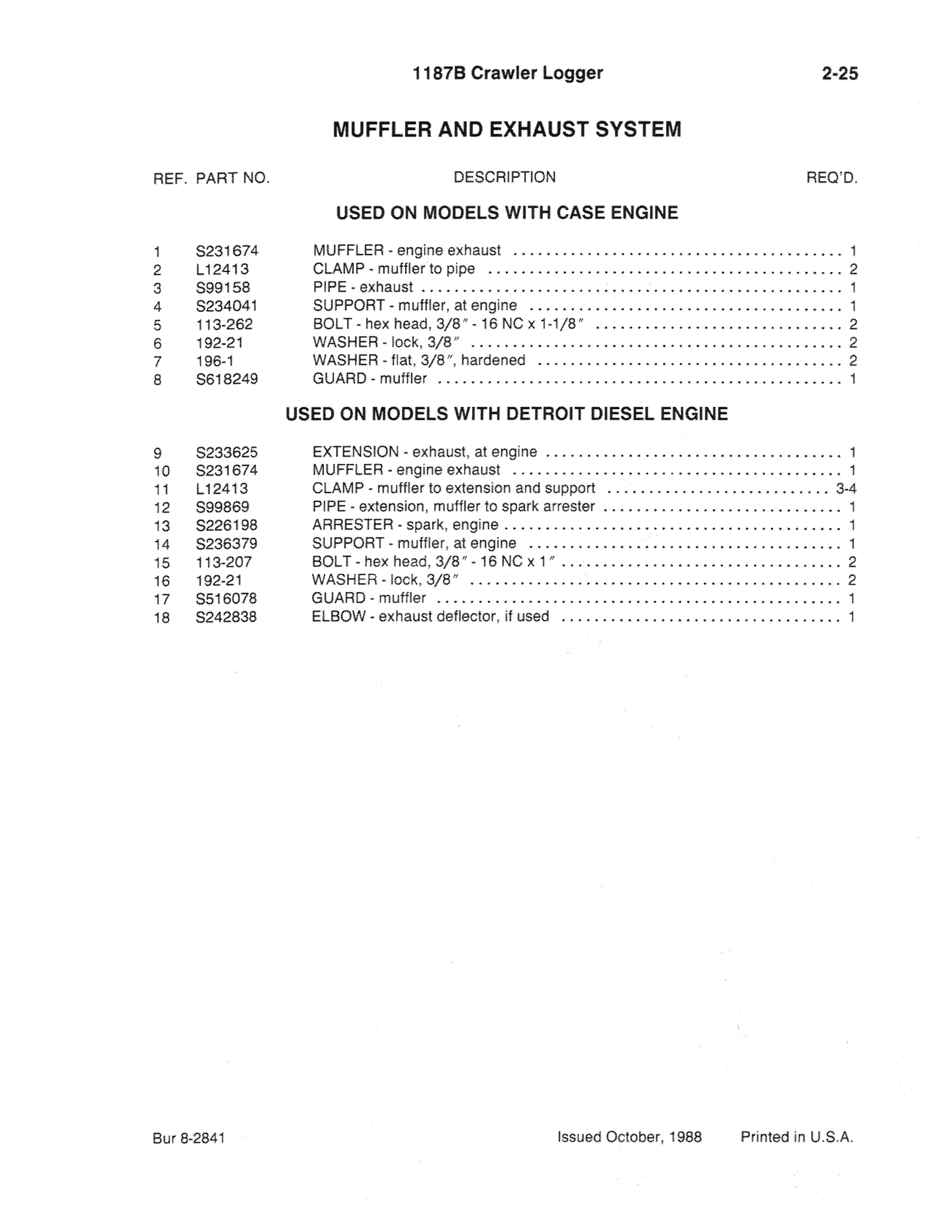

MUFFLER AND EXHAUST SYSTEM

REF. PART NO. DESCRIPTION

USED ON MODELS WITH CASE ENGINE

REQ'D.

1 2 3 4 5 6 7 8 S231674 L12413 S99158 S234041 113-262 192-21 196-1 S618249

8233625 8231674 L12413 S99869 S226198 S236379 113-207 192-21 S516078 S242838

MUFFLER - engine exhaust ...........•......................•..... 1 CLAMP - muffler to pipe ..... .... .............. . ........•...... • . . • 2 PIPE - exhaust .......•. . . . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . • • . . .. 1 SUPPORT - muffler, at engine ....... • ...•......•. • ...•..•..•...•... 1 BOLT - hex head, 3/8" -16 NC x 1-1/8" .......... . ................... 2 WASHER - lock, 3/8" ..... .. .. . . . ........ .. ........ ............ . .. 2

WASHER - flat, 3/8 /1 , hardened ... .... ..• ... ........... •. ........... 2 GUARD - muffler •........................•...•......•.......•.... 1

USED ON MODELS WITH DETROIT DIESEL ENGINE

9 10 11 12 13 14 15 16 17 18

EXTENSION - exhaust, at engine ..•...........•......•............•. 1 MUFFLER - engine exhaust ............•........•..............•... 1 CLAMP - mufffer to extension and support ....................•••.... 3-4 PIPE - extension, muffler to spark arrester .....................•...•... 1 ARRESTER - sparK, engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . . . . • .. 1 SUPPORT - muffler, at engine ..........••......•.•................. 1 BOLT - hex head, 3/8" -16 NC x 1" . . ................................ 2 WASHER - lock, 3/8" .. ........ . .... . . . ..... .. ......... . . ........ . 2 GUARD - muffler ..•..........................••....•.....•....... 1 ELBOW· exhaust deflector, if used .. , .....•••...••............•..... I

Bur 8·2841

Issued October, 1988 Printed in U.S.A.
