Fuel Injection Pump Drive

REF. PART NO. 1 REF 2 A59077 2 A142092 3 A57470 4 193-68 5 25-106 5 25-126 8 A58693 9 113-207 10 492-11038 12 A62542 13 A58690 14 A58691 15 AS8692 16 113-440

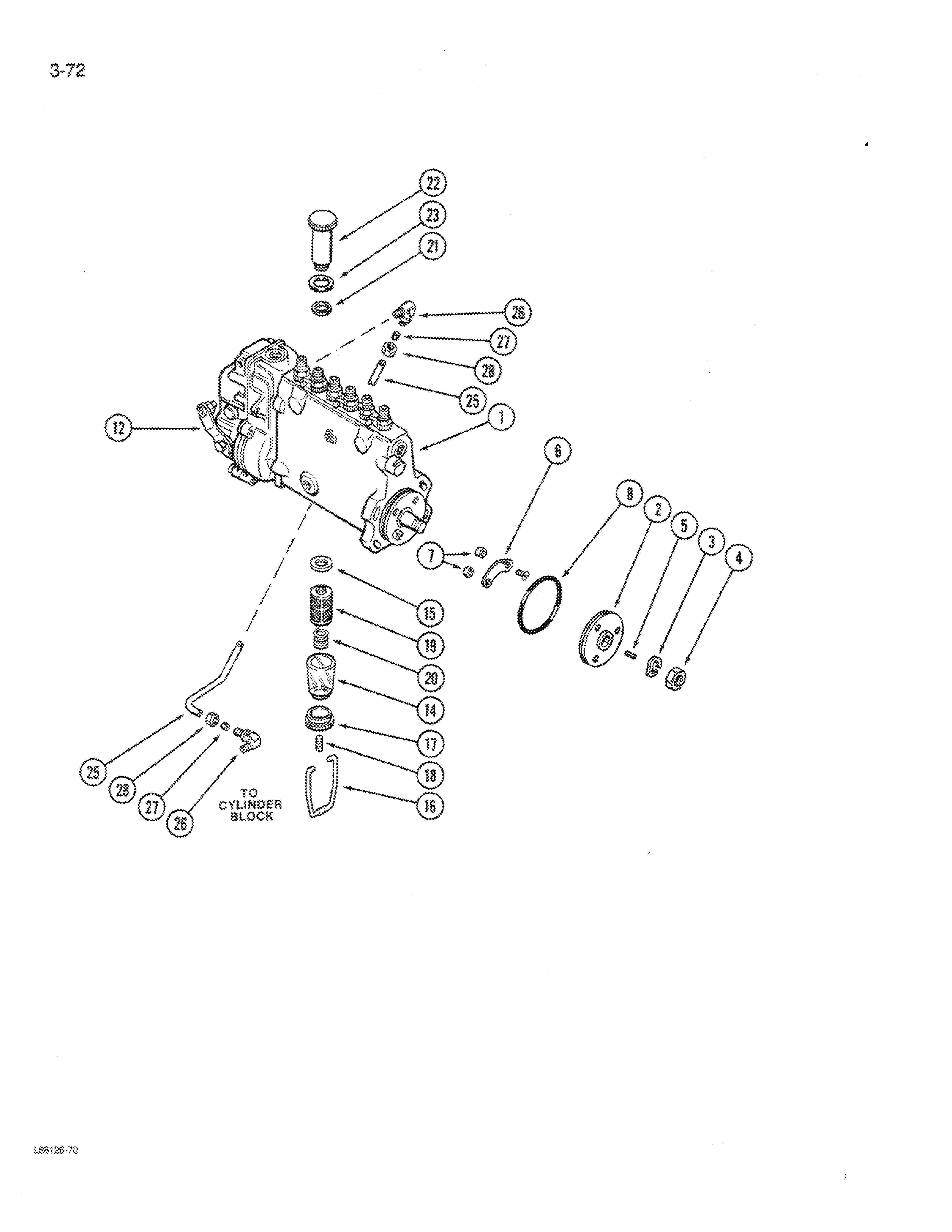

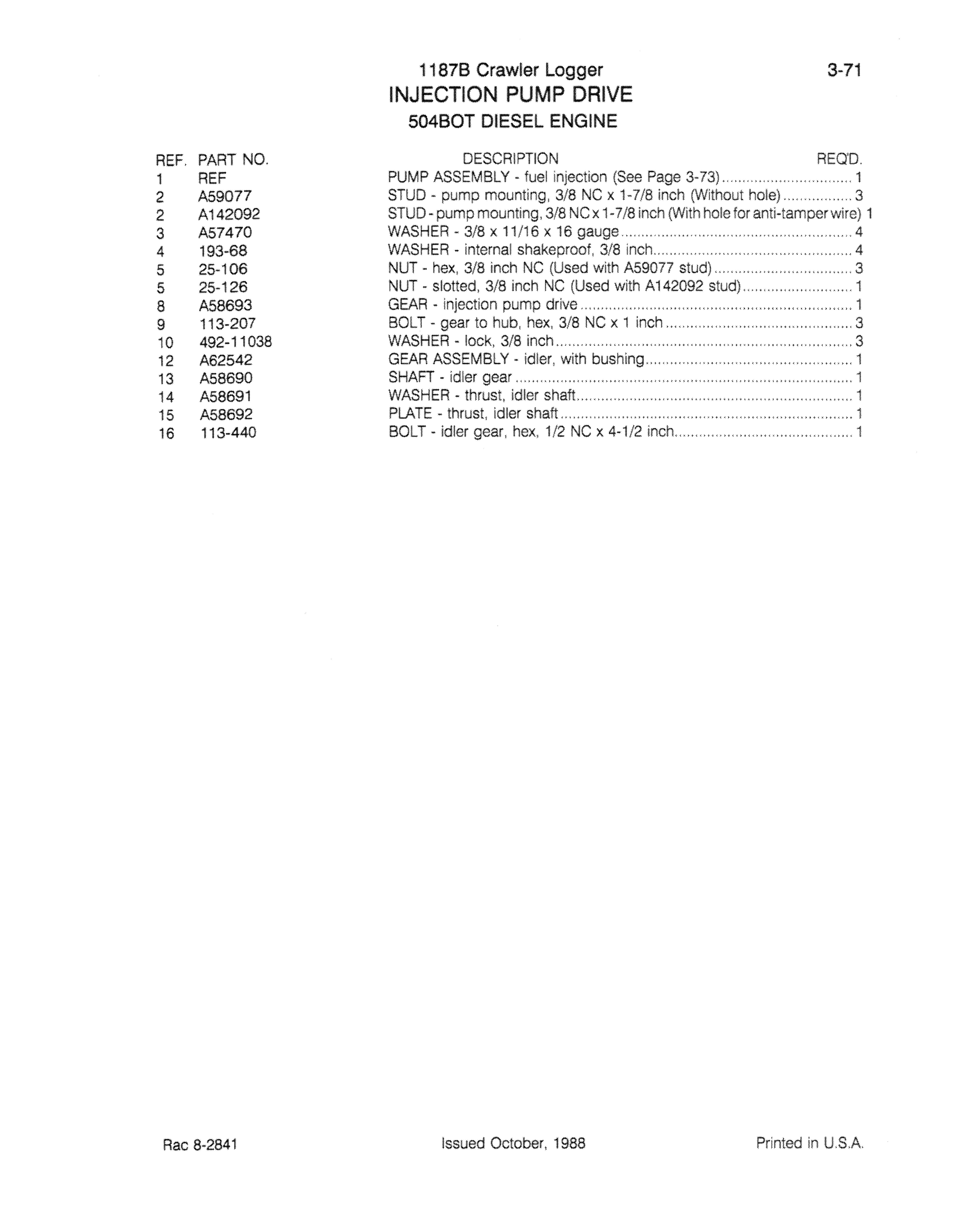

1187B Crawler Logger INJECTION PUMP DRIVE

504BOT DIESEL ENGINE

DESCRIPTION REQD PUMP ASSEMBLY - fuel injection (See Page 3-73)."." " .,., ... ,," 1 STUD - pump mounting, 3/8 NC x 1-7/8 inch (Without hole) " , .. " "",,3 STUD -pump mounting, 3/8 NC x 1-7/8 inch (With hole for anti-tamper wire) 1 WASHER - 3/8 x 11/16 x 16 gaugs .. " " ...................... " ..... , ................... " 4 WASHER - internal shakeproof, 3/8 inch ..................... , .. " ................. , . .4 NUT - hex, 3/8 inch NC (Used with AS9077 stud) , .... ", ... " ......... ............ 3 NUT - slotted, 3/8 inch NC (Used with A142092 stud) .............. , ....... , .... 1 GEAR - injection pump drive .......... , ......... , ..... , ........................................ 1 BOLT - gear to hub, hex, 3/8 NC x 1 inch ................. ' ........ ' ... " ...... " .... " 3 WASHER - lock, 3/8 inch ....... " .................................................. " .. ..... ,3 GEAR ASSEMBLY -idler, with bushing .... " ....... , ....... " ............................ 1 SHAFT - idler gear ....................... "......... . .......... " ............... " " ........ 1 WASHER - thrust, idler shafi ................. ....................... """".,, ............... 1 PLATE - thrust, Idler shaft... ................................................... " ................ 1 BOLT - idler gear, hex, 1/2 NC x 4-1/2 inch ............................. .............. 1
