Hydraulic System • . . . • . • • • . . . . . • . • • . .. 13 Oil Filters

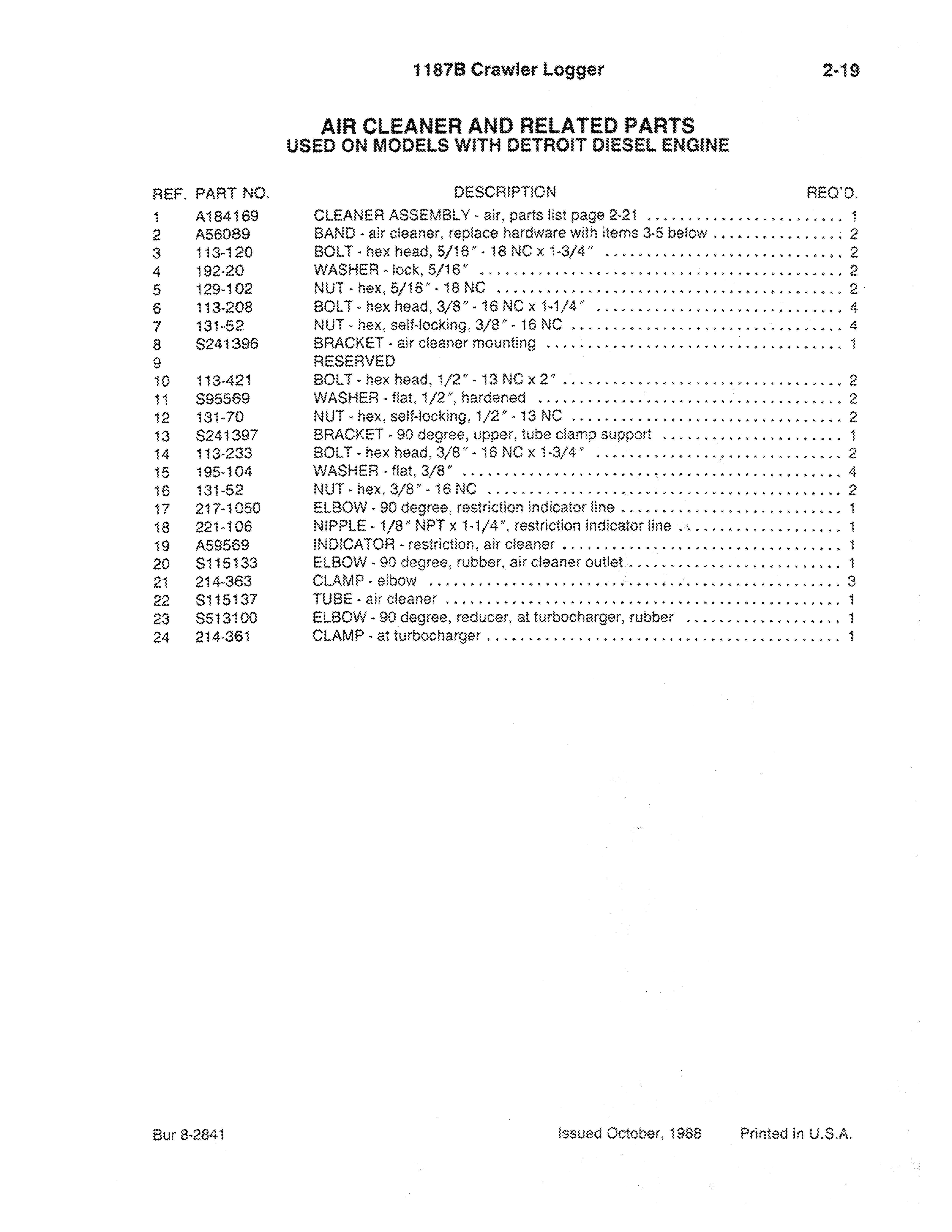

AIR CLEANER AND RELATED PARTS

USED ON MODELS WITH DETROIT DIESEL ENGINE

REF. PART NO. 1 A184169 2 A56089 3 113-120 4 192-20 5 129-102 6 113-208 7 131-52 8 8241396 9 10 113-421 11 895569 12 131-70 13 8241397 14 113-233 15 195-104 16 131-52 17 217-1050 18 221-106 19 A59569 20 8115133 21 214-363 22 8115137 23 8513100 24 214-361 DE8CRIPTION

REQ'D. CLEANER AS8EMBL Y - air, parts list page 2·21 .•.........•...•......•. 1 BAND - air cleaner, replace hardware with items 3-5 below .••. •........• . • 2 BOLT - hex head, 5/16" -18 NC x 1-3/4 1r ............. . .. . . ........... 2 WASHER -lock, 5/16" .......................... . ........... ... . .. 2 NUT - hex, 5/16" -18 NC •. . ..............• . •• . 2 BOLT·hexhead,3/8" -16NC x 1-1/4" ......•....... ., ... . .... . ..... 4 NUT - hex, self-locking, 3/8/1 - 16 NC •......... •. .• . .••.... •. .•....••. 4 BRACKET - air cleaner mounting .........•.............. •.•..••.•... 1 RESERVED BOLT - hex head, 1/2" - 13 NC x 2ft ..................... . .......... .. 2 WA8HER - flat, 1/2", hardened .................. . ..... ............. 2 NUT - hex, self-locking, 1/2" - 13 NC .. .. ........ . .......•... .• ..... . . 2 BRACKET - 90 degree, upper, tube clamp support .......•.••..• . •.• .• .. 1 BOLT - hex head, 3/8/1-16 NC x 1-3/4" ..... . ••.. .. ... . ... •. ......•• . 2 WASHER - flat, 3/8" .. . ........•......•..•. •. .• . ..•. . .. . ....•..•.• 4 NUT· hex, 3/8" -16 NC ...•.. . . . .... . ..•..•... •. .•....•. . .•....•.• 2 ELBOW· 90 degree, restriction indicator line . .• . . . . • . • . . . • • . . . . . • . . • • •. 1 NIPPLE· 1/8" NPT x 1-1/4/t, restriction indicator line ..••.......•..••.... 1 INDICATOR - restriction, air cleaner ..... . .•.•... " •.....•.•...••...•. 1 ELBOW - 90 degree, rubber, air cleaner outlet .•........••... . .......... 1 CLAMP - elbow .•.•................... ;: ....•...•...•..• . ••..•..•. 3 TUBE· air cleaner . . ........•........••... . .....•... . ...•..•..•••. 1 ELBOW - 90 degree, reducer, at turbocharger, rubber .. • ... . ........•••. 1 CLAMP - at turbocharger . . . . . • . • • . . . . . . . . . • . . . . • • . . • . • • . . . . . . . • • . •. 1

Bur 8-2841 Issued October, 1988 Printed in U.SA
