7.7 Removing and installing the front bumper / bumper moldings

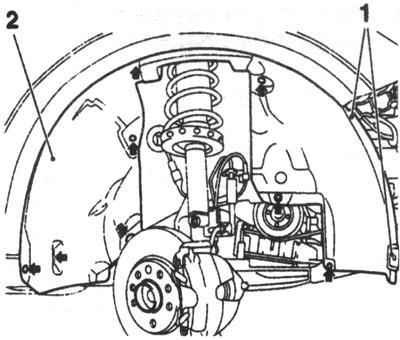

Fig. 8.4. Mounting protection arch before-it Wheels - Arrow given spacing-WIDE rivets arch:

1 - mounting screws and 2 - protection of the arch Installation is performed in reverse order of removal.

Remove the decorative grille. Remove the mounting pads front bumper (see Figure 8.5). Release the temperature sensor of the holder on the grille bumper moldings.

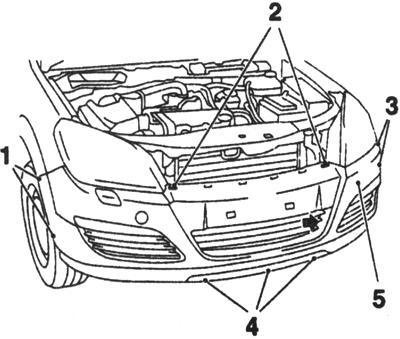

Fig. 8.5. Mounting pads front bumper Car Opel Astra:

1,3 - bolts fastening; 2,4 - locks, 5 - lining With proper configuration, disconnect the wiring fog lamps, and headlamp washer hose from the tank with the liquid for washing of glass-Collect spilled liquid. Click on the side fasy bumper pads in the direction of up and release the pad from the side rails (see Figure 8.6).

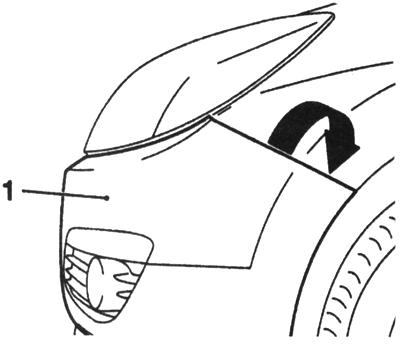

Fig. 8.6. Push on side fasy on-stack anterior bumper and will free-te pad of side guides: 1 - lining

NOTE Be careful - Not damage the mounting lining bumper.

Release the bumper pad of the front guide, located on the beam between the bumper lights, and with the help of an assistant remove the pad. Remove the headlamp. Remove the side support pads bumper (see Figure 8.7).

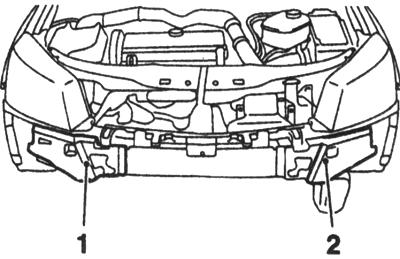

Fig. 8.7. Side support lining bumper

Rassverlite heads of the five hidden rivets, vybeyte rivets and remove the front bumper beam to the guide (Fig. 8.8). Cut the mounting wiring and remove the tourniquet from the bumper beam. Remove the fixing screw and remove the bumper beam tank with liquid for washing of glass (Fig. 8.9).

Loosen the 4 nuts, remove the mounting bolts and remove the beam from the frame. When you install a beam to use the new mounting bolts and nuts. Flange beams bumper after tightening the bolts for protection should be sealed with wax. Further installation is in reverse order of removal. To mount the front rail using new rivets, and the slide should be displayed on the center hole.
