7.17 Removing and installing lock side doors

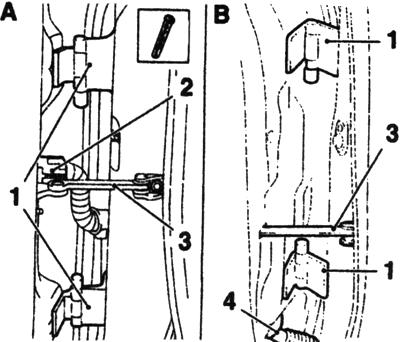

Fig. 8.21. Mounting side Doors: A - Front side door; B - rear side door; 1 - hinges, 2, 4 - electrical connectors; 3 - constraints of the door

NOTE Axial fingers door loops must stand out with end of co-tory was dressed cap.

Installation is performed in reverse order of removal. Before installing grease axial fingers hinge waterproof grease. After installing the door hinges on the adjustment made accordingly (see below). Tighten the bolts fastening the hinge pin with the desired momentum. Remove the bracket lock. Align door Touring Car aperture is accomplished by podgibaniya door hinges. This operation requires a certain experience - if not sure of yourself, contact the service station. Close the door and check the gap between adjacent elements of the bodywork. The back of the door is adjusted correctly when in the closed position around the perimeter is a uniform gap, and the door is flush with the surrounding bodywork surfaces If necessary, adjust the door. The front edge of the rear door may be deeper than the trailing edge of the front door no more than 1 mm. Replace the bracket lock side door and tighten its mounting screws by hand. Gently close the side door, and the clamp will lock into position. Open the door and tighten the bolts fastening the bracket. Several times, close and open the door, check its position and the ease of opening / closing, if necessary, repeat adjustment, and repair damage to the coating, caused by podgibaniya loops.

Disconnect the wire from the negative terminals of the battery. Remove the door trim. At the front door clear the 2 fastening at the back of the door frame. Remove the back of the insulation film, disconnected the wiring connector lock. Take up locking bracket and disconnect the door lock from the thrust bearing (Fig. 8.22).
