7.9 Removal and installation of front wings

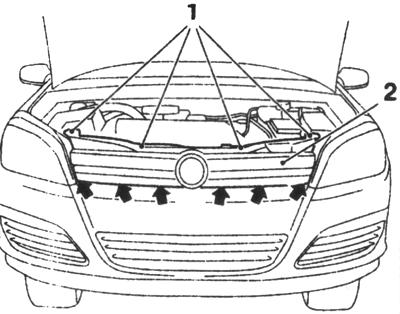

Fig. 8.10. Rivets fixing decorative tive lattice Radiator (Arrows indicate place location fixative-ing): 1 - rivet fastening, 2 - decorative grille

Remove the lamp, side repeater flashers. Remove the protection of wheel arches. Remove the pad front bumper. Upon removal of the right wing on gasoline models, release nuts, remove the carbon adsorber system EVAR take him to the side. Remove the isolation of the wing (Figure 8.11).

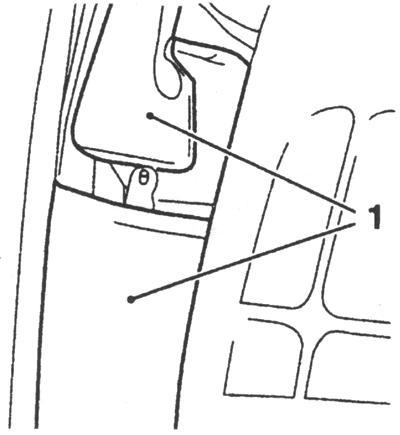

Fig. 8.11. Isolation wing:

1 - isolation If the removal of the wing is made with a view to its eventual replacement, must be removed from his side the guide (Figure 8.12). Rassverlite heads of the three rivets and rivet vybeyte of planting holes. Remove with a plastic wedge pad wing of the windshield, then remove the tape from the frame (Figure 8.13).

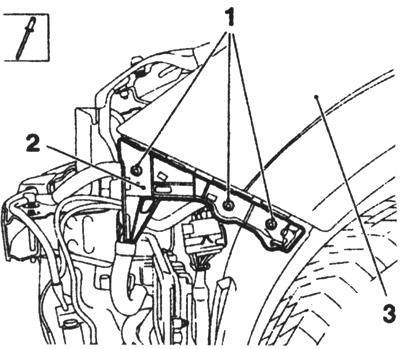

Fig. 8.12. Rivets side guide front wing: 1 - rivets, 2 - side slide 3 - wing

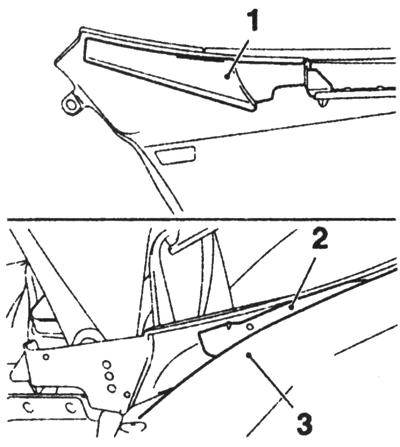

Fig. 8.13. Tape for installation lining front wing on the frame of the windscreen: 1 - tape 2 - lining, 3 - frame of the windscreen
