7.20 Removing and installing upholstery, side door

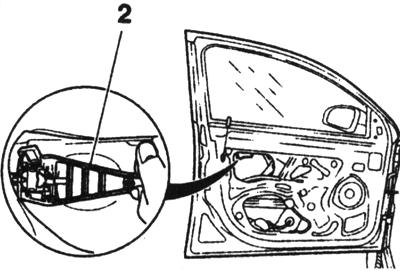

Fig. 8.26. Extract reference Staples in the District Pens of door assembly

Installation is performed in reverse order of removal.

Disconnect the wire from the negative terminals of the battery Open the door. Using a plastic wedge separate overlay front speaker pressed the 3 release (Figure 8.27).

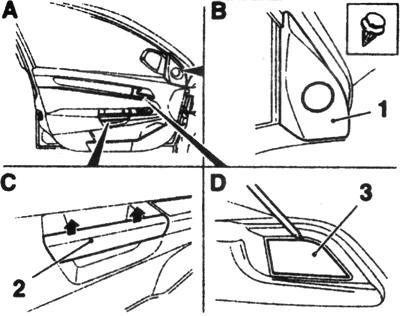

Fig. 8.27. Withdrawal linings front door:

1 - the outer lining front speaker; 2 - door armrest pad assembly; 3 - lining the interior door handle Speaker wiring connector disconnected from the inside and remove the pad. Similarly, taking the pad to remove the armrest pad and door interior door handle. Be careful not to damage the lining. Remove the mounting bolts, using a plastic wedge, separate from the door trim assembly, squeeze clamps 5. Disconnected the wiring harness connector from the back of the upholstery (Figure 8.28).
