1.32 Start the engine by using an auxiliary start cable

Tires get old, even if the car does not drive or drives low. Unused spare wheel after 6 months to apply only in extreme cases and only at a slow ride. Never place used tires, whose origin is unknown. In order not to impair brake cooling, use only shields the wheels, admitted for this car.

Winter tires

Winter tires at a temperature below 7 "C provide improved safety, so they should be installed on all wheels. Summer tires in its construction have limited features for winter operation. If the maximum allowable speed for winter tires less than the car, attach the index plate with a permissible maximum speed of winter tires in a conspicuous place of the driver.

NOTICE When use Reserve oscilla-sa with summer bus perhaps modification is running qualities car. Urgently replace damaged tire, otbalansiruyte wheel and US-establish, his on car. Caps wheels

In the case of application is not approved by Opel caps wheels and tires need to pay attention to the fact that the tires had no protective thickening.

Chains protivoskolzheniya

The use of chains is allowed only on the leading wheels (front) of the bridge.

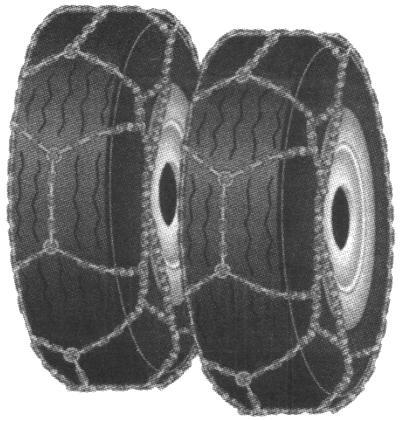

Fig. 1.244. Chains protivoskolzheniya

Use melkozvennye chain, the height of which, together with a connecting link in the chain of running surface and the inside of the tire is a maximum of 15 mm.

NOTE Caps steel wheels may Co-touch with links chains and damage-Xia. Before installation chains kolpa-ki wheels should removed.

Snow chains are allowed to use only up to 50 km / h and at snowless areas only for a short time, since the solid surface, they quickly wear out and can burst.

Emergency Wheel

Use of snow chains on the emergency wheel is not allowed. If you puncture to the front wheel drive with snow chains, emergency wheel should be installed on the rear axle and rear wheel - on the front.

If the battery is discharged Opel Astra car, the engine can be run using the auxiliary start cable and battery of another car (Figure 1.245).

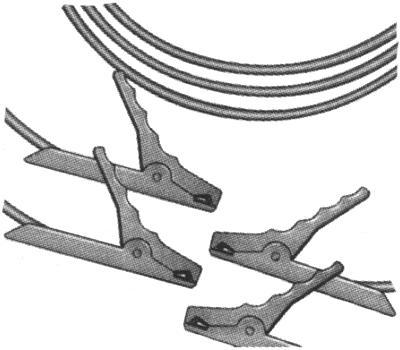

Fig. 1.245. Auxiliary starter cables

It should exercise extreme caution. Any deviation from the instructions given may result in injury or damage in the explosion of battery battery and damage to electrical devices of both cars. Avoid sparks and open flame near the battery.

The discharged battery can freeze at a temperature 0 "C. Before you connect the auxiliary starter cable, you need to defrost frozen battery in a warm room. Do not expose the battery fluid in eyes, on skin, fabric and lacquered surfaces. The fluid contains sulfuric acid, which is in direct contact injuries. When working with battery wear protective glasses and clothing. Use the auxiliary battery constant voltage (12 V). Its capacity (Ah) must not be substantially less than the capacity discharged battery. The values of voltage and capacitance are listed on batteries. Should use an auxiliary starter cable with insulated pole clamps, a section not less than 16 mm 2, for diesel engines - 25 mm 2. The discharged battery will disconnect from the onboard network. Disable unnecessary consumers of current. During the whole procedure did not lean over the battery. Pole clamps a cable must not touch the terminals of another. During the start-up support vehicles must be fixed. Tighten the parking brake. Manual gearbox and a box Easytronic switch to the neutral position, the automatic transmission - in the position of R.

Connecting auxiliary battery

Connect the cables to the one shown in Figure 1.246 sequence.

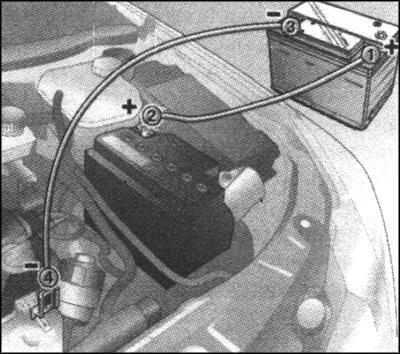

Fig. 1.246. Sequence Connect-cheniya Supplementary Battery

1. Connect the cable to the positive pole 1 auxiliary battery (the plus sign on the battery case or terminal). 2. The other end of the cable to the positive pole of 2 discharged battery (plus sign). 3. Connect the cable to the negative pole 3 auxiliary battery (minus sign). 4. The other end of the second cable 4 connect with a mass of another car - for example, connect to the engine block or a threaded connection suspension engine (Fig. 1.246).

NOTICE Not connect cable to a negative pole discharged Ak kumulyatora.

Connection point should be located as far from the discharged battery. Cables installed so that they do not touch rotating parts, engine compartment. Start the car engine, which is fed with current. After 5 minutes, start the engine of another car. Attempts to start should not last more than 15 seconds with an interval of 1 min. After starting both engines give them something to work about 3 minutes at idle, without disconnecting cables. To avoid excessive stress on the electrical system before disconnecting the cables from the terminals should include any consumer of electricity (eg, light, rear window) on the consumption current car. Removing the cables are manufactured in the reverse order of installation.

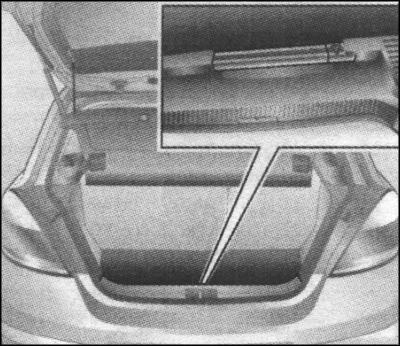

Badge Emergency stop "Limousine"

Sign of the emergency stop is placed on the back of the trunk (Fig. 1.247).

To install the sign in place, slide it into the hole on the left, then insert in the guide on the right. To remove the warning triangle, lift it from the right side and pull motion to the right. In cars with the cargo compartment to lift the warning triangle on the right half of the cargo box. Remove the warning triangle motion to the right.

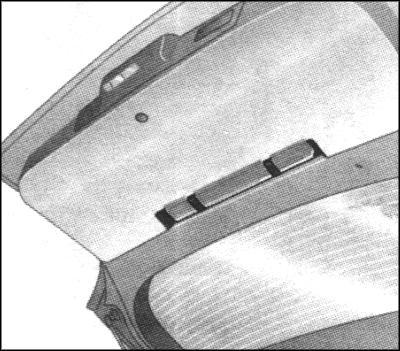

Badge Emergency stop "Caravan"

To install the sign in place, attach it to the fastening straps on the inside padding of the back door (Fig. 2.248).

Fig. 1.248. Mark Emergency stop "Caravan"

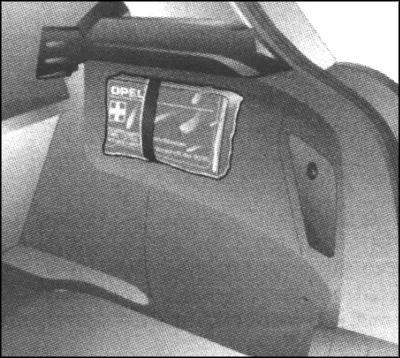

Road kit "Limousine"

Road kit is fastened with a belt on the right side of the trunk (Fig. 1.249).

Fig. 1.249. Road kit "Limousine"

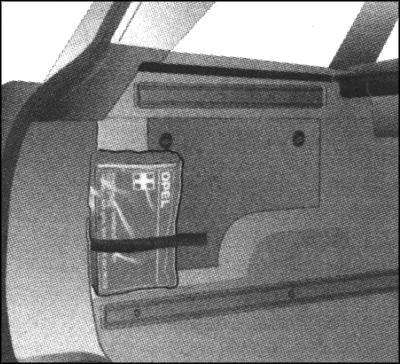

Dressings package "Caravan"

Dressing with a belt fastened on the left side of the trunk (Fig. 1.250).
