2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette

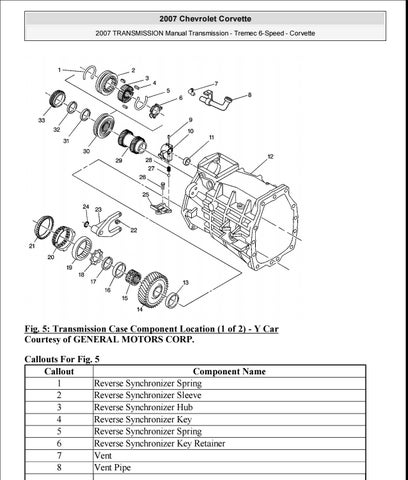

Fig. 5: Transmission Case Component Location (1 of 2) - Y Car Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 5 Callout Component Name 1 Reverse Synchronizer Spring 2 Reverse Synchronizer Sleeve 3 Reverse Synchronizer Hub 4 Reverse Synchronizer Key 5 Reverse Synchronizer Spring 6 Reverse Synchronizer Key Retainer 7 Vent 8 Vent Pipe MY Wednesday, April 01, 2009 10:44:28 AM
Page 8
