5th/6th Shift Lever Pad

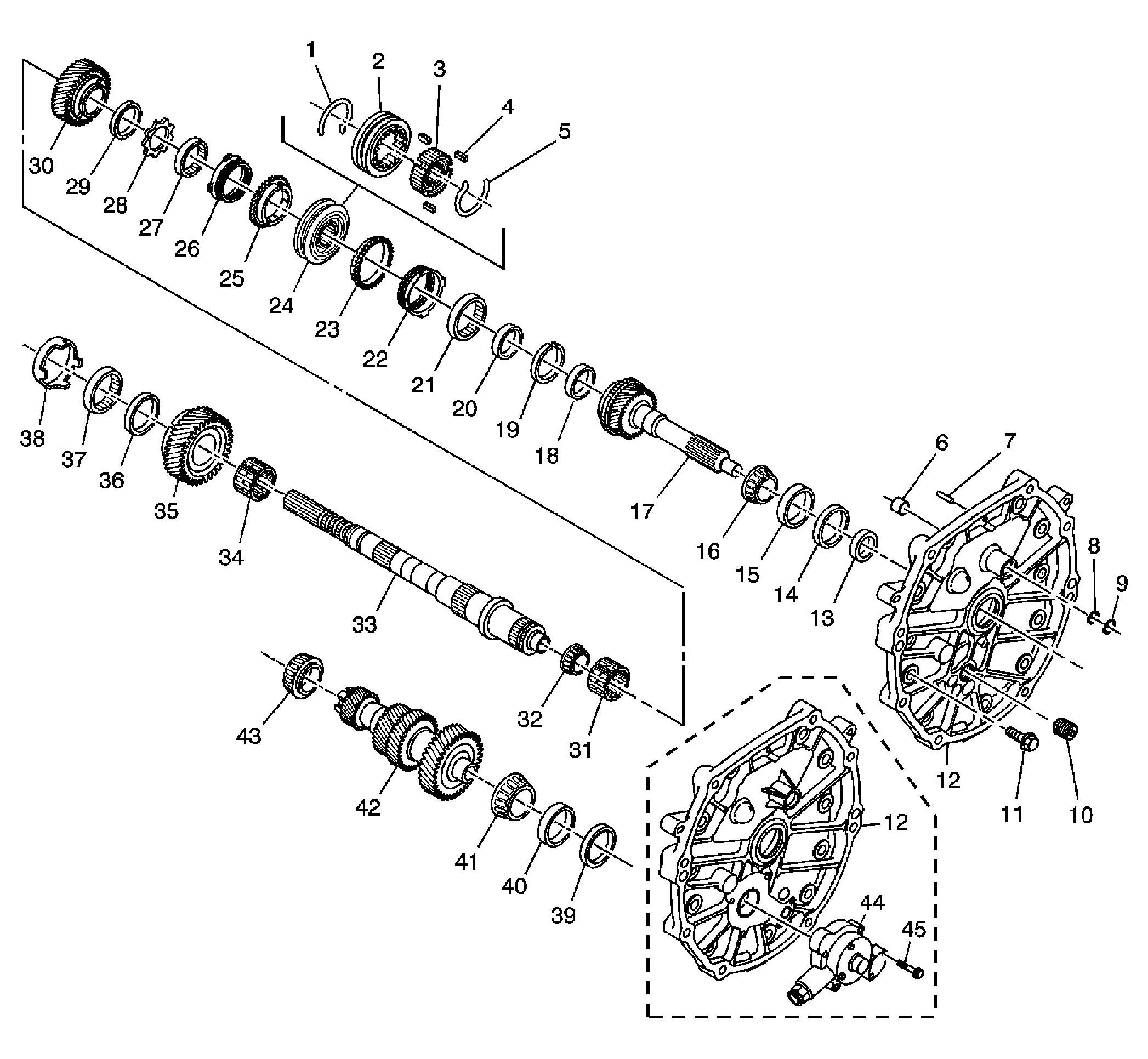

Fig. 7: Adapter Plate and Gears Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7 Callout

Component Name

1 3rd/4th Synchronizer Spring 2 3rd/4th Synchronizer Sleeve 3 3rd/4th Synchronizer Hub 4 3rd/4th Synchronizer Key 5 3rd/4th Synchronizer Spring 6 Top Shaft Rail Bushing 7 Dowel Pin 8 Inner Shift Shaft Seal 9 Outer Shift Shaft Seal
