Reverse Shift Collar

from 2007 CHEVROLET CORVETTE TREMEC 6 SPEED TRANSMISSION MANUAL

5th/6th Reverse Shift Shaft

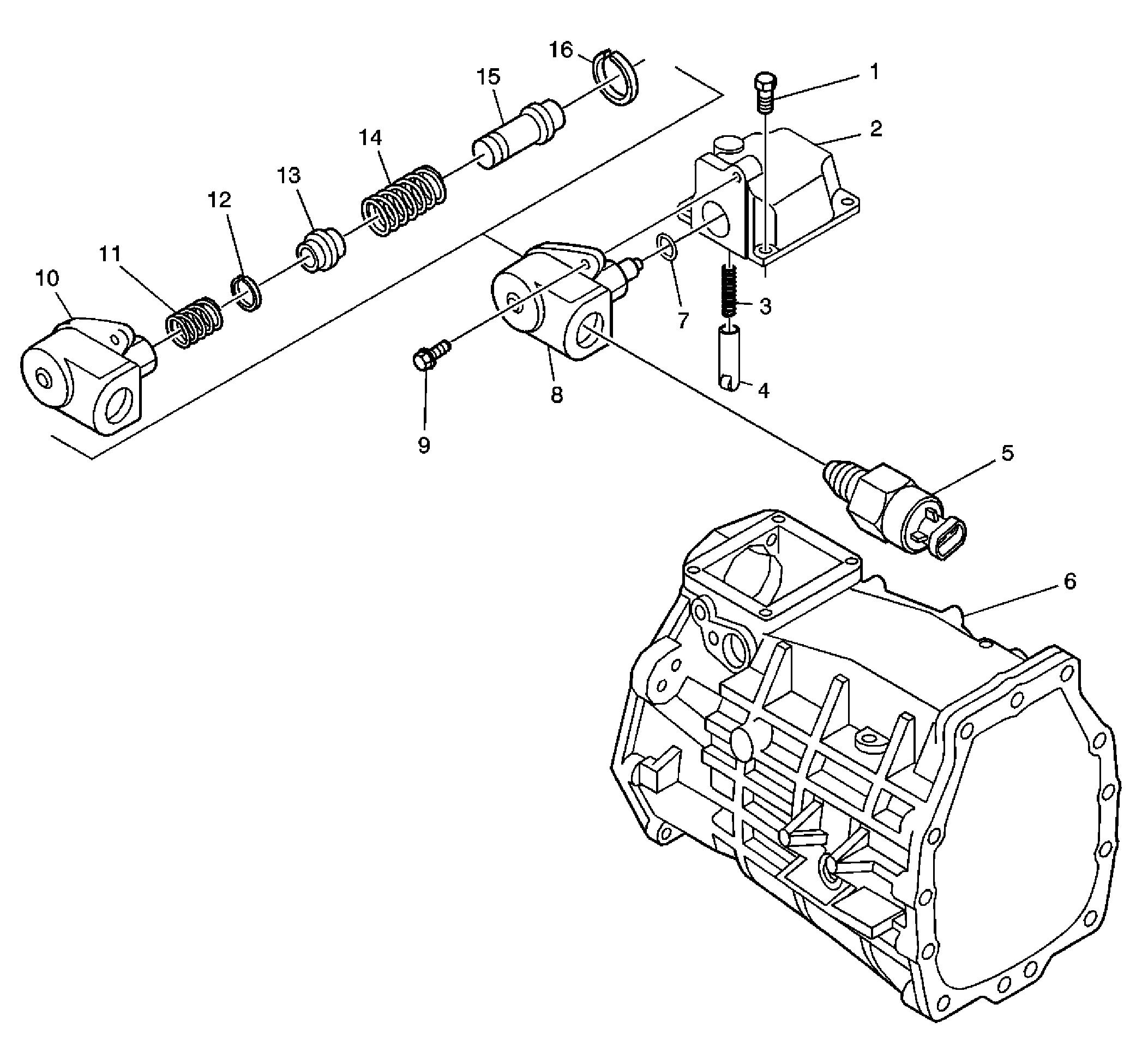

Fig. 9: Reverse Lockout Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9 Callout

Component Name

1 Transmission Case Cover Bolt 2 Transmission Case Cover 3 Spring 4 Detent Roller 5 Reverse Lockout Solenoid 6 Transmission Case 7 O-ring 8 Reverse Lockout Assembly

Reverse Shift Collar

Next Article

5th/6th Reverse Shift Shaft

Fig. 9: Reverse Lockout Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9 Callout

Component Name
