3rd/4th Shift Fork Pad

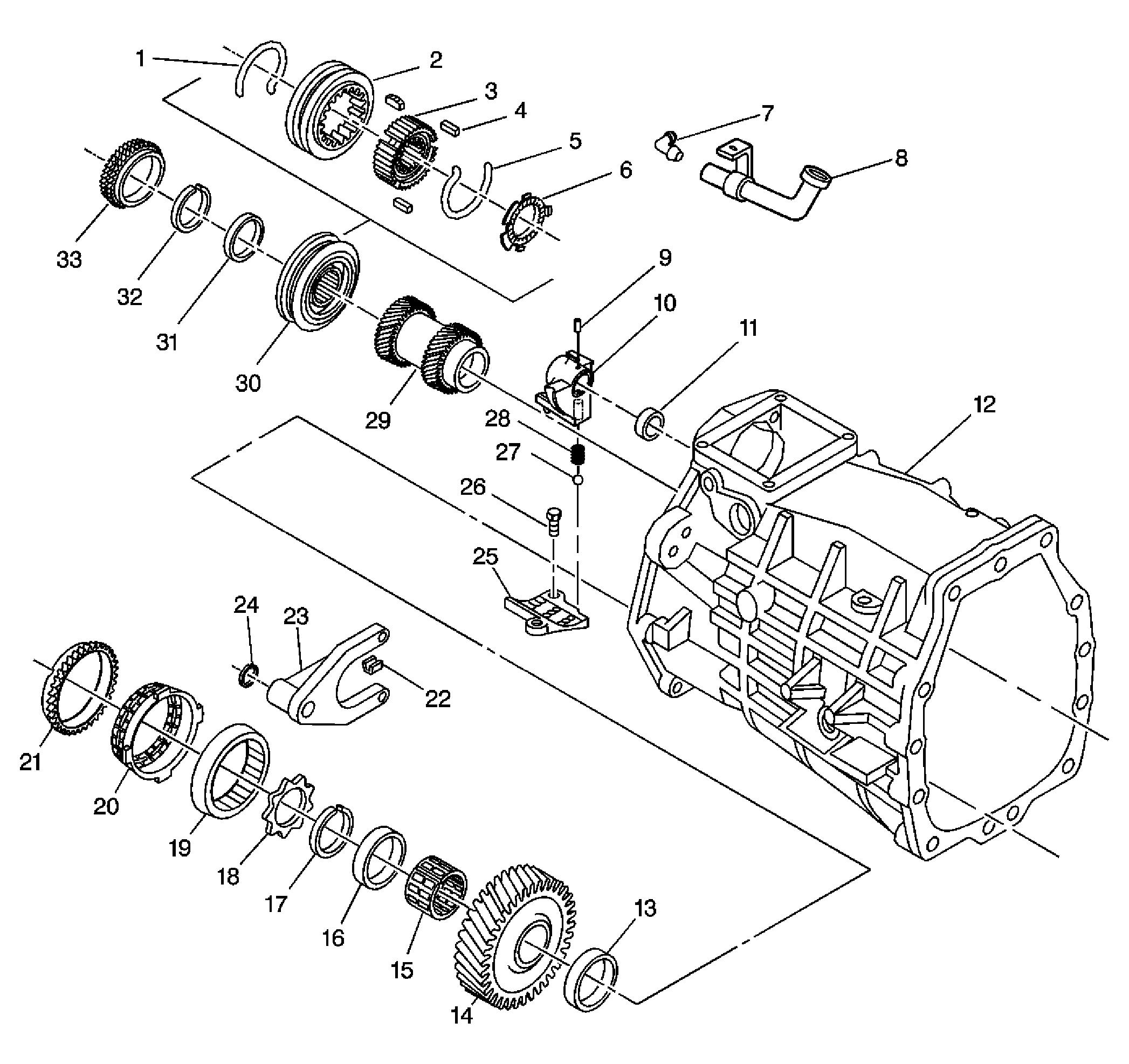

Fig. 5: Transmission Case Component Location (1 of 2) - Y Car Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5 Callout

Component Name

1 Reverse Synchronizer Spring 2 Reverse Synchronizer Sleeve 3 Reverse Synchronizer Hub 4 Reverse Synchronizer Key 5 Reverse Synchronizer Spring 6 Reverse Synchronizer Key Retainer 7 Vent 8 Vent Pipe
