2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette
9 10 11 12 13
Clutch Pedal Clutch Pedal Start Switch Clutch Pedal Position Switch Stop Lamp Switch Stop Lamp Switch Connector C2

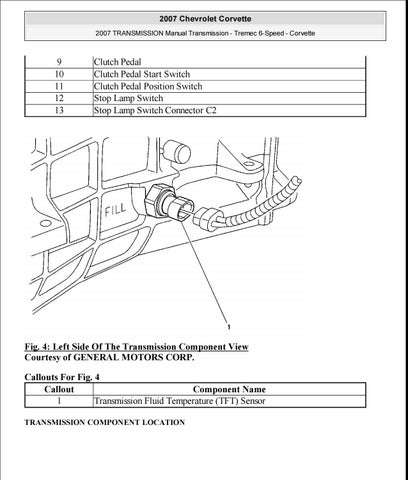

Fig. 4: Left Side Of The Transmission Component View Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 4 Callout Component Name 1 Transmission Fluid Temperature (TFT) Sensor TRANSMISSION COMPONENT LOCATION
