2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette
9 10 11 12 13 14 15 16
Reverse Lockout Solenoid Mounting Bolt Reverse Lockout Body Reverse Lockout Inner Spring Snap Ring Reverse Lockout Collar Reverse Lockout Outer Spring Reverse Lockout Plunger Snap Ring

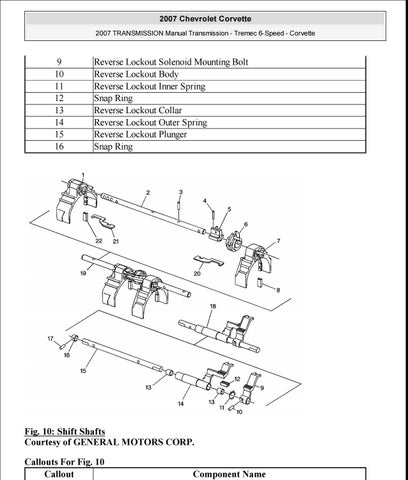

Fig. 10: Shift Shafts Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 10 Callout
Component Name
