2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette

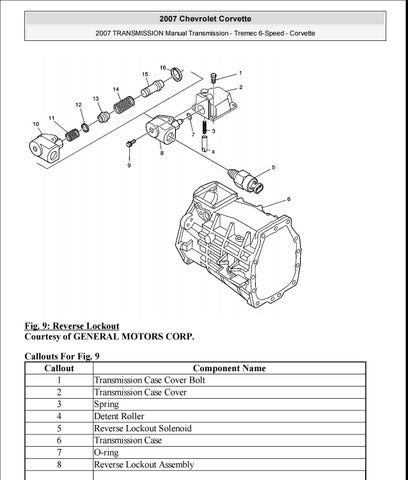

Fig. 9: Reverse Lockout Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 9 Callout Component Name 1 Transmission Case Cover Bolt 2 Transmission Case Cover 3 Spring 4 Detent Roller 5 Reverse Lockout Solenoid 6 Transmission Case 7 O-ring 8 Reverse Lockout Assembly MY Wednesday, April 01, 2009 10:44:28 AM
Page 16
