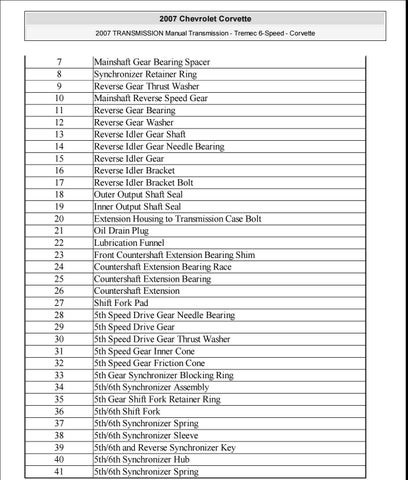

2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette
7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41
Mainshaft Gear Bearing Spacer Synchronizer Retainer Ring Reverse Gear Thrust Washer Mainshaft Reverse Speed Gear Reverse Gear Bearing Reverse Gear Washer Reverse Idler Gear Shaft Reverse Idler Gear Needle Bearing Reverse Idler Gear Reverse Idler Bracket Reverse Idler Bracket Bolt Outer Output Shaft Seal Inner Output Shaft Seal Extension Housing to Transmission Case Bolt Oil Drain Plug Lubrication Funnel Front Countershaft Extension Bearing Shim Countershaft Extension Bearing Race Countershaft Extension Bearing Countershaft Extension Shift Fork Pad 5th Speed Drive Gear Needle Bearing 5th Speed Drive Gear 5th Speed Drive Gear Thrust Washer 5th Speed Gear Inner Cone 5th Speed Gear Friction Cone 5th Gear Synchronizer Blocking Ring 5th/6th Synchronizer Assembly 5th Gear Shift Fork Retainer Ring 5th/6th Shift Fork 5th/6th Synchronizer Spring 5th/6th Synchronizer Sleeve 5th/6th and Reverse Synchronizer Key 5th/6th Synchronizer Hub 5th/6th Synchronizer Spring
MY Wednesday, April 01, 2009 10:44:28 AM
Page 15
