2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette
Auxiliary Cooler Pump Bolt (MZ6 Only)

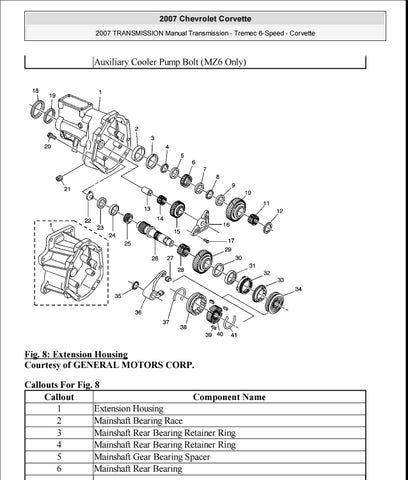

Fig. 8: Extension Housing Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 8 Callout Component Name 1 Extension Housing 2 Mainshaft Bearing Race 3 Mainshaft Rear Bearing Retainer Ring 4 Mainshaft Rear Bearing Retainer Ring 5 Mainshaft Gear Bearing Spacer 6 Mainshaft Rear Bearing MY Wednesday, April 01, 2009 10:44:28 AM
Page 14
© 2005 Mitchell Repair Information Company, LLC.
