2007 Chevrolet Corvette 2007 TRANSMISSION Manual Transmission - Tremec 6-Speed - Corvette

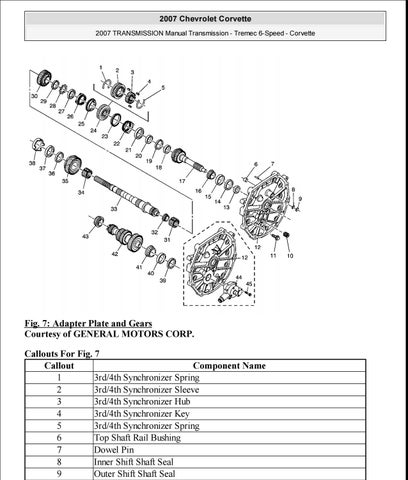

Fig. 7: Adapter Plate and Gears Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 7 Callout Component Name 1 3rd/4th Synchronizer Spring 2 3rd/4th Synchronizer Sleeve 3 3rd/4th Synchronizer Hub 4 3rd/4th Synchronizer Key 5 3rd/4th Synchronizer Spring 6 Top Shaft Rail Bushing 7 Dowel Pin 8 Inner Shift Shaft Seal 9 Outer Shift Shaft Seal MY Wednesday, April 01, 2009 10:44:28 AM
Page 12
