Replacing the tie rod

Remove the nut. Vypressuyte Tie rod from steering knuckle, using a special tool KM-161-B together with the KM-161-2 (Figure 5.26). Remove the tip from the tie rod tie rod.

Setting

Attach the tip to the steering tie rod and tighten the thrust torque 60 Nm

NOTE First check the length of the thread.

Secure the tip of the steering rod and hold open the lock nut wrench for the steering rod tip. Attach the tie rod tip to the new steering knuckle nut, tighten the moment of 30 Nm, Dauvergne at +90 ° and +15 °. Fasten the front wheel moment of 110 Nm Check the convergence of the wheels, adjust if necessary.

NOTE Steering ZF has 3 different tie rod ends, depending on the model. When replacing a tie rod record the number of necessary details to avoid mistakes.

Withdrawal

Remove the tip of the corresponding tie rod with tie rod. Remove the appropriate case.

NOTE On cars with right-hand-steering, to remove and install the left-hand steering thrust should also be disconnected from the steering mechanism of the right case. On vehicles with lefthand steering, to remove and install the right-hand steering thrust should also be disconnected from the steering mechanism of the left pouch.

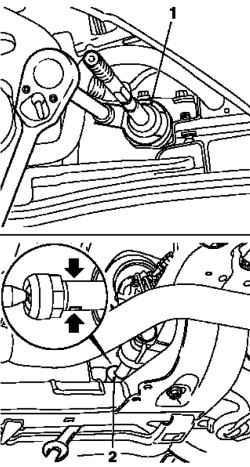

Fig. 5.27. Otsoedineie tie rod: 1 - a

special tool, 2 - Wrench
