Replacement Tie rod

Attach the electrohydraulic module with bracket to the front suspension subframe and tighten the moment 22 Nm Place electrohydraulic module with a holder on the steering mechanism and front suspension subframe.

NOTE Obratiet attention to the wiring harness of steering control.

Connect the wiring harness 2 x electrohydraulic module. Attach the tube to the steering mechanism and tighten the moment 16 Nm Use 2 new o-rings. Attach the holder of the tubes to the steering mechanism. On vehicles with left-hand steering: connect rear bracket. damping to the damping of the engine block engine block and tighten the moment 55 Nm Install the front suspension subframe. Fill the hydraulic system and remove the air from the hydraulic system. Check the position of the rectilinear movement, adjust if necessary. Check the convergence of the wheels, adjust if necessary.

Withdrawal

Remove the front wheel.

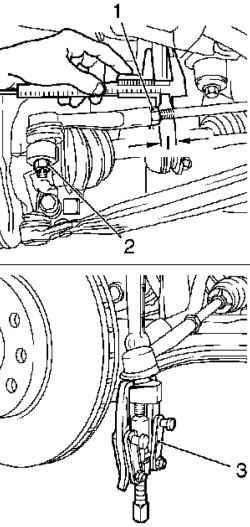

Fig. 5.26. Measuring the length of

thread from a lock nut to the threaded end of tie rod and tie rod tip overflow: 1 - nut, 2 - nuts, 3 special tool

Measure the length of thread from a lock nut to the threaded end of tie-rod (Fig. 5.26). Loosen the locknut and hold open wrench for the steering rod tip. Disconnect the tie rod tip from steering knuckle.
