Filling and removal of air from the hydraulic system

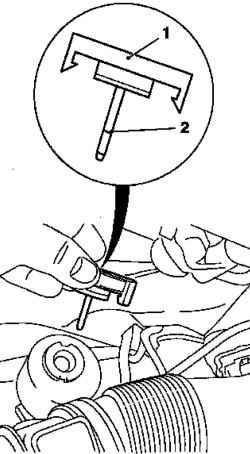

Pail hydraulic steering system is located behind the engine compartment. Check the level with the pointer on the lid. Unscrew the lid, wipe clean with a cloth rod pointer and tightly screw in place. Again, loosen the lid: the level should be 2 mm below or above the tag «MIN» (Figure 5.13). If the working fluid temperature is 50 ° C, measure the level in the same way. The level should be between the marks «MIN» and "MAX". If the level of higher than normal, it is necessary to select the liquid. If it is below normal, check the system to leak or top up the hydraulic fluid.
NOTE Do not work electrohydraulic module without lubrication. Merged liquid should not be reused. The hydraulic system is filled with special liquid.
Use a funnel with a flexible tube to fill the hydraulic system. Pail combined with electro-hydraulic module and located on the right side of the engine compartment between the engine and bulkhead (cars with left-hand steering) or the left side of the engine compartment between the gearbox and bulkhead (cars with right-hand-steering). Filling and removing air from the hydraulic system should be carried out at room temperature. To remove air from the hydraulic system, start the engine and turn the steering wheel from left to right limiter limiter three times with the engine running. Turn off the engine and check the fluid level, if necessary top up to the top mark on schupe for level measurement. Test the Power assisted steering, turning the steering wheel from left to right the limiter a few times with the engine running. Check all connection points Power assisted steering visually for leakage
