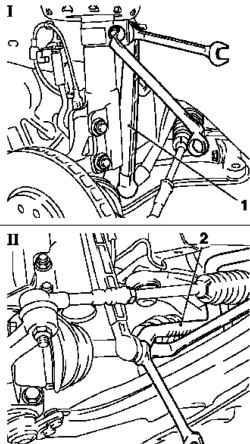

Disconnect the swivel arm of the stabilizer (Figure 4.46). During the hold lever for Lyskov bolt swivel pin wrench.

Setting

Attach the swivel arm to the stabilizer, and tighten the mounting bolts are 55 Nm Use 2 new nuts. Hold for Lyskov bolt steering knuckle open wrench. Attach a swivel arm for supporting the pipe rack and tighten the spring mounting bolts are 55 Nm Install the front wheel and tighten the bolts fastening point 110 Nm

4.4. Rear suspension

Elastic beam rear suspension, Astra-G, Astra-H, Zafira - rear axle

Fig. 4.47. Rear suspension: 1 -

Rear spring, 2 - elastic profile (crossbar), 3 - shock absorbers, 4 lever with a longitudinal mounting of the rear axle

The rear suspension on these models is a continuous bridge, working on torsion. Profile of torsion is welded to two longitudinal levers. Depending on the model profile is used in different thicknesses, torsional profile itself is welded to the levers at different angles. This allows you to adjust the rear suspension to the weight and design (eg sports suspension) of the car.
