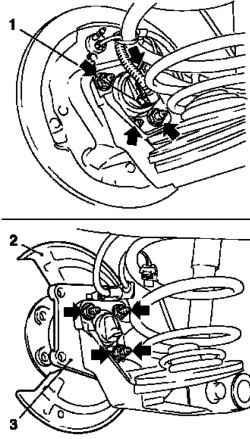

Fig. 4.49. Mounting the module

bearing wheels: 1 - the wiring harness connector, 2 - housing, 3 mounting plate

Loosen the 4 nuts (arrows) from the module bearing wheels (Fig. 4.49). Remove the wheel bearing module with a lid (2 - in cars with disc brakes).

Setting

In cars with disc brakes: attach the wheel bearing unit, the housing and mounting plate to the rear axle and tighten the bolts fastening point 50 N * m, Dauvergne at +30 ° and +15 ° (see Fig. 4.49). Tighten the 4 new nuts. In cars with drum brake mechanisms: Set the module bearing wheels and a brake plate to the rear axle and tighten the moment of 50 Nm, Dauvergne at +30 ° and +15 °. Tighten the 4 new nuts. Connect the wiring harness sensor mounted on the wheels of the car. In cars with disc brakes, install the brake disc brake rear wheel. Attach the brake caliper with a guide to the anchor plate and tighten the mounting point 100 Nm Slide the caliper brake mechanism to the brake disc. Tighten the 2 screws fastening.

NOTE Clean the threads and install the bolt with a fixing composition.

If you have been removed, install the brake pads rear wheel brake mechanism. Attach the parking brake cable to the caliper brake. Set the parking brake cable system in the bracket on the caliper brake. Attach the clip to the cable of the parking brake system. Take control lever caliper brake mechanism with a screwdriver. Set the parking brake cable system. In cars with drum brake mechanisms, set the brake drum. Install the rear wheel and tighten the bolts fastening point 110 Nm Adjust the hand brake.
