Replacement Stabilizer

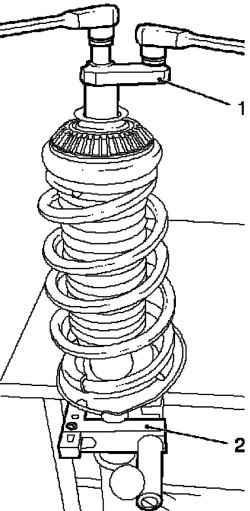

Install new bolts pillow block with a special tool KM 6399 for piston shock absorber and tighten the moment of 80 N m (Fig. 4.43). Unload a special tool MKM-6068 and remove the spring.

NOTE Make sure that the springs are installed correctly.

Remove the rack from the spring-KM 6066 (Fig. 4.43). Install a spring rack. Check the collapse of the wheels and adjust if necessary. Adjust the chassis. 2 Tighten the hinge that supports the spring the pipe rack to the steering knuckle, in three stages. I. Tighten the 2 bolts moment 50 Nm II. Tighten the 2 new joint torque 85 Nm III. Dauvergne 2 new hinge further 75 ° and + 15 °.

Withdrawal

Remove the front suspension subframe Disconnect the swivel arm of the stabilizer on both sides. Hold for Lyskov open wrench. Disconnect the right and left holding the brackets with rubber mountings on the front suspension subframe.

NOTE Check the loading position, the rubber bearings.
