Removal and installation of arm suspension

Withdrawal

Remove the front wheel. Disconnect steering knuckle from the lever. Remove the bolt connection.

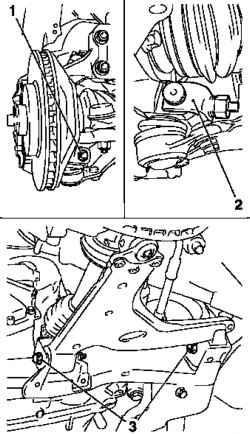

Fig. 4.30. Withdrawal lever

podveki: 1 - bolted connection, 2 - a special device, 3 - bolted connection

Take the steering knuckle using a special device KM-915 (Fig. 4.30). Remove the joint from the steering knuckle. Remove the lever from the module front. Loosen the 2 bolts. Remove the lever from the holders in the front suspension subframe.

Setting

Set the lever in the front suspension subframe.

NOTE Tighten the bolt connection freely. Bolts fastening the lever to the front suspension subframe tightened under load (the car must be on four wheels), while both front seats loaded with cargo in the 70 kg.

Use 2 new bolt. Tighten the 2 new nuts. Attach the lever to the steering knuckle and tighten the moment 50 Nm Set joint to steering knuckle. Assemble bolted connection - use new nuts. Install the front wheel and tighten the bolts fastening point 110 Nm Tighten the 2 screws fastening the lever to the front suspension subframe. Load both front seats in the 70 kg weight. Install 2 new threaded connection of the lever to the front suspension subframe and tighten the moment 90 Nm +75 ° +15 °.

NOTE The car must be on wheels (check stand or pit).
