Removing and installing tanks with activated charcoal

Fig. 2.307. Disconnecting the front

of the ventilation tube from the tank vent tube with activated charcoal: 1 - container with activated charcoal, 2 - a quick-coupling, 3 - the front vent tube

Disconnect the front of the ventilation tube from the ventilation tube containers with activated charcoal (Fig. 2.307). Disconnect the quick release coupling. Remove the vent pipe, freeing it from the arm in 6 places.

Setting

Install a ventilation pipe. Attach a bracket in 6 locations. Reattach the front vent pipe to the central vent tube and vent tube containers with activated charcoal. 2 quick-connect couplings. Attach the 2 lower fuel line bracket and secure them with 2 bolts. Install the front axle.

Withdrawal

Disconnect the line using a special tool KM-796-A. Remove the front right wheel Remove the protective lining, wing, Disconnect the wiring harness connector from the indicator lamps on the wing and remove the lamp indicator lamp

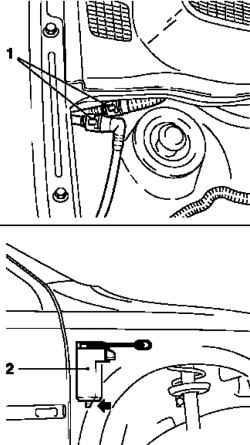

Fig. 2.308. Removal of containers with activated charcoal: 1 - Line 2 container with activated charcoal
