Finley Hoggard
FINLEY HOGGARD
Architectural Assistant
Contact information:
13 Wadsworth Avenue, Haworth Park, Kingston upon Hull, HU6 7DY
+447704022032 01482 801843
finleyhoggard210301@gmail.com finleyhoggard@hotmail.com
Alternative Acheivements:
HSE managers and professionals
CSCS White Card holder
Contributed to a response the Scottish Passivhaus Equivelant Consultation
Co-founded NUCAN (Northumbria University Climate Action Network) and ran a 9-part lecture series
Awarded program representative of the year for Engineering and Environment 2020/2021
Completed RIBA (Royal Institute of British Architects) Mentoring Scheme
My portfolio can be accessed by scanning the QR Code below or visiting: https://linktr.ee/Finleyhoggard
Personal Statement:
With experience in several sectors such as residential design, civic buildings education and care facilities, I am a hardworking, proactive individual who consistently meets deadlines and time constraints to deliver work to the best of my ability.
I am passionate about beautifully detailed, socially responsible design that has a minimal impact on the environment. I am a hardworking, proactive individual committed to delivering the best work I can, using various digital and physical tools to my advantage.
I have live experience with the Scottish domestic and non-domestic building regulations as well as care-inspectorate guidelines and listed building consent.
Most of my work so far has been on projects using design and build procurement and accessing funding through frameworks from local government.
I have a thirst for knowledge with a constant desire to learn and hone my skill set. I would make a good addition to your team by bringing experience with live projects, an open mind, and a deep passion for my work.
Photoshop:
Autocad: Enscape: Sketchup:
Archicad: Model Making:
Indesign:
Illustrator: Microsoft Office:
Procreate: Affinity Suite:
Education:
Northumbria University, Newcastle upon Tyne: Architecture BA (Hons), 2:1
St Mary’s College, Kingston upon Hull: A Levels & Equivalent –Art and Design (D*), Design & Technology (B), Physics (B), Maths (C)
Longcroft School and Sixth Form College, Beverley: GCSEs - 11 A*-C Grades, including 7 x A grades
References:
Caroline Dearden Director, Anderson Bell + Christie Architects carolinedearden@andersonbellchristie.com
Alasdair Blair
Senior Architect, Anderson Bell + Christie Architects alasdairblair@andersonbellchristie.com
Dr Tara Hipwood
Assistant Professor, Northumbria University tara.hipwood@northumbria.ac.uk
Katie Maddison
Learning & Development Manager, BPAS katie.maddison@bpas.org
Experience:
Anderson Bell + Christie Architects, Glasgow:
Part 1 Architectural Assistant - February 2024 – Present
My main roles and responsibilities at AB+C are to work as part of a team with varying levels of experience to deliver projects up to RIBA Stage 3, navigating statutory consents processes. This has involved the use of software such as Revit to make updates to models and drawings, alongside various other rendering and graphic softwares to compile reports etc.
I have experience working with Care inspectorate guidelines and listed building consent applications and understand the increased level of design considerations when dealing with these.
Whilst to a lesser extent, I have experience in stage 4 and stage 5 projects, working towards building warrant submissions and projects processing RFIs once a project is under construction.
Sirius Academy North, Hall Road, Kingston upon Hull: 1 to 1 Tutor - November 2023- February 2024
In my role as a 1-1 Tutor at Siruis Academy North I was responsible for planning and carrying out maths lessons with children either by themselves or in small groups. I also worked in a more passive setting assisting teachers delivering their own lessons.
This job highlighted to me the importance of clear and concise communication both to the children and my colleagues. It also often required problem solving and conflict resolution between challenging students. My time at S.A.N was really rewarding, and above all a valuable learning experience in the “Soft Skills” required to effectively communicate with people, even when opinions differ or the subject matter is difficult.
Escape 2 Make, Remote:
Building Design Team Assistant - October 2023- December 2023
My temporary role at Escape2Make was to consult on, and co-design a temporary structure that provided a space for young people in the Lancaster and Morecambe area. The building was designed to house workshop spaces, a kitchen, offices and a multi-functional events space. The key design principles were that the design would be made from reclaimed shipping containers and reclaimed materials wherever possible. The client was keen for the design to be fully demountable and able to be stored inside the shipping container for transit, as this temporary structure would be used as a “pop-up” installation whilst a permanent solution was being developed.
The Audio Room, Savile Street, Kingston upon Hull:
Sales, Marketing & Database Operative - October 2023- February 2024
I had several responsibilities in my role at The Audio Room in both customer-facing and back-of-house work. My main responsibility was to log all sales records and invoices into the database and update customer details to allow for targeted marketing. Alongside this, I also produced graphics to promote events and product ranges used on social media etc; gave sales advice and facilitated demonstrations of bespoke systems for clients; Delivered and installed specialist hi-fi equipment; and attended conferences and events held by industry leading manufacturers and representatives.
ASDA, Kingswood, Kingston upon Hull:
Delivery Driver - February 2022- December 2023
In between university semesters and during my time at S.A.N and The Audio Room, I worked as a delivery driver for ASDA. Whilst only in a junior role, I was able to get an understanding of the importance of co-ordination and timing when working on a large scale. When I was more experienced in the role, I was given the responsibilities of training new drivers and “service work” which required me to conduct safety checks on all of the vehicles and liaise with other team members to sort and load deliveries into vans for other drivers.
THE HAWTHORN LESLIE CENTRE, HEBBURN
BA Hons, Year 3, Project 2
THE ALPHABETTI CREATIVE CO-OPERATIVE CENTRE, NEWCASTLE UPON TYNE
BA Hons, Year 3, Project 1
OTHER WORKS
Foreign Exchange Semester, Charity Work, Extra Curricular Work
All content in this portfolio was produced during my time at Northumbria University, any work produced during my time at Anderson Bell + Christie Architects is strictly confidential and cannot be shared here. For more details of this work contact me via email: finleyhoggard210301@gmail.com
THE HAWTHORN LESLIE CENTRE, HEBBURN
BA Hons, Year 3, Project 2
Former Hawthorn Leslie Shipyard, Hebburn
The main aim of this museum was to regenerate the sense of pride that was once so prevalent in the industrial neighbourhoods of Tyneside. The previous industrial nature of the place has inherently impacted the local ecosystem. Therefore, the aim was to regenerate and conserve the delicate riparian ecosystem, preserve the memory of the industry that was once at the heart of these neighbourhoods, and create a place that instils a new sense of pride in the community.
“Launch Event” for newly refurbished artefacts, ready for transit to other facilities.
The introduction of “Viewing Portals” would transport visitors back to the industrial days of The Hawthorn Leslie Shipyard. These augmented views consisted of line drawings, generated from historic photographs of the site. This meant that the visitor would be stood exactly where the photo was taken giving them a first person perspective of past activity on the site.
Elevated walkways and viewing towers, giving views of Wallsend on the North bank.
1. Entrance Lobby 2. Ticket Office
Coffee Hatch
Main Atrium 5. Main Exhibition Hall
Auditorium
Public Archive Access Space
Digital Archive
Physical Archive
13. Tidal And Solar Power Storage Batteries 14. Staff Lounge/ Lobby
15. Workshop Staff Entrance Lobby / Locker Room
Machine Shop
Service Pit
Fitting Shop 19. Classroom 20. Digital Learning Suite
SECTION DD - AUDITORIUM INFILL SPACE
1 - Ground floor build up
3 - Existing wall and thermal performance upgrades
4 - Intermediate floor build up
2 - Atrium roof build up
5 - Sloped roof build up
1 - Ground Floor Build Up (Bottom To Top):
• Compacted Earth
• 150mm Recycled Concrete Aggregate Hardcore (From Existing Floor Plate That Was Removed)
• 75mm Sand
• Original Reinforced Concrete Strip Foundation
• New Underpinning Reinforced Concrete Foundation Using 40% Seratech Cement.
• 200mm Reinforced Concrete Slab Using 40% Seratech Cement.
• Dörken Italia – Delta DPC Tagliamuro
• 280mm Rigid Insulation
• Pro Clima Intello Plus Intelligent Vapour Check And Airtight Membrane With Pro Clima Airtightness Tape At The Seams And Over Any Holes From Screws Etc
• Steel Footplate With Self-Tapping Concrete Anchor Bolts
• Kingspan Rmg600+ Raised Access Floor With 150mm Pedestals With Power And Data Cables Fed Through The Floor In Service Channels With Attiro Flooring In A Bianco Pallido Finish.
• Pollimier Baubuche Profiled Column (300x300mm)
2 - Atrium Roof Build Up (Bottom To Top):
• 700x100mm Baubuche Roof Beams
• 300mm Brettstapel (DowelLaminated Timber) Deck
• Indinature, Inditherm Hemp Insulation 100mm
• 35mm Smartply Propassiv Plywood Deck
• Bauderblue Adjustable Flow Restrictor
• Bauder Waterproofing System
• Bauder Fms600 Protection Layer
• Bauder Re 40
• Bauder Re Substrate
• Bauder Filter Fleece
• Bauder Biodiverse Substrate
• Vegetation With Wb Native Wildflower Blanket
• Gravel Drainage Channel
3 - Existing Wall And Thermal Performance Upgrades (Atrium To Exhibition Hall):
• Bespoke Lvl Staircase
• Bespoke Balustrades – Yakisugi Treated Timber, Corten Steel Fixtures And Glass Panels.
• Existing Brick Cavity Wall (No Insulation)
• Velfac V200e Windows
• Recessed Insulated, Lockable Shutter.
• Ecosystems Technologies A.t.o.m.s (Adaptable Timber Offsite Manufacturing System) Insertion
• Lvl Portal Frames (300x100mm At
4500mm Centres)
• 12mm Smartply Propassiv Plywood
• Timber Cassette Frame (Larsen Truss) Made Up Of 38mmx75mm Timber Battens At 600mm Centres.
• 100mm Brettstapel (DowelLaminated Timber) Deck
• Indinature, Inditherm Hemp Insulation 250mm
4 - Intermediate Floor Build Up (Bottom To Top):
• 100mm Brettstapel (DowelLaminated Timber) Deck
• Kingspan Rmg600+ Raised Access Floor With 150mm Pedestals With Power And Data Cables Fed Through The Floor In Service Channels With Attiro Flooring In A Bianco Pallido Finish
5 - Sloped Roof Build Up (Bottom To Top):
• 35mm Smartply Propassiv Plywood Deck
• Timber Cassette Frame (Larsen Truss) Made Up Of 38mmx75mm Timber Battens At 600mm Centres.
• Indinature, Inditherm Hemp Insulation 250mm
• Timber Cassette Frame (Larsen Truss) Made Up Of 38mmx75mm Timber Battens At 600mm Centres.
• 35mm Smartply Propassiv Plywood Deck
• Water Proof Membrane
• Reclaimed Slate Shingles Fixed Back To Timber Purlins.
velitas doluptus dolut eostorentia intorendae vid et omnimil igniaest qui quidentem qui quid quidestem dolo corehentinti sum voluptatibus apis ra cor arion rehent peribus cimpelluptat quiassiti rem quod utam et que eati bea plibus restrum alit eium que voluptur accullu ptatem acea sum quata commodit, tectae. Ut porum nisque di venis derorerum am ra simendictem que qui omnis doluptae latis soluptata sequias sit as dolessi cum sin et moluptae et omnihil in pre labo. Ebitatur as et aut alit omnis adigento quuntem reprepudam, voluptio conem andae mo modit aliquod Extended landscaping and new boulevard proposal.
THE ALPHABETTI CREATIVE CO-OPERATIVE
CENTRE, NEWCASTLE UPON TYNE
@ 1:100
BA Hons, Year 3, Project 1
Newcastle’s City Image:
Strengths:
•There is a huge section of space that could become a new section of public realm
•There are multiple options for where to extend
•There is already a significant cultural presence with the theatre and museum opposite
•The site is in the west of the city – a historically neglected part of the city
Weaknesses:
•St. James’ Boulevard is a huge urban edge cutting the site off from the city centre
•The boulevard creates lots of noise pollution and air pollution
•Too much hardscaping and not effective planting for biodiversity
•The existing fabric of the building will have to be upgraded in terms of thermal performance
•The party wall of the building will have to be considered very carefully to eliminate thermal bridging
Opportunities:
•The boulevard could be closed down over time and this could create yet more public realm
•Availability of sun and wind on site could be used to generate electricity and heat water
•If I extend to the north there is an opportunity to create a new sense of frontage for Blandford Square
•There is an opportunity to connect with the Newcastle Helix site and maybe be a small business hub
Threats:
•If the boulevard is closed down, there is a risk of city-wide congestion
•If the extension is to the west here is a risk of overheating in summer
•There is potential that the are could become gentrified – therefore the community will be the decision makers
•If the new landscaping is not carefully considered the impact of the new tree species etc could cause consequences later down the line
AA (See Sheet C2) AA (See Sheet C2)
Alphabetti Offices
Alphabetti Offices Break Room
Foyer/ Secondary Bar
Toilets
Entrance
2A 3A
Web joists used to suspend panels finished with stil acoustic veneer in a nano-perforated, quartercut douglas fir finish. These panel act as acoustic baffles with in-built, direct down-lighting and led back-lighting strips
WiFi routers mounted to soffit and hidden behind acoustic baffles
Concrete frame of existing building exposed and floor plate cut through to create double height space – edge of slab reinforced with a new steel angle inside. Concrete left untreated
Repetition of 2x4 timber elements used to create railings and slats at 150mm centres
BASIS High table By e15 and Ergo Impact LeanRite Elite - Ergonomic Standing Chairs to enable a range of different ergonomic settings
Depth of columns used to create an alcove occupied with bespoke shelving and a place for printing and plotting.
Fixed in place computer workstations have ethernet connections as well as other data ports such as SD Card slots etc – essential for the creatives working here who maybe don’t have ready access to their own computer
Bauder Storm Sub BLUE roof with biosolar finish and native windflower blanket
Windows are open-able for purge ventilation in a morning - required to extract the Carbon Dioxide generated from the internal green wall’s overnight respiration
Biotecture UK interior green wall provides air purification and a connection to nature from within the building.
Lime plaster finish – this is naturally a soft white colour and it complements the muted and natural tones of the other wall finishes
Deep wall build -up allows for bespoke window seats and shelving
BASIS Workstation table By e15 Charles and Ray Eames Aluminium chair ea119 finished in chrome and black leather.
240 Volt, USB A and USB C ports built in to desks with all wires routed under tables in trays, down into the floor through service “channels” or “trays” in the raised access floors
Kingspan RMG600 raised access floor with 150mm pedestals allows for some ventilation ducts as well as all plumbing electrical and telecommunications cables to be routed through service channels in the floor.
1. Pollemeier Baubuche Profile Column 675x675mm
2. Pollemeier Baubuche Beam With Shadow Gap And Led Strip Fixture
3. Timber Web Joist (420mm Depth)
4. 38x75mm Timber Battens (300mm Centres)
5. Velfac V200e Energy Windows
6. Plywood Reveal
7. Insulation Around Window Reveal
8. Pro Clima Intello Plus Intelligent Vapour Check And Airtight Membrane With Pro Clima Tescon No.1 Airtightness Tape At The Seams And Over Any Holes From Screws Etc
9. Metsawood Kerto Ripa System Sip Cassette Made Up Of Kerto Lvl Q Panels And S Studs
10. 4 no. 200x100mm Timber Sections Acting As A Lintel And Sip Cassette Termination
11. 400mm Hemp Fleece Insulation
12. Lime-Stabilised Earth, Dry-Stacking Brick
Steel Reinforcement Bar
Weatherproof Membrane
Wall to Roof Junction Detail:
15. Wall Tie
16. Mesh To Prevent Bees And Wasps Nesting In The Cavity
17. Timber Lintel
18. 2 no. 200x100mm Timber Firrings
19. Aluminium Parapet Cap
20. Bauderblue Adjustable Flow Restrictor 21. Bauder Waterproofing System 22. Bauder Fms600 Protection Layer 23. Bauder Re 40
Bauder Re Substrate
Bauder Filter Fleece 26. Bauder Biodiverse Substrate
Gravel Drainage Channel

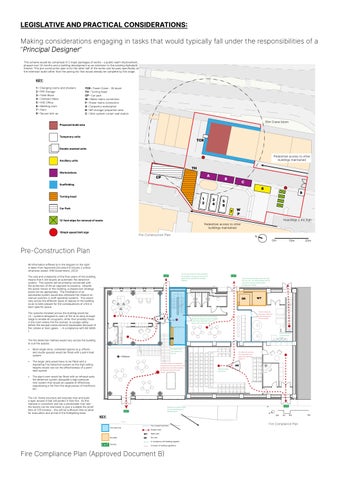

Making considerations engaging in
The size and complexity of the floor plans of this building means that it will require an automatic fire detection system. This system will be primarily concerned with the protection of life as opposed to property. Despite the public nature of this building, a phased exit strategy would not be appropriate. The installation of an automated system would also eliminate the reliance on manual systems or staff operated systems. This would vary across the different types of spaces in the building so as to best prepare for the consequences of a fire in each specific space.
The systems installed across the building would be: L3 – systems designed to warn of fire at an early enough stage to enable all occupants, other than possibly those in the room where the fire started, to escape safely before the escape routes become impassable because of fire, smoke or toxic gases. – in compliance with BS 58391.
The fire detection method would vary across the building to suit the spaces:
• Most single story, contained spaces (e.g. offices and studio spaces) would be fitted with a point heat system
The larger atria would have to be fitted with a Aspirating Fire Detection system as the high ceiling heights would rule out the effectiveness of a point heat system
• The plant room would be
On-site Health and safety principles:
Every worker on site must be provided with the adequate PPE before commencing work, this will be provided in the PPE store on site and the workers will have a changing facility on site.
• Before setting foot on site, each worker must have the relevant training and be signed off by an examiner – for a example a relevant CSCS Card for the activity they will be undertaking etc (Construction Builder Support [CBS], 2021)
The removal of the existing windows and the floor plate as well as the extension build means that there will be a number of workers working at height i.e. 2m or more. These workers will be equipped with the appropriate fall protection – i.e. harnesses, fall nets, tool retention lanyards etc.
Repetitive strain injuries can have a big effect on a workforce, yet they are some of the easiest injuries to avoid. Therefore, the handling of heavy components on site will be carefully monitored – no person should be lifting more than 10kg worth of weight at once. This applies to loads over 10kg too, for example a 30kg weight would require 3 workers. Construction is generally a dangerous industry and there are inherent risks attached to that fact. Therefore, there will be some hazards that can’t be fully eliminated. However, the risk can be mitigated and should be carefully considered to minimise the potential for harm as much as possible.
Risks that cant be fully eliminated will be mitigated by providing sufficient safety measures to reduce the likelihood of accidents. For example: provision of break spaces to prevent fatigue, implementing the relevant health and safety signs, and having a HSE on site that will ensure operations are running safely and in line with the health and safety principles outlined above.
PPE Provision:
The provision of the correct PPE is of paramount imporatnce for protecting workers. All of the following standards (below) are derived from SHE PPE: Complete guide to Personal Protective Equipment unless stated otherwise (SHP, 2022)
• Hard hats - The relevant standards are BS EN 397 and BS EN 14052
• Steel toe caps - The relevant standard for safety footwear is BS EN ISO 20345.
• Hi-vis clothing – The relevant standard for hi vis clothing is BS EN 471 + A1.
• Ear defenders - The relevant standard for the ear protectors is BS EN 352 Part 1.
• Safety goggles - The relevant standards are BS 7028 (Guide to Selection of Eye Protection for Industrial and Other Uses) and BS EN 166 (Specification for Eye Protectors).
• Gloves - BS EN 388 covers the specification
Fall Nets:
Due to the fact tha tthe proposal removes a part of a floor plate top open up a space in the existing building, there would have to be a sufficient net installed to prevent not only falling workers being injured, but materials and tools wouldn’t fall on others below.
Site compound:
The Portakabins comprising the site compound have been arranged in a stacked configuration in order to reduce the overall footprint without comprising the facilities.
of gloves against mechanical hazards.
Dust mask – there will be different standards of respiratory protection required for different tasks.
• Knee pads – knee pads and other body protection carry different standards and aren’t necessarily required – therefore workers may choose to not wear them however they would be provided on site.
• Safety harness – the different fall retention equipment will have different associated standards and will
CDM Section Drawing
CDM Section Drawing.
tower crane (30m
The tower crane has a large enough boom to be able to reach ver the extension and existing building. It is also large enough to swing over the new public realm and site compound to move elements directly from HGVs or from the floor.
HGV Drop off Point: Access for HGVs is essential for a smooth and seamless construction process. This has been positioned so that it is in the centre of the site as well as having a good connection to the road. The crane has a suffieciently long boom arm so that it can move components from the HGVs to a designated part of the site compound or lift them directly into the building.
Scaffolding:
Scaffolding is a key part of any construction project - this will allow for a temporary platorm for the removal of the existing windows as well as making the installation of the new windows and SIPs easier.
Temporary balustrade:
The partial removal of
LIEBHERR
LIEBHERR
Hammerhead
Boom):
OTHER WORKS
Foreign Exchange Semester, Charity Work, Extra Curricular Work
UNIVERSITY OF SEOUL, EXCHANGE SEMESTER
3 Different elemental Commons_Issue
A group project based in Northern Seoul, South Korea. (In collaboration with Tae-young Yeo, Cho-ha Kim and Ho-young Yeo)
This project was set in an area in which is largely dominated by the fabric and fashion industry. The site posed several constraints such as density, overheating and poor living conditions. As a team we were tasked with generating a set of proposals that would regenerate the area in the year 2050. We chose to have a series of interventions at different scales.
NUCAN (NORTHUMBRIA UNIVERSITY CLIMATE ACTION NETWORK)
Co-founding and being involved with a student led climate action group
In February 2021 I Co-founded and the ran NUCAN. We were a student led society working with the staff in our school to improve the sustainable agenda in our curriculum. We went on to create an online resource bank and hosted a 9 part lecture series focused around sustainable practices in our industry.
E2M (ESCAPE 2 MAKE)
Volunteering with a charity that works with children in Lancaster
Escape 2 Make is a charity that works with 11-18-year-olds in the Lancaster and Morecambe area, providing workshops and short courses in collaboration with businesses, artists, etc, to provide an alternative place to learn, socialise, and make a difference in the community. I briefly worked with the charity on the design of a temporary building.
The shipping container-based design aims to create a space that will last 3-5 years whilst another site is being retrofitted to accommodate the needs of the charity. There was a big emphasis on demountable design and reduced waste. I produced some initial prototype designs comprised of a kit of parts that can be assembled easily with minimal specialist skills and tools.
MY CONTACT DETAILS:
This QR Code is linked to my Linktree, a collection of links associated with my Linkedin, Social media profiles, and other resources etc.
