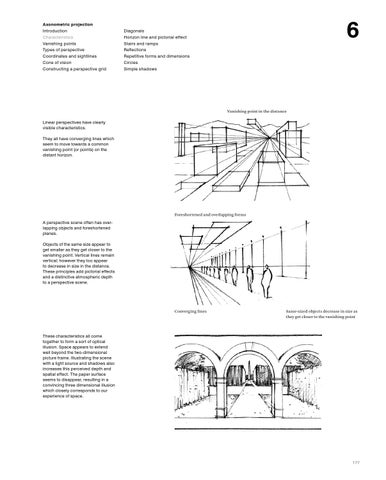

Vanishing point in the distance Linear perspectives have clearly visible characteristics. They all have converging lines which seem to move towards a common vanishing point (or points) on the distant horizon.
Foreshortened and overlapping forms A perspective scene often has overlapping objects and foreshortened planes. Objects of the same size appear to get smaller as they get closer to the vanishing point. Vertical lines remain vertical; however they too appear to decrease in size in the distance. These principles add pictorial effects and a distinctive atmospheric depth to a perspective scene.
Converging lines
Same-sized objects decrease in size as they get closer to the vanishing point
These characteristics all come together to form a sort of optical illusion. Space appears to extend well beyond the two-dimensional picture frame. Illustrating the scene with a light source and shadows also increases this perceived depth and spatial effect. The paper surface seems to disappear, resulting in a convincing three dimensional illusion which closely corresponds to our experience of space.
