NORAC A LEADING SUPPLIER OF INTERIOR SYSTEMS
Norac is a leading supplier of interior systems for cruise ships, ferries, commercial vessels and offshore installations. Headquartered in Norway, the company manufactures and distributes fire-rated walls, ceiling systems, doors, prefabricated wet units, floating floors, windows and furniture, making Norac a “one-stop shop” for high-quality, afford-able interior systems for the maritime industry. Norac products are manufactured with only first-class materials in compliance with the most exacting rules and regulations and Norac’s own strict quality control system.
MANUFACTURER & SUPPLIER OF
MARINE INTERIOR SYSTEMS
NOTE:
Norac reserves the right to make changes to the specifications without prior notice. All drawings in this catalogue are illustrations and guidelines only.
COMPANY HISTORY
Our company was established in a fast growing Norwegian Oil- and Offshore Market. Our founder, Fred Olsen & Co, was an initiator for the construction of semisubmersible drilling rigs and built offshore installations at Aker Vindholmen Ship Yard in Arendal, Norway. The need for fireproof panels cleared the path for establishing a factory for production of marine interior wall panels – Aker Panels.
1973
ESTABLISHMENT
Aker Panel was established in 1973 and made the products and the brand name “Aker Panel” well known in the fast growing Norwegian offshore market. Since the early 1970s our panel systems were recognized as “Aker Panel”, and by some it still is.
1982
NEW NAME 1990
NEW MARKETS
As a consequence of the “Scandinavian Star” tragedy, new safety initiatives were taken, and Norac quickly became a leading supplier of interior systems for cruise ships, ferries and commercial vessels.
In 1982 the company expanded under the new name Norwegian Accomodation Systems – NORAC. At that time our products were introduced to the international market as Norac Marine Interior Systems.
1991
MEYER WERFT
Norac had the first large delivery of wall and ceiling panels to the Meyer Werft in Germany. This was the introduction to a long lasting co-operation very much thanks to our efficiency and logistics in supplying high quality parts and products on time.
COMPANY HISTORY
Since the early 1990s Norac became the largest supplier of Marine Interior Systems for cruise and ferries, and the company has through the years supplied accommodation materials to more than 8000 ships worldwide.
1995
TURNKEY DELIVERIES
Norac offers turnkey deliveries of complete interior systems including floating floors, wet units, carpets, furniture – even cutlery and sets if wanted.
2006
CHINA
When Norac established its fully-owned subsidiary UAB Norac in Lithuania in 2006, the business quickly grew into an efficient production company, which currently has approx. 400 employees.
ESTABLISHED UAB NORAC 2015
Norac established Norac Suzhou in China. The aim was to cover the Asian market.
MANAGEMENT
In 2019 Norac started assessing and compensating for emissions related to the organization and panel production.
Norac has expanded into other industrial areas, but our core business is still Marine Interior Systems.
ACOUSTIC INSULATION
In the marine and offshore industry, the acoustics insulation properties of the interior systems are of high importance. The acoustic insulation standards on board, especially in passenger ships, are continuously rising. At Norac we are therefore working hard to be able to deliver products that can satisfy the high standards for acoustic insulation.
When we talk about acoustic insulation properties, we normally separate between sound absorption and sound reduction.
Sound absorption:
Sound absorption is a material property which describes how well sound waves are absorbed in a material, thereby preventing s ound from bouncing around the room.
For acoustic insulation requirements, sound absorption is relevant when considering noise levels within the same space as the noise source. The ability of the walls, floor and ceiling of a room to absorb noise will be important in reducing noise reflected back from the surfaces into the room, creating echoes.
A material's sound absorbing properties are expressed by the sound absorption coefficient, α (alpha), as a function of the frequency. The alpha ) ranges from 0 to 1.00, where 0 is total reflection and 1.00 is total absorption.
ACOUSTIC INSULATION
Sound reduction:
When it comes to sound reduction, we talk about the reduction of sound through an element of construction (wall, floor, door, or ceiling). For acoustic insulation requirements, the sound reduction value is relevant when considering noise levels in a space separated form the noise source, for example between cabins.
The sound reduction for any construction will vary with the frequency of the sound source. Although the sound reduction for a construction is measured at various frequencies, an overall single value is used to express the sound reduction property. This value is called the “weighted sound reduction” or “sound transmission loss” value (Rw) and the unit of measure is decibel (dB). The higher sound transmission loss of a construction, the better it functions as a barrier to the passage of unwanted noise.
The method of measurement and analysis of sound absorption and sound transmission loss of Norac products are conducted at certified laboratories in accordance to the following standards:
ISO 354:2005
ISO 11654:1997
ISO 10140-2:2011
ISO 717-1:2013
ISO 354:2005
WALLS FIRE PROTECTION
The shipbuilding and offshore industries set very high requirements for safety on board. Products and construction to be used for fire protection must be tested for their fire resistance, in accordance with the rules and regulation set by the International Maritime Organization (IMO). Based on the approved test result, the Classification Institutes and National Marine Authorities grant the required approval.
IMO has developed a code for application of fire test procedures, called 2010 FTP Code. It provides the international requirements for laboratory testing, type-approval and fire test procedures for products referenced under SOLAS chapter ll-2, which includes regulation on fire protection.
A part of the 2010 FTP Code describes the test procedures and performance criteria for “A” and “B” class divisions (IMO 2010 FTP Code part 3 of annex 1), which are applicable for Norac’s fire-rated products. The products are tested at certified laboratories, where they are mounted to a furnace and exposed to heat on one side. The heat follows a given temperature curve, which will reach temperatures of 600 °C after only 5 minutes.
The test duration is 60 minutes for an “A” class division and 30 minutes for a “B” class division.
There are two main performance criteria for “A” and “B” class divisions, insulation and integrity.
WALLS FIRE PROTECTION
Integrity:
For all “A” and “B” class divisions, including “A” and “B” doors, there should be no flaming on the unexposed side during the test duration. A cotton-wool pad can be used to assist the evaluation of flaming. It shall during the test period, be no openings in the division large enough for a gap gauge to be passed through the test specimen.
Insulation:
A test specimen is equipped with thermocouples measuring the temperature rise on the unexposed side. Both the average temperature rise, and the maximum temperature rise is measured. For both “A” and “B” class divisions, the average unexposed-face temperature rise shall not be more than 140 °C. The maximum temperature rise recorded by any of the individual unexposed-face thermocouples shall not be more than 180°C for “A” class divisions and 225 °C for “B” class divisions during the periods given below for each classification:
• A-0 class 00 min
• A-15 class 15 min
• A-30 class 30 min
• A-60 class 60 min
• B-0 class 00 min
• B-15 class 15 min
CARBON FOOTPRINT
Over the past two decades the effects of climate change have accelerated. Considerable evidence exists proving climate change has been exacerbated by human activity. Changes in our post-industrial lifestyles have altered the chemical composition of the atmosphere, generating a build-up of greenhouse gases – primarily carbon dioxide, methane, and nitrous oxide levels – raising the average global temperature.
The consequences of inaction will be disastrous. Sea level will continue to rise and local climate conditions to be altered causing an increase in extreme weather events, affecting forests, crop yields, and water supplies. It will also affect human health, accelerate species extinction, and disrupt many ecosystems.
Climate Change is a global threat which will impact the lives of everyone on the planet. Hence, it is vital that all individu als businesses, organizations and governments work towards the common goal of reducing greenhouse gas emissions.
We have therefore adopted a comprehensive approach to addressing our climate impact and taking care of our carbon footprint.
This means:
• Assessing our organizational emissions and the product footprint of our panels through a transparent and comprehensive Life C ycle Analysis (LCA) from cradle-to-gate. This includes the process from the extraction and processing of virgin raw materials, the production, packaging, the transport of these components to our factory and product distribution.
• Reducing our own carbon footprint through efficiency measures and reviewing our whole production process.
• Compensating emissions by planting Mangrove trees in collaboration with the Thor Heyerdahl climate park in Myanmar.
OUR PRODUCTS
WALL SYSTEMS
Norac’s wall systems are designed to meet the following criteria: quality, flexibility, fire, sound, weight and ease of installation. Based on new requirements for improved acoustic insulation, Norac has developed a series of acoustic walls, which offer documented sound reduction properties of up to 54 dB RW.
K-600
Q-600 / CF-600
K / Connecting details
C-600 / CS-600
C / Connecting details
CSG-600 / 70
Additional panel concept
Removable panels
Reinforcement
Loadbearing Capacity
Horizonal Joint
Cable Ducting
Panels for wet spaces Wet Coaming
WALLS K- 600
K-600 is designed with integrated joint profiles for rapid installation, leaving a flush surface with single seam joints. Available in standard or modular system.
Approved B-15 available for several wall types.
The system have been shock tested. More information available on request.
K-panels are also available in aluminium construction in B-15 with considerable weight savings.
See technical descriptions below.
All weights are based on system weight, including all profiles
WALLS Q - 600 / CF - 600
Q-600 is acoustic wall system of sandwich construction with an excellent sound reduction quality.
Q-600 is a rigid system with integrated joint profiles which allows for easy and rapid installation.
Flush surface with single seam joints. Available as a modular system.
50 mm panels available with vertical cable ducts in B-15.
70 mm panels have the possibility to draw cables horizontal and vertical.
All weights are based on system weight, including all profiles
WALLS K / CONNECTING DETAILS
T-connection with panels and studs
NOTE: Norac systems are delivered with a wide variety of connecting elements/profiles to obtain the best solutions. Corners may be delive red in stainless steel finish.
Flush corner connection with stud 25 mm
Flush corner connection with stud 50 mm
Rounded corner with stud
Flush

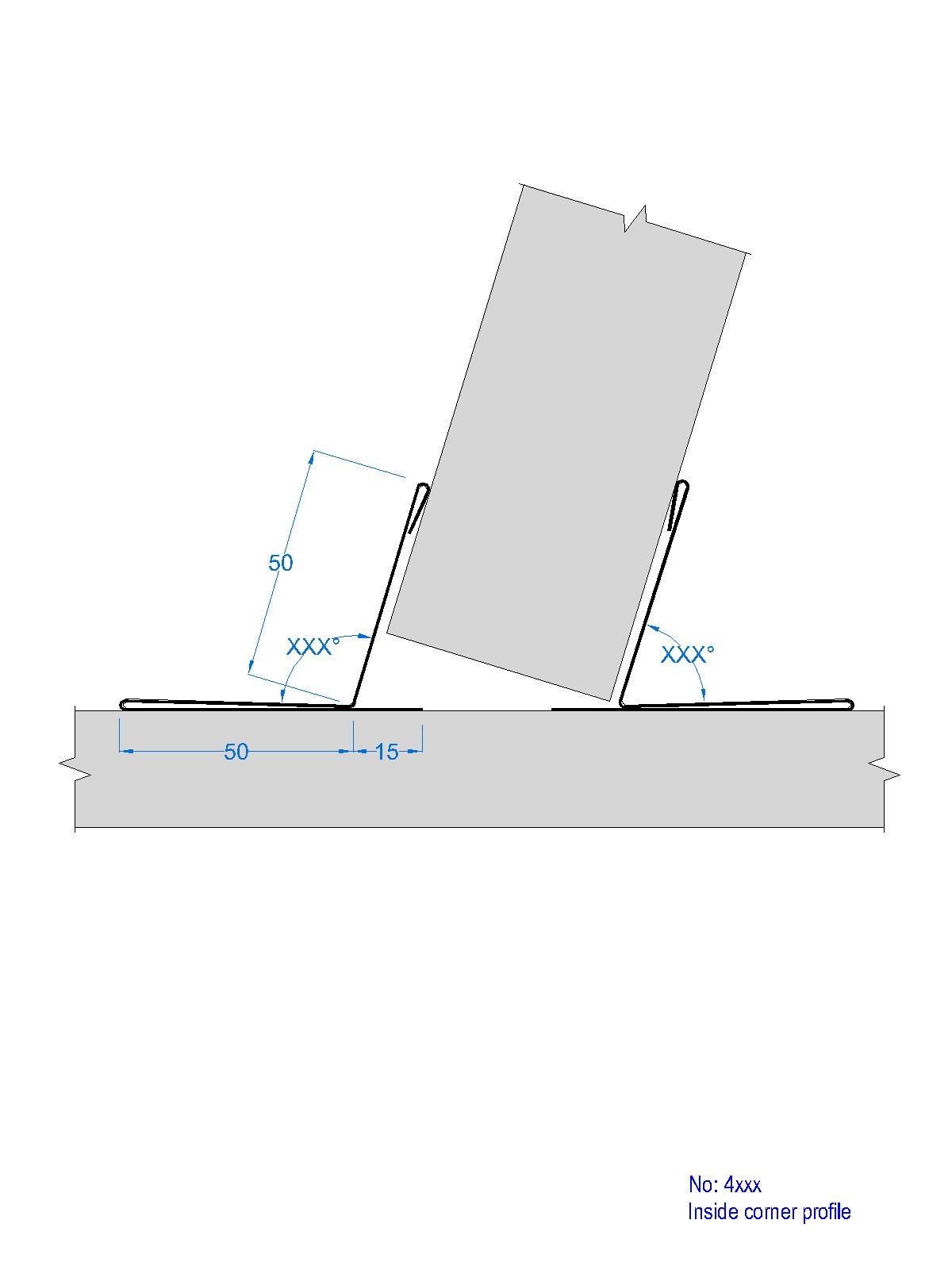

WALLS K / CONNECTING DETAILS
NOTE: Norac systems are delivered with a wide variety of connecting elements/profiles to obtain the best solutions. Corners may be delive red in stainless steel finish.
Flush U-profile
Profile for cut mounting
Corner for cut mounting
Rounded corner
WALLS C- 600 / CS - 600
C-600 is an acoustic double wall system with two independent wall elements installed in the same profile system.
Available as standard or modular system.
Allows installation of electrical cables before completing assembly (in 70 mm version).
All weights are based on system weight, including all profiles

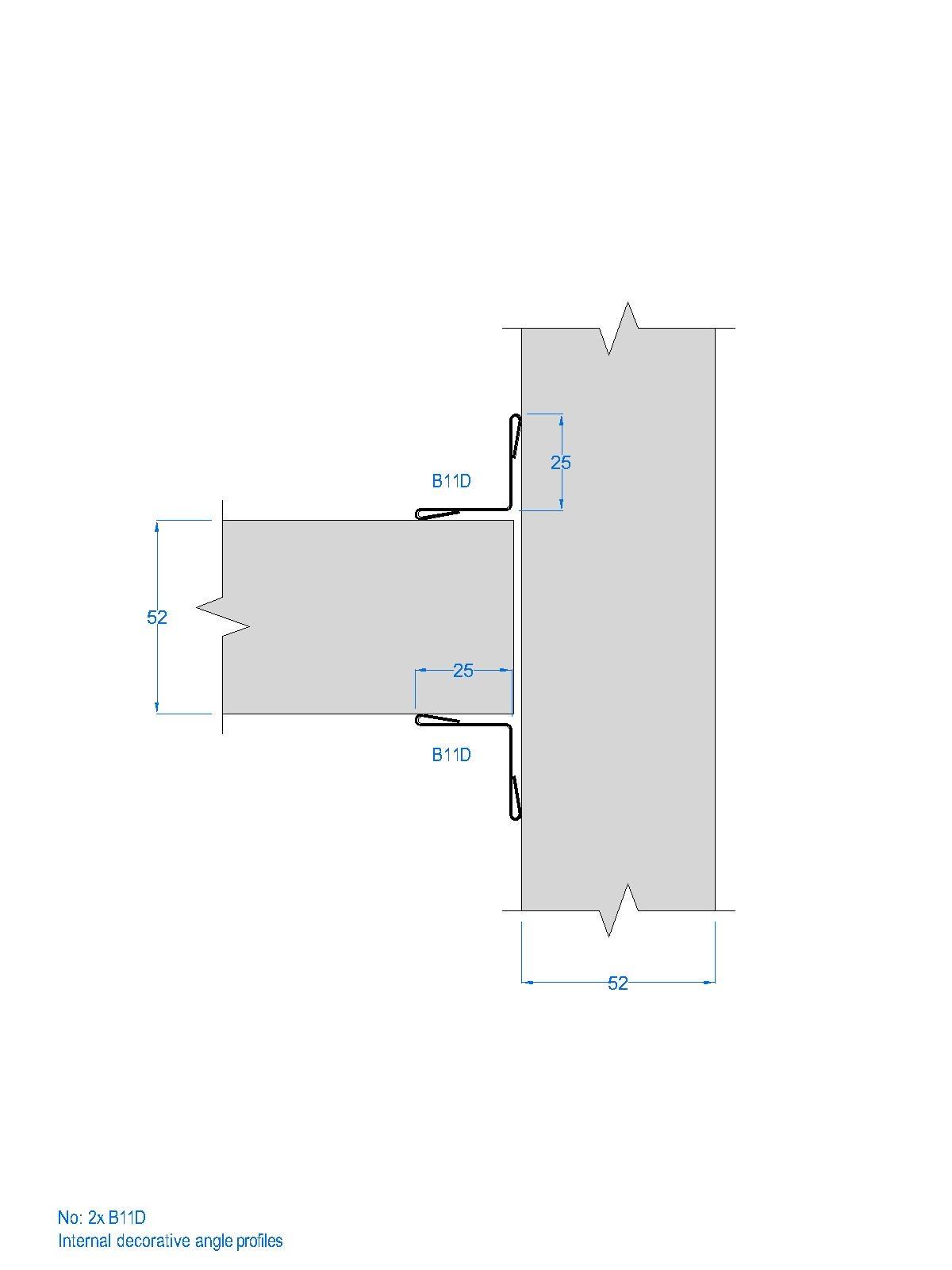

WALLS C / CONNECTING DETAILS
NOTE:
Norac systems are delivered with a wide variety of connecting elements/profiles to obtain the best solutions. Corners may be delivered in stainless steel finish.
WALLS CSG - 600 / 70
The use of additional insulation between the two panels of a CS-600/70 wall improves the sound reduction by an amazing 4dB compared to the CS system on page 15.
Note that building thickness is not more than 70 mm.
All weights are based on system weight, including all profiles
WALLS ADDITIONAL PANEL CONCEPT
Additional panel concept for installation on existing walls. Ideal for refurbishing purposes, and where a better sound reduction between cabins is required. Thickness 20 mm only.
All weights are based on system weight, including all profiles
Depends on existing wall
WALLS REMOVABLE PANELS
To be used where access is required. C-class.
WALLS REINFORCEMENT
Built in reinforcements to accommodate heavy wall hung equipment, such as wash basins, TV-brackets, pullman beds etc can be delivered upon request. Various solutions available.
Special reinforcement for Pullman beds, single or double
WALLS LOADBEARING CAPACITY
STRENGTH OF HAND RAILS ATTACHED TO WALL PANELS
The tongue and groove system allow fixing of heavy objects to the wall without special reinforcement.
Both K-600/25 mm and K-600/50 mm are qualified according to the SOLAS regulation: “Strength test for B-class panels to which handrails are attached on RO-RO passenger ships”.
The result can be transferred to other Norac panel types. The full report is available on request.
GENERAL STRENGTH PROPERTIES
Norac have performed several series of other tests on strength properties. More information is available on request.
The below fixing methods and specifications will not impair the fire integrity of the panel types subject to the delivery.
ATTACHMENT WEIGHT
(MAX PER PANEL PER FACE) [KG]
EQ TO BE INSTALLED BY… FIXING METHOD FIXING ITEMS AND DRIL HOLES
W < 20
CoG of EQ < 150 mm
From wall surface
Mechanically attached directly to the wall without reinforcement.
Fix with screws with bonded washer. Min. 4 screws separated from each other by minimum 250 mm.
20 ≤ W ≤ 80
CoG of EQ < 150 mm
From wall surface
Mechanically attach directly to reinforced wall. Reinforcement to be provided to the wall by NORAC. Wall elevation with EQ location to be issued to NORAC
W > 80 Item should not be attached to the wall. Separate stand to be provided.
Fix with screws with bonded washer. Min. 4 screws separated from each other by minimum 250 mm.
On face sheet:
Drill Holes = 3.0 mm
Screw size = D5x30 and Fisher A5 dowels
On vertical joints: Drill holes = 2.7 mm
Screw size = D5x30
On face sheet:
Drill Holes = 3.0 mm
Screw size = D5x30 and Fisher A5 dowels
On vertical joints: Drill holes =2.7 mm
TBD item by item
TBD item by item
Equipment attached to B-rated wall
WALLS HORIZONTAL JOINT
For areas where ceiling height exceeds 3000 mm. Used for linings only.
Connection to steel bulkhead is yard’s supply.
WALLS CABLE DUCTING
Pre-arranged duct and cut-outs for cables and sockets can be delivered upon request. Tested with up to 10 ducts per 600 mm panel as B-15 class.
Standard size of conduit:
• Single 20x30 mm
• Double 20x60 mm
WALLS PANELS FOR WET SPACES
Detail for wet room – 25 mm lining only
on flat bar supplied by yard. Standard thickness of flat bar 8 mm.
50 mm panels with symmetric finish
50 mm panels with asymmetric finish
Mounted
WALLS WET COAMING
A specially designed wet coaming used on top of floating floors in wet areas. The coaming is a fully insulated galvanized ste el profile. It is secured to the floor with self tapping screws or rivets.
Height of coaming according to customer request. Can be delivered in galvanized steel and stainless steel.
Coaming for 25 mm wet panel
Coaming for 50 mm panels wet / wet

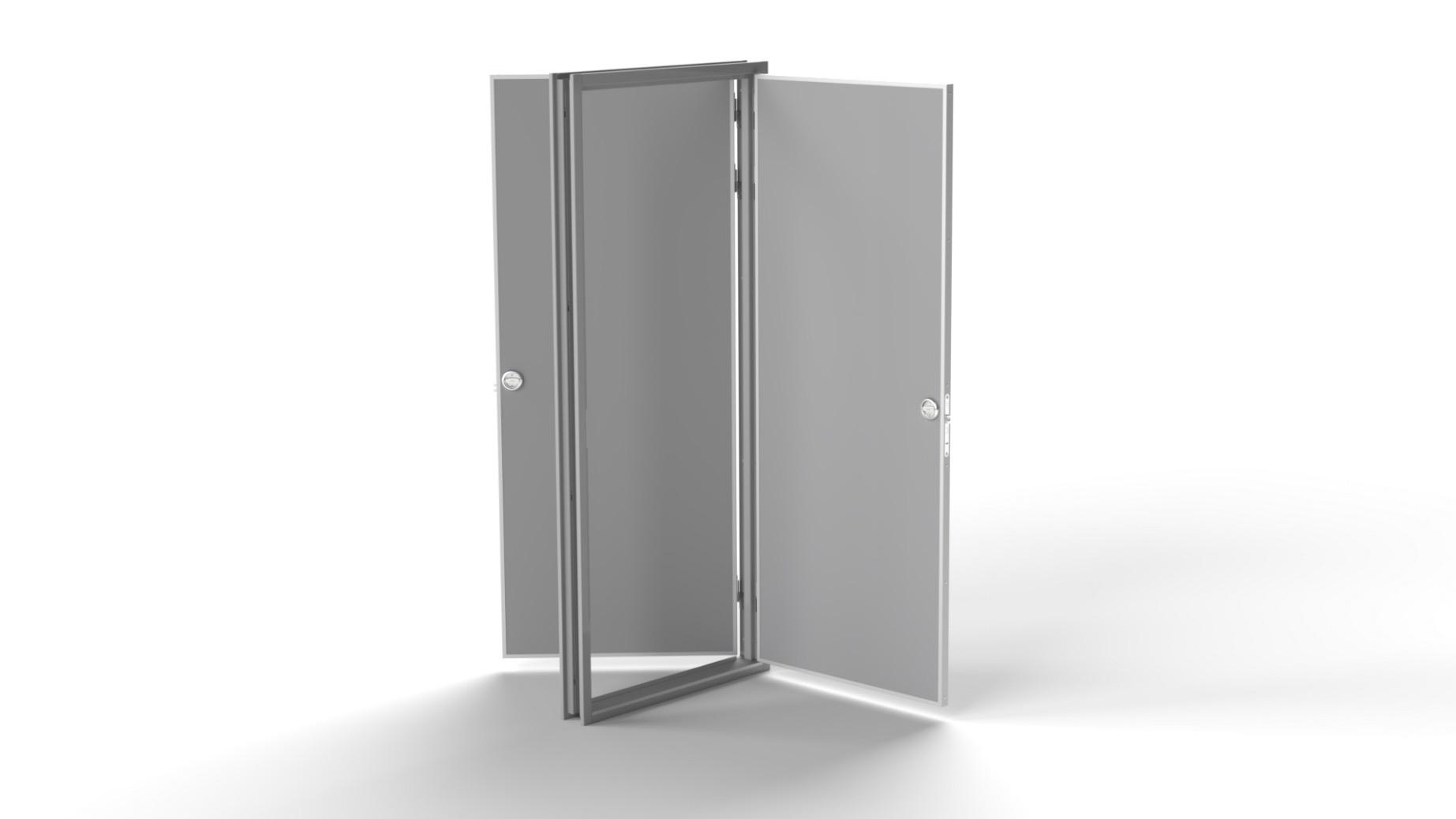

WALLS INSPECTION DOORS AND HATCHES
For quick access to technical spaces such as pipe connection, electrical boxes etc.
The surface is normally the same as the wall to give a discreet finish.
Square key-lock or handle is optional.
Available with custom print.
DESCRIPTION INSPECTION DOORS WALL HATCH
Surface PVC, paint, stainless steel PVC, paint, stainless steel
Core material Rockwool Rockwool
Max clear opening 800 x 2100 mm
Thickness
Weight 19 kg/m²-approx 19 kg/m²-approx
hatch
Lock 3-point square lock* 3-point square lock * Can be delivered also in triangle lock and recessed ring handle
door
Inspection
Inspection

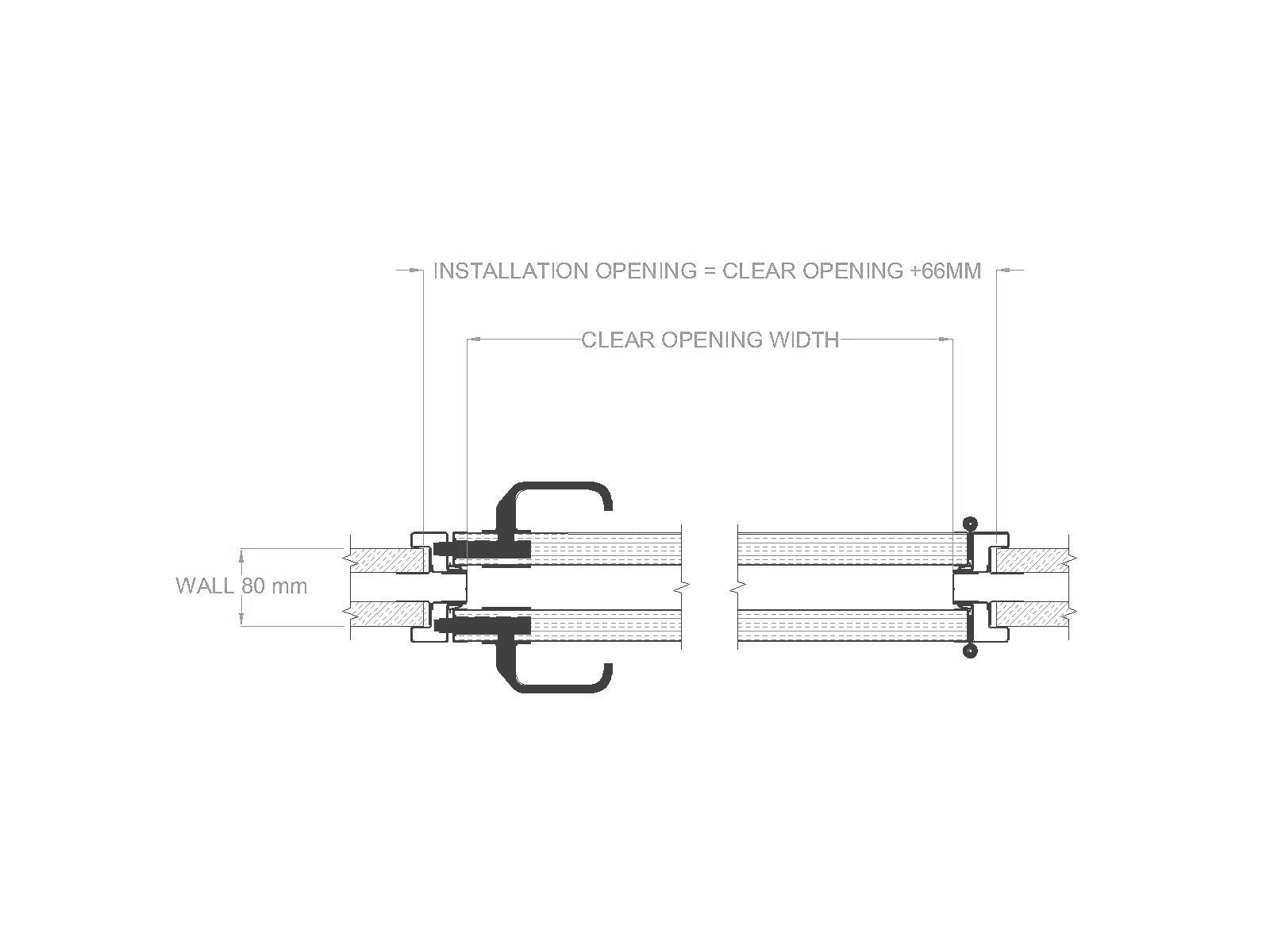

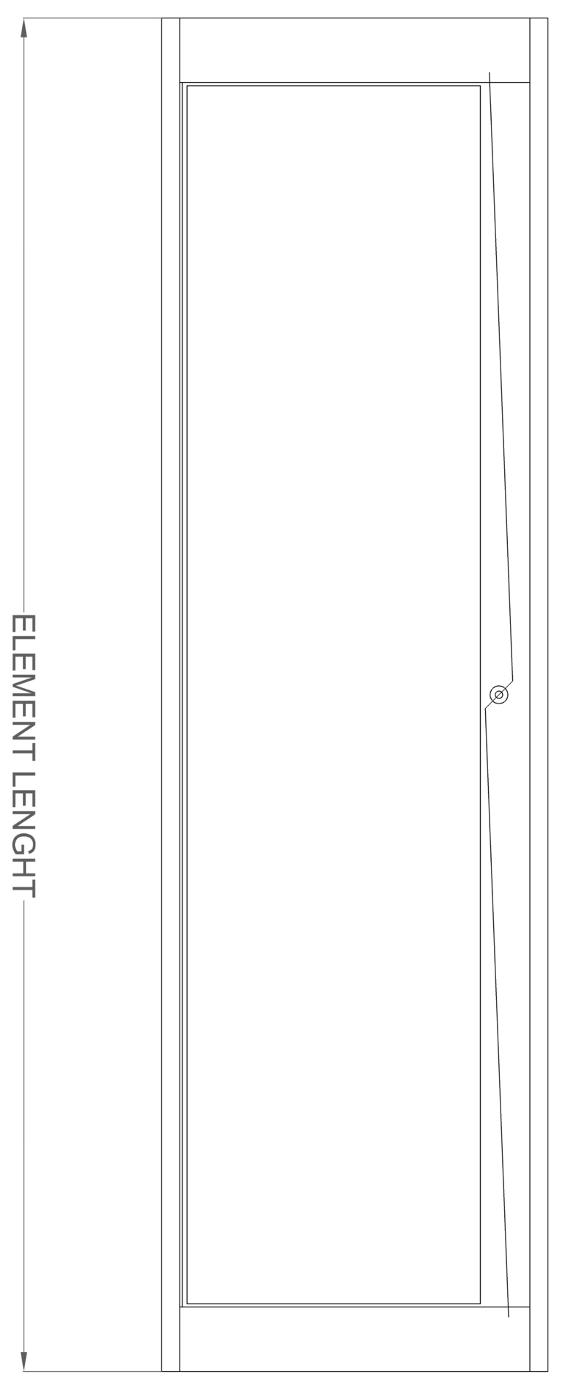

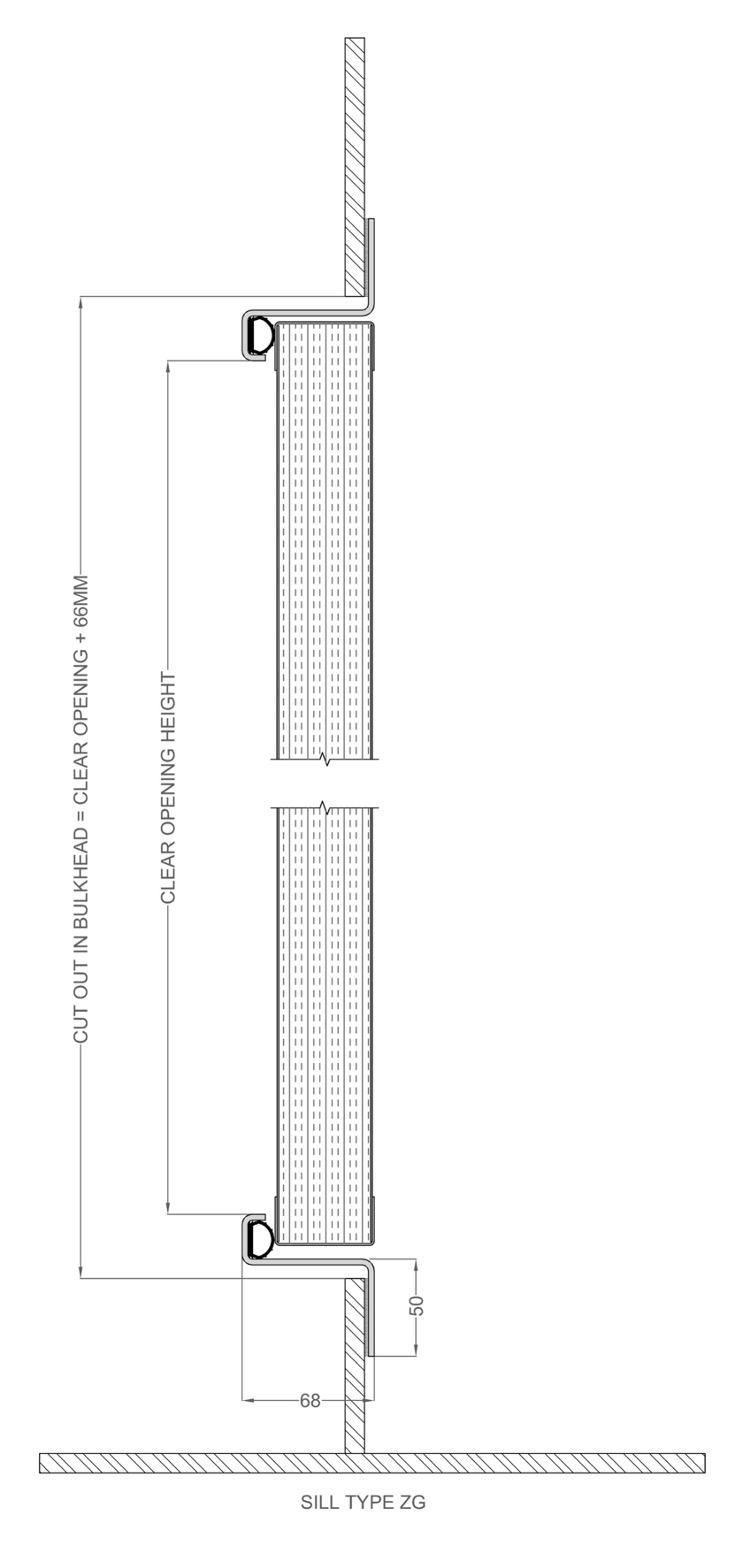

WALLS INSPECTION DOOR / TECHNICAL DETAILS
WALLS INSPECTION HATCH / TECHNICAL DETAILS
WALLS EXAMPLE OF STANDARD SYSTEM
A standard system is a flexible system allowing adjustments onboard the vessel during construction. The panels are delivered in one standard size and are cut to fit according to the on-site measurements with use of stand profiles.
Profiles are designed to leave as few visible screws/rivets as possible.
Norac can provide a Drawing Package upon request. The Drawing Package consists of Norac products, elements, and profiles, and can be used by the recipient for information of the Norac product system. It can also be used by the recipient for generating material takeout’s (MTO).
Norac can deliver product, elements, and profiles according MTO by customer.
The elements and profiles in the drawing package are standard products. NORAC can also design and produce special elements and profiles according to customers need.
WALLS EXAMPLE OF MODULAR SYSTEM
A modular system is a fully tailor-made system to avoid adjustments and cutting onboard vessels. These systems reduce waste and the installation time for the yard and most importantly, reduces costs.
A modular system leaves a smooth finish with no external profiles and no visible screws/rivets.
It is appreciated just as much for commercial vessels and offshore rings as it is for cruise vessels.
For modular and semi-modular wall- and ceiling systems, Norac provides engineering according to customers General Arrangement (GA) drawings. NORAC engineering generates installation drawings and will ensure an optimal solution.
No: K-625401
Standard 25 mm adjustment profile flush
No: K-625010
WALLS PROFILES
No: K-6258xx 25 mm bent adjustment profile cut
No: K-6508xx 50 mm bent adjustment profile cut
No: K-600020 Start/stop profile
WALLS PROFILES
25 mm rounded corner element cut
25 mm bent corner element cut
50 mm bent corner element flush
6256xx
No: K-6507xx
No: K-625062
CEILING SYSTEMS
Norac manufactures and supplies both suspended and self suspended ceiling solutions. The ceiling systems are recognized throughout the industry for both their superior acoustic and absorption properties and ease of installation. The self-suspended ceiling modules have been designed to avoid structural borne noise and to reduce safety risks associated with loose fire insulation.
CEILINGS B - 500 / 52
B-500/52 is a self suspended ceiling of sandwich construction and designed for easy and rapid installation with no connecting profiles.
No additional (loose) insulation required to maintain fire class.
Self suspended up to 2750 mm.
All weights are based on system weight, including all profiles
Sound reduction On request On request
Approved with light fittings. The ceiling has been shock tested. More information on request
Available as perforated ceiling
CEILINGS B - 600 /
40
B-600/40 is a self suspended ceiling of sandwich construction and designed for easy and rapid installation with no connecting profiles.
Self suspended up to 2715 mm.
Note: For preassembled cabins only.
All weights are based on system weight, including all profiles
DESCRIPTION
Approved with light fittings
Joint profile. For rooms exceeding 2500/3000 mm Steel strips to deck above, yard supply
Available as perforated ceiling
CEILINGS T- 600 / 40 / 30
T-600/40 is a self suspended ceiling of sandwich construction and designed for easy and rapid installation with no connecting profiles.
Self suspended up to 2715 mm (T-600/40). Self suspended up to 3015 mm (T-600/30).
All weights are based on system weight, including all profiles
* Fire gasket (16 x 2 mm) in the groove.
to be fixed from back side. To be used for prefabricated cabins.
Approved with light fittings
Reinforced suspension angle Joint profile. For rooms exceeding 2500/3000 mm
CEILINGS INSPECTION HATCH
For quick access to technical spaces above the ceiling such as ventilation, electrical wiring etc. Surface is normally the same as the ceiling to make a discreet finish.
The hatch is supplied with frame / counter frame for cut out, 3-point espagnolette lock and piano hinge.
NOTE: If the width of the frame exceeds the width of the ceiling panel, extra support (steel strips) are needed.
DESCRIPTION INSPECTION HATCH FOR CEILING
EQUIPMENT ATTACHED TO B - RATED CEILING
ATTACHMENT WEIGHT
PER PANEL PER PANEL) [KG]
W < 5
TO BE INSTALLED BY…
Mechanically attached directly to the ceiling panel without reinforcement.
Fix with screws with bonded washer. Min. 4 screws separated from each other by minimum 250 mm.
On face sheet:
Drill Holes = 3.0 mm
Screw size = D5x30
5 ≤ W ≤ 20
Mechanically attach directly to reinforced ceiling panel. Reinforcement to be provided to the panel by NORAC. Wall elevation with EQ location to be issued to NORAC.
W > 20 Item should not be attached to the ceiling panel. Separate support from deck above to be provided.
Fix with screws with bonded washer. Min. 4 screws separated from each other by minimum 250 mm.
On face sheet: Drill Holes = 3.0 mm
Screw size = D5x30
NOTES
DOORS
Norac manufactures and supplies a wide range of high-quality internal A and B classified doors for the maritime industry. Our doors are tested to satisfy the industry’s strict requirements for both fire safety and sound reduction. They are all certified by international classification societies and authorities.
We deliver standard doors and custom-built doors within the limitations of our certificates.
DOORS CONTENTS
B-rated Doors
N-MB Door
N-ML Door
N-MC Door
N-MLDD Door
N-CD Door
N-CD-II Door
N-CCD Door
N-SD Door
A-rated Doors
N-HD A-30 Door
N-HD A-60 Door
N-HD A-60 DD Door
N-HD A-60 Hatch
NOTES
DOORS B - RATED
Norac has a complete range of B-doors designed for all kind of applications, from a lightweight all-round door for corridors and public areas to a cabin door with sound reduction value (Rw) of 44 dB. The doors are easy to install and supplied complete with integrated top element (option), frame, counter frame, door leaf, hardware and stainless-steel threshold. All B-doors can be delivered with painted, stainless steel or PVC coated surface, and they are all certified as fire class B-15.
top
specification
* According to NSC & RAL colors.
TrioVing/Schwepper/ Dormakaba
TrioVing/Schwepper/ Dormakaba
TrioVing/Schwepper/ Dormakaba
TrioVing/Schwepper/ Dormakaba
TrioVing/Schwepper/ Dormakaba
TrioVing/Schwepper/ Dormakaba
TrioVing/Schwepper/ Dormakaba TrioVing/Stuv/Helm
** Weight is based on a door with the following clear openings: N-MB, N-ML, N-MC, N-CD, N-CD-II and N-CDD: 700
*** Door dimensions can be marginally increased according to IMO MSC.1/Circ. 1319.
Ventilation louvre
Kick-out
Lead cover for hardware
DOORS B - RATED

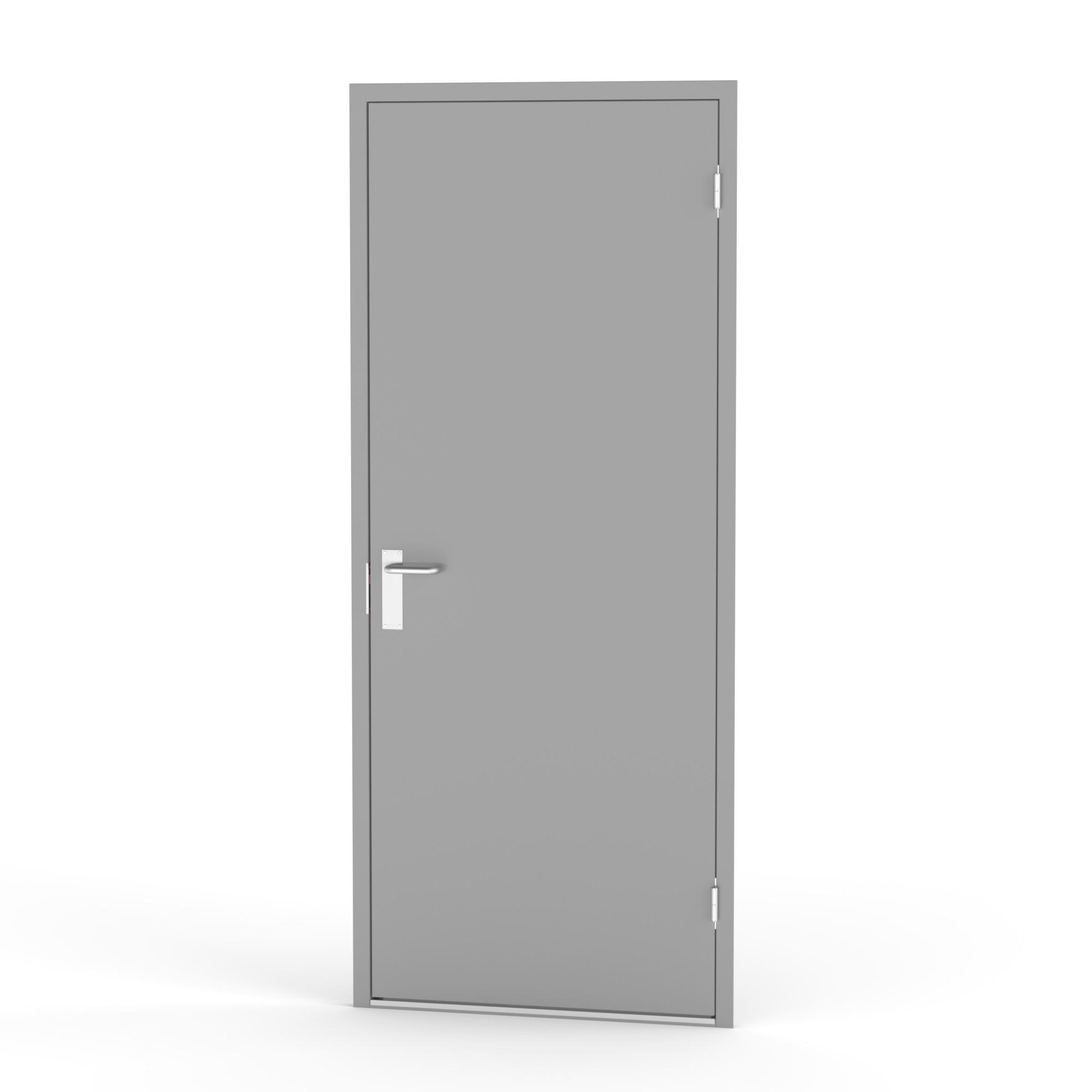

The MB door has been developed to function as a basic door with a wide field of application. It is normally used in areas where there are no special requirements other than to function as a B class division.
DOORS / TECHNICAL DETAILS B RATED N MB
SIDE VIEW:
DOORS B - RATED N
The ML door is a lightweight door with a wide field of application. Typical applications can be corridors, WC and other public areas.
The door can be delivered with or without top panel and be equipped with vision panel, kick-out, ventilation louvre and door closer.
Available with vision panel
Available ventilation louvre
DOORS / TECHNICAL DETAILS B - RATED N
- ML
SILL TYPES:
TOP VIEW:
SIDE VIEW:
DOORS B - RATED N - MC
The MC door is an acoustic door with a sound reduction value (Rw) of 43 dB. Typical application can be cabins and offices with high requirements for sound reduction.
The door can be equipped with vision panel, kick-out, z-ventilation and door closer.
DOORS / TECHNICAL DETAILS B - RATED N - MC
SILL TYPES:
TOP VIEW:
SIDE VIEW:
DOORS B - RATED N - MLDD
The MLDD is a double leaf door with a wide field of application. It can be used for area’s with requirements of large clear opening width up to 1600 mm.
DOORS
/ TECHNICAL DETAILS B - RATED N - MLDD
VIEW:
SILL TYPES:
TOP
SIDE VIEW:
DOORS B - RATED N - CD
The CD door is specially designed as entry doors for cabins on cruise vessels. It has a high sound reduction value (Rw) of 44 dB and can be equipped with a RFID door lock system, door viewer and door closer.
The functionality and durability of the CD door has been tested according EN1191:2012, where it exceeded 200 000 opening and closing cycles.
Available with peep hole
DOORS
/ TECHNICAL DETAILS B - RATED N - CD
TOP VIEW:
SIDE VIEW:
DOORS B
The CD-II door is specially designed vessels. It is a lightweight cabin door with a high sound reduction value (Rw) of 39 dB and can be equipped with a RFID door lock system, door viewer and door closer.
The door can also be equipped with Z sound reduction value (Rw) of 38 dB.
DOORS
/ TECHNICAL DETAILS B - RATED N - CD II
DOORS B - RATED N - CCD
The CCD is a cabin connection door specially designed to combine two separate cabins to a larger family cabin. The door construction consists of two door leaves within one door frame, where each door leaf is swinging in the opposite direction.
The CCD door has an excellent sound reduction value (Rw) of 46 dB.
DOORS / TECHNICAL DETAILS B - RATED N - CCD
SIDE VIEW:
DOORS B - RATED N - SD
Norac’s SD door is a sliding door that can be used in areas where a hinged door would have little room to completely swing open.
The door can be delivered as a manual operated door or with electric operated door drive system.
DOORS / TECHNICAL DETAILS B - RATED N - SD
TOP VIEW OPENED:
SIDE VIEW:
TOP VIEW:
NOTES
DOORS A - RATED
Norac are developing a complete range of A-rated marine interior doors. The doors are easy to install and can be bolted or welded to the bulkhead.
All A-doors can be delivered with painted, stainless steel or PVC coated surface.
(and top element)
Standard specification TrioVing/Schwepper/Dormakaba
* According to NSC & RAL colors.
** Weight is based on a door with clear opening 1000 x 2000 mm.
*** Door dimensions can be marginally increased according to IMO MSC.1/Circ. 1319.
TrioVing/Schwepper/Dormakaba
TrioVing/Schwepper/Dormakaba
TrioVing/Schwepper/Dormakaba
DOORS A - RATED N - HD A - 30
The A30 door is a solid, lightweight door to be used in A-0 or A-30 fire rated bulkheads.
The door can be equipped with vision panel, hose port and door closer.
Available with hose port
DOORS / TECHNICAL DETAILS A - RATED N
- HD A - 30
SILL TYPES:
TOP VIEW: SIDE VIEW:
DOORS A - RATED N - HD A - 60
The A60 door is a solid door to be used in A60 fire rated bulkheads. The door leaf can be delivered in stainless steel, laminated painted or PVC coated steel
The door can be equipped with vision panel, hose port and door closer.
Available with hose port
DOORS / TECHNICAL DETAILS
A - RATED N - HD A - 60
TOP VIEW:
SILL TYPES:
SIDE VIEW:
DOORS A - RATED N - HD A - 60DD
The A60 DD is a solid double door to be used in A-60 fire rated bulkheads. The door leaf can be delivered in stainless steel, laminated, painted or PVC coated steel. It can be used for areas with requirements of large clear opening width up to 1900 mm.
The door can be equipped with vision panel, hose port and door closer.
DOORS / TECHNICAL DETAILS
DOORS A - RATED N - HD A - 60 HATCH
The A-60 Hatch is a hatch which can be installed in steel bulkhead and A-rated composite bulkheads
The A-60 hatch can also delivered with recessed handles, window, indicator and hose port.
DOORS
/ TECHNICAL DETAILS A - RATED N - HD A - 60 HATCH
TOP VIEW:
SILL TYPES:
SIDE VIEW:
WET UNITS
Building on decades of experience and specialized competence, Norac offers fully fitted wet units. The Norac modular wet units are ideal for marine accommodations from cruise ships to offshore installations.
NOTES
WET UNITS PREFABRICATED
With many years of experience and specialized competence, Norac offers fully fitted B-15 fire rated wet units. The Norac modular wet units are ideal for marine accommodations, from cruise ships to offshore installations.
The Norac wet units, whether standard or custom made, are manufactured according to the strictest rules and regulations and are fabricated from only first class materials.
In our design, the emphasis is on using durable solutions to ensure maximum quality, comfort and well-being of our customers, whether being a ship owner, ship yard or end user.
The units are manufactured with great deal of consideration given to the ease of handling and installation.
Throughout the production process the units are subjected to strict quality control to ensure that all of our supplies conform to our policy of supplying only first class quality.
ALUMINIUM CONSTRUCTION:
Prefabricated modular wet units for all types of marine accommodations also available in light weight, non-corrosive aluminium – C- class. Weight reduction as much as 20-25%.
WET UNITS TYPICAL DESIGN
Wet units can, upon request, be delivered in “knock down” execution.
A = Toilet module
B = Shower module
C = Bath module
These units are for guidance only. We deliver units according to customer specification and design.
WET UNITS TYPICAL DESIGN
Wet units can, upon request, be delivered in “knock down” execution.
A = Toilet module
B = Shower module
C = Bath module
These units are for guidance only. We deliver units according to customer specification and design.
TYPICAL STANDARD DETAILS Scupper
greywater
water pipe
WET UNITS TECHNICAL DETAILS
Norac wet units can be delivered with different draining systems according to our customer’s specification.
Norac wet units are delivered with walls and ceilings manufactured in a sandwich construction with no open/visible insulation.
Bottom tray can be supplied in mild steel, stainless steel, aluminium and GRP.
The floor pan is fully tested water tight, blasted and primed before application of finish.
TECHNICAL DETAILS
Doors top section view.
Doors side section double wall. Doors side section single wall.
WET UNITS DETAILS
Typical connection onboard.
WET UNITS INSTALLATION
The standard units are delivered each with four square tubes for easy lifting and locating on board. A specially designed lifting frame is used for hoisting by crane.
After lifting on board, transportation wheels are fitted into the tubes. The units are then jacked up and transported to their final position.
All units are delivered with one adjustable leg at each corner to allow for levelling.
Norac wet units are so complete when delivered that after fixing them to the deck you only need connect the water, drainage and electricity to use them.
Norac wet units have been successfully installed on numerous vessels throughout the world, whether they are on a luxury cruise liner, commercial vessel or offshore platform.
Adjusting height of bathroom unit – option 1 pc placed on the corner of bathroom unit (normally 5 pcs on each unit)
Norac wet units are easy to handle and to locate on board

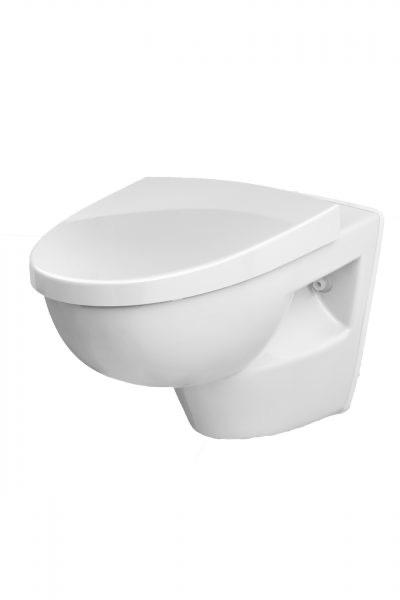

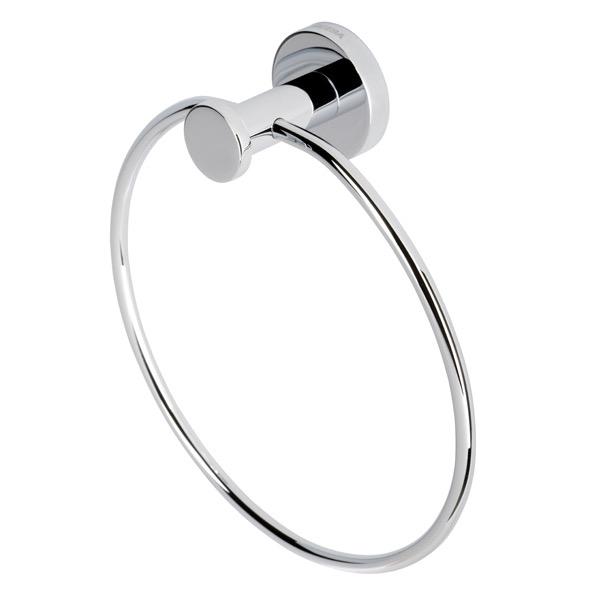

WET UNITS STANDARD EQUIPMENT / ACCESSORIES
WET UNITS STANDARD EQUIPMENT / ACCESSORIES
WET UNITS CUSTOM MADE FOR NORAC
WET UNITS CUSTOM MADE FOR NORAC
FLOATING FLOORS
Norac manufactures and supplies floating floor systems designed for strength, safety, ease of installation and sound reduction properties. The floor system is constructed of galvanized steel cassettes of 3 mm thickness, but is easy to transport and install.
FLOATING FLOORS / F - 300 A - 0/A - 60
All 4 edges are bent for maximum strength.
Galvanized steel casettes og 3 mm thickness.
NOTES
TRADING
Here at Norac, we do our utmost to help out our customers as much as possible. In addition to our own products, Norac also has a wide range of sub-suppliers that can offer all kinds of accommodation equipment. For turn-key projects, Norac can include Furniture, Galley equipment, Freezer rooms, Helm chairs, Screed, Insulation and whatever is needed in a complete package to our customers. For more information on what we can offer, contact our sales department.
BD SYSTEMS INTERNAL A-WALLS
Norac is manufacturing specialized internal and external firewalls on behalf of and in cooperation with BD Systems, UK. BD Systems are the largest UK provider of internal and external fire rated modular architectural systems. BD Systems deliver innovative fire and blast solutions to the Marine and Offshore industries worldwide. Utilising the strength of composite structures BD Systems have developed a range of products from A0 to H120 both decorative lightweight non load bearing systems and high strength blast resistant structures.
Collaboration between BD Systems and Norac AS for many years has enhanced the market position of both companies by being able to supply full turnkey project solutions covering cost, engineering and project management.
HEAVY DUTY WALLS / BD CIS 50 A
C.I.S Panels
Standing for “Clip In System”. It is the ease and speed with which the CIS panel systems are installed and demounted that makes this system the most popular and widely used system in the market place today. All panels within the CIS range are rigid in strength and extremely flexible in cutting and installing. Available as a standard system.
Details
Non-load bearing composite firewalls for the offshore and marine industries.
All weights shown are for the fully installed system and include all profiles.
DESCRIPTION CIS - 50
Fire class A0 – A30 / 1 hour
Standard width 575 mm
Module length up to 3000 mm
Thickness 52 mm
Weight 19,35 kg/m²
Sound reduction Rw=32 dB
Thermal isolation U=0.61 W/m² K
Application Partition
HEAVY DUTY WALLS / BD CIS 50
BD CIS 50 / CONNECTING PROFILES
No: B7
No: B2
No: B10D / B11D
No: 2 x B11D
No: B9D
HEAVY DUTY WALLS / BD CIS 100 A
C.I.S Panels
Standing for “Clip In System”. It is the ease and speed with which the CIS panel systems are installed and demounted that makes this system the most popular and widely used system in the market place today. All panels within the CIS range are rigid in strength and extremely flexible in cutting and installing. Available as a standard system.
Details
Non-load bearing composite firewalls for the offshore and marine industries.
The A60 CIS-100A wall doubles as the BD special acoustic partition system giving a good sound reduction of 46 dB. The system is certified for use with perforated steel to either one or both panel faces.
All weights shown are for the fully installed system and include all profiles.
Standard Conduit Raceways size 20 x 30mm.
DESCRIPTION CIS - 100 CIS – 100A Fire class
HEAVY DUTY WALLS / BD CIS 100
BD CIS 100 / CONNECTING PROFILES
A7
top profile No: A10D / A11D
No: 2 x A11D
No:
CODE OF CONDUCT & SALES CONDITIONS
CODE OF CONDUCT
Norac is a responsible company, what does that mean?
In today´s global environment, companies are an important part of the process of creating sustainability and enhancing ethical busines s conduct.
For Norac, to be a responsible company means to behave ethically in all aspects of business. This means that we care for the environment, we set good examples in the way we act towards each other as employees and the way we treat our business partners, and we always respect laws and regulations wherever we do business.
Norac is positioned in the international, as well as the domestic market. A key factor to success in all markets is reliability which is why being a reliable partner is a Norac top priority.
The Code of Conduct sets Norac´s ethical standards in a number of areas. All employees must be familiar with and live up to these standards.
Every Norac employee, without exception, has an important role to play in maintaining Norac´s reputation as a responsible company.
We are what we do!
1. GOALS AND PRINCIPLES
Why is ethics important in Norac? CODE OF CONDUCT
The short answer is that it is simply correct to do the right things. There are also good business reasons.
High ethical standards are essential to ensure continued trust from our customers, thus ensuring the company´s success.
We must also act as responsible social actors – this way we may receive and also deserve the respect we get from the population, investors and authorities. In addition, for Norac to be the kind of employer we want to be and for us to have a culture in which we attract new employees, ethical behavior is a key factor.
Ethics is about what is right and how to behave. As such, Norac is never more than our employees´ total actions and behavior. In reality, nothing will happen unless every one of us behaves in an ethically correct manner, in accordance to our guidelines and values. Ethics begins with ourselves. The employees are the key to Norac succeeding in living up to our ethical guidelines.
The guidelines are part of Norac Risk Management system.
2. CONDITIONS
2.1 BASIC ETHICHAL PRINCIPLES
Norac´s basic ethical principles and high ethical standard is a prevention for long term success Norac and our employees behave fair, correct and honest, and with high integrity.
Every person has the same value
Our culture must promote equality and diversity, and we accept no form of discrimination.
2.2 LAWS AND RULES
We act in accordance with laws and rules
If laws or rules are less stringent than our own standard, we use the Norac standard unless we are given other instructions.
We have good relationship with public authorities
Norac strives for transparency and mutual respect when working with inspectors and surveillance authorities, as well as all other public authorities.
2.3 AT WORK
We use common sense
We behave like mature, responsible people who uses common sense and think for ourselves. Even though something is not defined as prohibited by our policies, it is not given that it is correct.
We treat each other with respect
We treat each other with mutual respect, trust and consideration.
We work on discrimination and victimization
We do not tolerate any form of discrimination, harassment, bullying or other forms of abuse; either physical or mental. Our decisions on recruitment, promotion, development and rewards are based on the employee´s abilities and skills. Decisions must never be based on irrelevant factors such as gender, age, ethnic background, religion or sexual orientation.
2. CONDITIONS, CODE OF CONDUCT
We respect private life
We respect the fundamental right to privacy.
Personal information about employees must be obtained in a proper and legal manner, be relevant to the intended use and treated with the utmost care.
We maintain good cooperation with the labor unions
In order to develop Norac and ensure that all employees are treated properly, Norac strives to maintain a close and beneficial dialogue with both employees and their elected representatives; such as trade unions.
We take responsibility for the company’s property
We treat the tools and equipment we use at work in a responsible manner.
Norac´s equipment may not be used for private purposes or profit.
We have safe and healthy working environment
Norac works hard to ensure a healthy and safe working environment . Norac works continuously on assuring we have a healthy attitude towards work and stimulant intake.
Alcohol should not be consumed during working hours. The only exception is when alcohol is served in connection with customer care and if it is enjoyed responsibly. Norac’s employees shall not use illegal narcotics or drugs.
Out of work
We expect Norac´s employees to use common sense when participating in non-work related activities. For example, employees shall not participate in any activities competing with Norac In addition, our employees have to make sure that their personal opinions and comments in private or social media cannot be perceived as Noracs´.
2.4 WE AND OUR CUSTOMERS
We treat our customers with respect
We will be helpful and attentive to our customers, respecting each customer’s request.
2. CONDITIONS, CODE OF CONDUCT
We are easy to reach and understand
We are very accessible, both in external and internal situations. We communicate in a simple, open, uncomplicated and clear m ann er.
We are reliable
We are transparent in our decisions and offers. We treat our customers fairly. We act quickly. We always give clear reasons for our decisions in a way that our customers easily understand.
The market or individual customers must never be given a wrong or overstated impression of Norac or Norac ´ s products. Information about, and comparison with competitors, must be objective. Information about competitors may not be used incorrectly.
2.5 BUSINESS ETHIC
Quality and long term thinking
Norac is equivalent to high quality, and strives to achieve reliable, long - term results.
We compete in a legal and honest way
We believe in open and fair competition. Our business is always carried out under competition laws.
We do not offer unsuitable gifts or services
We will only receive gifts and benefits if they are reasonable in relation to current business, and are within the limits of nor mal business behaviour, both in terms of value and content.
A high level of trust and integrity is the backbone of Norac ´ s business ethics; this is why we exercise great care when receiving gifts.
In relation to gifts and benefits, we are regulated by the Norwegian Institute for Bribery Rules for Gifts, Incentives and Ot her Benefits in Business. If these rules differ from what is permitted in any of the countries Norac operates, rules or equivalent guidelines apply for the country in question.
Our business conditions are professional Norac ´ s business decisions should be based solely on business evaluations on conditions such as quality, price, capacity, and the lik e.
2. CONDITIONS, CODE OF CONDUCT
Norac does not cooperate with suppliers or other collaborators who grossly violate their obligations to their business partners, em ployees or society.
We avoid conflict of interest
Norac ´ s employees shall avoid situations where their personal interest can lead to conflict with what is best for Norac . If a conflict of interest arises, the employee shall inform his nearest leader, who will then make a decision on how to handle the situation.
Honesty, openness and transparency are key elements to avoid or deal with conflicts of interest between Norac and our customers. If a conflict occurs, the customer should be given the correct information about how he or she can get the case reviewed by a relevant authority.
2.6 LIABILITY
We protect information about our customers
We practise duty of confidentiality regarding information about customers´ medical, financial and other personal circumstances.
Confidential information may not be distributed to, or discussed with unauthorized persons, and may not be stored in a way wh ich makes it available to unauthorized persons.
Also, all other information about customers should as a general rule be considered confidential. Managers with specific responsibilities can be exempted from the duty of confidentiality in certain cases, for example in court cases.
The affected customer can allow Norac to publish their information, for example for marketing purposes.
We protect our business information
Information about Norac ´ s products, business models and the like which are not already published externally, are confidential and must not be disclosed to third parties unless there is a commercial basis.
You must be careful when speaking during external conferences; make sure competitors cannot access information about Norac ´ s competitive advantages.
2. CONDITIONS, CODE OF CONDUCT
2.7 OUR SOCIAL RESPONSIBILITY
Norac takes responsibility for the communities we operate in
Norac will always attempt to fulfill or exceed the ethical, legal, commercial and public expectations the society we work in, have for our business.
2.8 OWN FAILURE
We correct our mistakes
Norac strives to deliver the uppermost quality in every stage of our business. We work systematically to identify shortcomings and co rrect our errors quickly. Good handling of errors requires a positive attitude and a willingness to implement changes in everything from custo mer service to terms and conditions, and possibly adjustment of losses.
We learn from our mistakes
Norac encourages innovation and progressive development. We rely on new initiatives to improve and ensure future success, and we lear n from our mistakes, improve our processes continuously and continue to try out new working methods, when we find that a suggestion is not successful.
We make it easy for our customers to report errors and exclusions
Reporting events and deviations means that you are loyal to the company´s values.
CONDITIONS OF SALE AND DELIVERY
Accept
These General Conditions of Sales and Delivery shall apply unless modified by express agreement in writing between the parties. The General Conditions shall be deemed to have been accepted upon acceptance of a quotation .
1. PRICES
Where firm prices are quoted such prices shall only apply within the time limits stipulated for acceptance and for delivery , and with such exceptions: If NORAC AS` purchase cost for raw materials, within the period from the date of the order confirmation until delivery to the Buyer , has increased or decreases +/ - 5 %, the firm prices shall be adjusted (corresponding to the change ). Regarding other fluctuations in the market which entails large changed cost related to NORAC AS delivery to the Buyer (+/ - 10 %), the parties agree to renegotiate prices with a view to continuing the existing balance of the contract . Where firm prices are not agreed , including if the customer requests a change in agreed delivery time, the following applies: All prices are net in NOK, EUR or US, excluding VAT, and are subject to change without notice , corresponding with direct increase or decrease in cost of materials, shipping and wages.
2. QUOTATIONS
Only quotations in writing shall be binding. All quotations are subject to the goods being unsold . The quantities calculated and stated in the quotation serve as a guideline only and are subject to alteration . Invoicing is made in accordance with the quantities actually supplied .
3. ORDERS
The purchase is final and binding when NORAC AS has confirmed the order in writing . Any order confirmed by NORAC AS cannot be cancelled , amended or postponed by the Buyer , unless NORAC AS has accepted this in writing and in such case only against payment of any expenses incurred .
4. BUYER’S SPECIFICATIONS
Upon placing an order, the Buyer shall supply complete specification of the delivery , unless NORAC AS has assumed this work under a separate agreement In the event complete specification of the delivery including the requisite drawings, data and detailed dimensions has not been submitted when the order was placed , such specification must be received by NORAC AS not later than the date specified in the quotation or in the order confirmation . In the event that the Buyer fails to submit specifications by the agreed deadline, NORAC AS shall be entitled to deliver at a later date set by NORAC to accommodate the Supplier’s production program. In the latter case, NORAC AS shall be entitled to adjust price to compensate expenses incurred by NORAC AS for any delay in delivery , including but not limited to increasing production costs (wages, price of materials, etc.) and any cost incurred in connection with rate of exchange .
5.
NORAC AS SPECIFICATIONS
In the event that NORAC AS has undertaken to prepare drawings and specifications, such material must be submitted to the Buyer for final approval as soon as it is ready . Unless otherwise agreed , the Buyer’s approval shall have been received within 15 days of receipt of NORAC AS’ specifications. Where approval is delayed , reference is made to Clause 4(3). After having received the Buyer’s acceptance of the specification , NORAC AS cannot be held liable for errors or omissions in specifications or drawings.
6. AMENDED SPECIFICATIONS
In the event that the Buyer amends specifications in relation to the specifications contained in the quotation or any specifications approved later, NORAC AS is entitled to claim payment of any additional costs ensuing from of amendment .
7. RETURNING OF GOODS
‘Goods may be returned only with the prior consent of the Supplier.
8. DELIVERY
The terms CIF, FOB, DDP, Ex Works, etc. are interpreted in accordance with INCOTERMS 2010. The conditions are to be understood as exclusive of duty and local charges and dues of any nature whatsoever .
9. TIME OF DELIVERY
Times of delivery is stated in the order confirmation and is based on all requirements specifications pertaining to the supply that were clarified when the order was placed or at the time specified in the order confirmation .
The time of delivery is to be indicated as ex works. Delays in delivery do not entitle the Buyer to terminate the agreement unless the Buyer has submitted a prior notice in writing to NORAC AS demanding remediation of the defect / deviation in question , and unless NORAC AS subsequently fails to deliver the goods within by a reasonable deadline. Excepting daily penalties, where such penalties have been agreed upon in writing , NORAC AS shall not be liable for compensation for the consequences of delays in delivery or non - delivery in the event of termination The Buyer’s non - compliance with time limits shall be deemed to release NORAC AS from any penalty liability . Where delays in delivery are due to the Buyer’s acts or omissions, the time of delivery shall be so extended that the delayed shipment may be delivered at a time that NORAC AS determines in relation to its production program.
If delivery does not take place at the agreed time of delivery , and this is not due to causes within NORAC AS’ control, the risk of any loss or damage to the goods shall pass from NORAC AS to the Buyer when NORAC AS is capable to deliver the goods to the Buyer according to the agreed delivery terms. NORAC AS shall notify the Buyer when the goods are ready for delivery , and the risk and responsibility for the goods passes to the Buyer . NORAC AS shall not be liable for loss of or damage to goods that occurs thereafter . All storage of goods after NORAC AS has notified the Buyer that the goods are ready for delivery are therefore to be conducted solely at the Buyers own risk and expense . NORAC AS is entitled to issue invoice and claim payment from the Buyer , according to the agreed terms of payment , as soon as the risk of any loss or damage to the goods has passed from NORAC AS to the Buyer . The title to the goods shall pass from NORAC AS to the Buyer when complete payment has been received by NORAC AS, in accordance to clause 19.
10. OBSTACLES TO DELIVERY
NORAC AS shall not be liable for non - compliance with its obligations as a result of force majeure, including but not limited to war , riots, civil commotion , government intervention, fire, strikes, lock - outs, export and/or import embargo, non- delivery , imperfect or delayed shipments from subsuppliers, lack of manpower , fuel, driving power , accidents in the manufacturing process or in testing, mobilization, or unforeseen conscriptions, currency restrictions, or any other cause of whatsoever nature beyond NORAC AS’ control, and which serve to delay or prevent the manufacture and delivery of NORAC AS products.
Where delivery on time or delivery of faultless goods is temporarily prevented by one or more of the aforesaid circumstances, the time of delivery shall be postponed for a period equal to the duration of the time during which the obstacle prevails, and delivery within the delivery time thus postponed shall be deemed to have been made in time in every respect . Where the obstacle to delivery is deemed to last for more than 3 (three ) months, NORAC AS shall, however , be entitled to cancel any quotations made .
11. DEFECTS AND SHORTCOMINGS
In the event that defects or shortcomings are ascertained in the goods supplied , NORAC AS undertakes, at its own choice , either to replace defective goods with new similar goods free of charge, or to credit the Buyer for the defective goods against the return of same. NORAC AS’ commitment is conditional upon a complaint in writing being submitted forthwith to NORAC AS and within 30 days of the receipt of the goods.
NORAC AS shall not be liable for defects and shortcomings over and above this commitment and shall thus be liable neither for consequential loss nor any other indirect loss of any nature whatsoever , including losses suffered from covering purchases made from another supplier , expenses as a consequence of delay etc.
NORAC AS shall not be liable for defects or shortcomings attributable to incorrect handling, transport, storing, mounting or negligence on the part of parties other than NORAC AS.
12. NON - NORAC PRODUCTS
Notwithstanding any of these Conditions to the contrary , NORAC AS makes no warranties or representations regarding products that are not manufactured by NORAC AS,, and shall have no obligation to repair , replace or correct any goods which are non - NORAC products; the Buyer shall be entitled to proceed only upon terms of the warranty , if any , extended by the actual manufacturer or manufacturers of such Goods.
13. PAYMENT
The following shall apply where no terms of payment are stated in the quotation or in the order confirmation : Net cash within 30 days of invoice date. Where payment is not made in due time, NORAC AS is entitled to charge interest at the rate of 2 per cent per month until full payment is made .
CONDITIONS OF SALE AND DELIVERY
In the event that the Buyer’s capacity to pay is deemed to have worsened , in the opinion of NORAC AS subsequent to the making of the agreement , NORAC AS shall be entitled to claim payment in advance of delivery .
In the event that the Buyer’s capacity to pay is deemed to have worsened , in the opinion of NORAC AS subsequent to the making of the agreement , NORAC AS shall be entitled to claim payment in advance of delivery .
14. RESPONSIBILITY
NORAC AS is responsible for NORAC products only.
15. FAULTY DELIVERY
Responsibility for faulty deliveries or delayed deliveries shall be limited to the cost of NORAC materials only .
16. PRODUCT LIABILITY
NORAC AS can be held liable only for hazardous properties in the goods sold that can be attributed to gross negligence on the part of NORAC AS.
17. DISPUTES
All disputes shall be settled with final and binding effect under Norwegian law in Norway, of which the ruling and/or award may not be appealed to any other court of law .
18. GUARANTEE
NORAC AS offers one year’s guarantee for the finished , product commencing on the date of acceptance by the Buyer ’, however , only for a total 18month period beginning from the last date when finished products were delivered to the Buyer .
This guarantee covers defects which are not ascertainable at the time of delivery and which can be directly attributed to manufacturing errors.
The guarantee does not cover any damages attributable to incorrect handling, installation and/or usage .
The guarantee includes replacement products incl. transportation costs. NORAC AS reserves the right to repair the products on the building site , if replacement is not deemed necessary .
NORAC AS’ liability does not include expenses involved in gaining access to/or from the products to be repaired or replaced .
19.
TITLE OF GOODS
The goods remain the property of NORAC AS until complete payment has been received .
NOTES
Complete reference list can be found at www.norac.no/references/
REFERENCES ROALD AMUNDSEN
CLIENT
OWNER
Hurtigruten
Handed over 2019
DELIVERY
Wall panels
Wet Units
ROALD AMUNDSEN
Kleven Verft/NMI
REFERENCES COLOR HYBRID
OWNER
COLOR HYBRID
CLIENT Ulstein Verft/R&M Ship Interior
REFERENCES STAVANGERFJORD
CLIENT
Bergen Group Fosen
OWNER
Fjordline
DELIVERY
Wall panels
Ceiling panels
Doors
Wet Units
STAVANGER FJORD
REFERENCES EDISON CHOUEST OFFSHORE TUGS
CLIENT
GulfShip / TampaShip/LAShip/North American Shipbuilding
OWNER
Edison Chouest Offshore
BN 311, 312, 314, 315, 316, 317, 318, 320, 321, 324, 325, 326
DELIVERY
Wall panels
Doors
ELRINGTON
REFERENCES OLIVIA O
CLIENT
OWNER
Private Yacht
BN 307
DELIVERY Wet Units
OLIVIA O
Ulstein Verft
REFERENCES MAERSK MASTER
CLIENT
OWNER
Maersk
BN 382, 383, 384, 385, 386, 387
DELIVERY
Doors
Wet Units
Wall panels
Hatches
MAERSK MASTER
Kleven
REFERENCES ESBERN SNARE / ABSALON
CLIENT Odense
OWNER
Danish navy
BN 191, 192
DELIVERY
Turnkey
Ceiling panels
Doors
Wet Units
Wall panels
Furnitures
Galley
Etc.
HDMS ESBERN SNARE
REFERENCES USNS SPEARHEAD
CLIENT US Navy
OWNER US Navy
DELIVERY
A-class Walls
USNS SPEARHEAD
REFERENCES AMERICA’S FINEST
REFERENCES VIKABAS
CLIENT Viknaslipen
OWNER
Vikahav AS BN 44
DELIVERY
Doors
Wall panels
Ceiling panels
VIKABAS
REFERENCES JOHAN SVERDRUP LQ
CLIENT Apply Leirvik
OWNER
Statoil/Equinor
DELIVERY
Doors
Wall panels
Ceiling panels
Hatches
JOHAN SVERDRUP
REFERENCES IVAR AASEN
CLIENT Apply Leirvik/ Semcorp Marine
OWNER
Equinor/Det Norske
DELIVERY
Doors
Wet Units
Wall panels
Ceiling panels
Hatches
IVAR AASEN
REFERENCES NORWEGIAN JOY
CLIENT Meyer Verft
EMS PreCAB
OWNER
NCL
Handed over 2017
DELIVERY
Wall panels
Ceiling panels
Wall hatches
Ceiling hatches
S 694
REFERENCES AIDANOVA
CLIENT Meyer Werft
OWNER
Carnival Corporation
Handed over 2018
DELIVERY
Wall panels
Ceiling panels
Doors
AIDANOVA
REFERENCES QUANTUM OF THE SEAS
OWNER
NCL
Handed over 2015
DELIVERY
Wall panels
Ceiling panels
Wall hatches
Ceiling hatches
S 697
QUANTUM OF THE SEAS
CLIENT Meyer Verft
EMS PreCAB
REFERENCES SPECTRUM OF THE SEAS
CLIENT
Meyer Werft
OWNER
Royal Caribbean International
Handed over 2019
DELIVERY
Wall panels
Ceiling panels
Doors
S 700 SPECTRUM OF THE SEAS
REFERENCES DISNEY WISH
CLIENT
Meyer Werft
OWNER
Disney Cruise Line
Handed over 2022
DELIVERY
Wall panels
Ceiling panels
Doors
REFERENCES NORWEGIAN BLISS
CLIENT Meyer Werft
OWNER
Norwegian Cruise Line
Handed over 2018
DELIVERY
Wall panels
Ceiling panels
Doors
S 707
NORWEGIAN BLISS
REFERENCES IONA
CLIENT Meyer Werft
OWNER
P&O Cruises
Handed over 2020
DELIVERY
Wall panels
Ceiling panels
Doors
IONA
REFERENCES WORLD DREAM
CLIENT Meyer Verft
EMS PreCAB
OWNER
Star Cruises
Handed over 2017
DELIVERY
Wall panels
Ceiling panels
Wall hatches
Ceiling hatches
NOTES
OUR OFFICES
NORAC AS (head office)
Kystveien 18, 4841 Arendal, Norway
Phone: +47 37 05 92 50
Mailing Address:
Postbox 1593 Stoa, 4847 Arendal, Norway
www.norac.no
UAB NORAC AS
Pramones g.3, LT-35289 Panevezys, Lietuvos
Phone: +370 45 443602
NORAC SUZHOU LTD.
Jin Wang Road No.2
Xu Guan Town
Suzhou New District, China
Tel: +86 512-6575 6299
Cel: + 86 18915598797
P.C: 215151
www.norac.com.cn
CHINA
Suzhou
LITHUANIA
Panevezys
NORWAY Arendal
Norac’s head office in Arendal, Norway.
