WILBERT LIM YEAR 1 URBAN OBSERVATORY

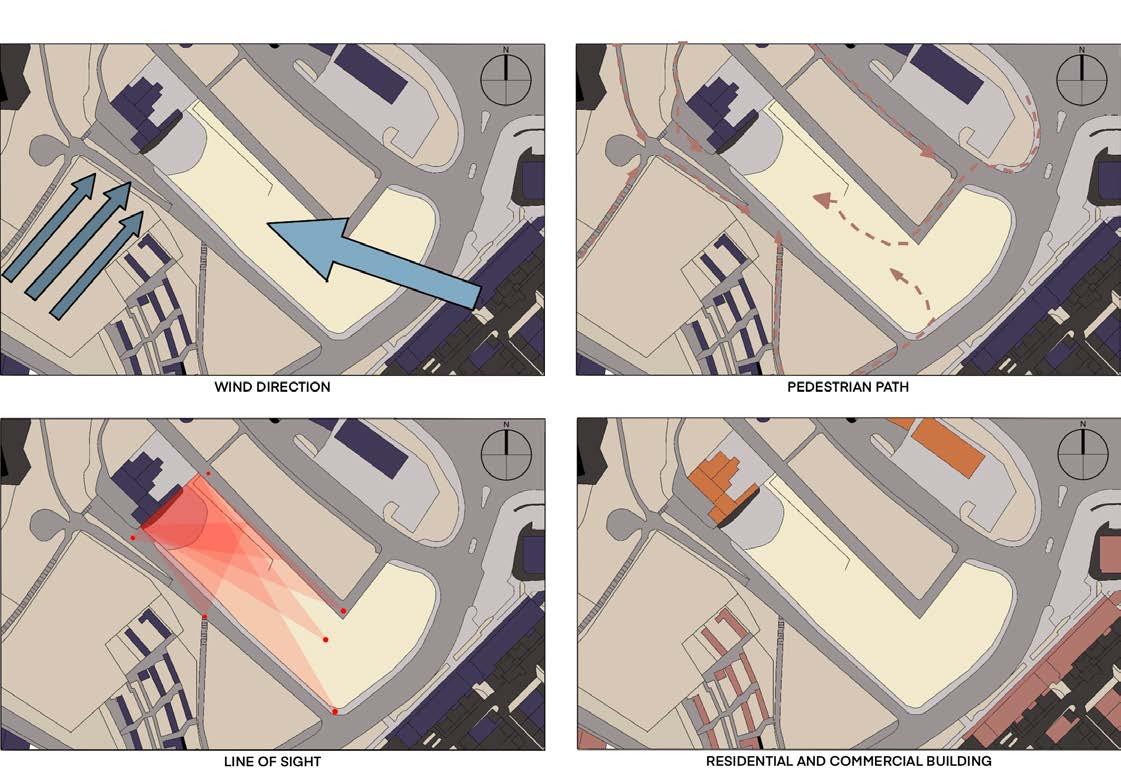

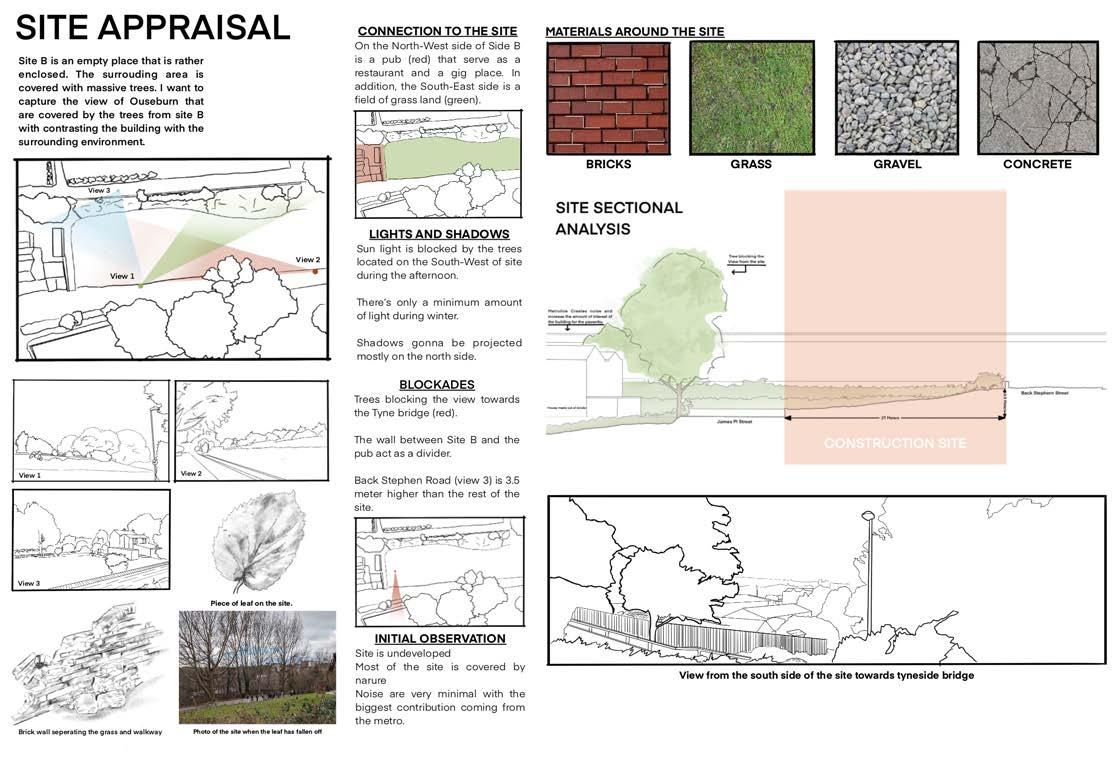

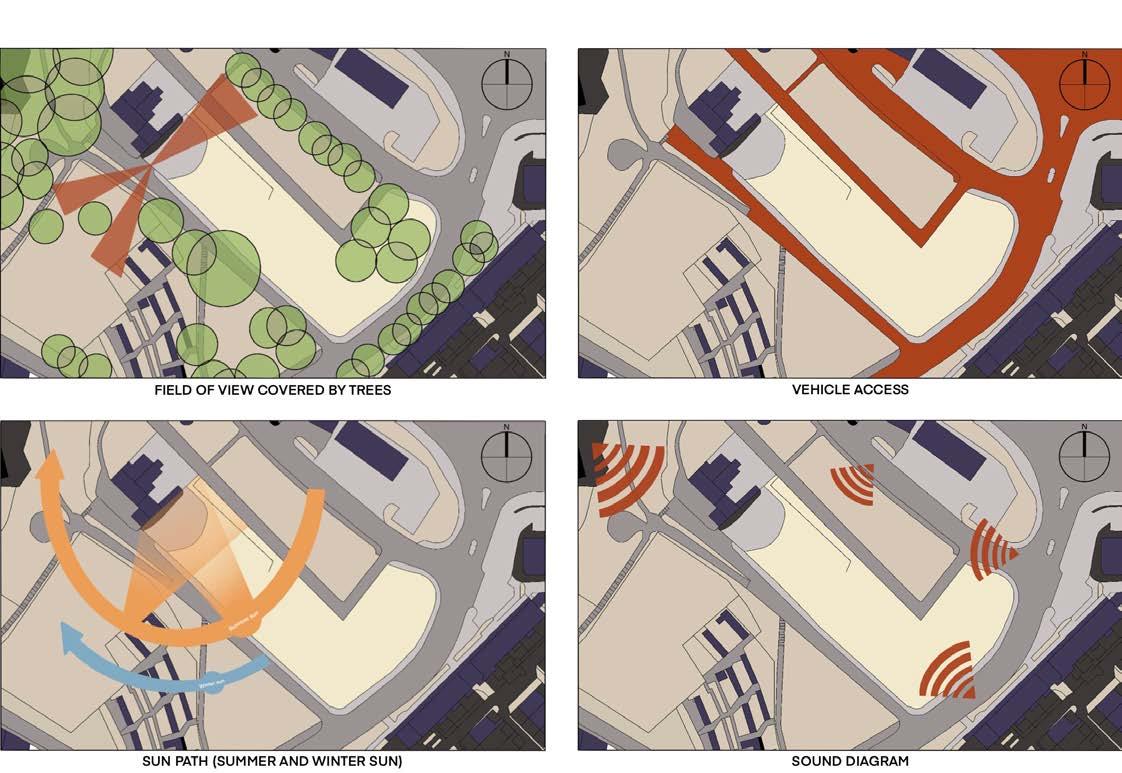

INTRODUCTION

URBAN OBSERVATORY

2023

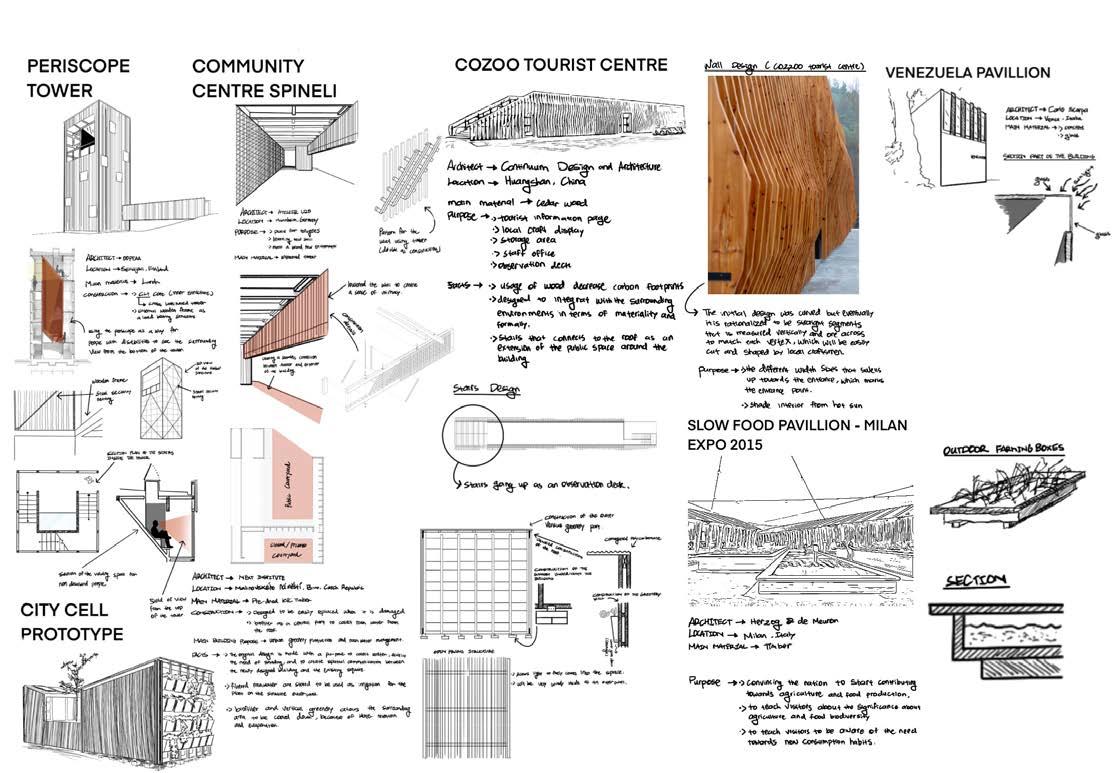

For this project, I have designed a urban greenery space that houses as a research and recreational space for both researcher and visitors. With plants as its main subject of the build, the overall space will be made out of timber and some places will be covered with pots filled with plants and vegetation that wraps itself onto the walls of the buildings. There will also be a viewing tower with a periscope, which will be used for disabled people to view over the horizon towards Tyneside bridge. In addition, the roofs of the project can be used a viewing deck/balcony for people to roam around on top of it. On the eastern side of the main site will be a space where large rectangular farming boxes will be placed.

3D

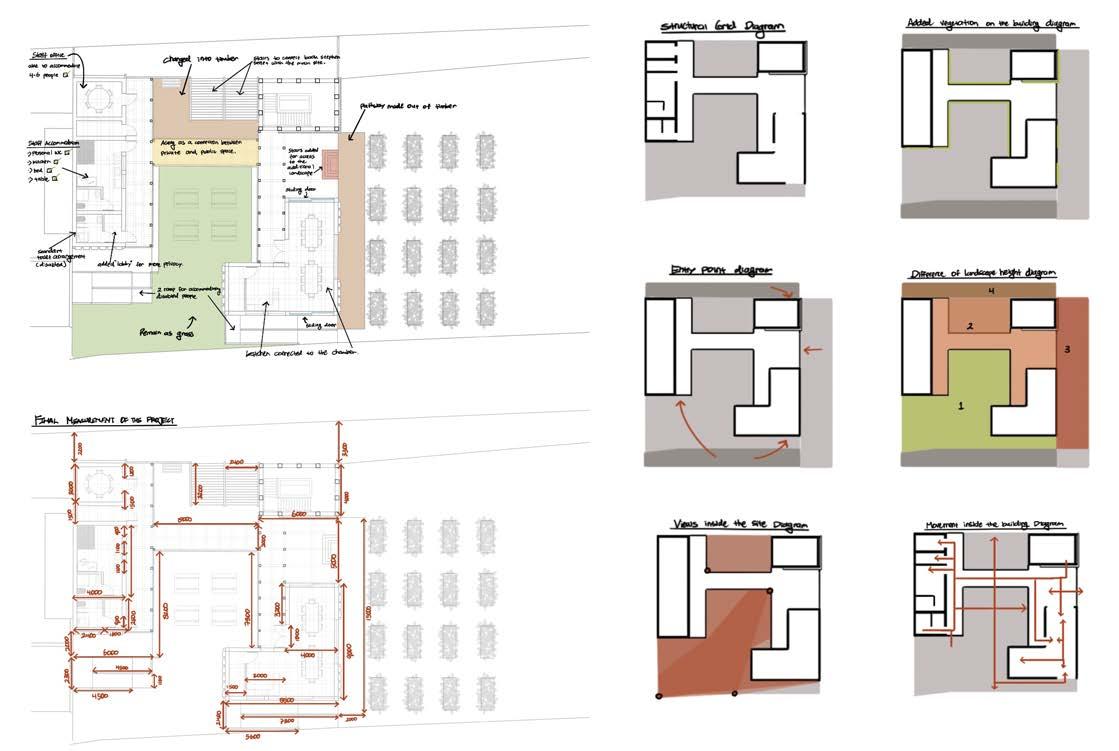

FINAL DIAGRAM LAYOUT OF THE OVERALL STRUCTURE FINAL DIAGRAM SHOWING THE ADDED VEGETATION THROUGHOUT THE BUILDING

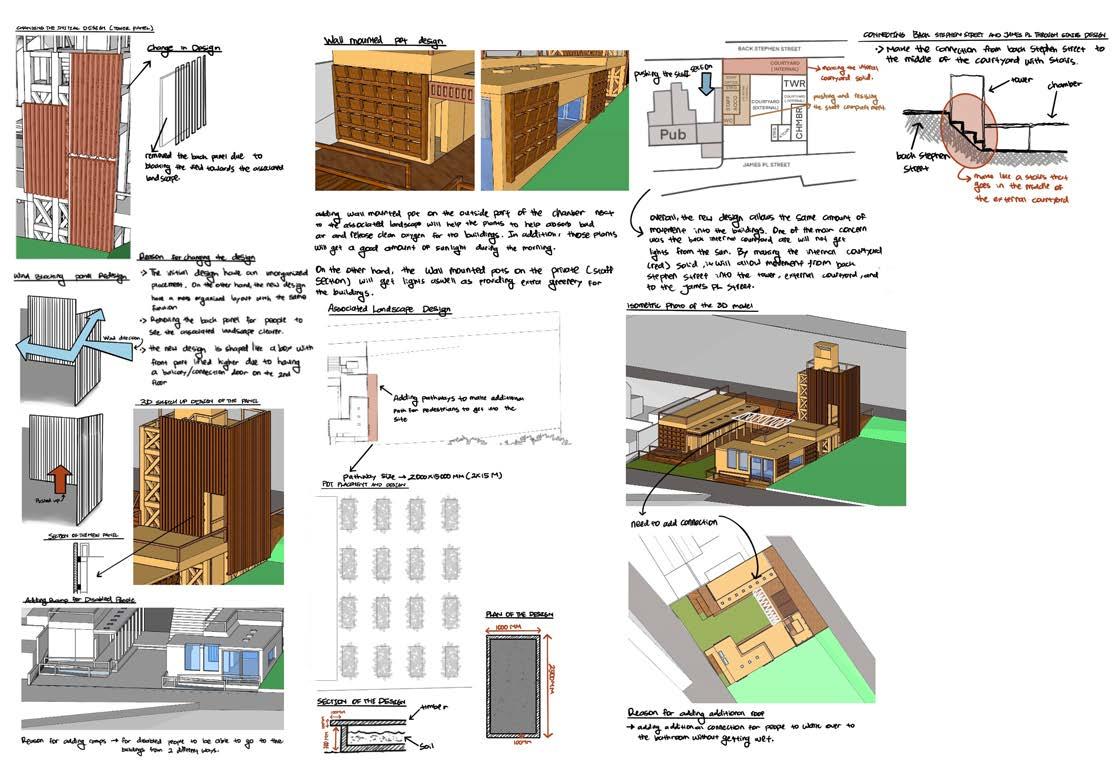

SKETCHUP MODELING (3D MODEL)

WAYS PEOPLE CAN ENTER THE BUILDING

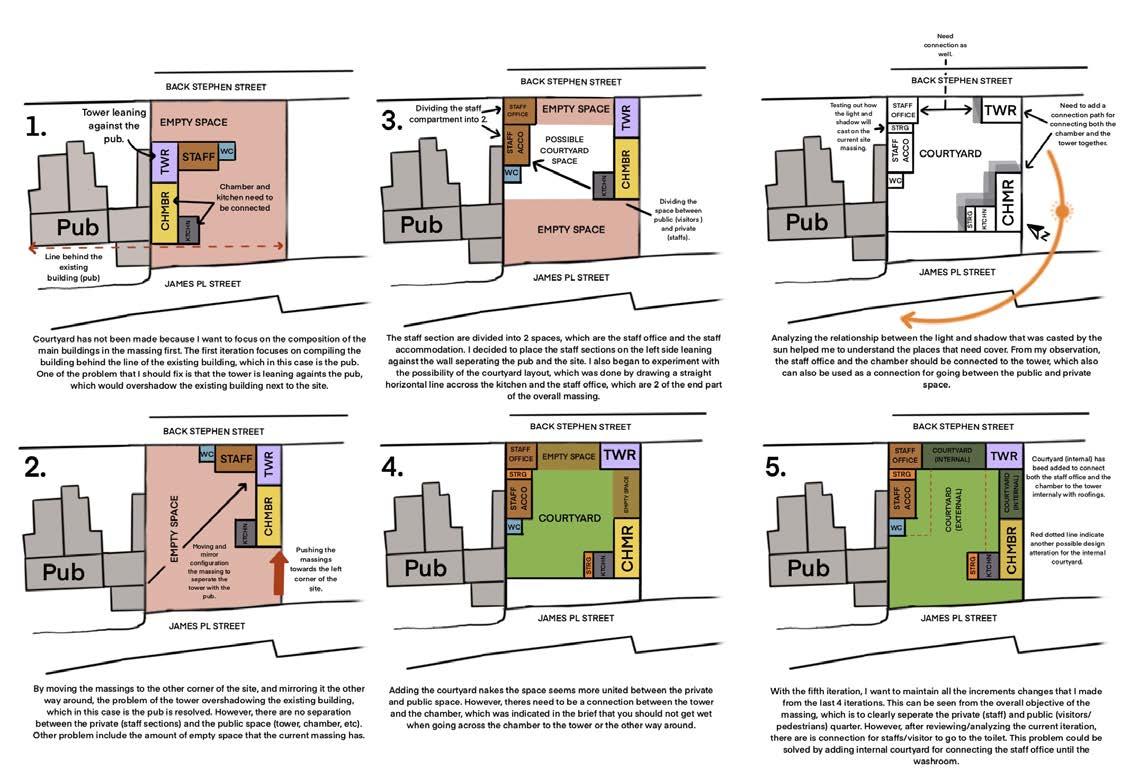

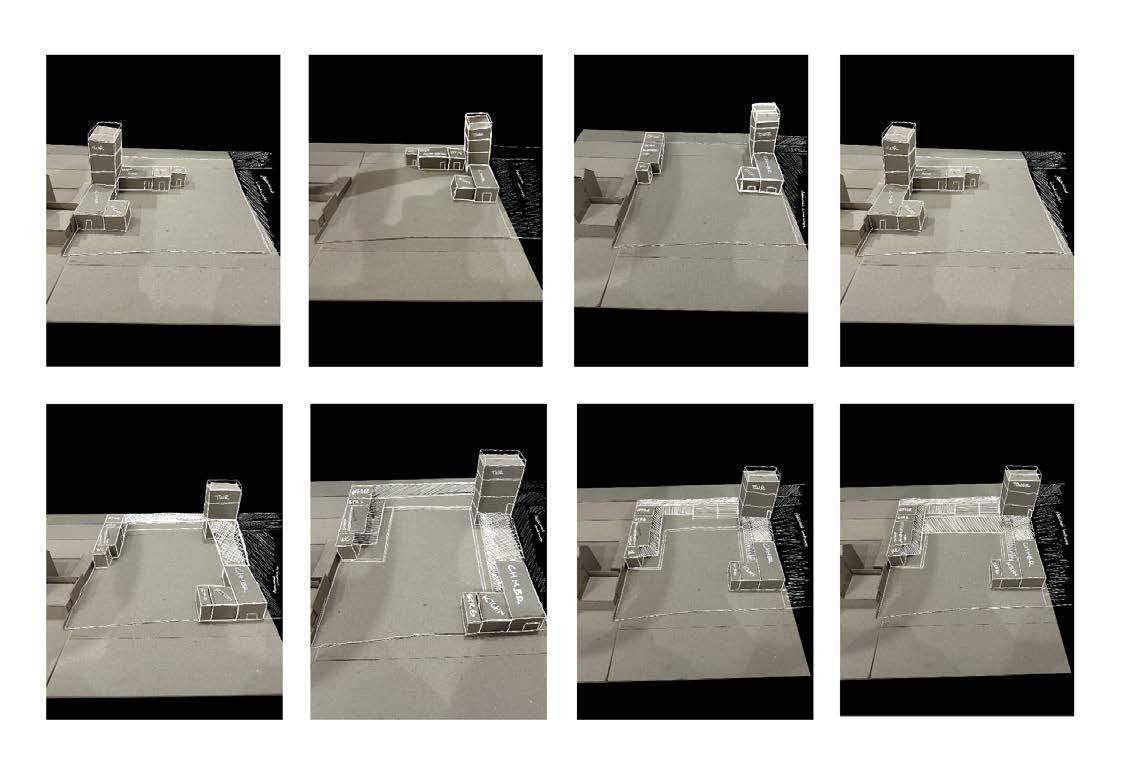

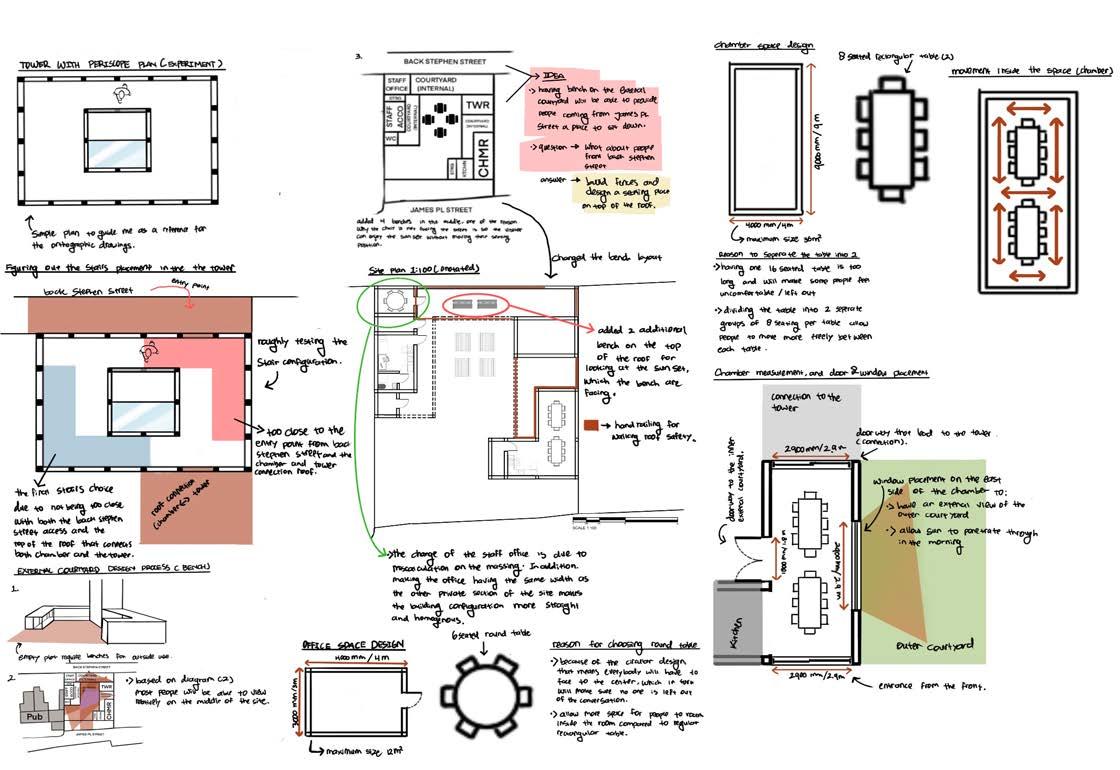

DIFFERENT IN HEIGHT LAYOUT WITH THE SMALLER NUMBER AS THE LOWEST POINT MOVEMENT OF VISITORS INSIDE THE SPACE. POINTS OF

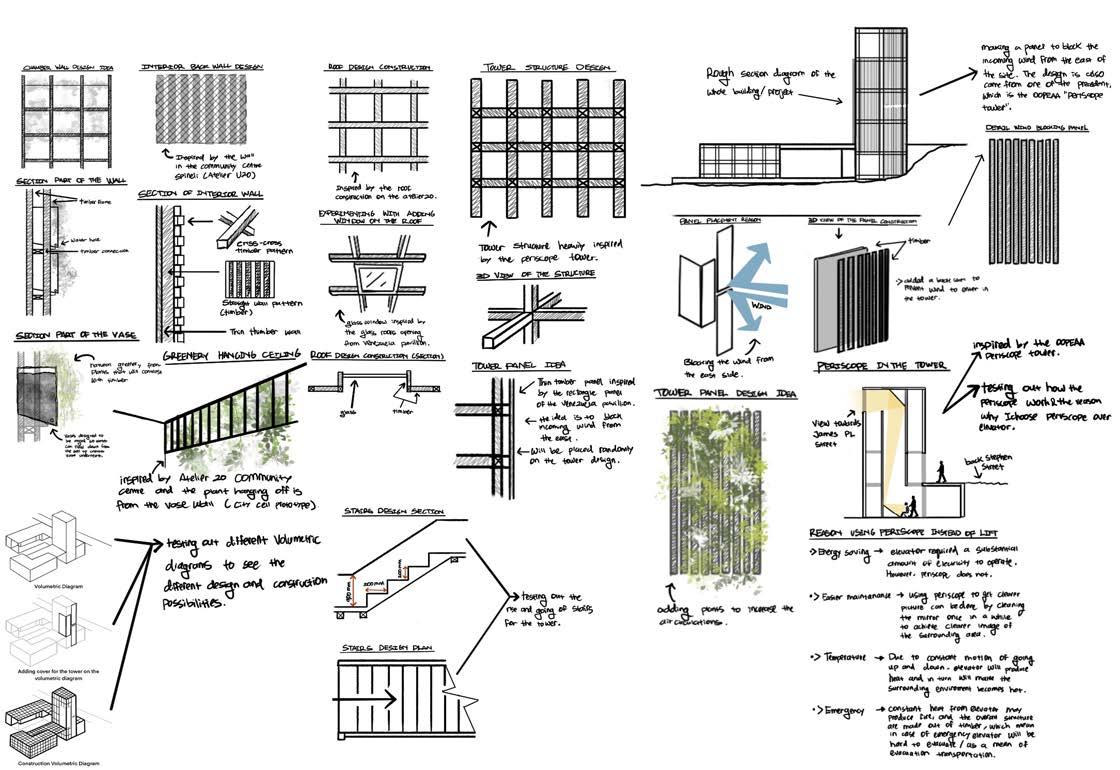

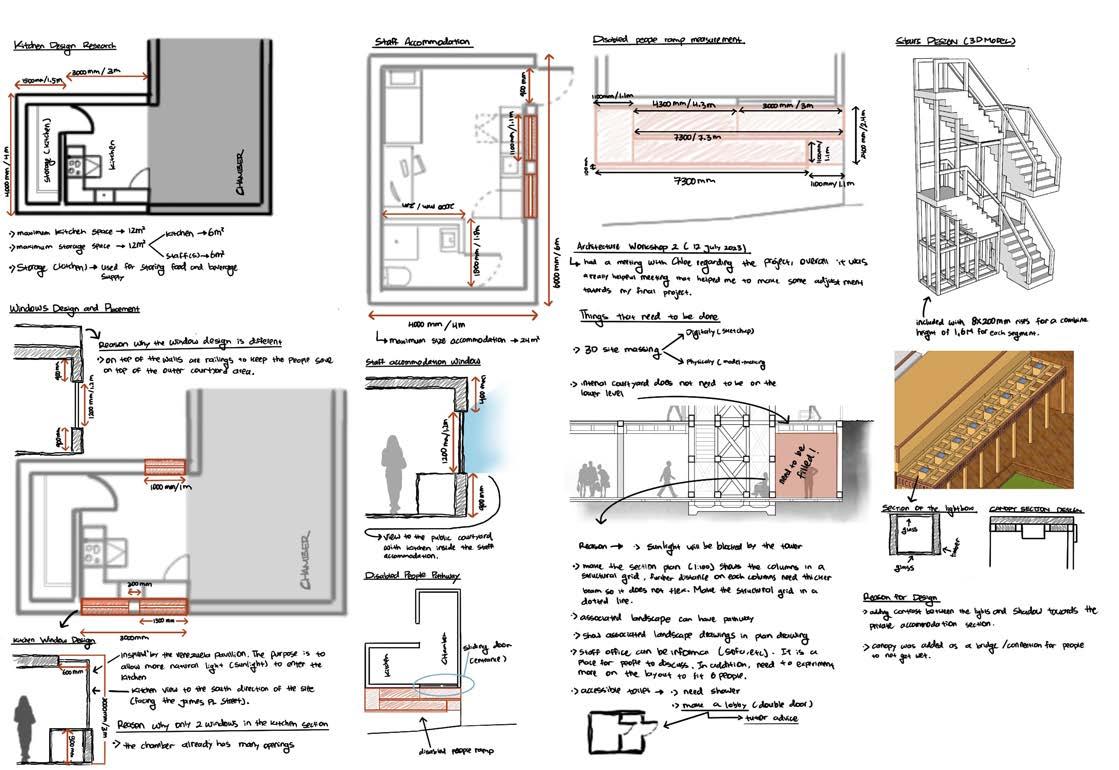

MAKING A 3D MODEL USING SKETCHUP TO HAVE A PICTURE OF HOW THE DESIGN WILL LOOK LIKE AS CLOSE WITH REAL LIFE. IN ADDITION, ITS USED TO FINALIZE THE MEASUREMENTS AND USED TO ANALYZE THE AFFECT OF LIGHT TOWARDS PRODUCING SHADOW. TOWER STRUCTURE

TOWER MODEL

TOWER SECTIONAL MODEL SHOWING THE STAIRS

THE BACKSIDE OF THE TOWER MODEL THAT SHOWS THE STRUCTURE AND ENTRANCE FROM BACK STEPHEN STREET

EXTERIOR AND INTERIOR

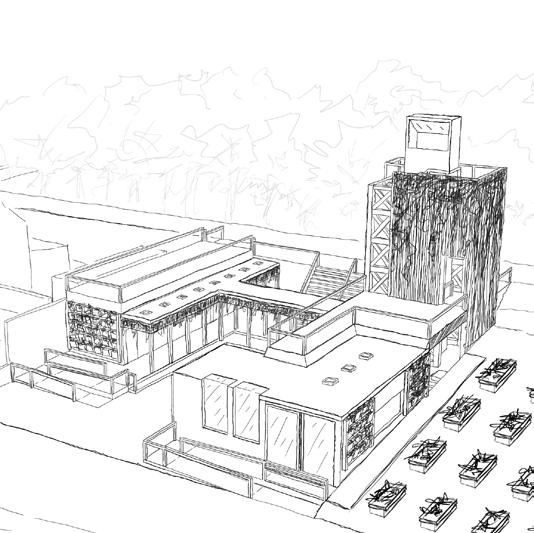

SHOWING THE DIFFERENT STYLES OF RENDER WITH VRAY, BLACK AND WHITE SKETCH, AND COLOR RENDER OF DIFFERENT EXTERIOR AND INTERIOR SPACE.

INTERIOR OF THE CHAMBER AND KITCHEN WITH FURNITURE

VIEW FROM JAMES PL STREET OF THE WHOLE PROJECT

VIEW AFTER GOING DOWN THE STAIRS FROM BACK STEPHEN STREET
