WEI
ARCHITECTURE
YAO KOAY
PORTFOLIO
2 Contact Info Email: koayyao@gmail.com Phone: 0481878273
3 SELECTED ACADEMIC WORK 01 JENGA HOUSING 06 City within a city ARBE 3221 | Jasper Ludewig | October 2021 02 PARASITIC MODERNISM 18 Modernism invasion ARBE 1222 | Sarah Jozefiak | June 2019 03 EASTERN ANGLES 26 A place where the sun alway shines ARBE 2220 | Derren Lowe | June 2020 PROFESSIONAL SUMMARY 04 DA APPLICATIONS 32 Selected works that have achieved DA Council Approvals 05 CONSTRUCTION CETIFICATES 46 Detailed drawings that have achived approvals for construction 06 REVIT FAMILIES 52 Collection of self-made Revit Families CONTENTS
4
5
JENGA HOUSING
CITY WITHIN A CITY
Studio 6 Jasper Ludewig
Date Location
October 2021
Mayfield North, NSW, Newcastle
Proposed by the NSW Government as part of an upcoming urbanisation development plan, the former BHP site located at the industrial sector of Newcastle is due to be repurposed into a residential area. South from the site locates an existing coal storage which is scheduled to be removed by the next decade along with any existing industry that requires coal as their main source of fuel. On the north side of the site is an open lot connected to the land which can potentially extend the residential development to increase housing for the people. South-West side of the site locates the TAFE Campus which allows people to pursue education in that area. The existing traintracks are connected to CBD Newcastle and other area on the North side of Newcatle which can provide sufficient transport for traveling.

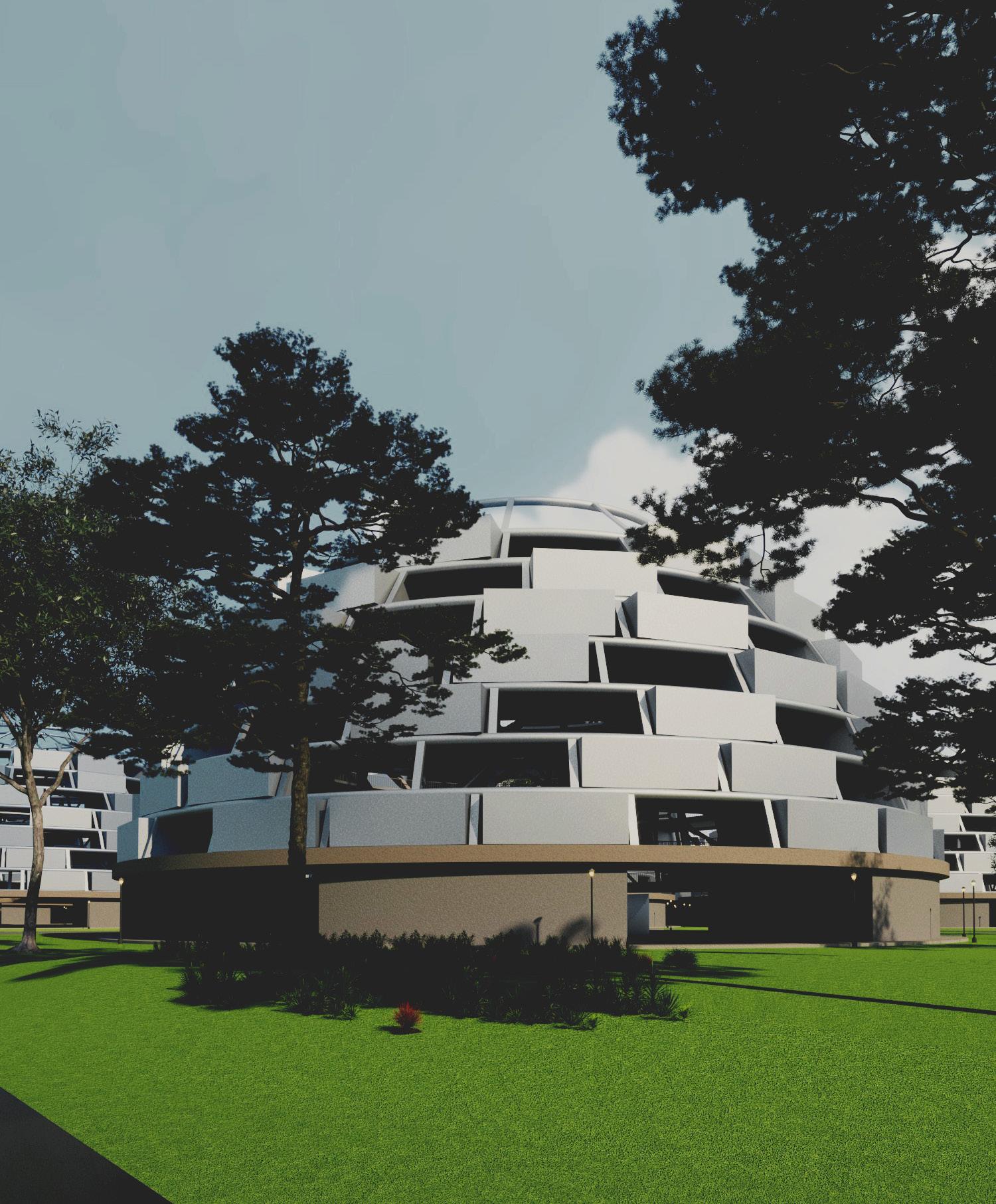

The project concept design is to create a housing that is flexible to be a permanent or a temporary housing for the people without binding them into a contract. The Dome is a steel structure that consists of platforms to accomodate prefabricated houses that can be installed or removed easily for efficient maintainence.
BAUGRUPPEN RESILIENCE PARTICIPATORY DESIGN
A
The ability to adapt and overcome from a crisis or disasters.
Designs that are derived from multiple participation of the residents or the public to create an unique form.
6
community of people where the tenants are the owner of the houses only

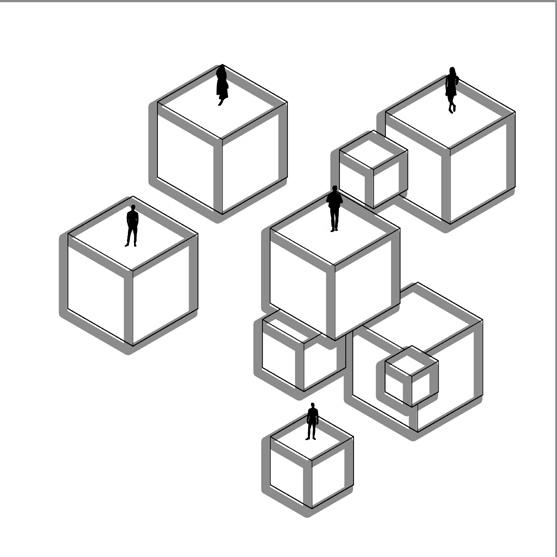

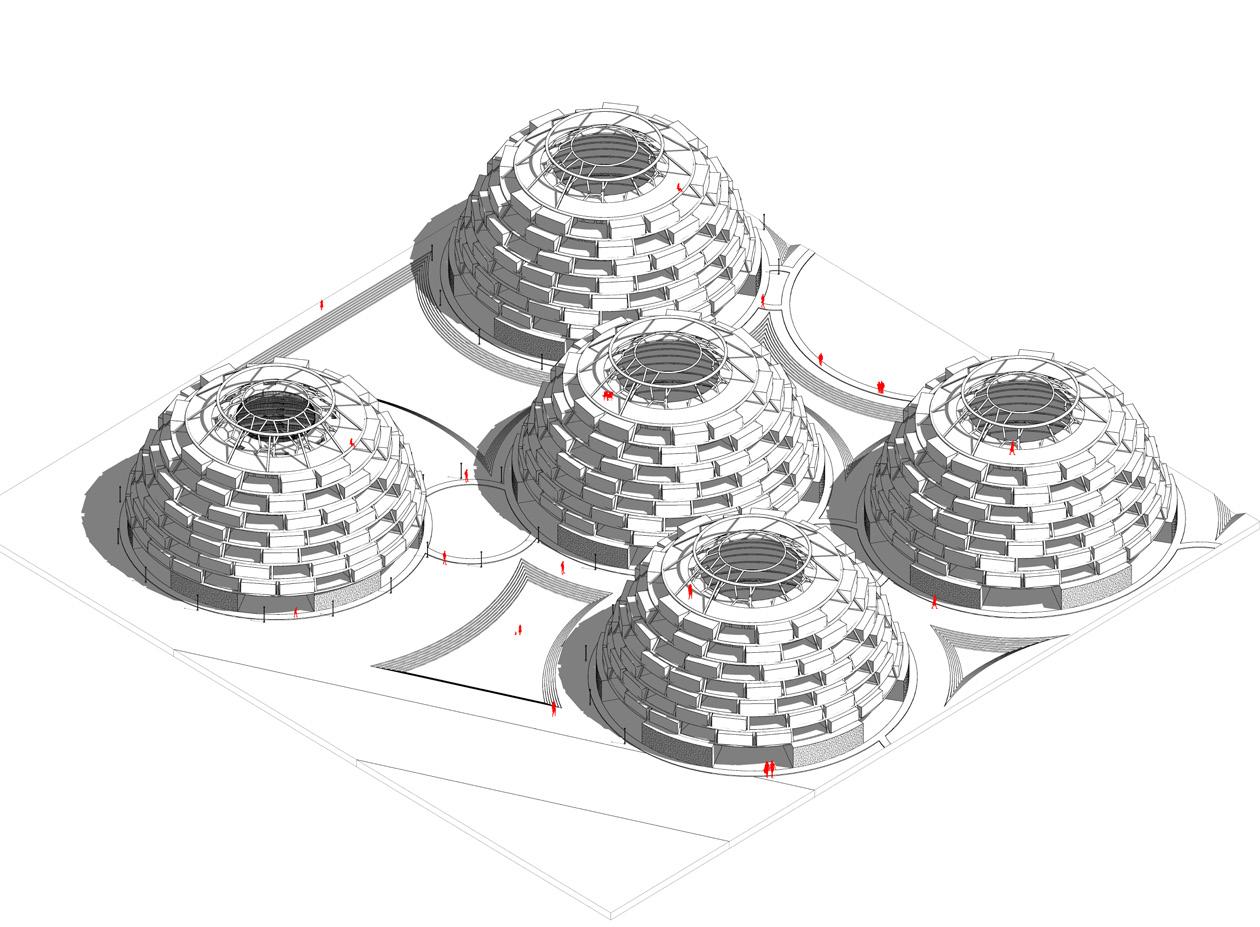

Excavated Pit Main Entrances Residential Public Place Prefabricated Housing
JENGA HOUSING - CITY WITHIN A CITY

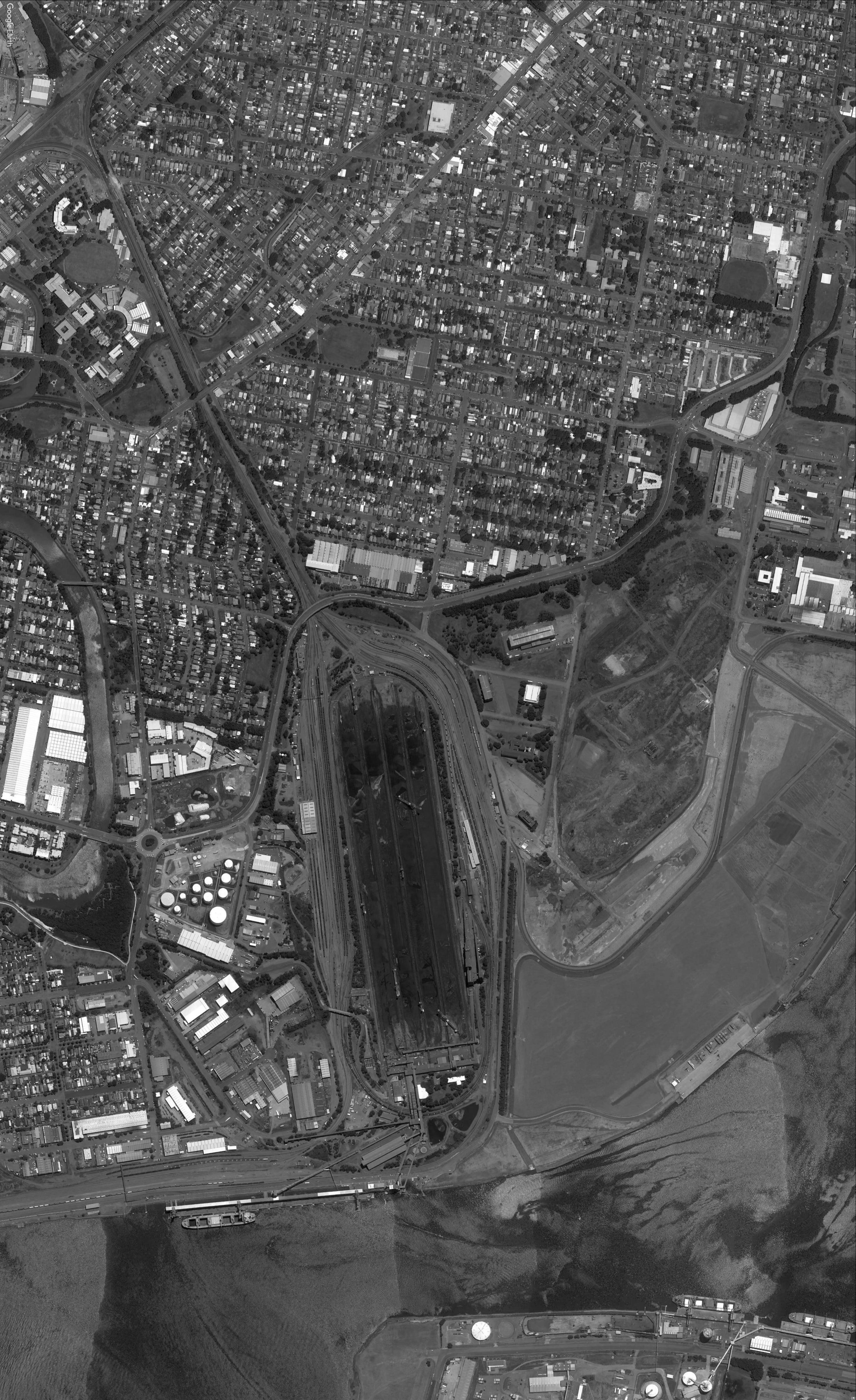

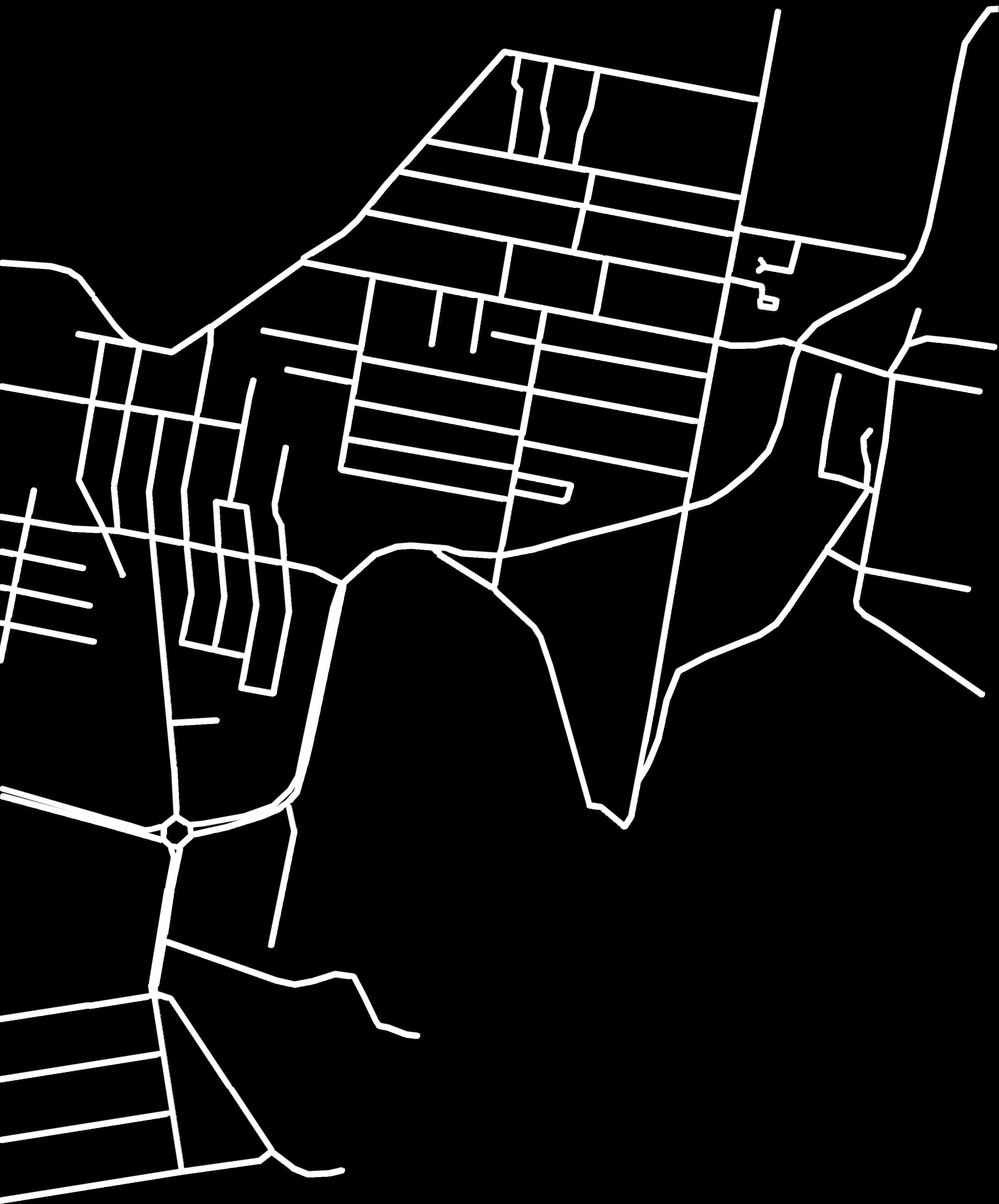

SouthWest to the site
coal storage located South of the site
TAFE Campus located at
Existing
the North side of the site Road Train Tracks Train lines connected to Newcastle Interchange on the South-West while passing throught TAFE Campus. The cargo dock locates on the South-East of the site which is closest to CBD with a ferri ride for city events and leisures JENGA HOUSING - CITY WITHIN A CITY
Empty lot located on

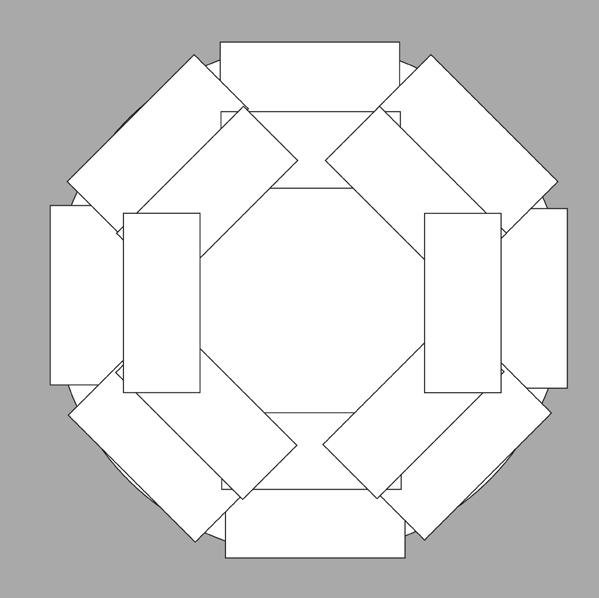

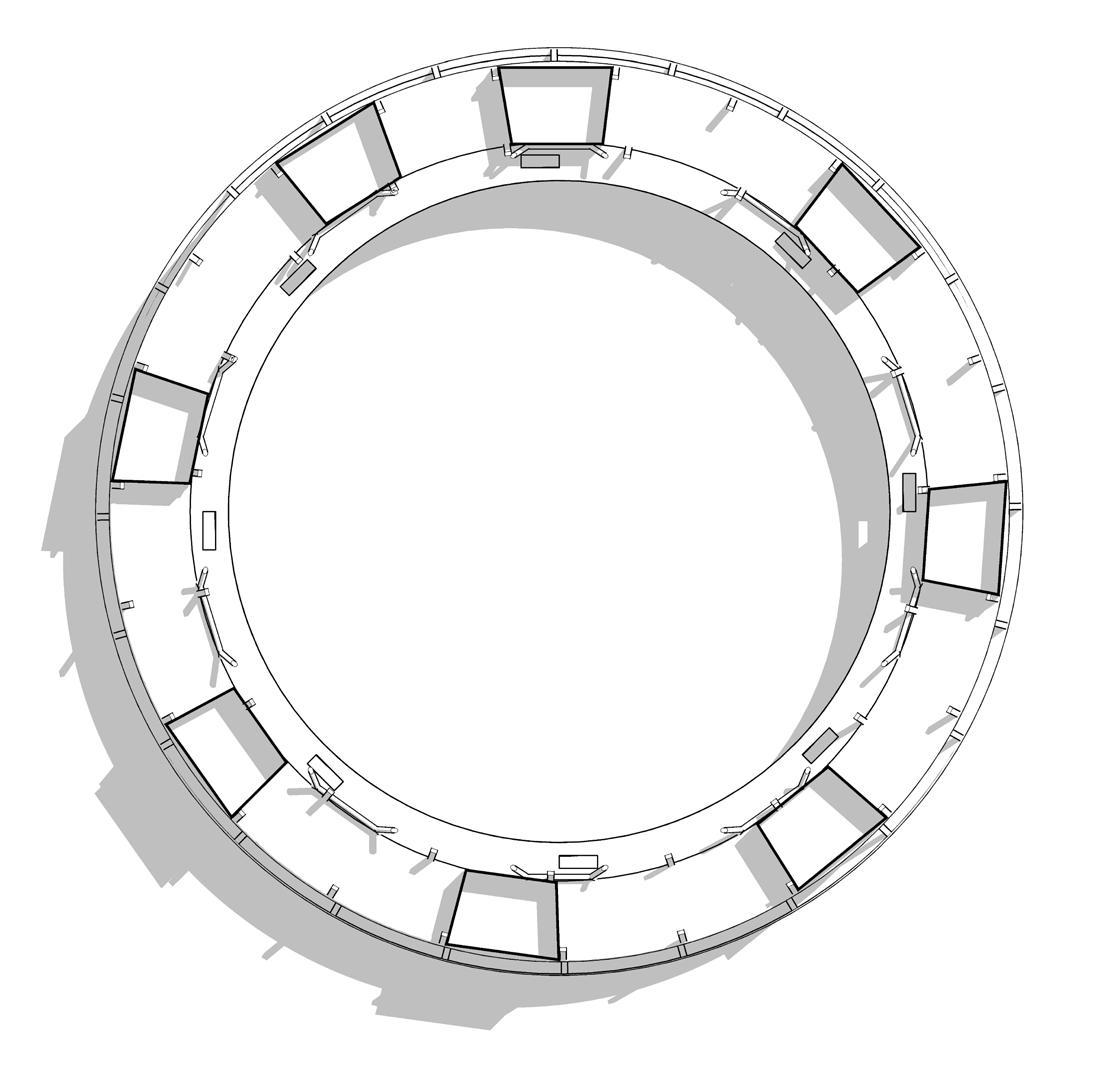

First floor plan view of the arrangement of the houses, this may change throughout the year as more people come and go. This also shows the courtyard of the dome
The apartment will be made with sustainable materials that can be reused. The floor plan shows a typical studio apartment setup.

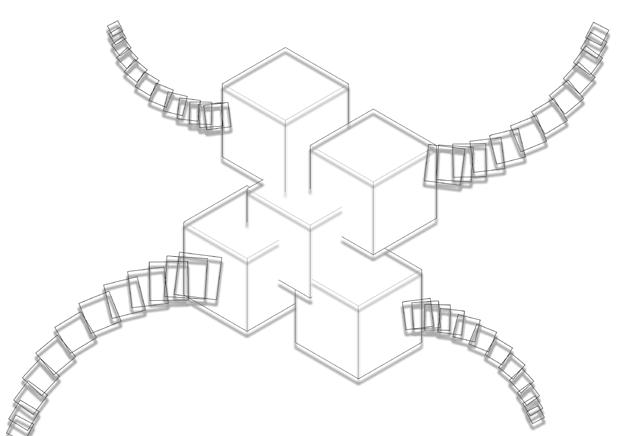

Mechanism of the apartments being separated from the dome, openings on the outer layer makes it convenient for builders to install and uninstall to send it to the factory for maintenance
8

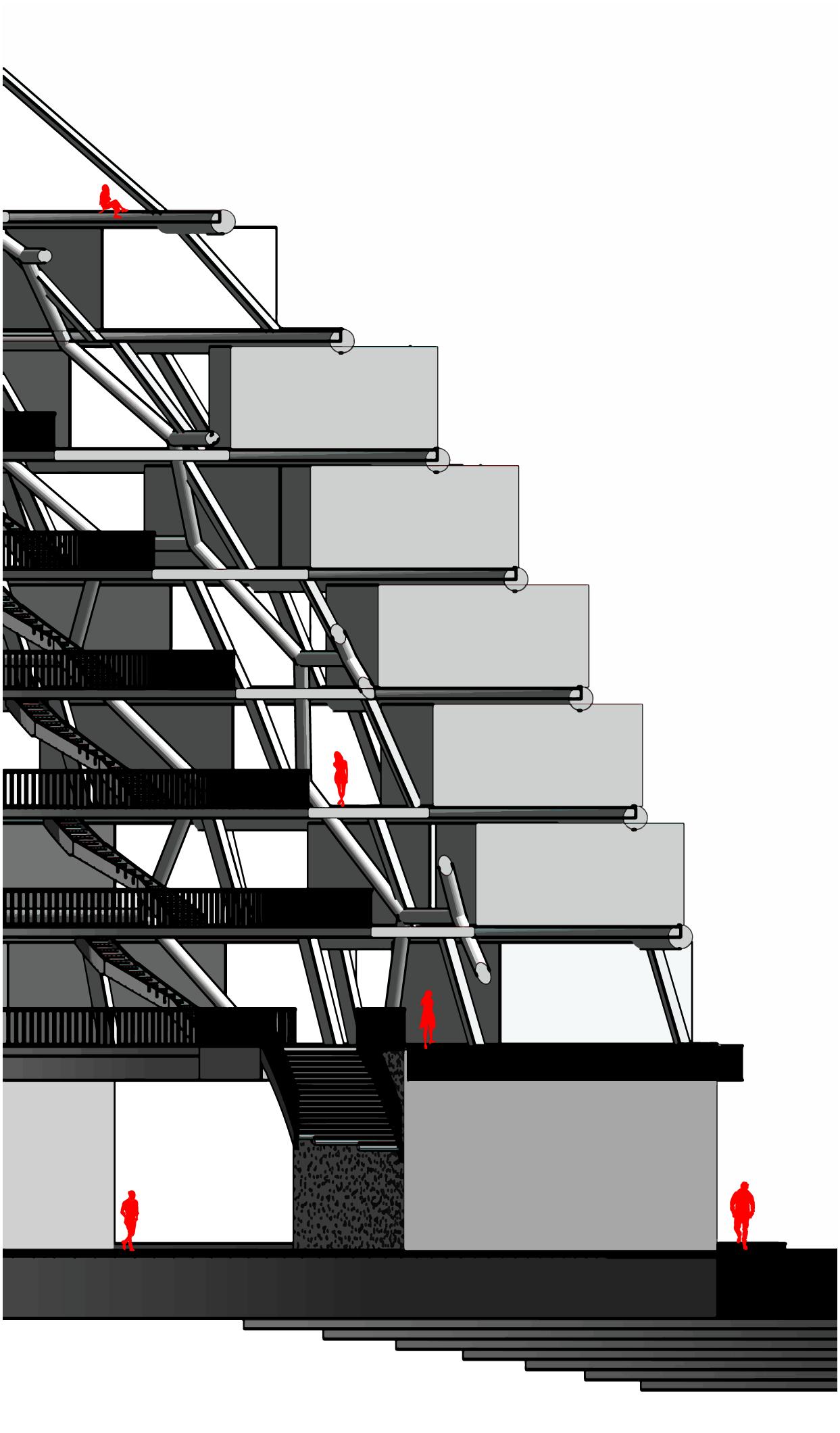

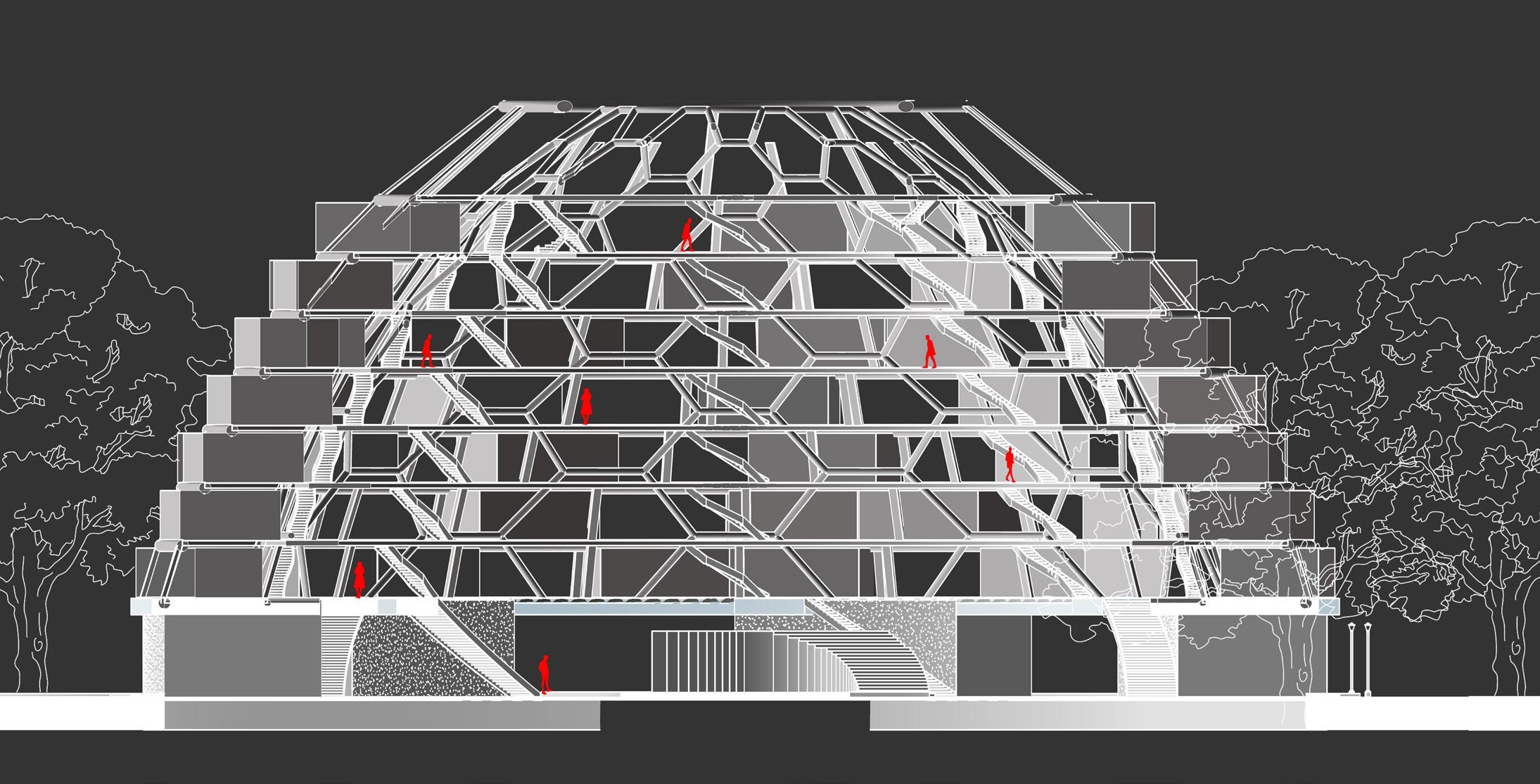

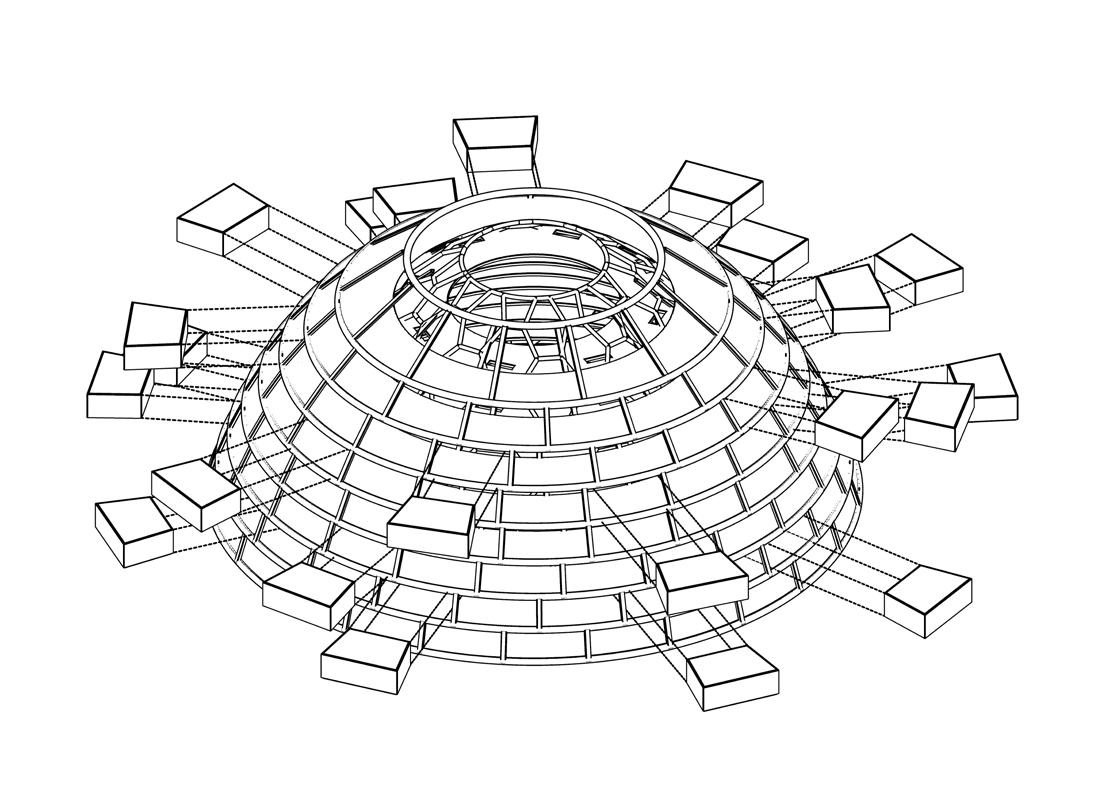

Section view of the dome mechanism of accommodating houses and the hexagonal structural support on the inner layer of the dome.
JENGA HOUSING - CITY WITHIN A CITY
The excavated pit contains stairs that allows people to have access to the lower level to undergo daily activities or to hold events for leisure
During the heavy raining seasons or flooding seasons, the excavated pit will fill up transforming into a pond that creates a new scenery

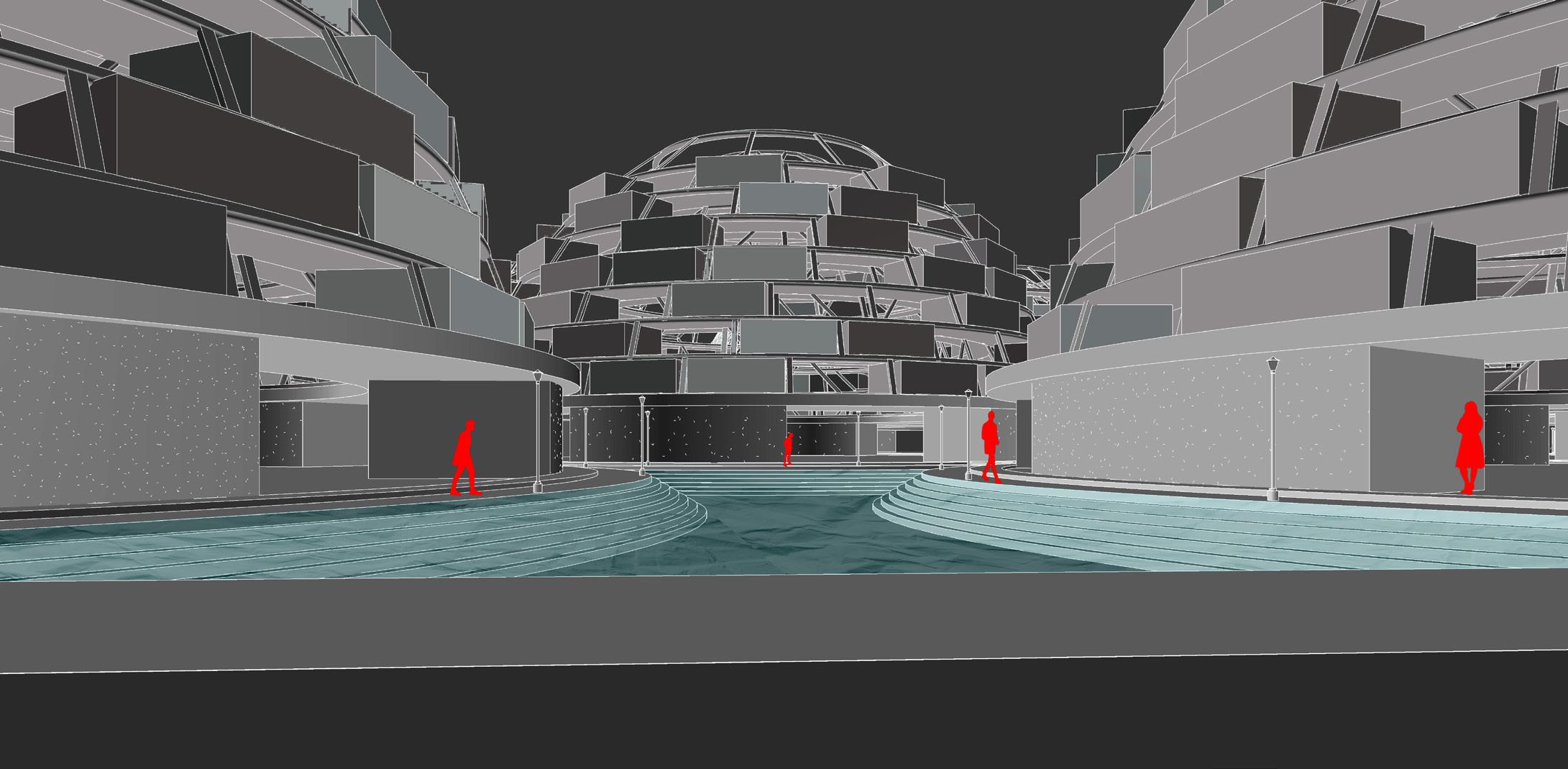

This 3D view shows the excavated pit being filled with flooding water that will gradually drains into the water reservoir for future use
9
JENGA HOUSING - CITY WITHIN A CITY

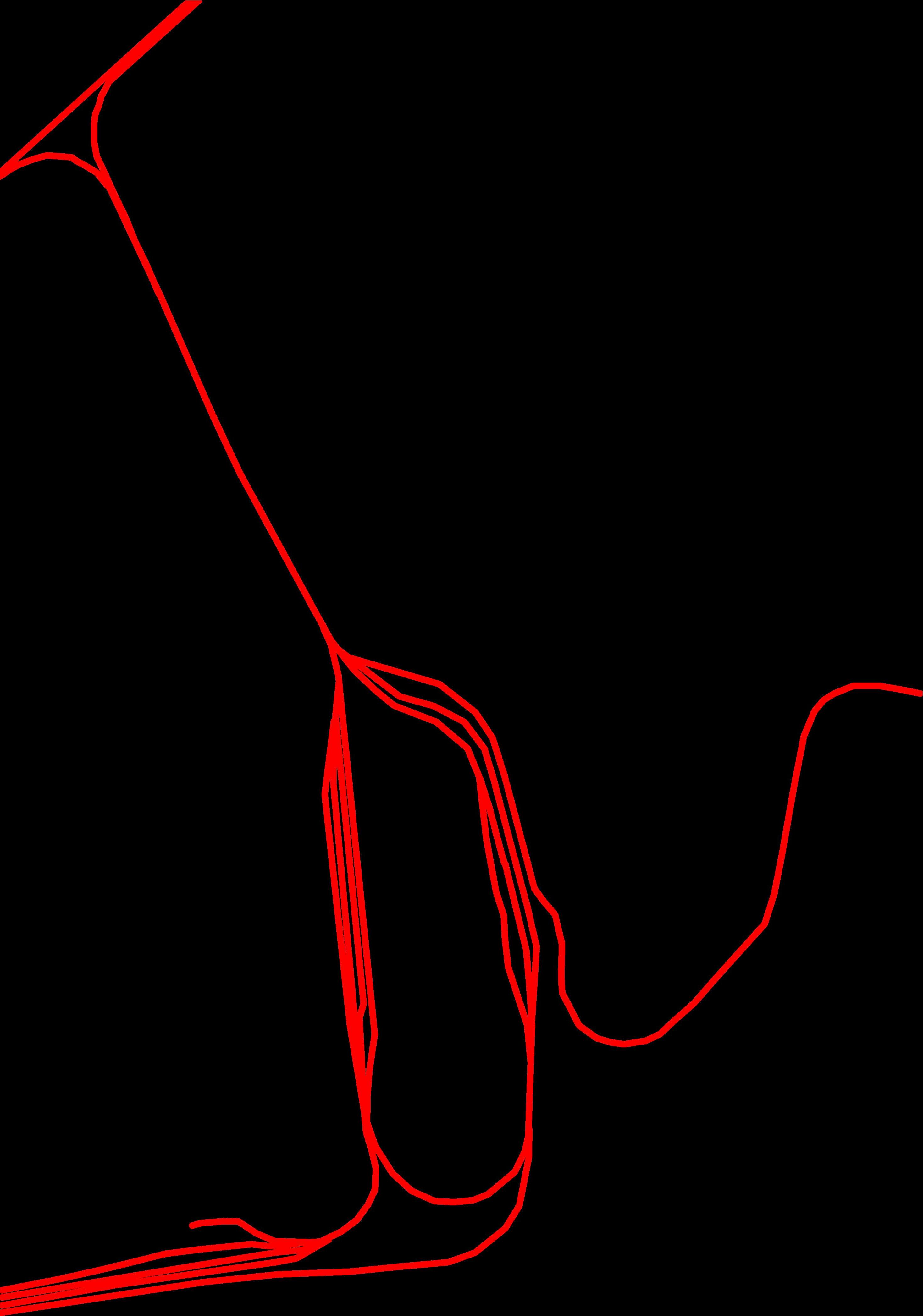

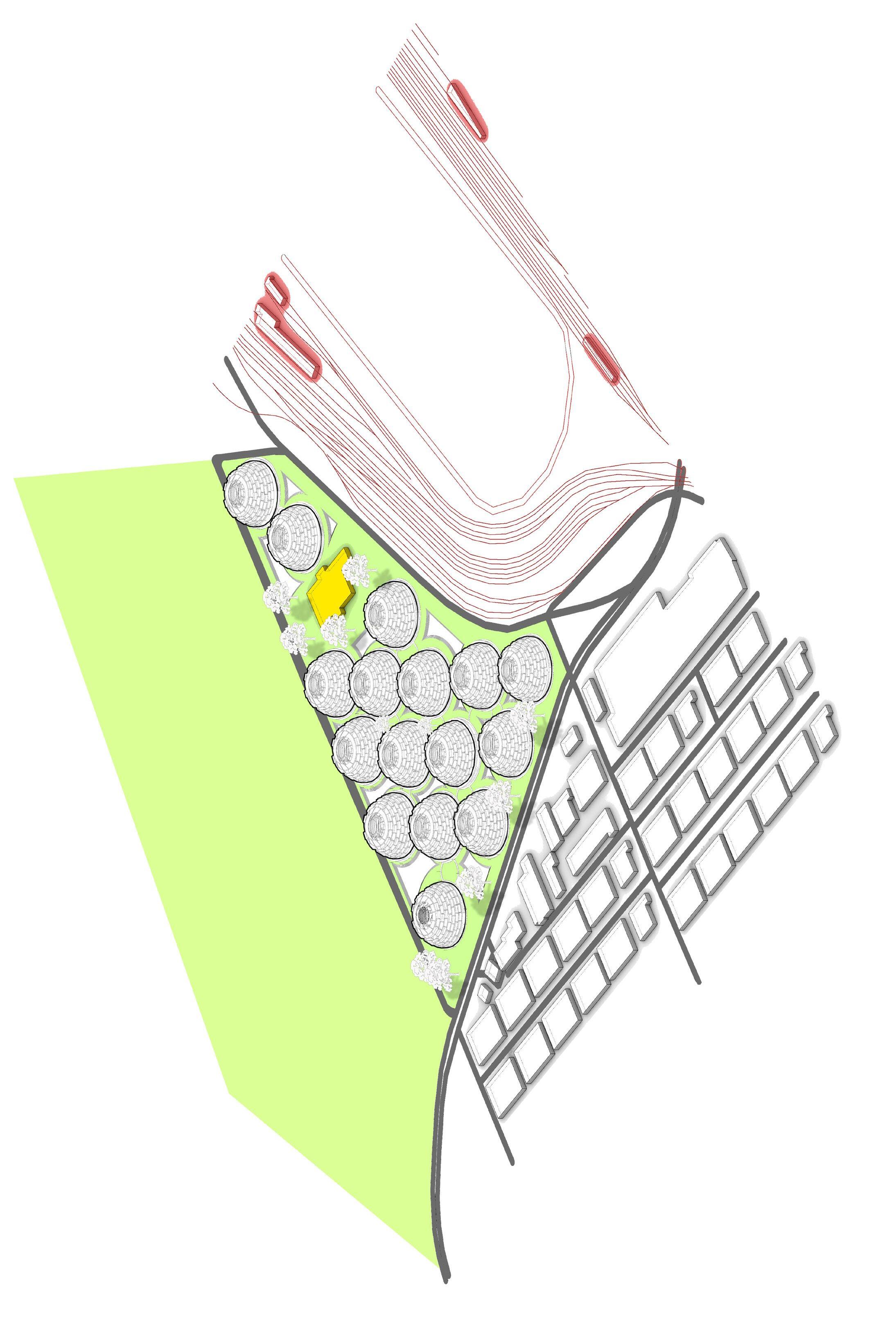

Train Tracks Existing train tracks that can be connected to the Newcastle main train line.
BHP Administration Labeled as historical site which will be reuse as the residential areas main management office Connected Land Empty lot connecting to the site with a possibility to be an extension of the site
Circulation Path Walkways for pedestrians
Coal Storage Coal storage with the potential to be a new train station or etc.
Main Entrance Connected to the highway for easy accessibility
10
JENGA HOUSING - CITY WITHIN A CITY
different levels of natural sunlight
11
JENGA HOUSING - CITY WITHIN A CITY

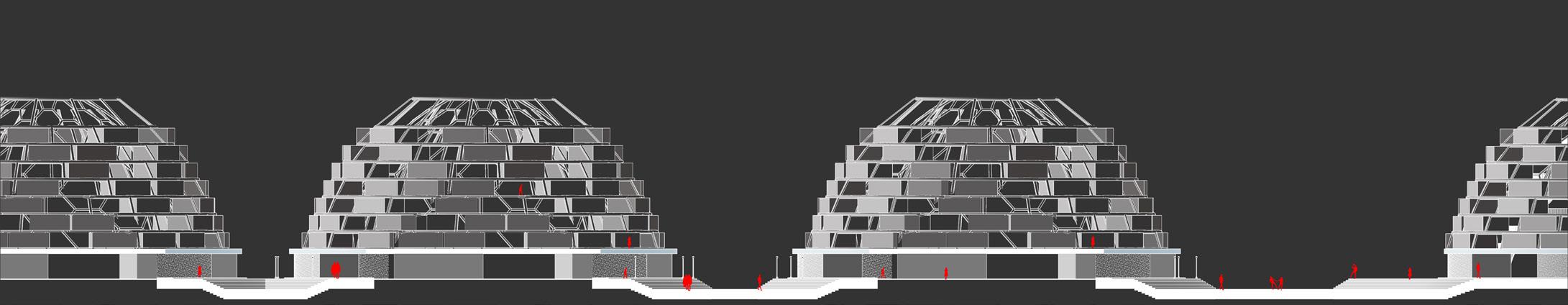

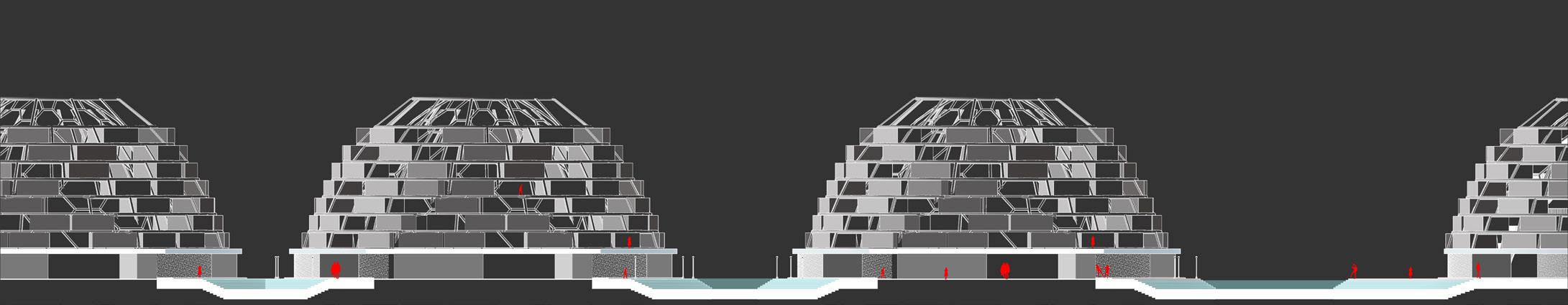

Elevation from the ground portraits the unowned slot of the platforms creates pockets for light to fill the inner dome with
14
15
PARASITIC MODERNISM
MODERNISM INVASION
Studio 1 Sarah Jozefiak
June 2019 Date
Location
Howden Street, Carrington, Newcastle
Designs are always initiated by an existing precedence, concept designs derived from nothing are either dangerous or stupid. Hence the concept of parasitic modernism, where the parametric structures made with materials from this eras trend engulfs the old building in attempt to erase any remanence of the old building.
Recently owned by a rockstar, the old mechanic garage is to be turned into a recording studio and a loft for the rockstar crew to work while having the comfort of their homes. In addition the studio need a public space to display their work and achievments to friends, fans and families but is able to separate it from the studio and the loft.
The concept is to create 3 different sections to fullfill the clients request, with the studio being in the front section, public display area in the middle and the loft being at the back section. Roof will have different openings to create a bigger space for the middle and back section which enhances the display room creating a more dramatic effect on the achievements.
16
Front porch for vehicles

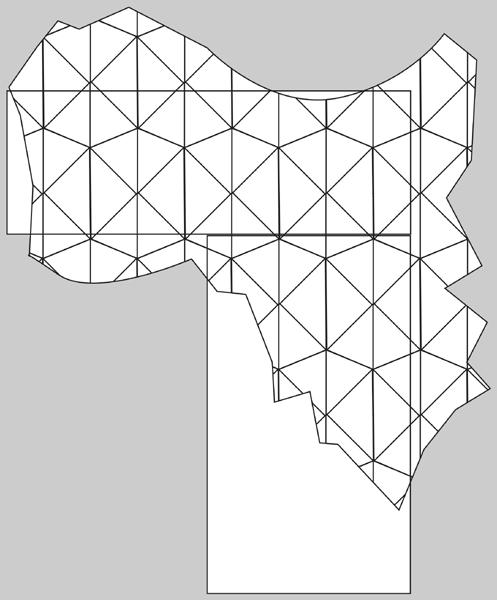

Parasitic Ceiling
Parasitic Ceiling engulfing the old building
Front garage door for transporting instruments and equipments
PARASITIC MODENISM - MODERNISM INVASION
Garage will be the only building leftover after demolition.
New unit will be constructed behind the old building.
Parasitic arms from the new unit are extruded out to partially cover the old building.
Birdseye view of the site slowly reachng to the old building and the shadows casting onto the rooms beneath.
- MODERNISM INVASION
PARASITIC MODENISM
18 PARASITIC MODENISM - MODERNISM INVASION
Floor plan shows the relation between the public and private section of the studi. Studio is enclosed to only authorised people are allow in whereas the mid section is open up to the public to display their awards and achievements
View of the kitchen and the living room being exposed to natrual light at different angles at different times of the day
19
Production Room Recording Room Public Display Area Loft Area PARASITIC MODENISM - MODERNISM INVASION
The view from the back provides a different design to the neighbourhood. From the main streets visitors are drawn by the intriguing shape of the facade.
Rooms are arranged in an ascending order giving the rockstars a different view to the backyard.
Each corridor before entering the room acts as a balcony for a different view.
20
PARASITIC MODENISM - MODERNISM INVASION
Loft spaces are lit up by sunlight penetrating through the frosted glass ceilingcreating a delicate soft light setting environment. Natural light is used as a building material which paints the loft. Depending on the condition of the weather and day the light changes the atmosphere.
21
PARASITIC MODENISM - MODERNISM INVASION
22
23
EASTERN ANGLES
A PLACE WHERE THE SUN ALWAYS SHINES
Studio 3 Derren Lowe
Date Location
June 2020
Gipp Street, Carrington, Newcastle
Being one of the four terrace houses connecting to each other, the site is a small space of only a 4 meter width and 26 meter length. Proposed to be the client’s new forever home for him, his partner and mother. The site is located at a frequent flooding zone, required to be lifted at least 4 meter height to avoid the potential flooding.
With the limited space presented, the project takes on a space efficient design whilst exposing the middle part fo the house with sufficient natural light exposure. The solution for the light is to apply louver facade for the whole buiilding. This connects the outdoor with indoor making the room to have a spacious effect. The site is also facing east, the building will be exposed to sunlight throughout the day as the sun moves from east to west, the louvers allows the building to have maximum exposure to natural light whilst keeping the privacy of the building.
24
View of the morning sun casting shadow againts the louvers
View of the afternoon sun casting shadow against the louvers
EASTERN ANGLES - A PLACE WHERE THE SUN ALWAY SHINES
25 EASTERN ANGLES - A PLACE WHERE THE SUN ALWAY SHINES
Aluminium
Red Brick
Plaster Wall
Plaster Ceiling
Wooden Louvers
Walnut Wood
Precast Concrete
The wooden flooring and the warm lighting creates a relaxing environment whilst the white walls and ceiling making the room to be more spacious than it looks.
26
EASTERN ANGLES - A PLACE WHERE THE SUN ALWAY SHINES
27 EASTERN ANGLES - A PLACE WHERE THE SUN ALWAY SHINES
30
DA Application
• Proposed Demolition & New Two Storey Building
• Proposed New Two Storey Dwelling
• Proposed New Granny Flat & New Two Storey Dwelling
• Proposed New Two Storey Duplex
31
PROPOSED
DEMOLITION & NEW TWO STOREY DWELLING
Draft DA Application October 2022
Wolseley Road, Lindfield NSW Date Location

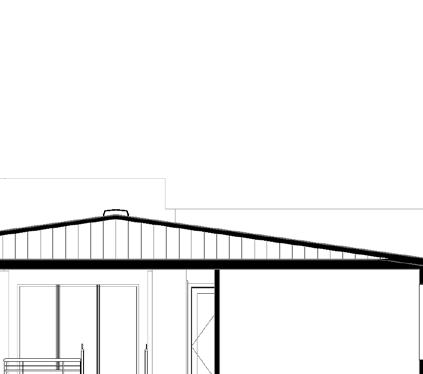

In this project the client proposes a partial demolition to extend the back area of the building and proposing a new first floor on top of the old existing building. In this project highlights the demolition of certain elements of the building and renovating it to incorporate a brand new kitchen with a pantry behind it and a new dining room which connects directly to the living room to further expands the view of the house while keeping the wall to separate the entrance to create a privacy gap before heading into the building.

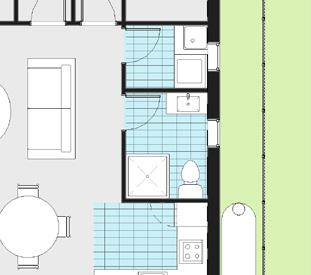

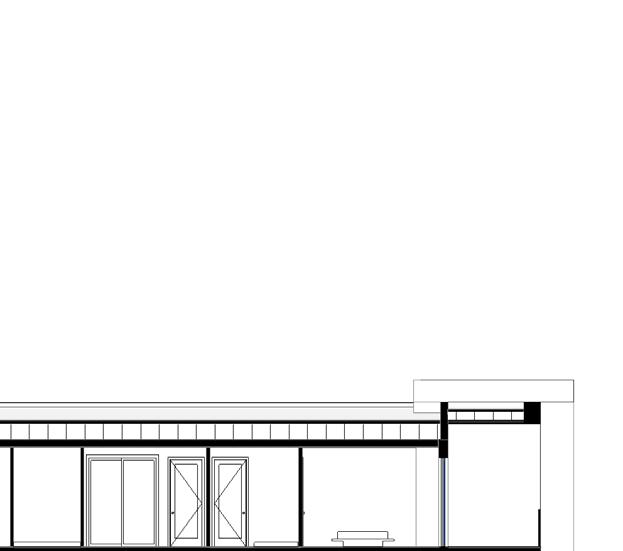

Existing Ground Floor Plan showing the layout of the existing single storey dwelling.

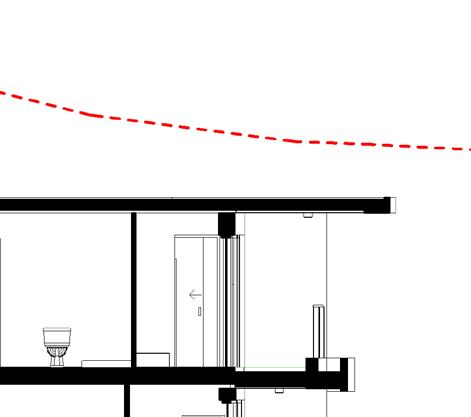

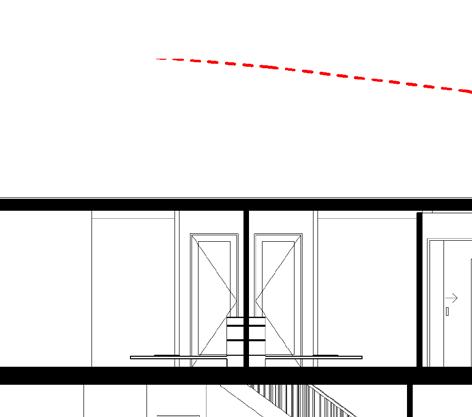

Demolition Plan of the existing single storey housing with demolition lines marked in red dashed lines.
32 RL 98.35 4580 5170 1730 1460 2953 900 3010 3990 770 770 3646 1717 1043 2693 3388 1815 2465 2715 3588 5470 2643 7640 3032 2800 666 4689 1055 1330 3388 900 849 RL 98.51 771 334 RL 98.51 BENCH 470 1826 805 TIMBER FLOORING LIVING ROOM DINING SUN ROOM KITCHEN BATH BED 3 BED BED BED 2 LAUNDRY TOILE PORCH A114 A115 A115 160 ENTRY 35 D D D 10 D 11 W 15 W 14 D D 7 D 12 D W W W W W W W W W 10 W 11 W O20 W O19 W O18 W O17 W O16 W O21 W W 12 W 13 RL 98.35 4580 1390 1730 1460 900 3010 3990 770 770 3646 1717 1043 2693 3388 1815 2465 2715 3588 5470 3220 3032 666 4689 1055 1330 900 849 RL 98.44 RL 98.51 771 RL 98.51 D/W 470 805 A114 A115 A115 160 2953 5170 2570 820 600 PROPOSED DEMOLITION & NEW TWO STOREY DWELLING
3D aerial plan perspective of the existing dwelling. The areas that are being demolished are marked in red dashed line.
3D aerial plan perspective of the dwelling after extending the back area to include a bigger kitchen space and a brand new alfresco.
Ground Floor Plan of the proposed new ground floor layout with the extension of the back of the existing dwelling. The proposed new dwelling walls are marked in orange colours.
33 GUEST BED BATH BED 4 5470 1055 1330 RL 98.44 RL 98.51 ROBE ROBE HLW HLW HLW HLW TIMBER FLOORING 150 0 5520 PANTRY LAUNDRY KITCHEN DINING LIVING ROOM ALFRESCO FAMILY PORCH 1080 ALFRESCO 6300 2300 440 1 A114 1876 1132 6010 2501 5498 3262 1063 527 6400 230 5120 2580 5229 3368 3307 19834 20279 1200 1500 328 770 1425 718 981 70 RL 98.35 RL 98.51 160 1426 1876 770 8873 5498 3262 20279 270 L V N G R O O M 4 5 8 0 2 7 0 P O R C H 2 5 8 0 2 7 0 G U E S T B E D 4 6 8 9 2 7 0 3 3 6 8 2 7 0 B E D 4 2 7 6 7 2 7 0 2 3 0 2 7 0 E N T R Y 7 4 9 0 2 1 0 G U E S T B E D 4 6 8 9 2 1 0 B A T H 3 5 8 8 1 1 0 B E D 4 2 7 6 7 2 7 0 ENTRY 2 7 0 P T R Y / L D R Y 2 4 0 0 1 7 0 6 5 0 K T C H E N 2 3 5 0 4 0 1 0 2 7 0 F W/D 1 0 5 0 1 3 0 0 4050 1178 1950 1040 2238 2 3 0 1 4 6 2 1 0 1 2 0 1 3 4 7 3 3 6 8 3 3 0 7 RL 98.12 181 7 390 1 4 1 0 2 4 0 0 4 4 2 0 8 2 0 1 0 7 0 1200 2062 90 35 35 1300 908 600 2762 600 4003 900 900 1728 900 1070 2 D 1 D W W W W W W 3 W W 7 10 W 15 W 14 11 W 7 D 4 D N13 D W W W N24 W N23 D N14 0 2 3 0 1 0 3 9 2 2 9 9 0 7 7 0 1 0 1 2 5 1 5 1 5 5 0 5 1 5 1 0 4 1 7 7 0 2 3 2 5 1 0 9 3 4 3 8 2 5 0 0 4 3 0 1 0 4 7 1 0 7 0 1 1 9 0 TOW 97.31 BOW 96.51 TOW 98.71 BOW 98.12 BOW 98.12 BOW 98.12 TOW 98.31 TOW 98.71 W N22 PROPOSED DEMOLITION & NEW TWO STOREY DWELLING

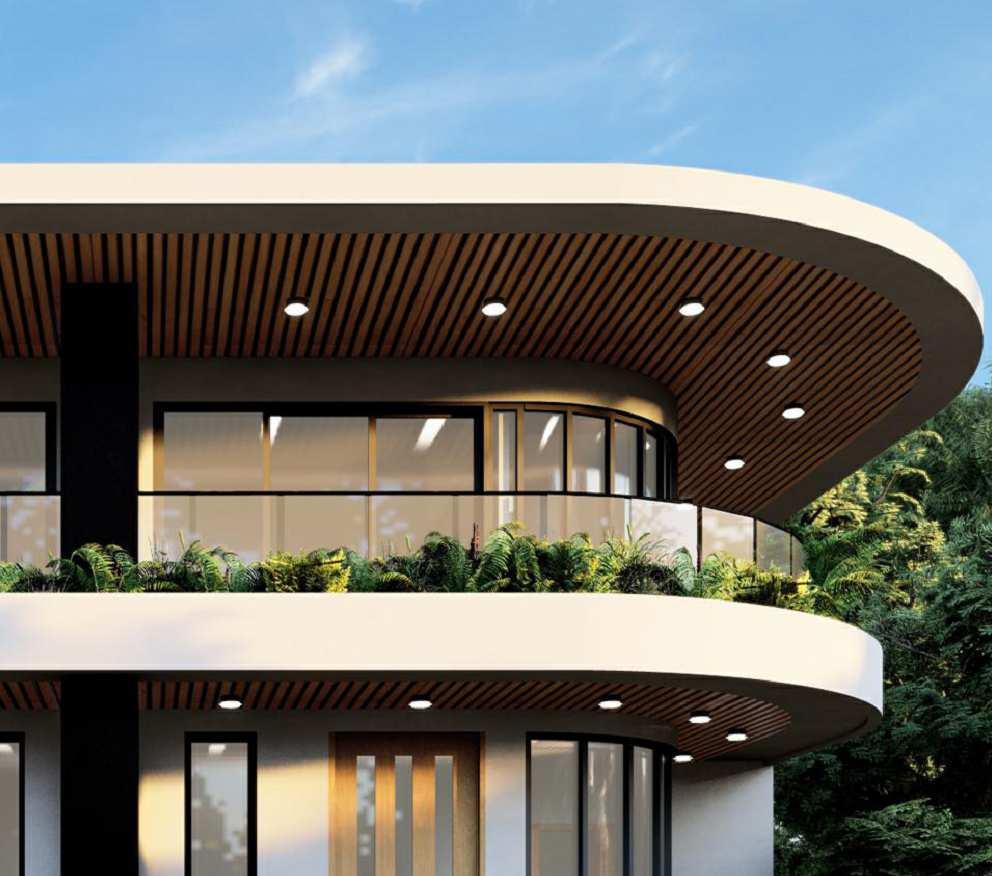

PROPOSED NEW TWO STOREY DWELLING
Draft DA Application August 2022
Location
Hyde Avenue, Glenheaven NSW Date

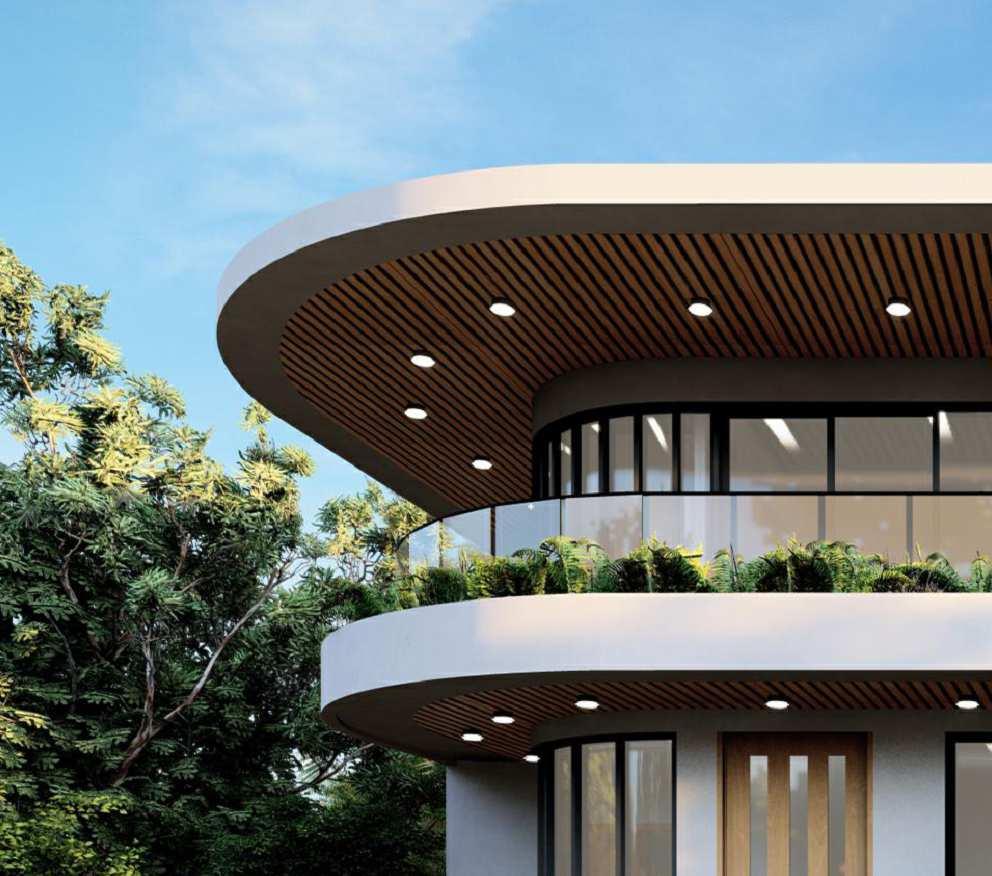

In this project the client proposes to demolish all of the existing building and rebuild everything from the existing slab base. In this proposed new two storey dwelling, the design focuses on creating a welcoming open space by giving the living room a high ceiling that connects the flow with the first floor rumpus and snooker area. For the semi private area there is a difference in floor level between the family and the dining area, this is to prevent the family area from blocking the windows which connects the dining and family area to the outdoor area simultaneuously.
For the outdoor area there are LED lighting strips under each tread nosing and on the inner side of the facade, highlighting the outline of the facade and providing illumination for the clients during night time.
Ground Floor Plan of the proposed new two storey First Floor Plan of the proposed new two storey dwelling.
GUEST BED MAIL BOX 24.300 179° 27' 40" 24.300 269° 40" 8495 4855 8445 2505 2505 19290 2505 2505 14800 4490 2505 2505 19290 2505 2505 LIVING LAUNDRY ENS KITCHEN VOL 42.3 KL 1250 1250 1200 2505 2505 POOL 1250 690 4355 8000 1000 500 3800 470 WET PROPOSED NEW TWO STOREY DWELLING
WIR BALCONY 15860 19290 2480 7295 9515 16870 BATHROOM 1.76 ×2.34 BED 4 BED 3 RUMPUS 19290 2580 25 SNOOKER COLOURBOND ROOF AS PER SELECTION

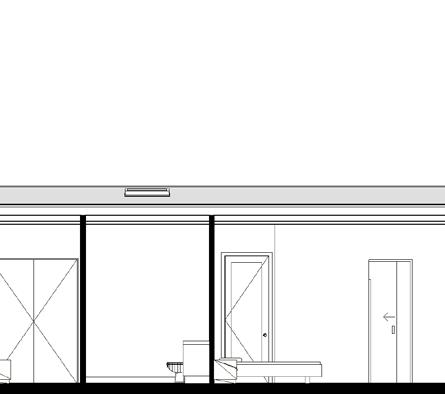

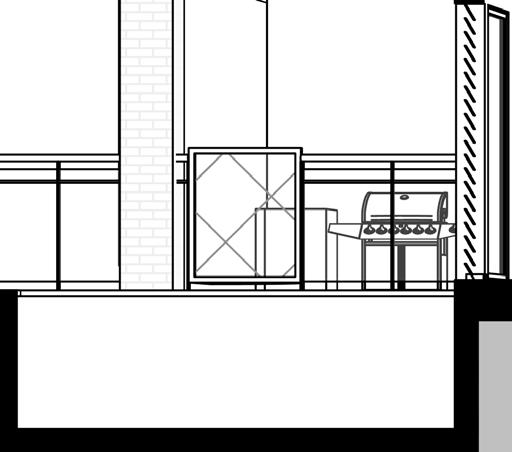

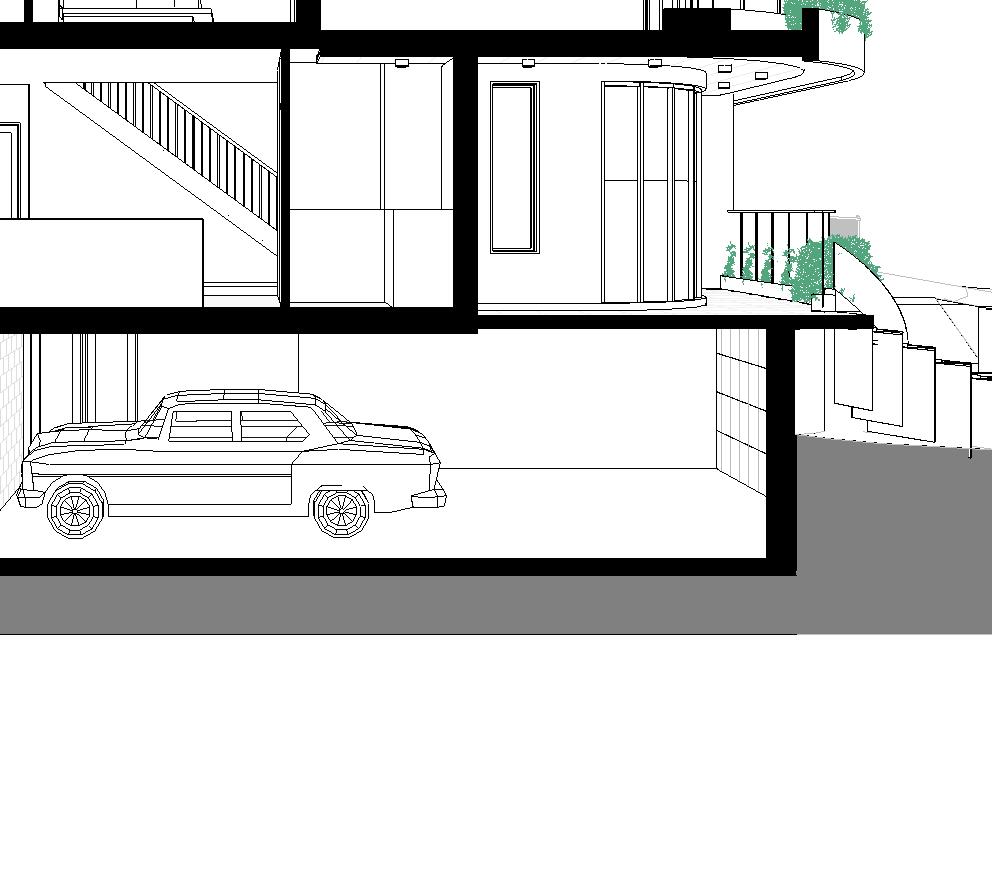

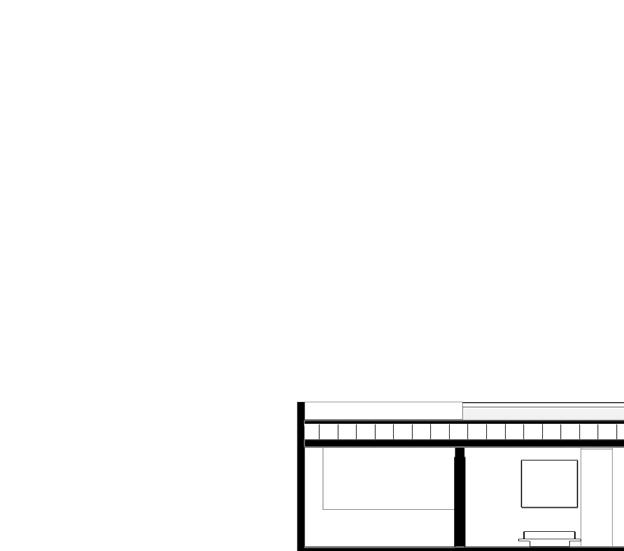

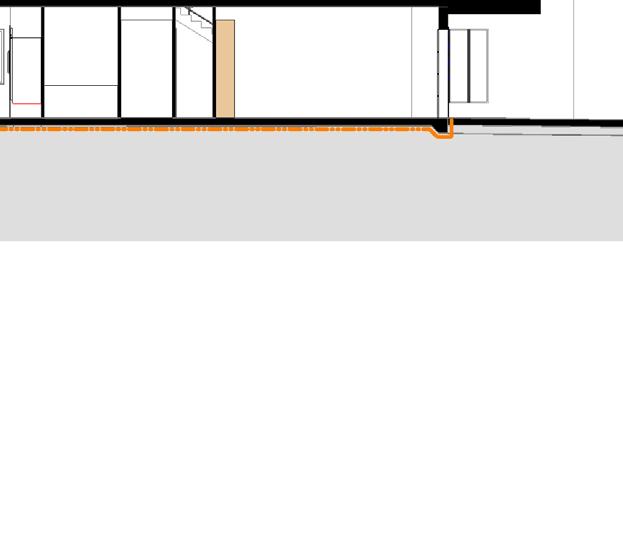

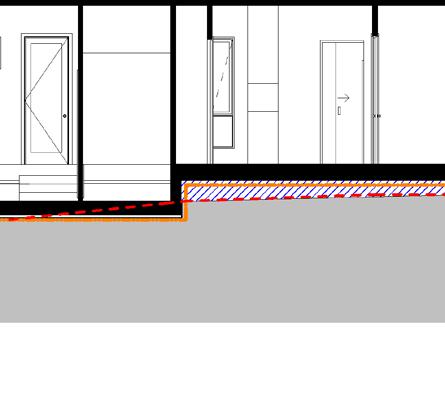

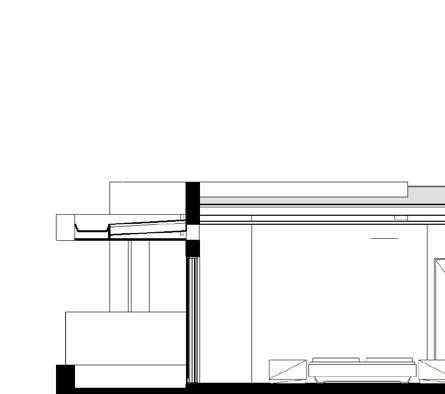

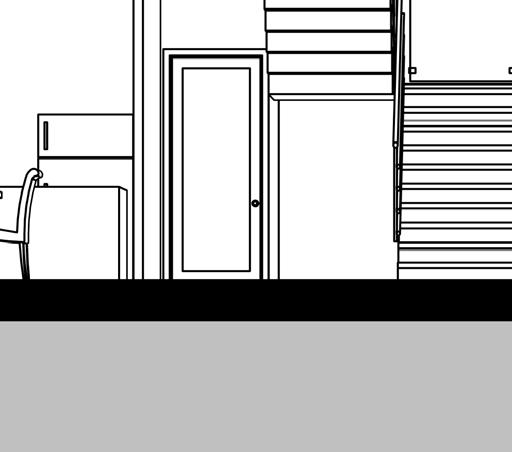

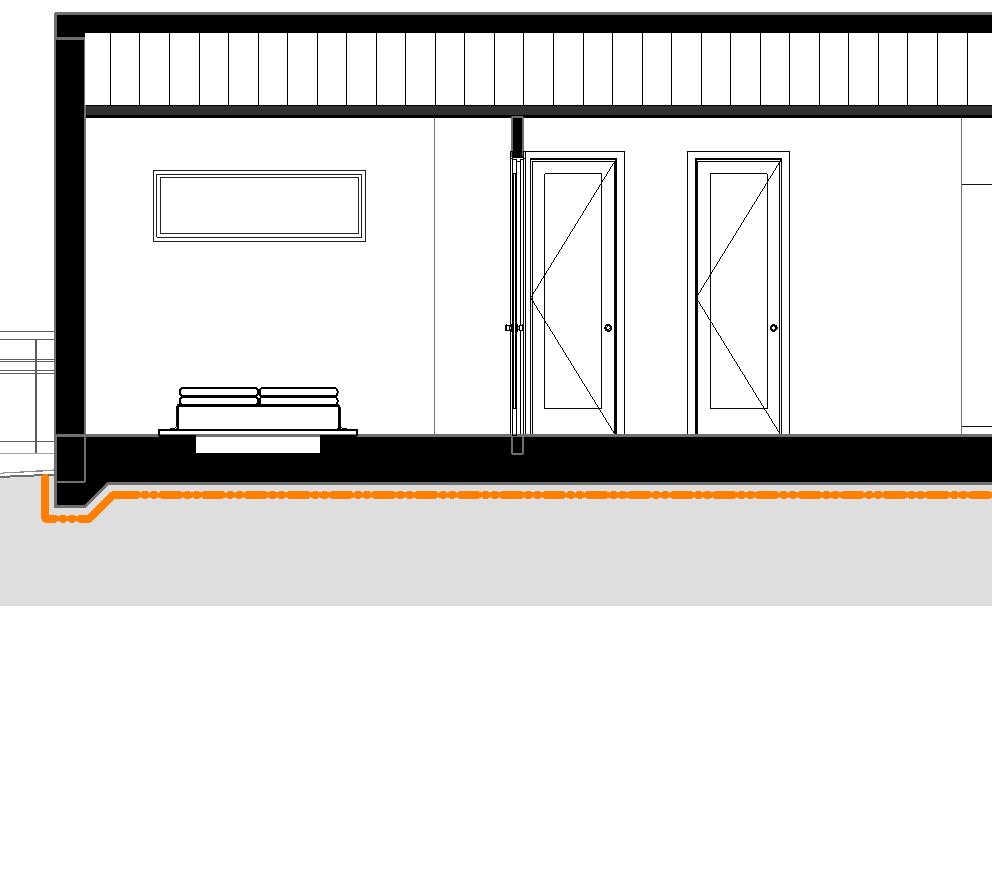

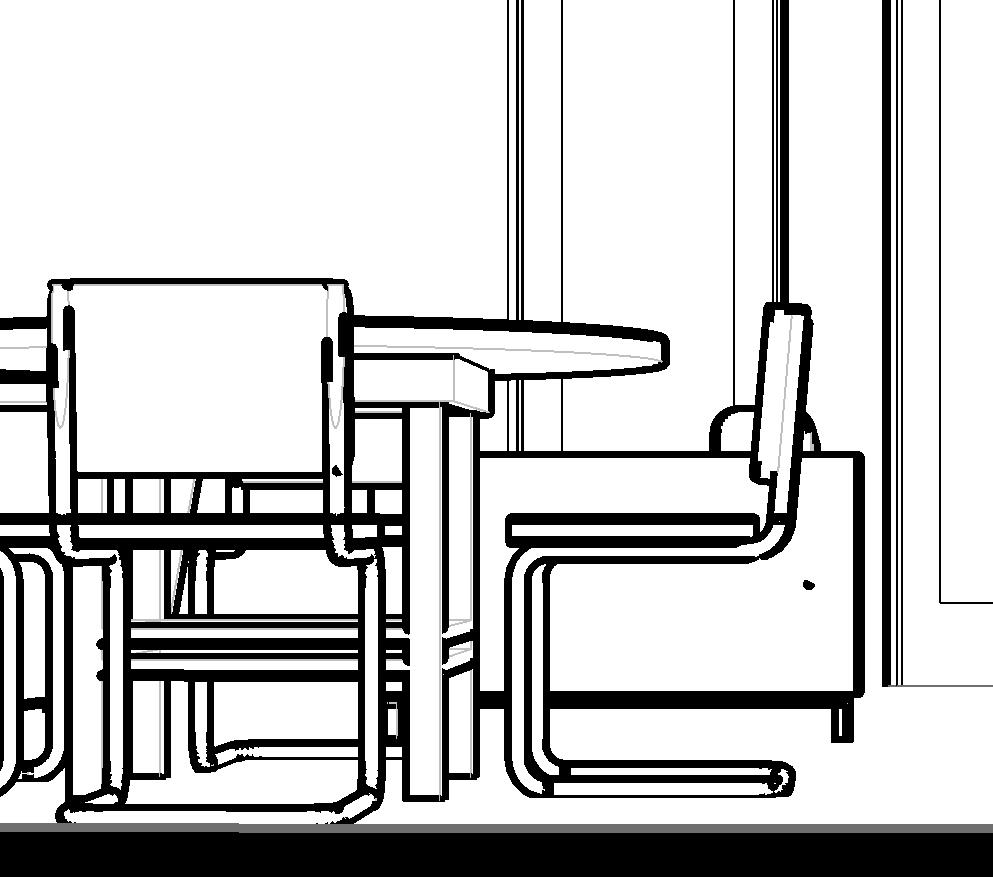

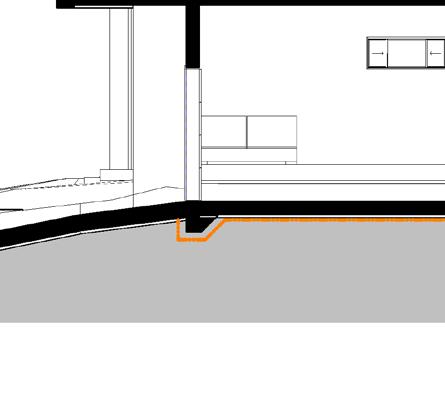

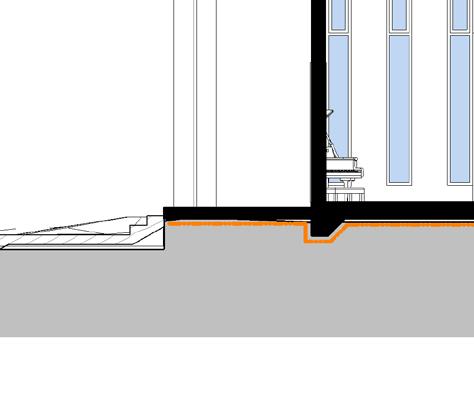

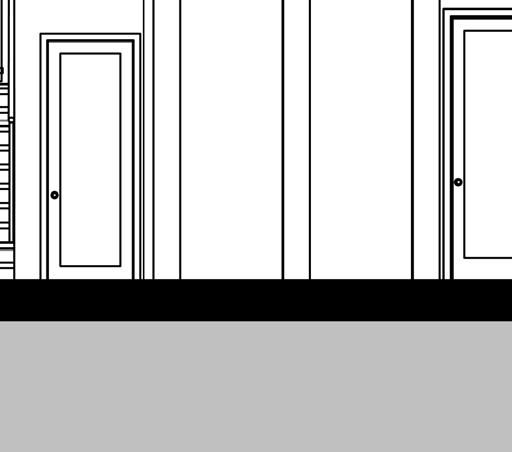

Section 1/A112 showing mainly the private space and garage of the proposed new two storey dwelling.

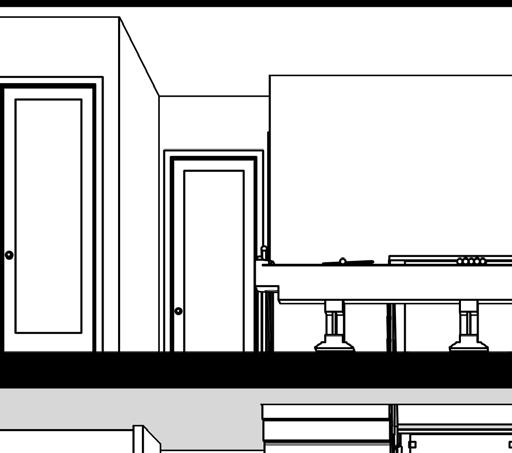

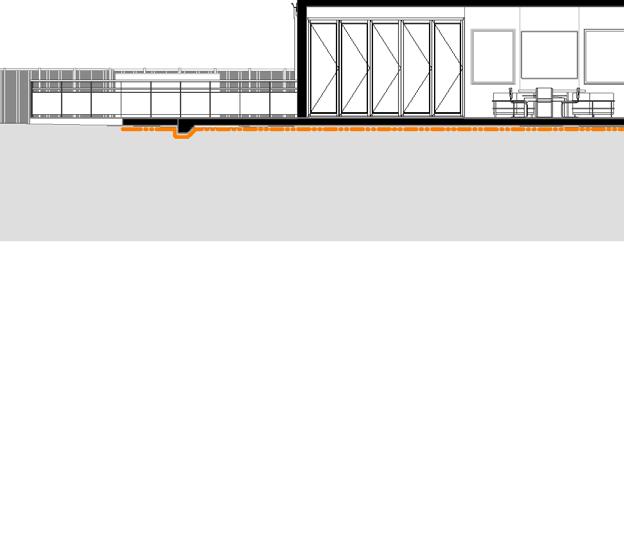

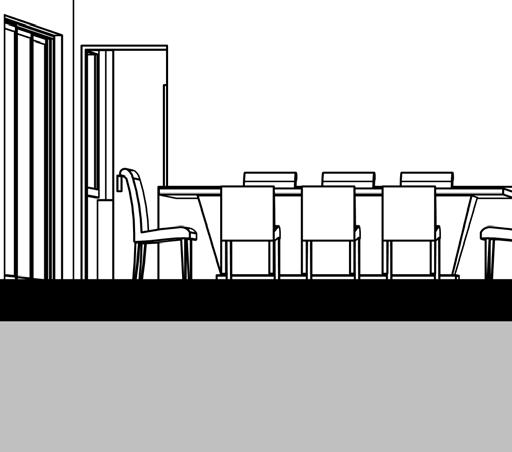

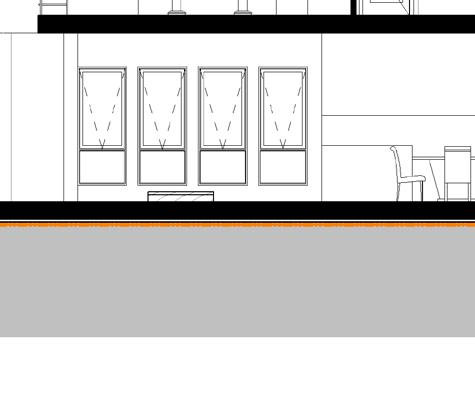

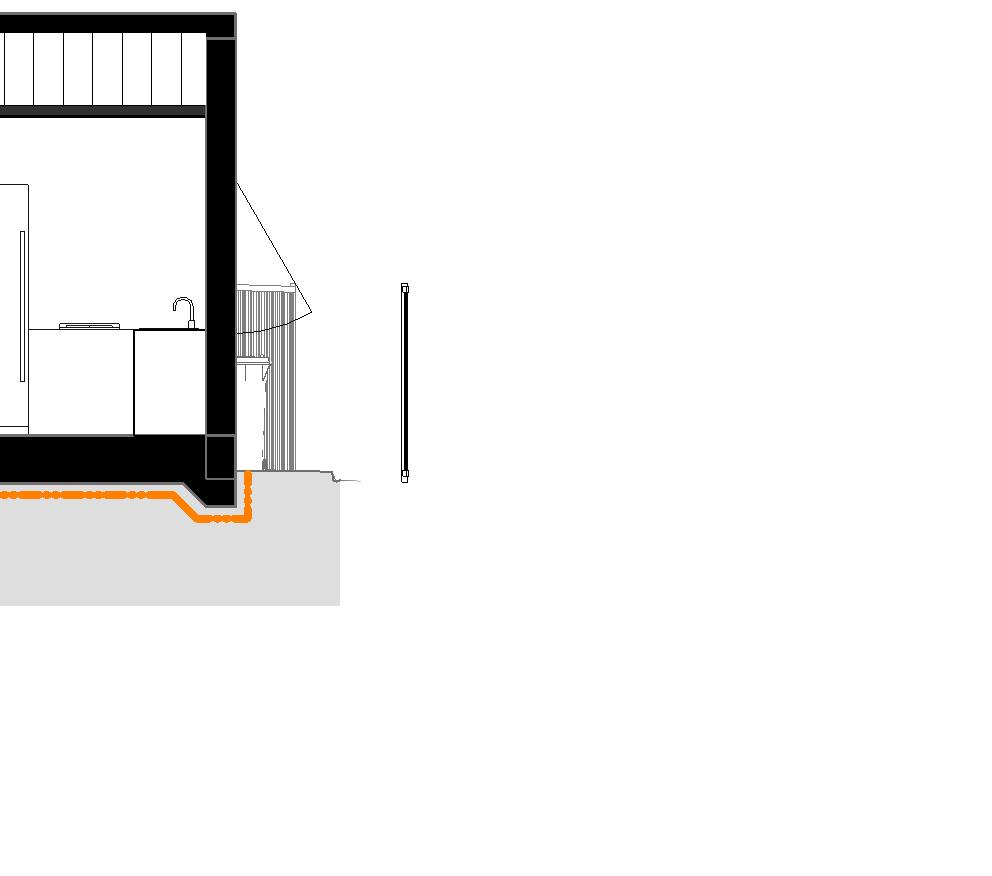

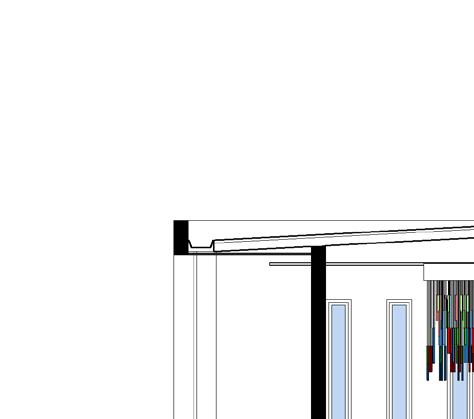

Section 2/A112 shows the public spaces and semi private spaces of the proposed new two storey dwelling
PROPOSED NEW TWO STOREY DWELLING GROUND LEVEL 129.86 GCL 132.86 FFCL 136.16 FIRST FLOOR 133.16 ROOF PLAN 136.46 GARAGE LEVEL 129.48 RL 133.51 RL 129.17 300 3000 300 3000 380 R/C SLAB AS PER ENG. DETAILS TERMI-MESH TERMITE PROTECT- ION TO ALL FLOOR PENETRATIONS AND PERIMETER SLAB AREAS, AS PER MANUFACTERER'S SPECIFICATIONS CEMENT RENDER ON EXTERNAL WALLS SELECTED COLOURBOND ROOF @ 3° PITCH BEHIND PARAPET WALL ROOF AS PER MANUFACTURERS SPECIFICATIONS NATURAL GROUND LINE 1100mm HIGH GLASS BALUSTRADE PROPOSED FILL R/C SLAB AS PER ENG. DETAILS RL 133.06 BALCONY BED 1 ENS BED 4 DOUBLE GARAGE STORE ENTRY FOYER MEDIA RAINWATER SPREADER 3 GROUND LEVEL 129.86 GCL 132.86 FFCL 136.16 FIRST FLOOR 133.16 GARAGE LEVEL 129.48 3000 300 3000 380 RL 129.76 RL 129.28 RL 128.77 RL 128.09 R/C SLAB AS PER ENG. DETAILS TERMI-MESH TERMITE PROTECT- ION TO ALL FLOOR PENETRATIONS AND PERIMETER SLAB AREAS, AS PER MANUFACTERER'S SPECIFICATIONS CEMENT RENDER ON EXTERNAL WALLS SELECTED COLOURBOND ROOF @ 3° PITCH BEHIND PARAPET WALL ROOF AS PER MANUFACTURERS SPECIFICATIONS NATURAL GROUND LINE FRONT FACADE FEATURE PROPOSED FILL R/C SLAB AS PER ENG. DETAILS RL 136.96 RL 129.86 RL 129.76 3 ENTRY FOYER VOID BED 3 DINING COVERED ALFRESCO PORCH RL 133.16

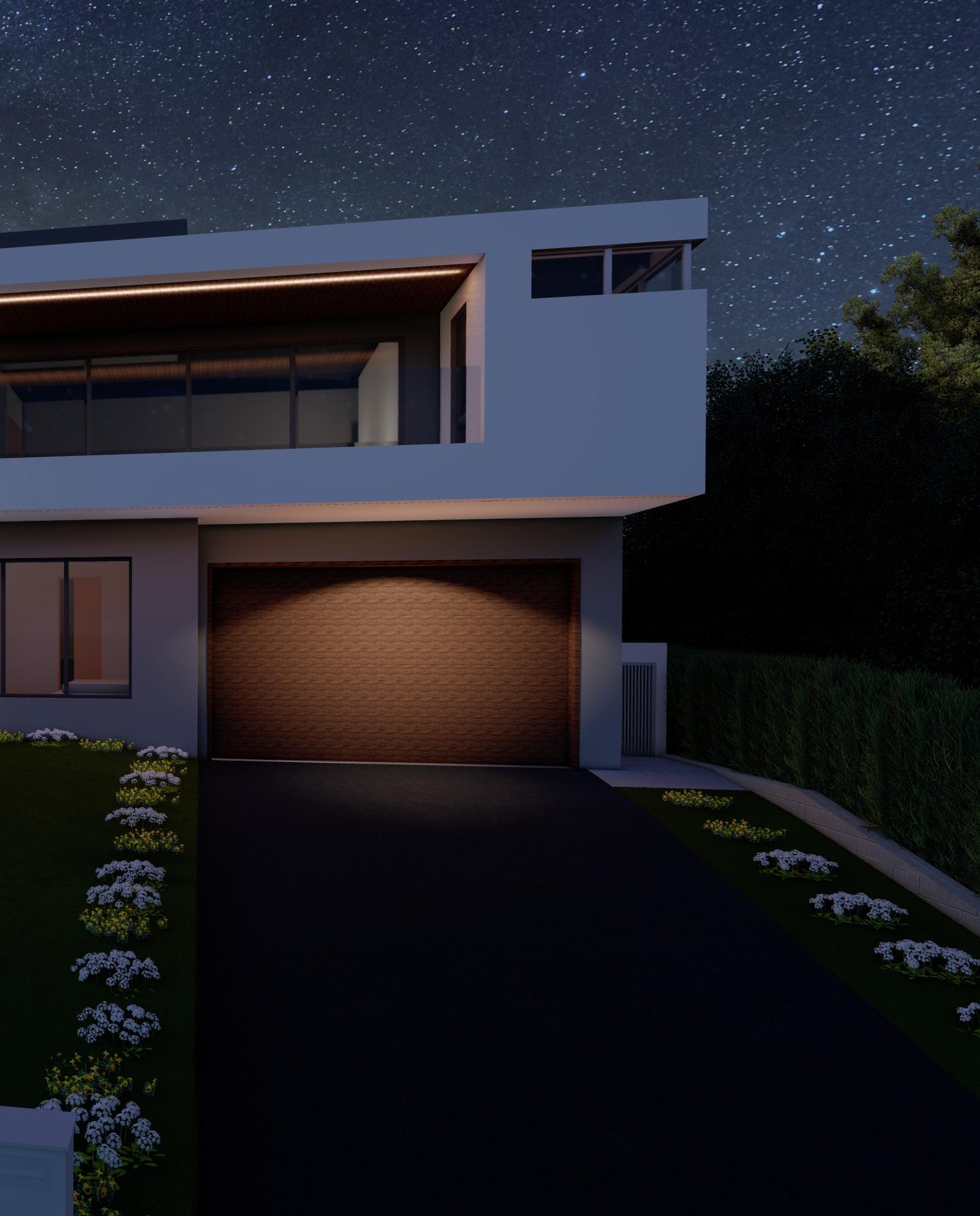

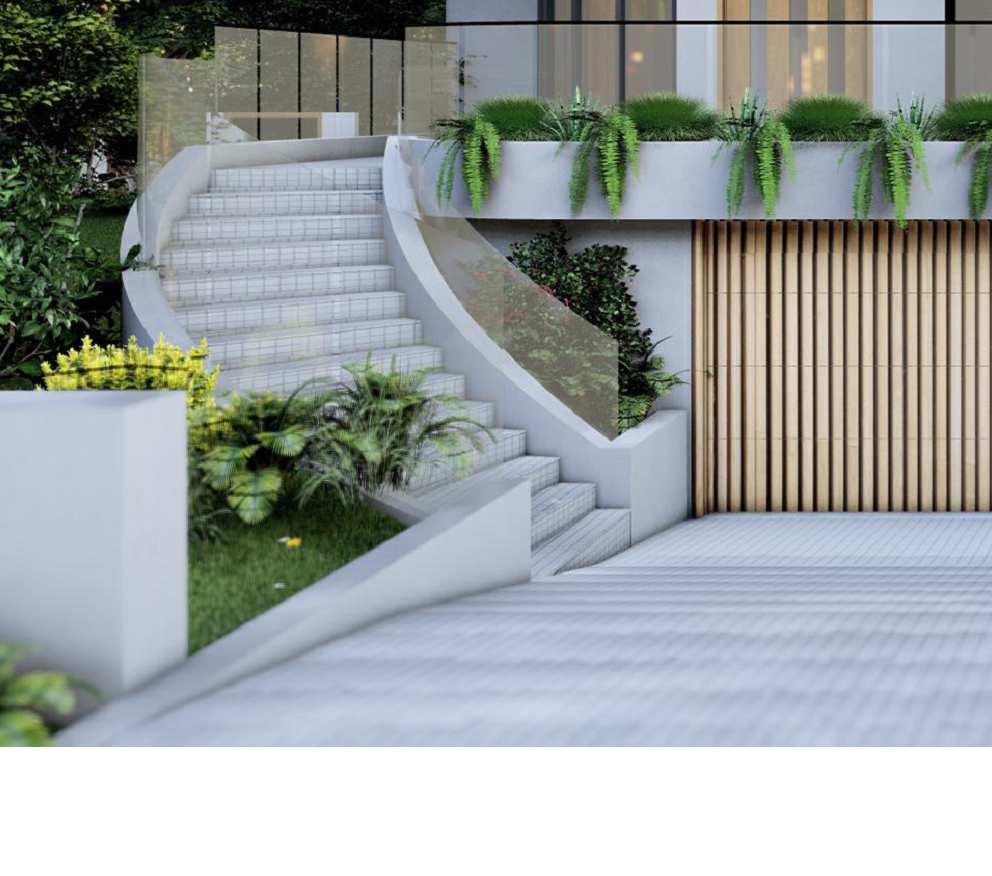

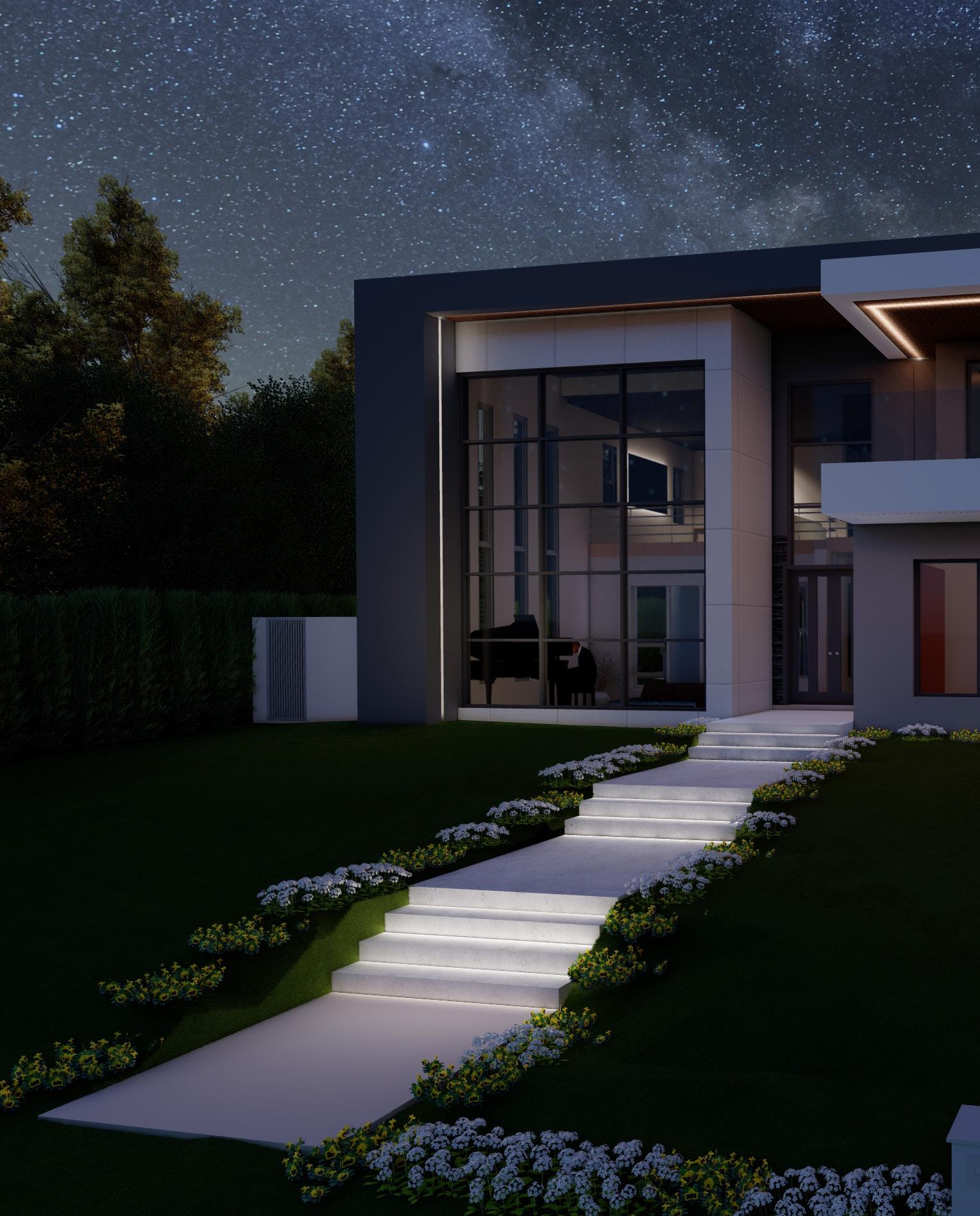

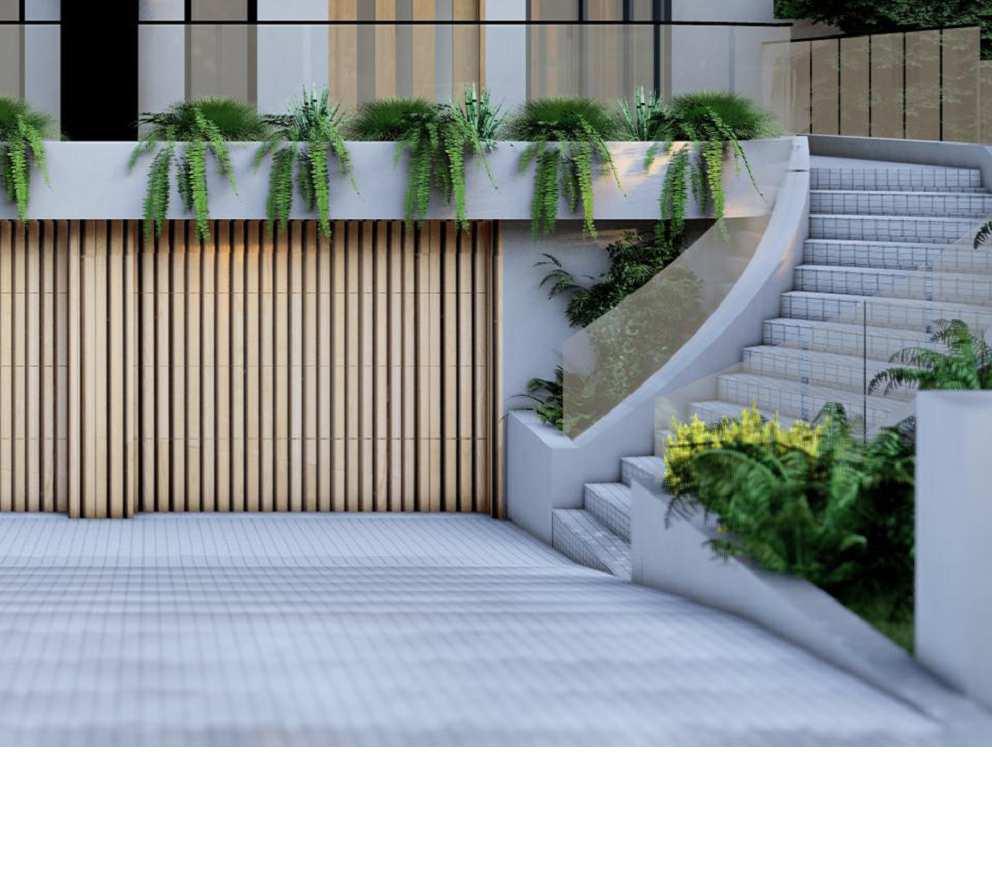

36 TWO STOREY DWELING NIGHT TIME RENDER
This render shows the quality of lighting from the lightstrips if the stairs that leads the owner into their house during night time and the subtle lighting that highlights the best quality of the new dwelling.
37 TWO STOREY DWELLING NIGHT TIME RENDER
PROPOSED NEW GRANNY FLAT & TWO STOREY DWELLING
Draft DA Application
Date Location
July 2022
Budgeree Road, Toongabbie NSW
In this project the client proposes a new two storey dwelling and a new granny flat at the rear of the site to rent out. The granny flat is separated by a layer of fence to provide privacy from the main building but also giving the granny flat tenants a pathway into their rental house. As for the main house the design focuses in the connection of the outdoor area with the indoor area.

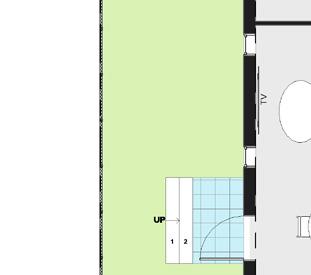

Ground Floor Plan of proposed two storey dwelling
First Floor Plan of the proposed two
950 3° 1245 4250 18795 1230 5055 12540 12540 1750 12540 950 1750 2805 950 6600 2440 4300 950 PROPOSED VOL 28.66 KL 5100 3000 1250 5000 1780 PROPOSED NEW GRANNY FLAT & TWO STOREY DWELLING

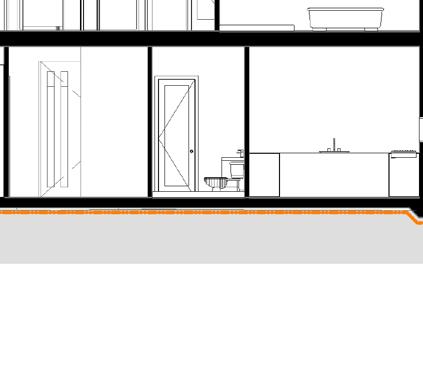

Section 2/13 of the whole proposed granny flat and two storey dwelling
Section 1/13 of the new proposed two storey dwelling

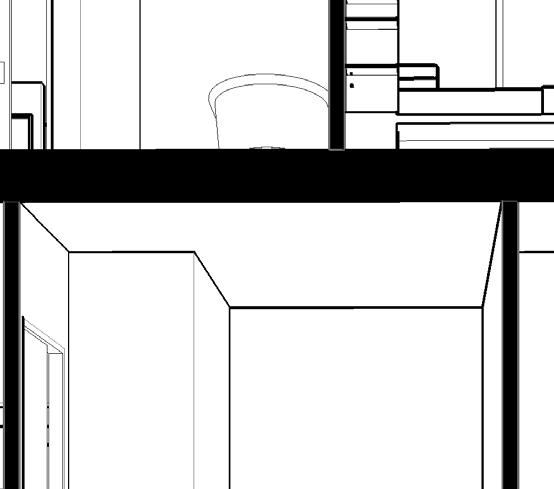

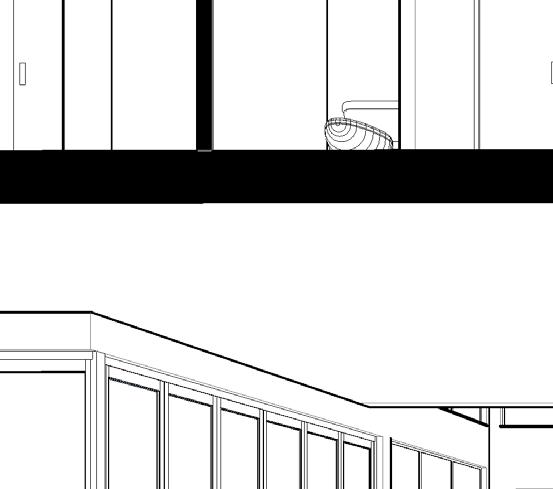

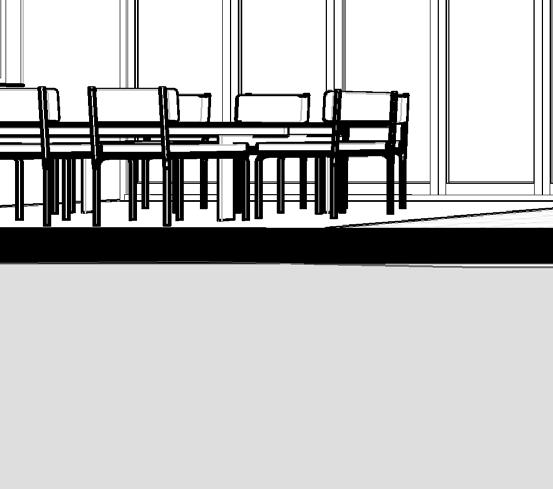

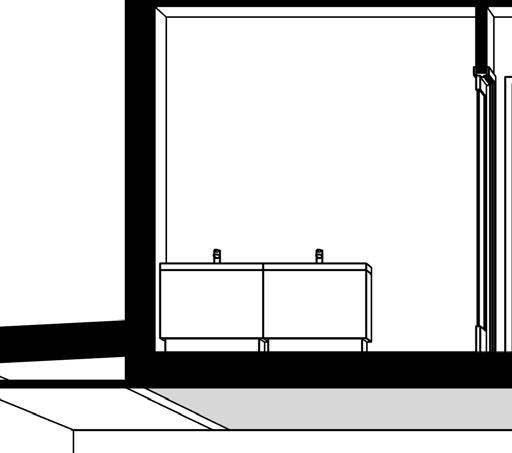

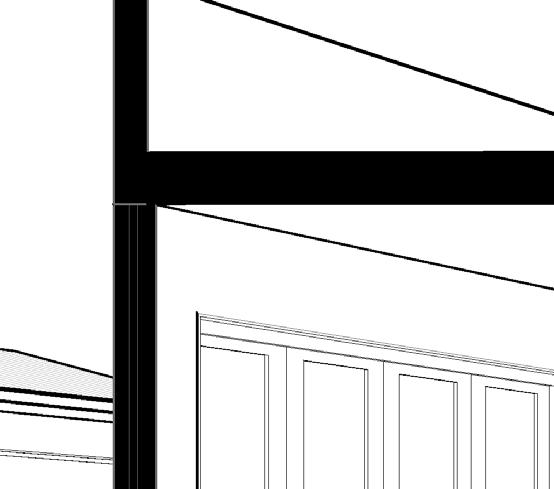

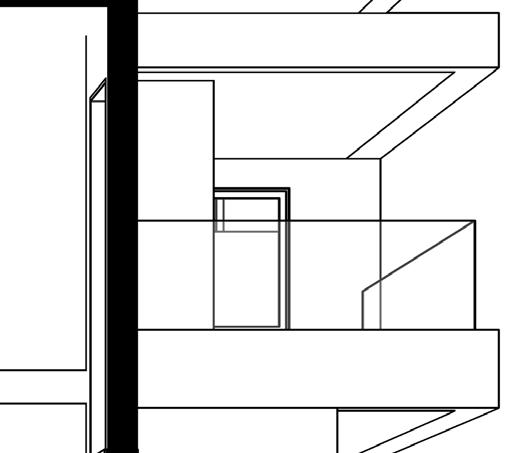

3D sectional perspective
PROPOSED NEW GRANNY FLAT & TWO STOREY DWELLING FIRST FLOOR 53.60 FCL 56.30 GFCL 53.30 RUMPUS LOBBY ENSUITE WIP/ BUTLER POWDER ROOM GUEST BED 2990 2700 300 3000 6000 BOUNDARY BOUNDARY PARAPET WITH ALUMINIUM CLADDING SELECTED HEBEL WALL WITH RENDER SELECTED TIMBER STUD WALL D D06 D13 D20 W34 D D02 TOW 57.50 LOBBY HEBEL FLOOR AS PER SPECIFICATIONS FIRST FLOOR 53.60 FCL 56.30 GFCL 53.30 GROUND FLOOR 50.30 BED ENSUITE BED 2 BATH BED 3 DOUBLE GARAGE WIP/ BUTLER KITCHEN DINING 2700 2700 300 3000 6000 W06 W02 D D18 D D19 D D29 TERMI-MESH TERMITE PROTECTION TO ALL FLOOR PENETRATIONS AND PERIMETER SLAB AREAS R/C SLAB SELECTED PAINT ON CFC WALL BOUNDARY BOUNDARY D D24 D D25 LIVING ROOM 3 RL 54.16 RL 57.04 TERMI-MESH TERMITE PROTECTION TO ALL FLOOR PENETRATIONS AND PERIMETER SLAB AREAS 150MM ALUMINIUM GUTTER W29 MUDROOM BALCONY D D45

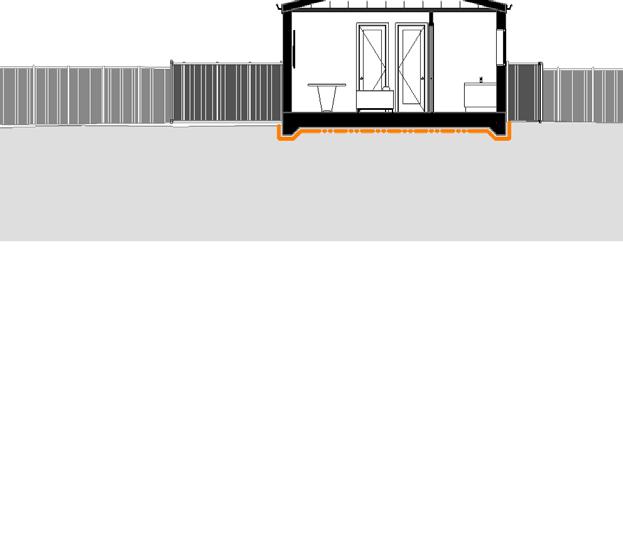

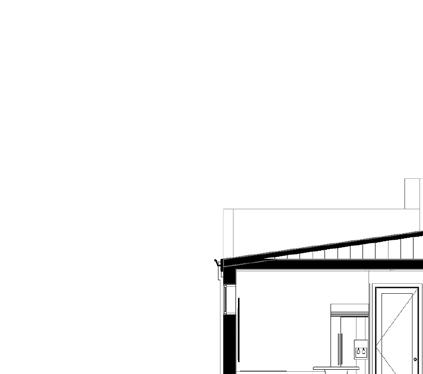

Ground Floor Plan of the proposed granny flat at the rear end of the property
3D sectional perspective of proposed granny flat
ENTRY D D28 D D27 D D D26 D23 D W24 D 2.7m X 3.6m LIVING ROOM 3 3.7m X 5.7m HLW HLW PROPOSED 1.8M HIGH PRIVACY FENCE 1450 9930 3860 3000 6010 3000 6010 950 250 2010 90 2220 90 1310 90 3620 250 250 2010 3710 90 550 90 2980 250 2 2 3 3 13 R R W39 RL 50.45 RL 50.45 2.7m X 3.6m L'DRY 2 1.7m X 1.3m 1.7m X 2.2m KITCHEN 2 2.0m X 2.4m W50 W51 W52 RAINWATER TANK 1000L PROPOSED NEW GRANNY FLAT & TWO STOREY DWELLING
PROPOSED NEW GRANNY FLAT & TWO STOREY DWELLING FIRST FLOOR 53.60 FCL 56.30 GFCL 53.30 GROUND FLOOR 50.30 BOUNDARY BOUNDARY TERMI-MESH TERMITE PROTECTION TO ALL FLOOR PENETRATIONS AND PERIMETER SLAB AREAS D D28 D D27 W28 RL 54.02 LIVING ROOM 3 SELECTED COLOURBOND ROOF AS PER BASIX REQUIREMENTS R/C SLAB 2700 Section 3/13
PROPOSED NEW TWO STOREY DUPLEX
Draft DA Application
Date Location
November 2022
Henry Lawson Drive, Picnic Point NSW
In this project the client proposes to demolish an existing building and extend the base slab further underground to incorporate a basement car park. The client proposes for a new two storey duplex split exactly in the middle of the property. The design takes on a symetrical design throughout the whole building with a main driveway in the middle that leads to the two proposed lots basement parking.
3D section perspective from Lot A of the basement, ground floor and first floor all together
Basement Level showing car park space & accessibility car park diagram
Ground Floor Level showing Bed/Study, Kitchen, Family, Dining, Covered Alfresco & Inground Pool for both side.
42 PROPOSED NEW TWO STOREY DUPLEX BED 2 BALCONY BATH BED 3 BALCONY 1100 90 1370 1370 90 1100 6800 1510 5170 8230 1500 10160 8300 5180 8230 1500 11510 1400 100 1400 100 1400 100 1590 4930 570 4930 1590 820 650 120 2030 2780 110 570 110 2780 2040 110 650 820 270 6400 270 6400 270 270 60 2480 1350 1600 910 270 910 1600 1350 2480 60 270 1690 1170 1170 9° 03'20'' 33.39 9 4 0 8 4 0 1 5 4 2 34 975 182 00 40 279 03'20'' 19.645 LOT A LOT B 400 1500 110 400 200 880 110 400 200 880 9 270 6400 270 6400 270 710 880 4930 570 4930 1590 1500 2010 6 0 1 1200 LOT A LOT B 1:8 DINING TERRACE TERRACE BED/STUDY 2 9 0 WC ROBE VOL 13.88 KL 1000 3000 COVERED ALFRESCO 96 3460 3800 4400 200 1290 1740 750 600290 1270 880 1070 3000 230 850 2930 850 470 2350 800 5200 200 1500 1590 4930 570 4930 1500 13600 75 GATE GATE 6670 270 6670 13600 6670 270 6670 480 1200 230 870 350 2940 600 270 600 2940 350 870 230 1200 480 19560 8380 800 1260 126 1400 1000 600 KITCHEN COVERED 1400 1000 600 1200 1200 200 1230 1230 1680 6800 1490 3380 11550 3150 5400 2150 1000 5200 200 1210 4470 200 1800 200 200 2 0 20 3 11970 GATE GATE 9 03'20'' 33.39 9 4 0 8 4 0 1 5 4 2 34 975 182 00 40 279 03'20'' 19.645PART 3.9.2.3 OF THE NCCS(BCA) 2019 200 200 3150 700 1200 700 1200 600 2760 600 0 0 1 0 10 0 0 1110 1110
APPLICATION DRIVE,
Render shows the architect’s impression of the proposed duplex, highlighting the perfect symmetry of the facade despite the proposed site locating on a slope.
43 PROPOSED NEW TWO STOREY DUPLEX BASEMENT CEILING 20.46 GROUND FLOOR LEVEL 20.76 GFCL 23.76 FIRST FLOOR LEVEL 24.06 FFCL 26.76 ROOF LEVEL 26.86 BED 3 BED 2 ENS WIR BALCONY TERRACE LOBBY BED/STUDY KITCHEN DINING COVERED ALFRESCO LOT A BASEMENT BOUNDARY SELECTED CONCRETE ROOF R/C SLAB AS PER ENG. DETAILS TERMI-MESH TERMITE PROTECTION TO ALL FLOOR PROPOSED 1M HIGH FRAMELESS GLASS IN FILL BALUSTRADE PANELS AND GATE TO POOL AREA, TO BE LOCKABLE AS PER AS 1926.1 ROOF AS PER MANUFACTURERS SPECIFICATION RL 20.67 RL 20.76 RL 20.66 RL 24.06 D 11 D 20 D 38 D 36 D 35 D 12 D 39 D 22 D 14 1M HIGH GLASS BALUSTRADE TO COMPLY AS PER AUSTRALIAN STANDARDS RL 24.06 D 34 TOW 22.97 RL 19.96 RL 19.16 22 2700 3000 2600 9M HE GHT LIM T NATURAL GROUND LINE LOT A PROPOSED CUT TOW 21.86 TOW 24.04 TOW 20.87 1M HIGH GLASS BALUSTRADE TO COMPLY AS PER AUSTRALIAN STANDARDS 2600 300 3000 300 2700 100 250 RL 27.11 AGP 100MM DIA AGP 100MM DIA INGROUND POOL VOL 13.88 KL COARSE GRANULAR BACKFILL COARSE GRANULAR BACKFILL COMPACT FILL WATERPROOF MEMBRANE AS PER STANDARD AGP 100MM DIA BLUE METAL STRUCTURAL AGP 100MM DIA 450 680 RL 23.97 TOW 24.22 RL 23.94

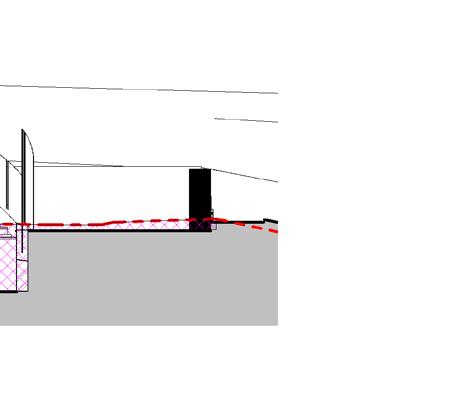

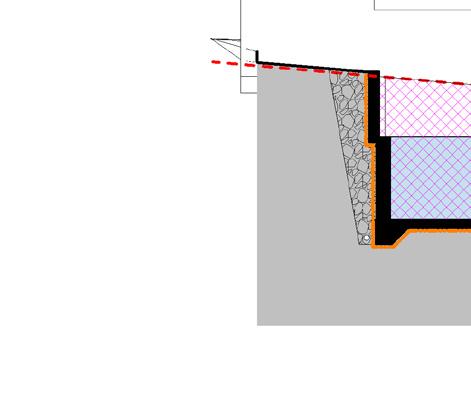

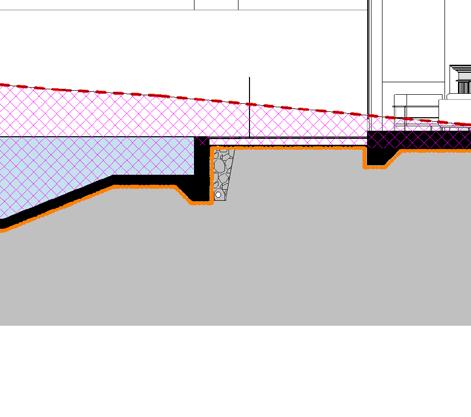

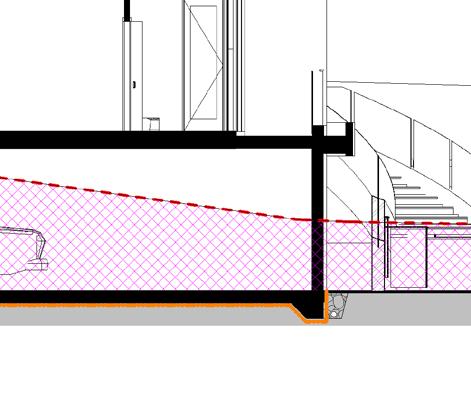

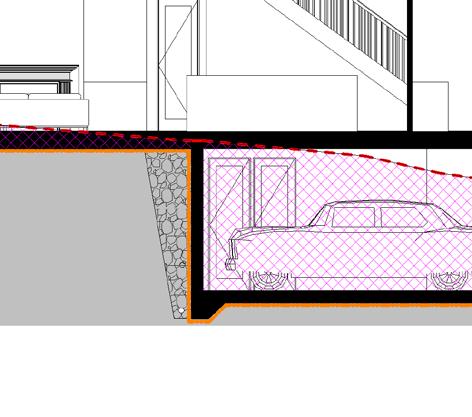

Section 1/A113 showing the cross section including the proposed cutting for the basement and pool.
PROJECT DATE SCALE @ A1 PROJECT NUMBER DRAWING No. ISSUE CLIENT 093 / 20-21 DRAWING TITLE JS Architects Pty Ltd Suite 4.04, Level 4, No: 5 Celebration Drive BELLA VISTA ~ NSW 2153 Australia T :61 2 8814-6991 FAX:61 2 8814-6992 M 61 412 06 06 04 E :info @ jsarchitects.com.au W :www.jsarchitects.com.au ABN 70 119 946 575 THIS DRAWING ISSUE HAS BEEN REVIEWED BY DIRECTOR -SO PM NORTH POINT CONSULTANTSB 24 10 2022 COVER SHEET A101 MEG SYDNEY PTY LTD TWO STOREY DUPLEX 803 HENRY LAWSON DRIVE, PICNIC POINT, NSW
44
CC Submmision
Detailed construction plans of selected work of complicated stairs and walk-in wardrobe
45
CONSTRUCTION CERTIFICATE SUBMMISION
In this section displays the detailed construction drawings after successful approval of DA Application and CC Submission. This section show cases the details for the construction manager to understand and monitor the building of the intended interior design as per architect’s specification and client’s approval
SELECTED DETAILED CONSTRUCTION PLANS & ELEVATION
3 3 12 13 4 2 1 2 1864 346 4 3964 3806 EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ 960 4060 EQ EQ EQ EQ E EQ EQ EQ EQ Q E 200 200 200 200 360 360 360 360 3 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 GFL 75.94 FFL 79.24 GFCL 78.94 FFCL 82.24 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 19 RISERS @ 170 mm 3300 19 RISERS @ 170 mm 3300 1025 RAILING HEIGHT 1025 RAILING HEIGHT Ground Floor Stair detailed construction plan Ground Floor Stairs Elevation 2

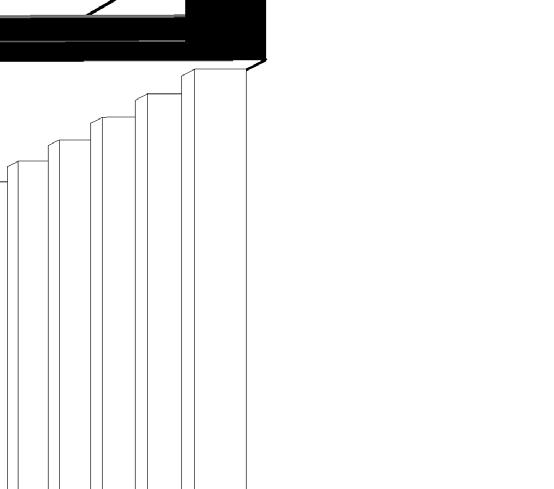

Ground Floor Stairs Elevation 1
Ground Floor Stairs Elevation 3
SELECTED DETAILED CONSTRUCTION PLANS & DETAILS GFL 75.94 FFL 79.24 GFCL 78.94 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 1 9 R S E R S @ 1 7 0 m m 3 3 0 0 1 0 2 5 R A I L N G H E I G H T GFL 75.94 FFL 79.24 GFCL 78.94 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 19 RISERS @ 170 mm 3300 1025 RAILING HEIGHT
50
Revit Families
This section showcases the scenario of a room decorated with self-made Revit Families.
51

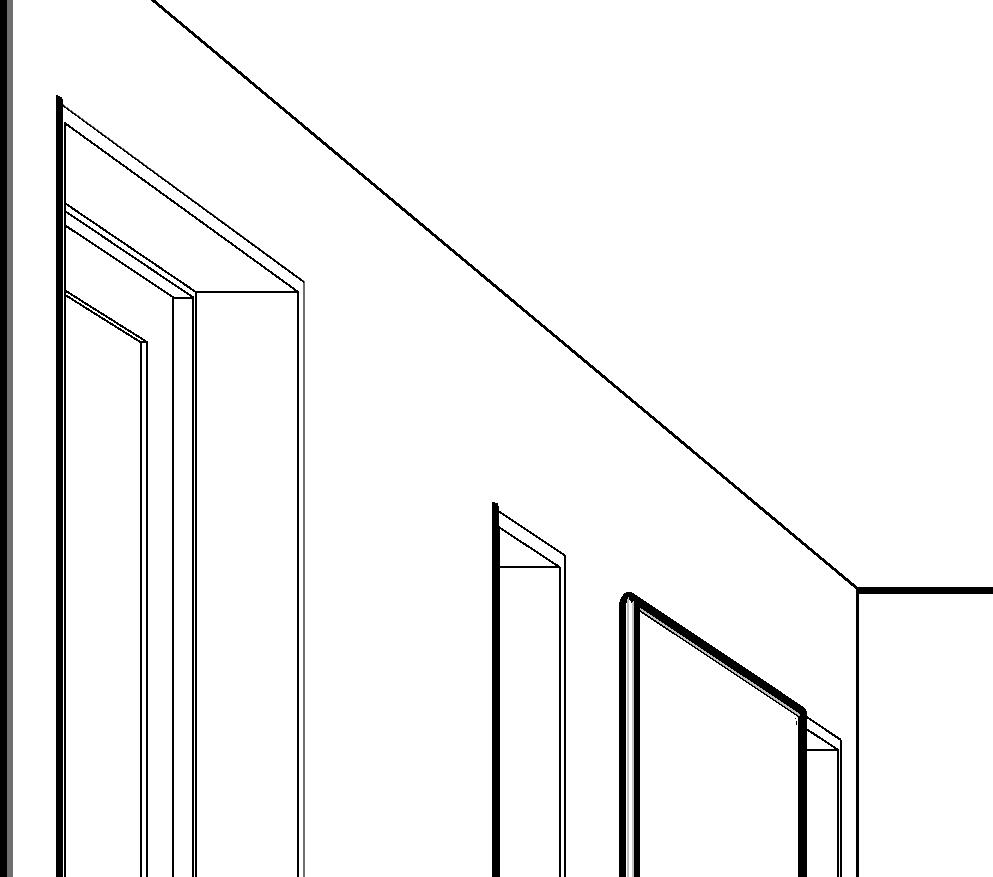

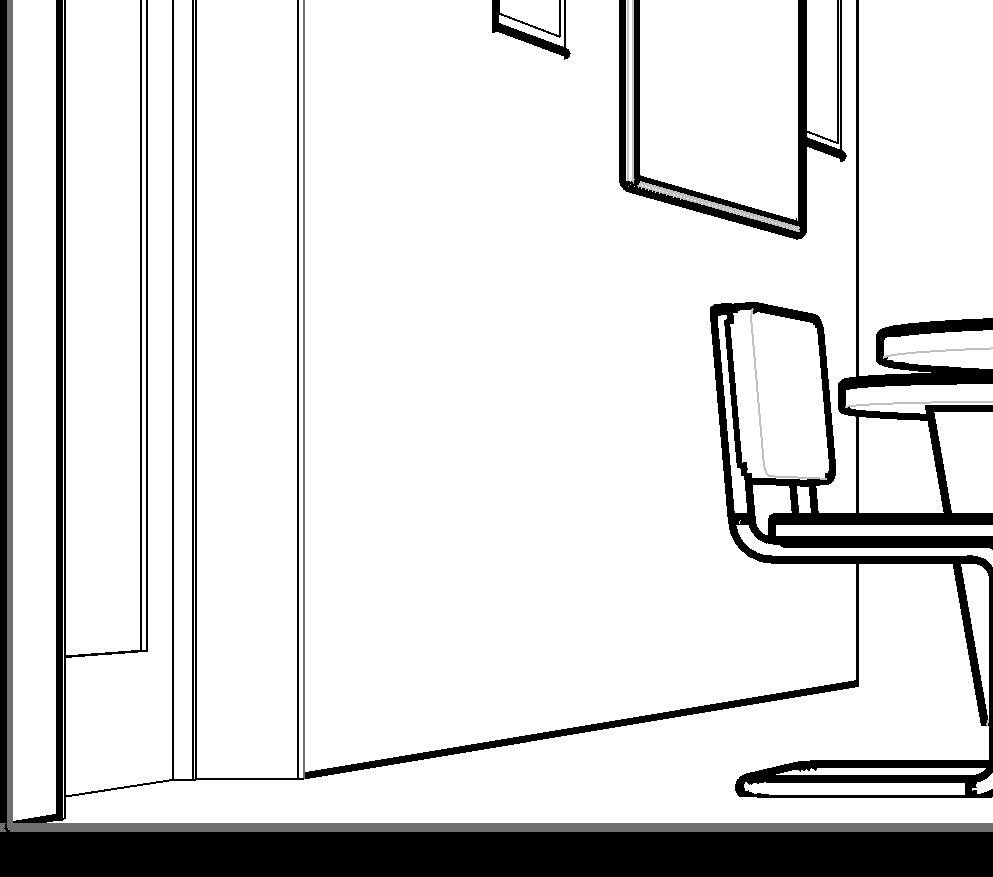

Isometric view of a single bedroom apartment with personal designs for the selected furnitures made as a family model in Revit.
52 REVIT FAMILY MODEL
1 4 2 5 3
3D aerial plan perspective of the single bedroom apartment with selected design furnitures marked with numbers corresponding to page 53.
Simple efficient modern bed design inspired with the goal of making it affordable and easy installation
Modern nightstand for it’s minimalistic design and easy installation.
Multifunctional working desk with built in storage and spacious bench top
Minimalistic inspired table made from affordable wooden materials and readily available in store.
REVIT FAMILY MODEL 300 EQ 600 600 800 800 EQ 15 15 300 1000 1000 100 1015 155 1015 Ref. 400 240 200 300 300 600 460 Ref. 466 734 300 300 900 50 500 50 20 405 20 425 30 Ref. Level 0 800 50 750 750 50 1600
54 SINGLE BEDROOM DAYTIME RENDER
The render shows an everyday scenario of the room filled with the eastern sunlight into the work space of the single bedroom tenant.
55 SINGLE BEDROOM DAYTIME RENDER
