PROPOSED NEW TWO STOREY DWELLING

Draft DA Application August 2022

Location

Hyde Avenue, Glenheaven NSW Date

In this project the client proposes to demolish all of the existing building and rebuild everything from the existing slab base. In this proposed new two storey dwelling, the design focuses on creating a welcoming open space by giving the living room a high ceiling that connects the flow with the first floor rumpus and snooker area. For the semi private area there is a difference in floor level between the family and the dining area, this is to prevent the family area from blocking the windows which connects the dining and family area to the outdoor area simultaneuously.

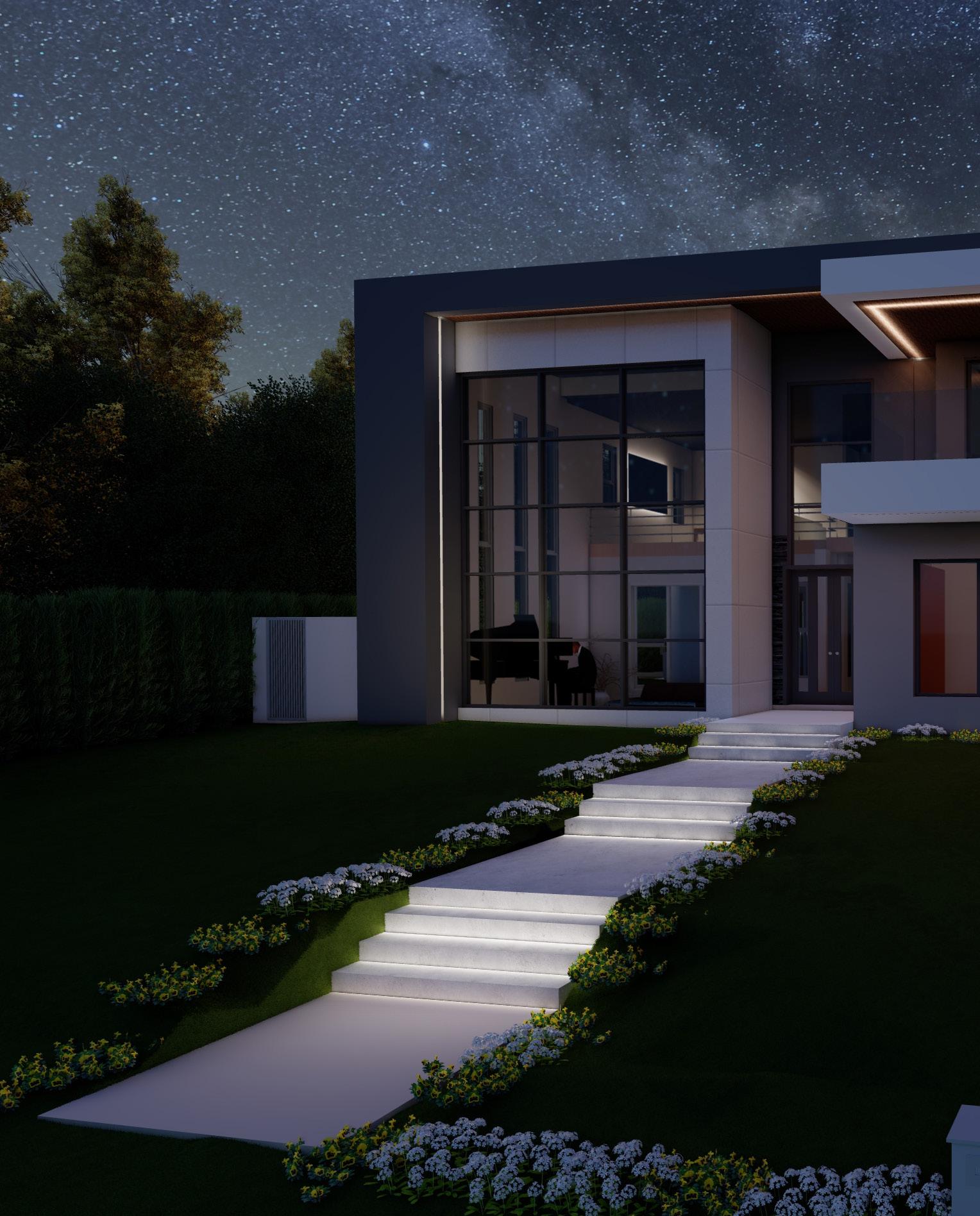

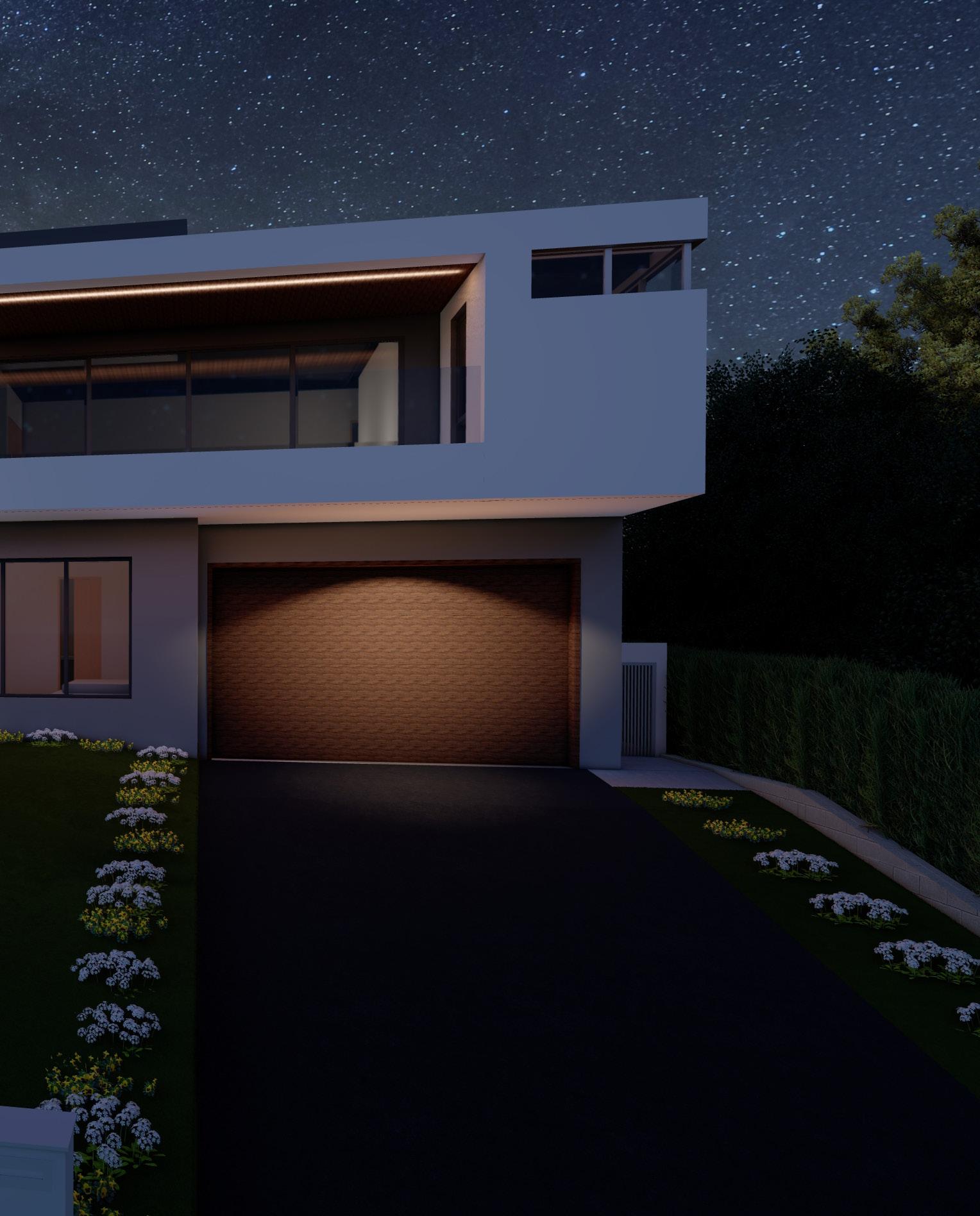

For the outdoor area there are LED lighting strips under each tread nosing and on the inner side of the facade, highlighting the outline of the facade and providing illumination for the clients during night time.

Ground Floor Plan of the proposed new two storey First Floor Plan of the proposed new two storey dwelling.

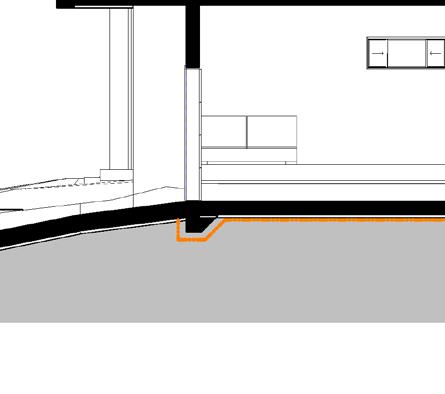

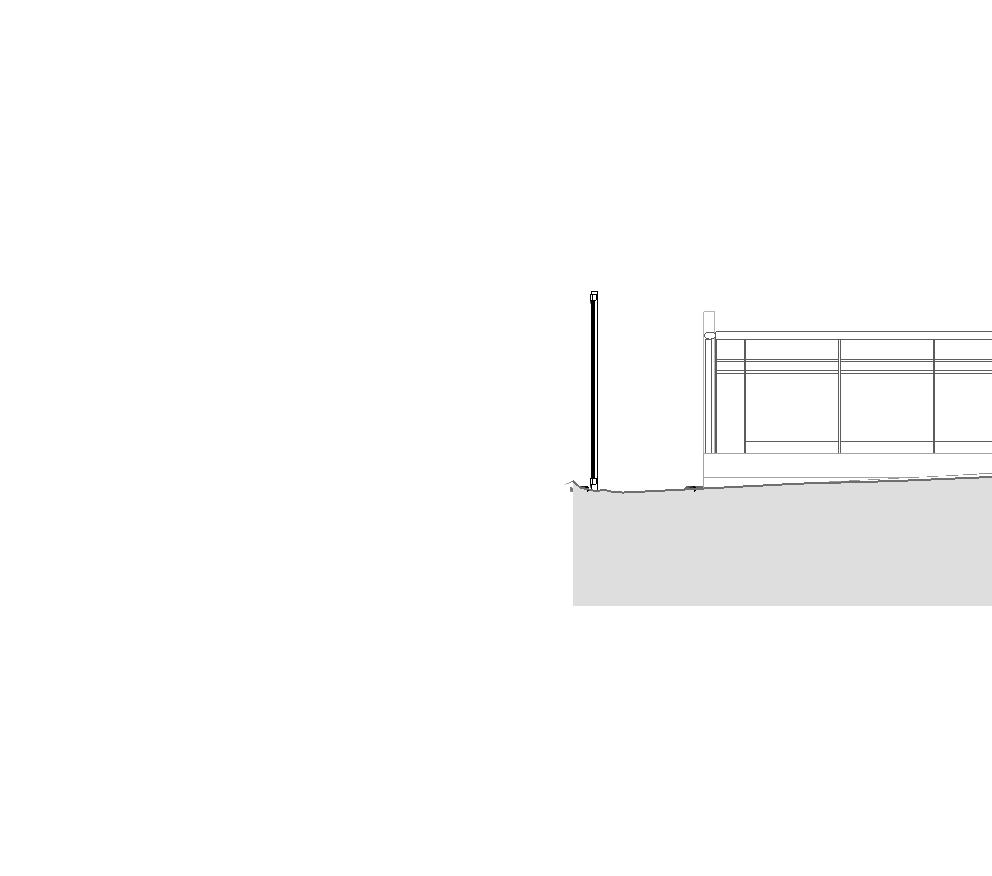

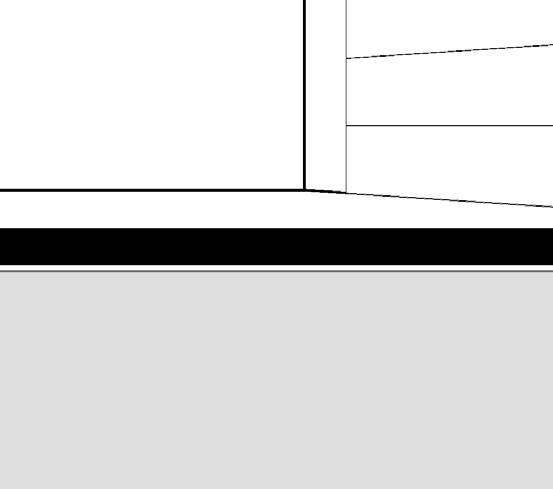

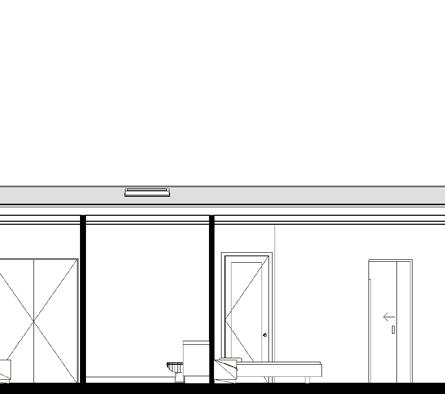

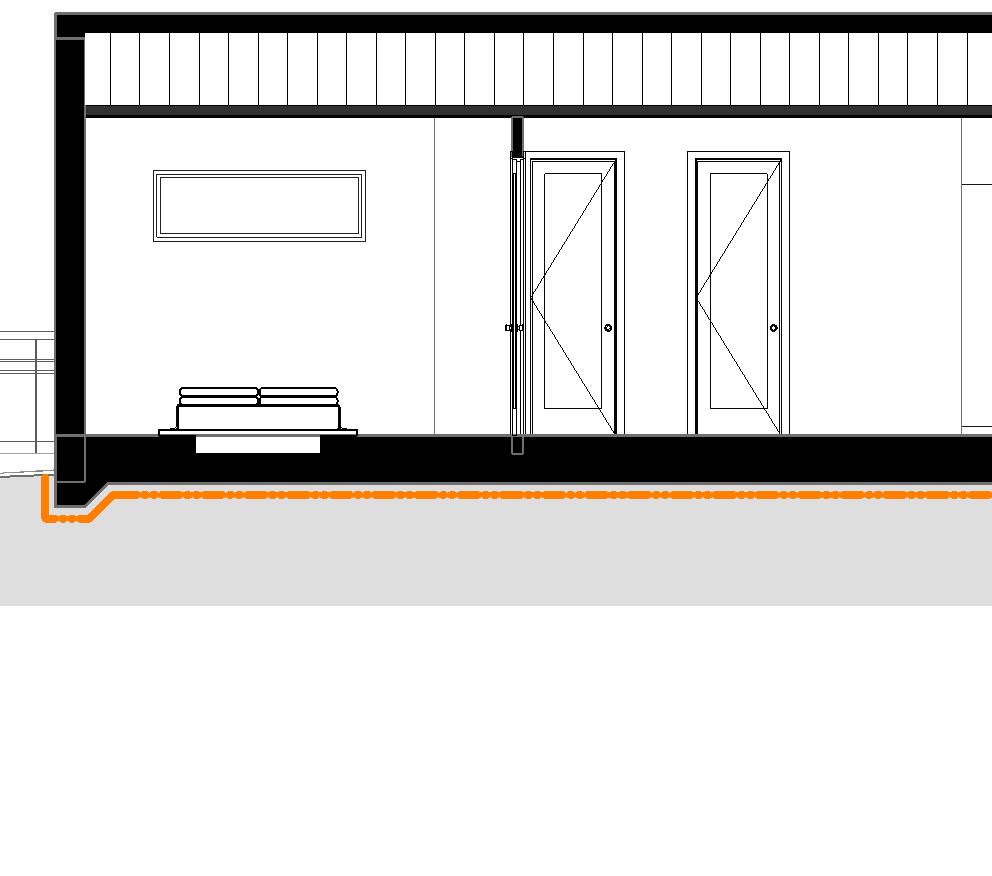

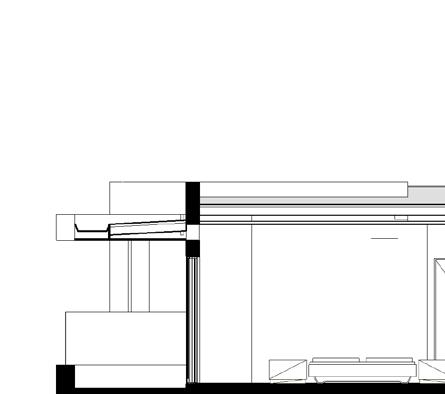

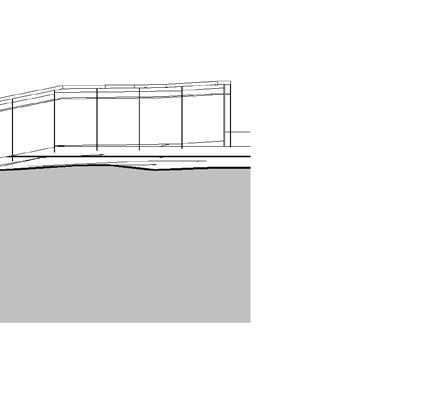

Section 1/A112 showing mainly the private space and garage of the proposed new two storey dwelling.

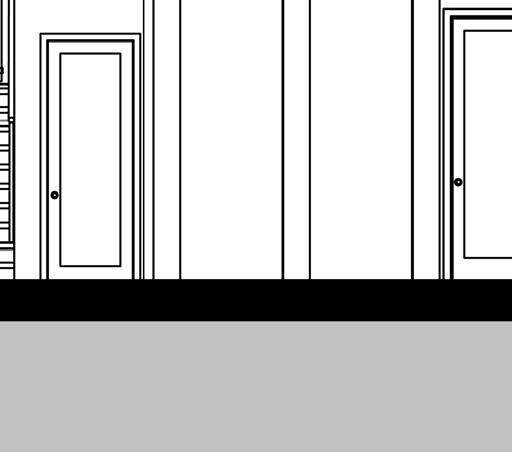

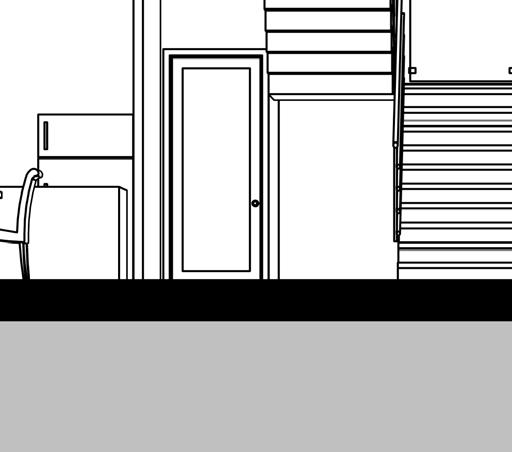

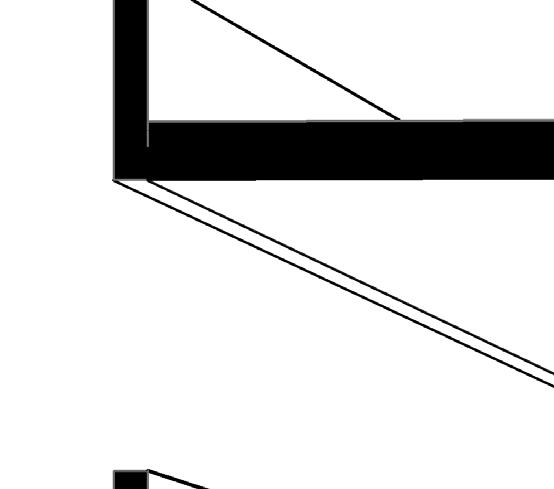

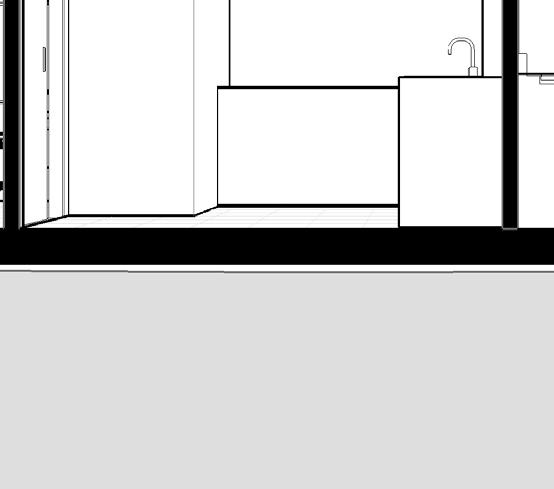

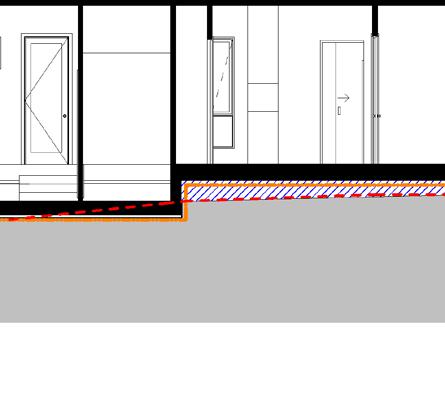

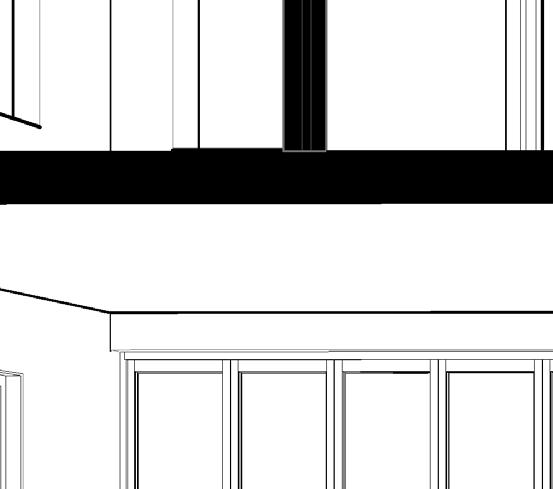

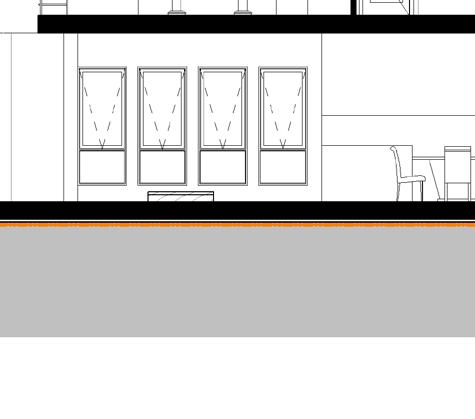

Section 2/A112 shows the public spaces and semi private spaces of the proposed new two storey dwelling

PROPOSED NEW GRANNY FLAT & TWO STOREY DWELLING

Draft DA Application

Date Location

July 2022

Budgeree Road, Toongabbie NSW

In this project the client proposes a new two storey dwelling and a new granny flat at the rear of the site to rent out. The granny flat is separated by a layer of fence to provide privacy from the main building but also giving the granny flat tenants a pathway into their rental house. As for the main house the design focuses in the connection of the outdoor area with the indoor area.

Ground Floor Plan of proposed two storey dwelling

First Floor Plan of the proposed two

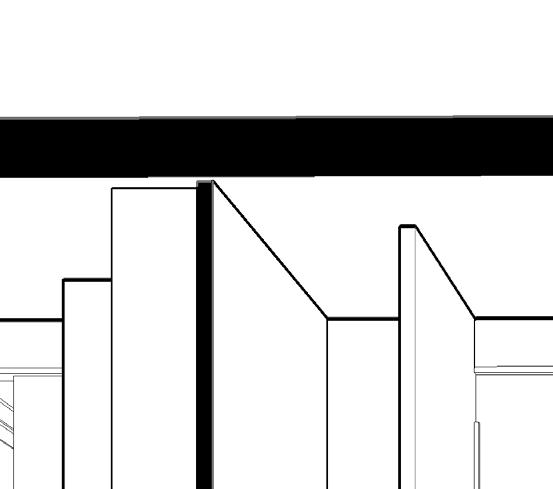

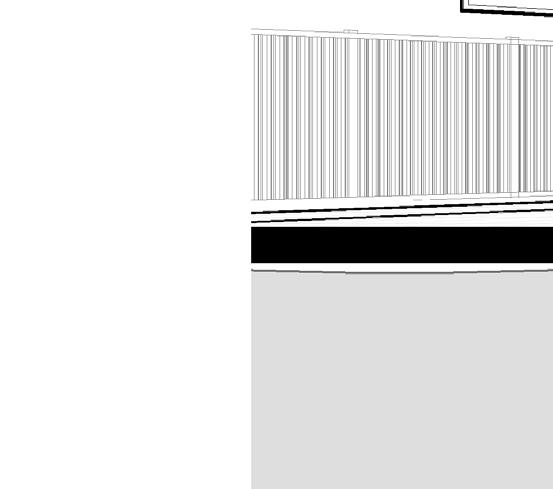

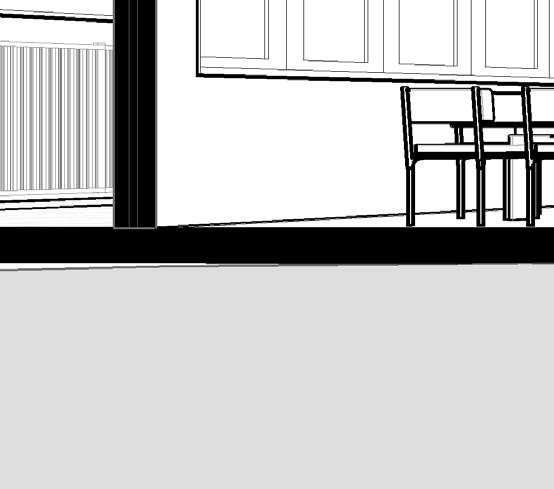

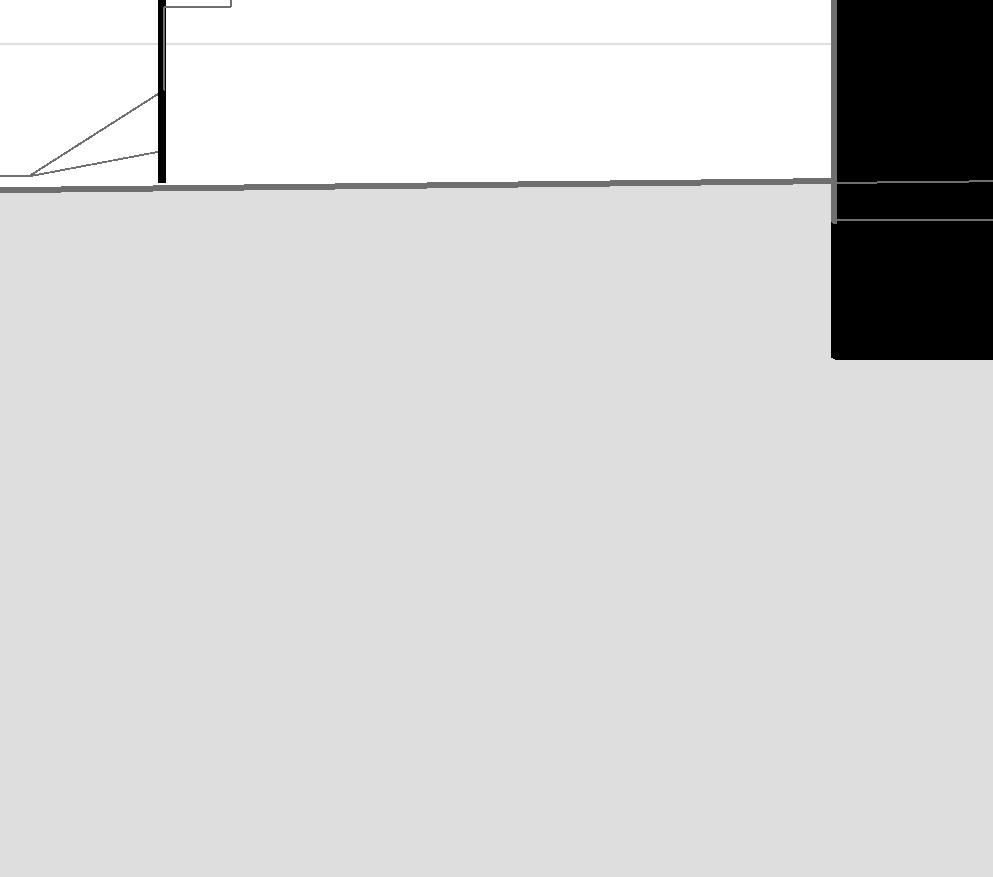

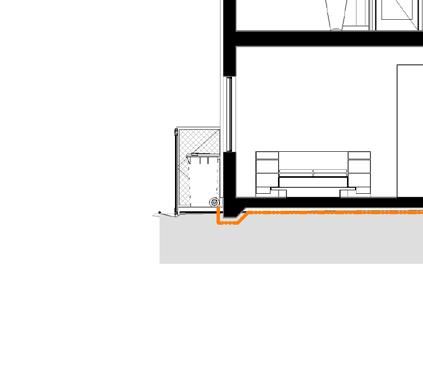

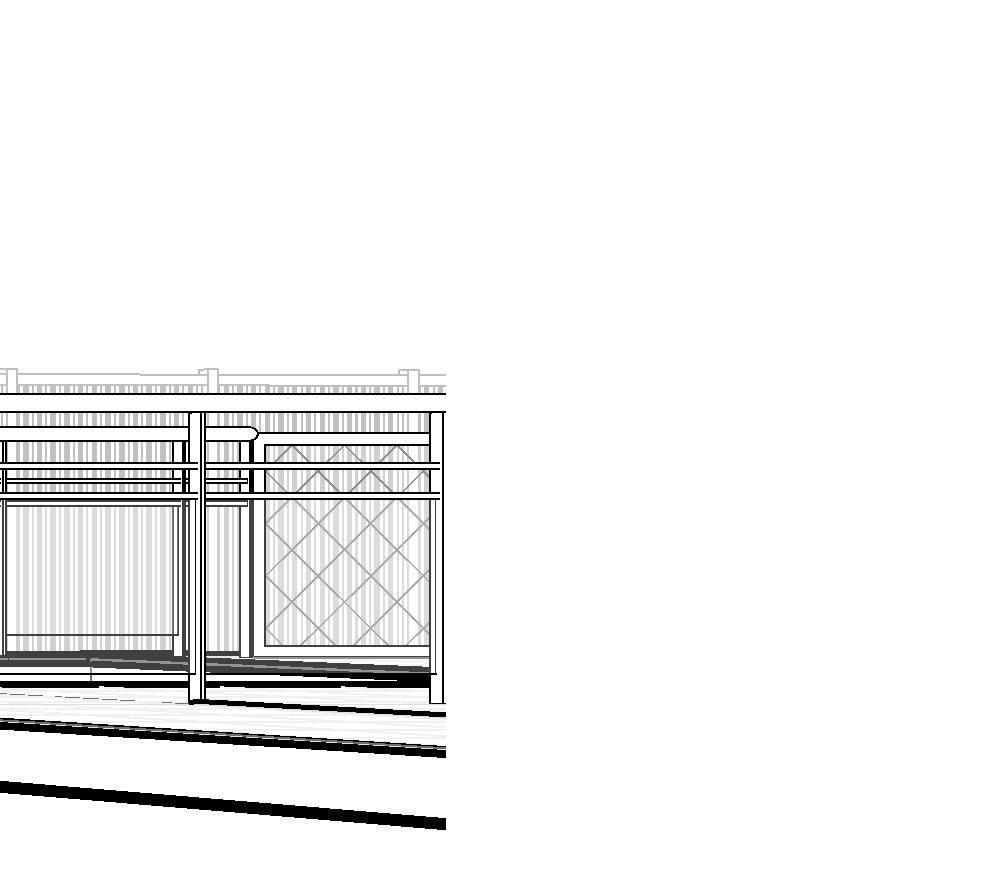

Section 2/13 of the whole proposed granny flat and two storey dwelling

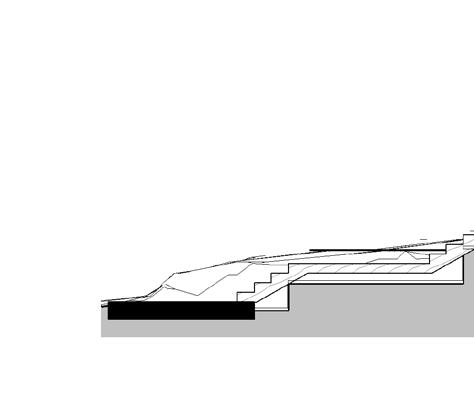

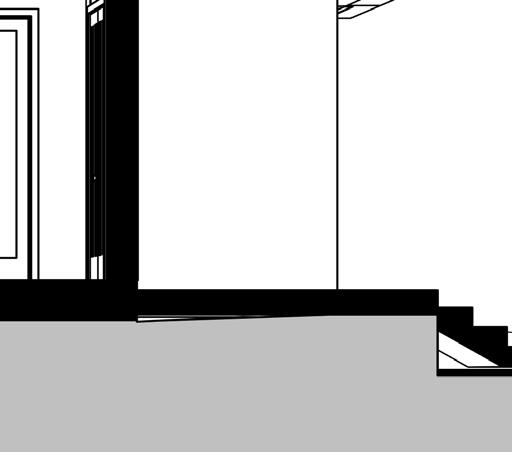

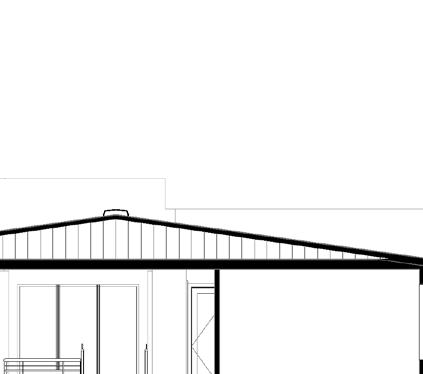

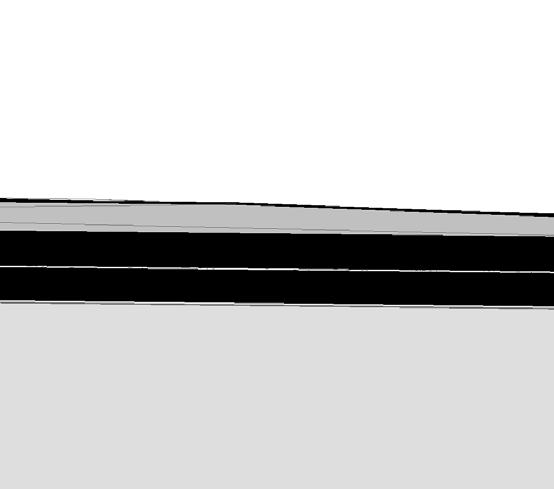

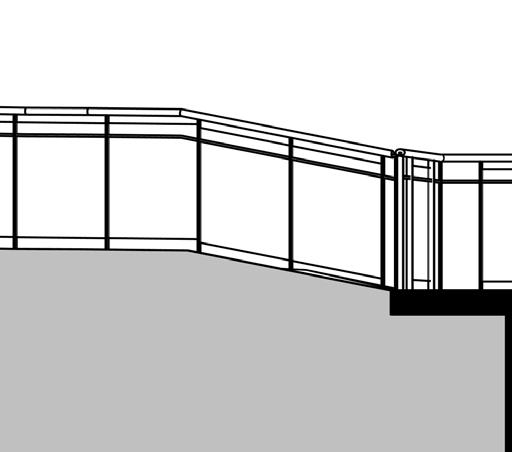

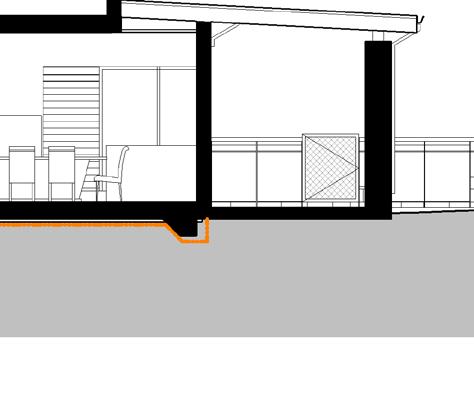

Section 1/13 of the new proposed two storey dwelling

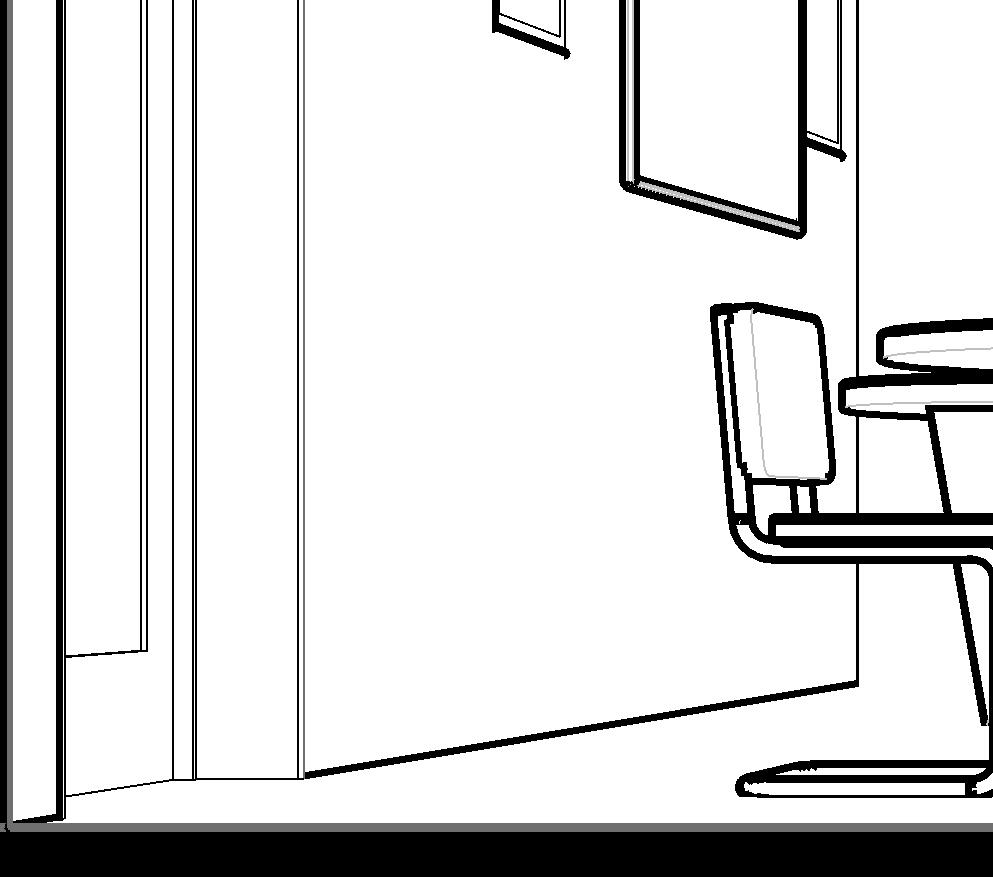

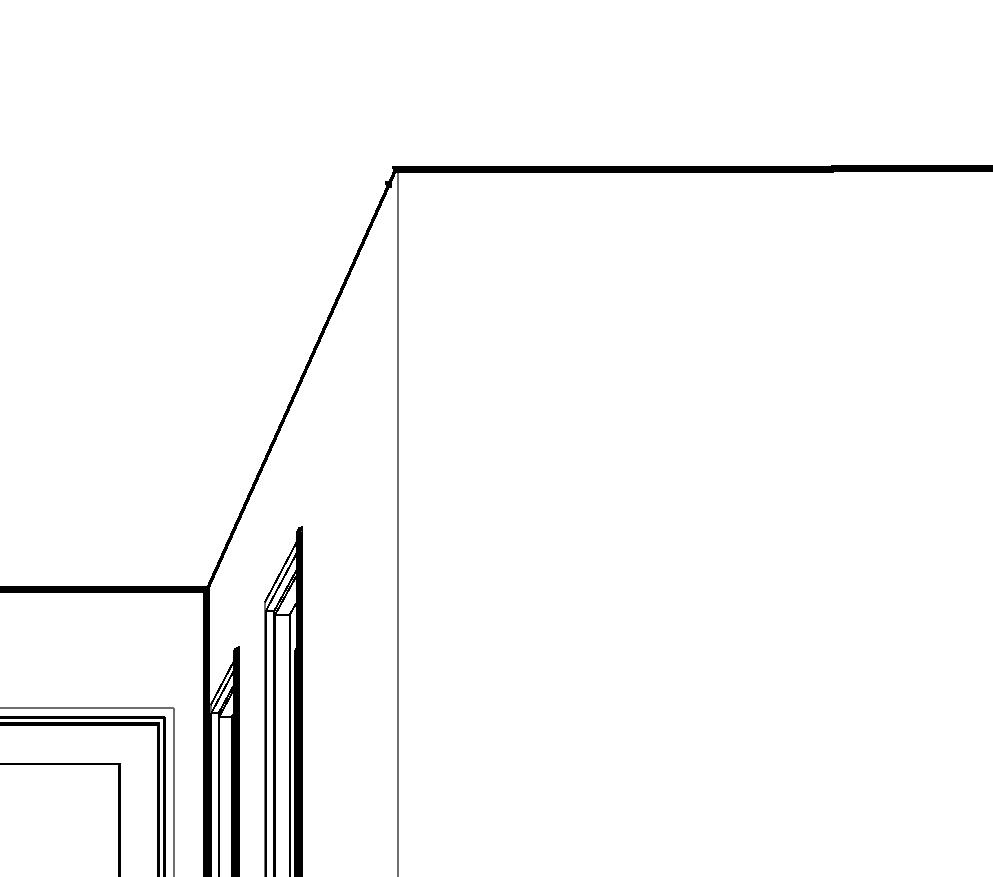

3D sectional perspective

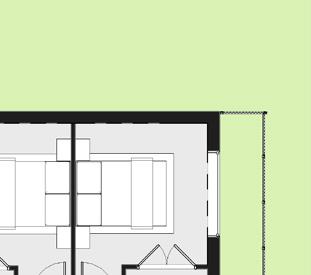

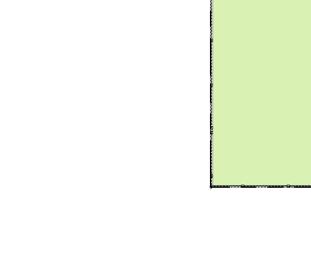

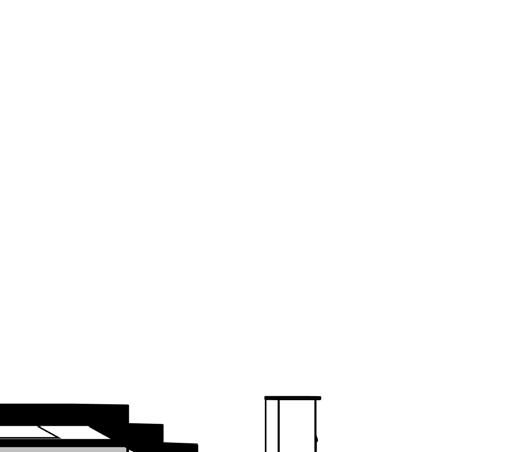

Ground Floor Plan of the proposed granny flat at the rear end of the property

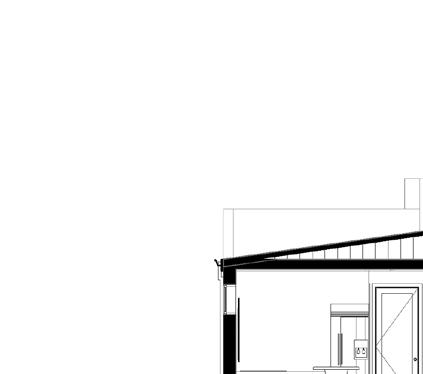

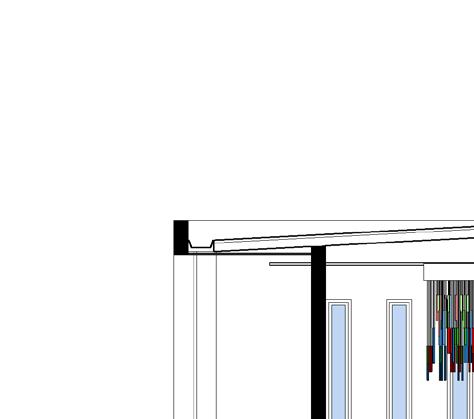

3D sectional perspective of proposed granny flat
