PROPOSED

DEMOLITION & NEW TWO STOREY DWELLING

Draft DA Application October 2022

Wolseley Road, Lindfield NSW Date Location

In this project the client proposes a partial demolition to extend the back area of the building and proposing a new first floor on top of the old existing building. In this project highlights the demolition of certain elements of the building and renovating it to incorporate a brand new kitchen with a pantry behind it and a new dining room which connects directly to the living room to further expands the view of the house while keeping the wall to separate the entrance to create a privacy gap before heading into the building.

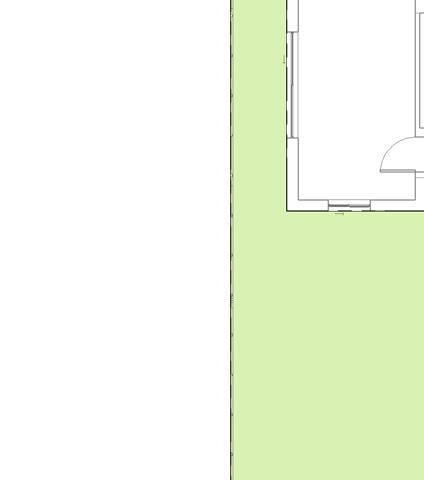

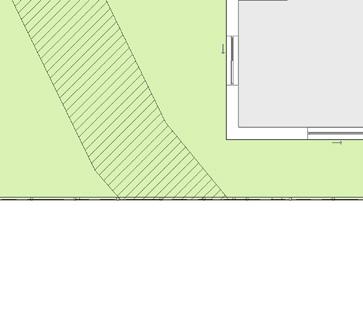

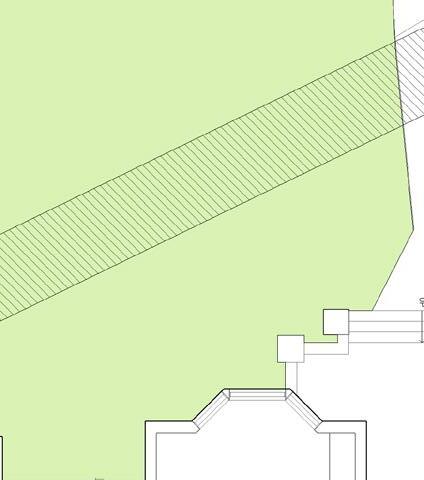

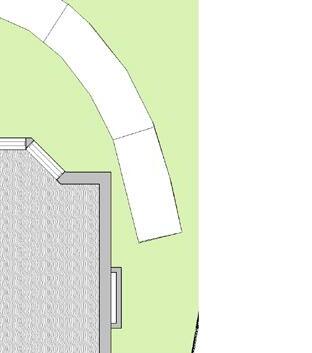

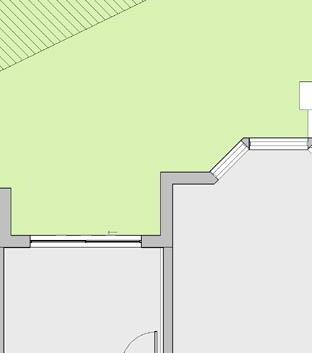

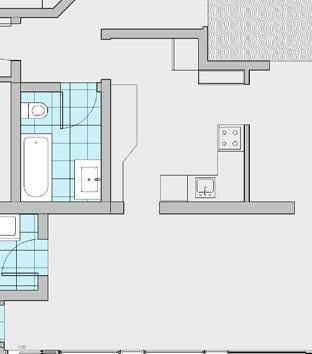

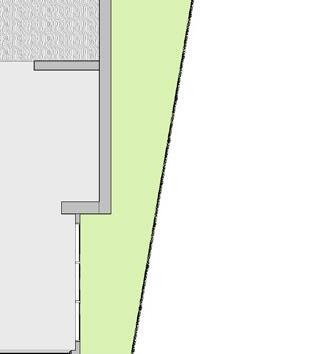

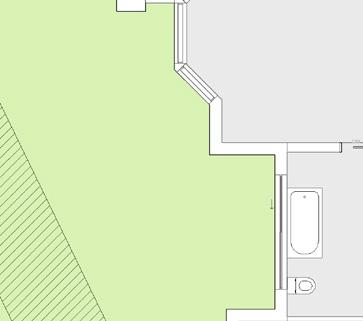

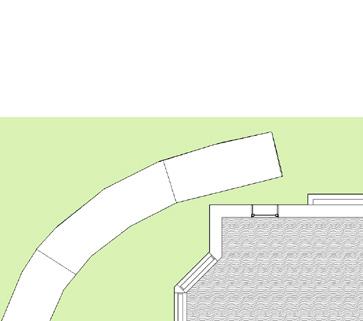

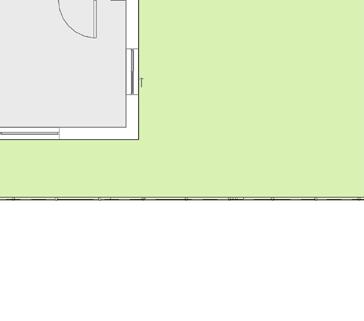

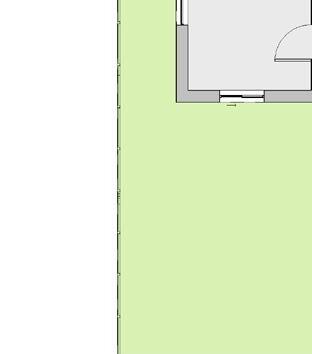

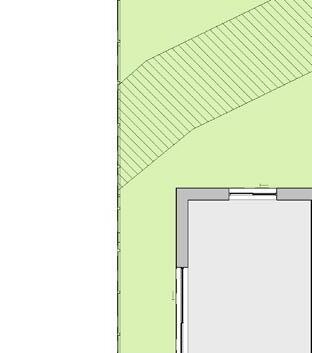

Existing Ground Floor Plan showing the layout of the existing single storey dwelling.

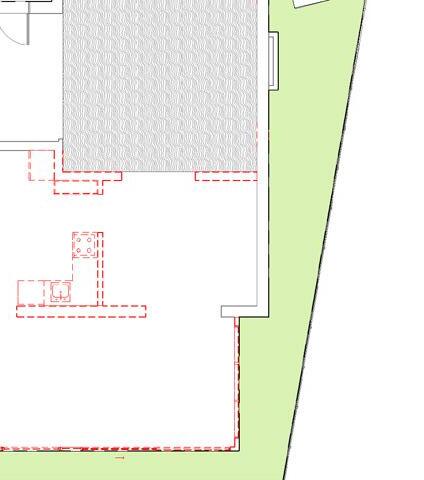

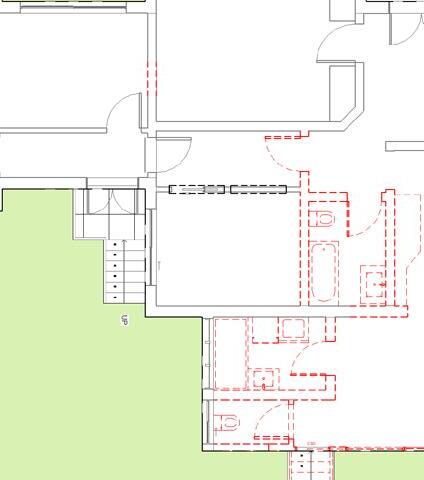

Demolition Plan of the existing single storey housing with demolition lines marked in red dashed lines.

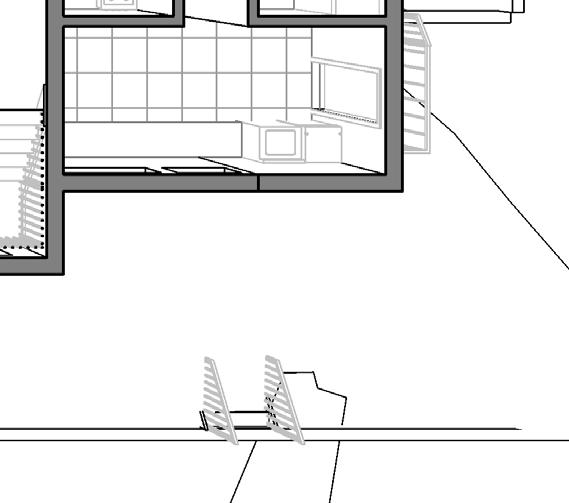

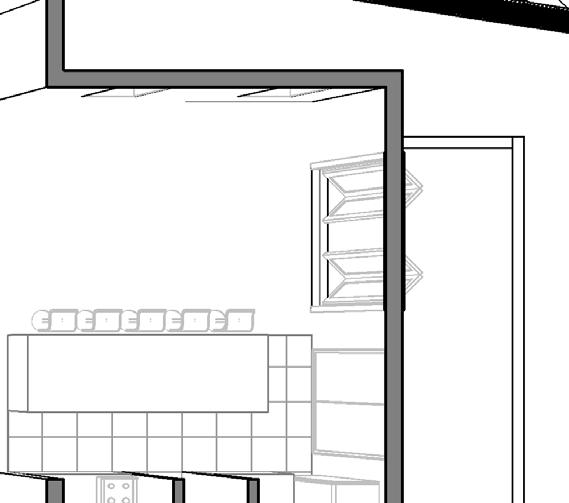

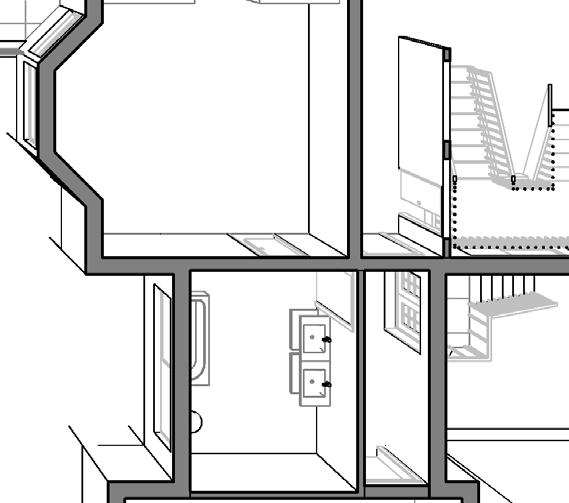

3D aerial plan perspective of the dwelling after extending the back area to include a bigger kitchen space and a brand new alfresco.

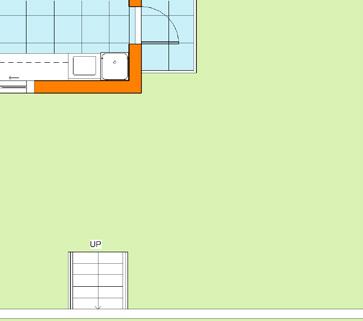

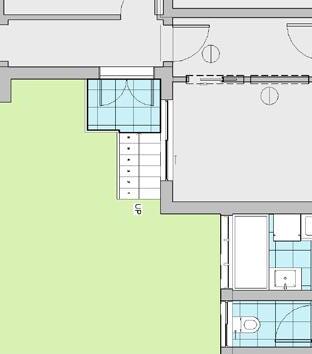

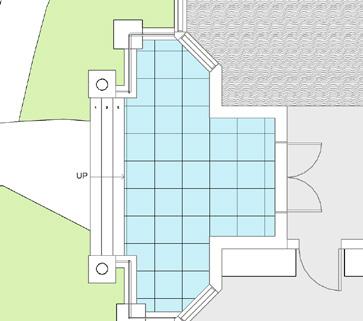

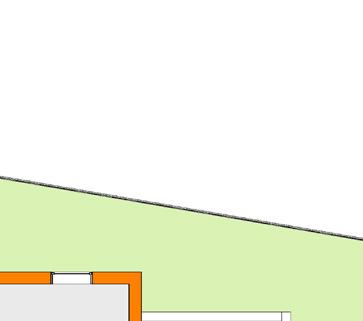

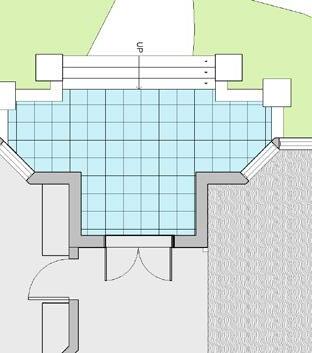

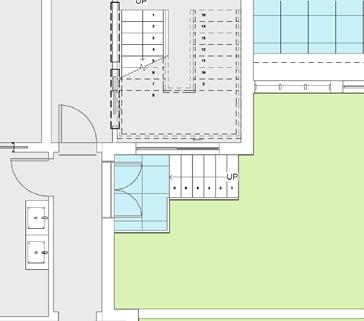

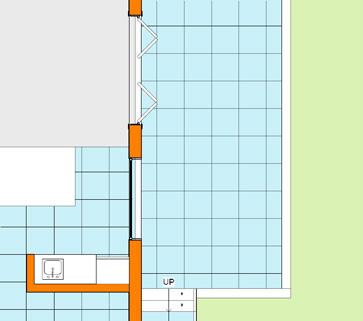

Ground Floor Plan of the proposed new ground floor layout with the extension of the back of the existing dwelling. The proposed new dwelling walls are marked in orange colours.
