2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER
CN-LT-02
CN-PT-04
CN-PT-05
CN-SPF-01
CN-SPF-02
CN-SPF-03
CN-SPF-04
ALLOWENCE: $350
ALLOWENCE: $350
ALLOWENCE: $350
ALLOWENCE: $350
ALLOWENCE: $350
ALLOWENCE: $350
ALLOWENCE: $350
NCSC-R6D1TWMPW (PACKS OF 12PCS)/NFC-R55
WS16806-BK
WS10415-BK
52102SN
PD473706MBOP
NCSC-R6D1TWMPW (PACKS OF 12PCS)/NFC-R55
EW48003-BK-UNV
NCSC-R6D1TWMPW (PACKS OF 12PCS)/ NFC-R55
NLWPSW-4L334W
NE-612-LEDRCW 66380
401432BK-LED
NC3-61-L2-30-F-DMPW/NCH3-6L2-C12
NC3-61-L2-30-F-DMPW/NCH3-6L2-C12
TYPE MFG

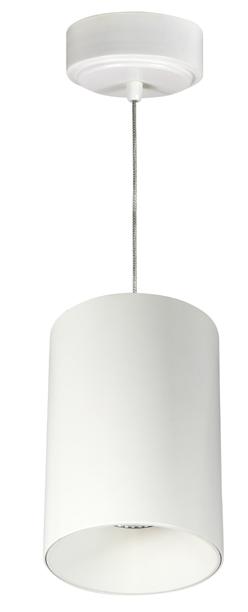

HANGING LIGHT
LITHONIA LITHONIA LITHONIA
NUMBER
LDN6-27/-30-L06-AR-LD-TRW-MVOLT-GZ1
LDN4CYL-27/20-LD4-AR-LD-MVOLT-GZ1-FCM-DBL
LDN4CYL-27/15-LD4-AR-LD-MVOLT-GZ1-FCM-DBL
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER
HANGING LIGHT
ALLOWENCE: $1,000
NC3-61-L4-27-F-DMPW/NCH3-6L4-C02
NC3-61-L3-35-F-DMPW/NCH3-6L3-C02
NC3-61-L2-35-F-DMPW/NCH3-6L2-C12
NCSC-R6D1TWMPW (PACKS OF 12PCS)/NFC-R55
ALLOWENCE: $150 52102SN
NELO-12RTWMPW/NELO-12R-BN
ALLOWENCE: $150
ALLOWENCE: $150 65905
EW48006-BK-UNV
NYLM-5SC-27X-BB-LE4
NC3-41-L2-27-F-DMPW/NCH3-4L2-C12
ALLOWENCE: $300
ALLOWENCE: $300
ALLOWENCE: $300
ALLOWENCE: $300
ALLOWENCE: $1,500
ALLOWENCE: $1,500
ALLOWENCE: $500
TYPE MFG N, CHANDELIER
PENDANT IN BUFFET
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER
SPEC LITHONIA LITHONIA LITHONIA
LDN6-35/30-L06-AR-LD-TRW-MVOLT-GZ1
LDN6-27/30-L06-AR-LD-MVOLT-GZ1
LDN6-27/15-L06-AR-LD-MVOLT-GZ1
VANITY MIRRIOR
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PENDANT IN BUFFET
VANITY MIRRIOR X X2
ALLOWENCE: $1,000
ALLOWENCE: $300
NEX-712-LED/R
NC3-61-L5-35-F-DMPW/NCH3-6L5-C02
NYLS3-6C-1-L4-27-F-C12-DB-B
NC3-61-L2-27-F-DMPW/NCH3-6L2-C12
ALLOWENCE: $1,500
ALLOWENCE: $500
ALLOWENCE: $400
ALLOWENCE: $1,000
ALLOWENCE: $400
ALLOWENCE: $400
NX-815-LED-R-C-W
NX-815-LED-R-C-W
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
NICKELODEON TYPE 1X2 ELEVATOR ALT
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90% THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
Interactive Menu
• Order Information page 2
• Photometric Data page 3
• Product Warranty
Top Product Features
• 2ft, 4ft, and 8ft Sealed and Gasketed Vaportite
• Lumen packages up to 22K lumens
• High-Performance efficacy up to 150 LPW
Vaportite LED
4' Industrial LED Lamp Vaportite Industrial Refrigerated Case
• LEDs available in 3000K, 3500K, 4000K and 5000K at 80 CRI
• Rated for -40c to 35c ambient
• Impact protection rating IK06 Lens and IK06 Housing
• Options to meet Buy American and other domestic preference requirements
Dimensional and Mounting Details
5-7/8" [149mm] 7" [178mm] 41-1/2" [1054mm] Optional Back Hub Locations 38-3/4" [984mm] 1/4" x 28" Stud (2 Places)
Installation Data
[137mm] Y=4" [102mm]
6-5/8" [168mm]
[1265mm] X Y
(VT2-CHAIN/SET-U) Includes 6 ft. of chain, 4 large S-Hooks and 4 small S-Hooks Order One (1) Kit for each 2' or 4' Fixture
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
=Damp Listed Motion Sensor, Non-dimming
MSWL20=Wet Listed Motion Sensor, Non-dimming, 20ft max mounting height WPS4=WaveLinx Wireless Sensor, Sidecar mount, with 1200 sq ft. coverage (5) WLS4=WaveLinx Lite Wireless Integrated Sensor, 15'–40' Mounting Height (5), (6) OF1DZ=Leviton 120-277V PIR Occupancy Sensor with integral 0-10V Dimming (7), (8)
Notes
(5) Not available in 11,000 lumen fixture. Not available with 347V, 480V, or UNC. Not available with 5LTD option. (6) WaveLinx LITE devices are not currently compatible with the WaveLinx PRO Wireless Area Controller. (7) Available for UNV (for 120V or 277V) only. (8) Configuration of basic and advanced features using the Leviton Smart Sensor App on any Bluetooth-enabled Android or iOS device.
Product Specifications
Construction
• Rugged and durable construction
• Fiberglass housing is reinforced polyester and selfextinguishing (ASTM-D635-74) plastic
• Full metal fixture liner
• Watertight housing
• 1/2" conduit entry at each end of housing (standard) for continuous feed
Polyurethane gasketing provides a continuous seamless seal for the diffuser lens
• Four sturdy cam latches clamp diffuser tightly for a positive seal between housing, gasketing and diffuser
• Surface or chain mounting
• Impact protection rating IK06 Lens and IK06 Housing
WaveLinx LITE devices are not currently compatible with the WaveLinx PRO Wireless Area Controller
Electrical
• Long-Life LED system coupled with electrical driver for optimal performance
• LED’s available in 3000K, 3500K, 4000K and 5000K with a CRI ≥ 80
• Projected life is 60,000 hours at 91% lumen output
• Electronic drivers are available for 120-277V applications
• 0-10V dimming control (standard)
• Operating temperature of -40°C to 35°C; Ideal for cold storage environments
Lens
• High-impact diffuser lens
• Internal Prismatic Lens with 15% DR High Impact Additive (DR) or Internal Prismatic Lens with 100% DR High Impact Additive (DR100)
Frosted Lens with 15% DR High Impact Additive (FR50) option
=Unit Pack VT2-Chain/Set-U=Chain Hanging Set. Includes 6 ft. of
4 large S-Hooks and 4 small S-Hooks Order One (1) Kit for each 2' or 4' Fixture VT2-SS-MBK=Stainless Steel Mounting Bracket
Notes
(9) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
Finish
• Housing is permanent pearl gray color
Warranty
• Five-year limited warranty
Compliance
• UL/cUL listed for Wet location
RoHS compliant
• LED modules comply with IESNA LM-79 and LM-80 standards
NSF listed
• DesignLights Consortium® Qualified and classified for both DLC Standard and DLC Premium (refer to www.designlights.org for details)
• The VT2 Series ratings apply to Horizontal Mounting only
NICKELODEON TYPE 4FT WALL VAPORTITE ALT
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90% THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
NO SPEC
1X4’, 2X2’, 2X4’
LED LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE SELECTABLE 3 OPTIONS 1X4’ 20W30W40W
COLOR SELECTABLE
BATTERY BACKUP
*OPTION AVAILABLE
EMERGENCY OPTION ALSO AVAILABLE 2X4’ 30W40W50W
LR24290+EM
LR24293+EM LR24295+EM
BLANK
LED2X2BPNL/3WO/5CCT/D
LED2X2BPNL/3WO/5CCT/D+EM
LED2X4BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D+EM
LED1X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D+EM
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads
6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
NCH3-6
6" Sapphire III New Construction Frame-In
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
Galvanized steel new construction frame-in riveted to 0.064" steel junction box and driver tray. Plaster frame opening includes (3) “butterfly ” spring clips to hold reflector assembly in place.
Mounting: Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2 " conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2 from adjacent building component.
Junction Box: Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector: Phase dimming drivers require an external thermal device, which is located on the junction box; Other drivers are thermally protected.
Driver: Isolated driver separates the primary side from the secondary side.
Input Voltage
Compatible Reflectors
Emergency LED Driver
NC3-61L1
NC3-66L1
NC3-68L1
or 120-277VAC
NC3-61L2
NC3-66L2
NC3-68L2
Up to 7W emergency illumination with LEDs
Illumination Time: 90 minutes
Voltage: 120-277VAC, 50/60Hz
Output Voltage: 10-60 VDC
Available with remote or integral test switch (must specify)
LABELS AND LISTINGS
NC3-61L3
NC3-66L3
NC3-68L3
NC3-61L4
NC3-66L4
NC3-68L4
NC3-61L5
NC3-66L5
NC3-68L5 NC3-61L6
Type
Project
Catalog No.
cULus Listed for Damp Locations (Wet Locations when used with compatible reflector)
5-Year Limited Warranty
RoHS Compliant
· FCC Compliant
Emergency LED Driver meets Title 20 CEC efficiency standards
6" Sapphire III New Construction Frame-In - Compatible with Sapphire III Reflectors
Lumens / Wattage Input Voltage / Dimming Optional Emergency
/EM = Emergency Pack w/ Remote Test Switch /EMI = Emergency Pack w/ Integral Test Switch (Compatible with NC3-61 only, must specify on reflector)
/EM = Emergency Pack w/ Remote Test Switch /EMI = Emergency Pack w/ Integral Test Switch (Compatible with NC3-61 only, must specify on reflector)
Example: NCH3-6L6C02 = 6" Sapphire III New Construction Frame-In, 5500lm / 60W, 277V input; 0-10V dimming
Notes 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
PRODUCT IMAGES AND DIMENSIONS
TYPE C1-EM/NL SPEC
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source:
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
· Signify ® Fortimo COB LED technology
Specifiable beam spreads 6" deep cone reflectors, wall wash and deco glass
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
· cULus Listed for Wet Locations when used with compatible frame-in 5-Year Limited Warranty
· ENERGY STAR certified RoHS Compliant FCC Compliant
Type Project
Catalog No.
Color Temperature
2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 56° Narrow Flood or 72° Flood
NCH3-6L1
NCH3-6L2
NCH3-6L3
NCH3-6L4
NCH3-6L5
NCH3-6L6
Wall Wash Reflector NTG-6 6" Decorative Glass
Compatible Frame-In
NCHR3-6L1
NCHR3-6L2
NCHR3-6L3
NCHR3-6L4
Lifetime 50,000 hours @ L70
NCHR3-6L5
NCHR3-6L6
TYPE C1-EM/NL SPEC
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
D10 Minimum dimming 10% driver for use with JOT
D1 Minimum dimming 1% driver for use with JOT
EZ10-10V eldoLED driver with smooth and flickerfree deep dimming performance down to 1%
EDAB eldoLED DALI SOLDRIVE dim to dark
(blank) No Emergency Needed
EL Battery pack (10W constant power), non-T20 compliant, integral test switch
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
NICKELODEON
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
NCH3-6
6" Sapphire III New Construction Frame-In
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
Galvanized steel new construction frame-in riveted to 0.064" steel junction box and driver tray. Plaster frame opening includes (3) “butterfly ” spring clips to hold reflector assembly in place.
Mounting: Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2 " conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2 " from adjacent building component.
Junction Box: Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector: Phase dimming drivers require an external thermal device, which is located on the junction box; Other drivers are thermally protected.
Driver: Isolated driver separates the primary side from the secondary side. ELECTRICAL
Compatible Reflectors
Emergency LED Driver
NC3-61L1
NC3-66L1
NC3-68L1
Up to 7W emergency illumination with LEDs
Illumination Time: 90 minutes
Voltage: 120-277VAC, 50/60Hz
O utput Voltage: 10-60 VDC
NC3-61L2
NC3-66L2
NC3-68L2
NC3-61L3
NC3-66L3
NC3-68L3
NC3-61L4
NC3-66L4
NC3-68L4
NC3-61L5
NC3-66L5
NC3-68L5
· Available with remote or integral test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible reflector)
· 5-Year Limited Warranty
RoHS Compliant
FCC Compliant
Emergency LED Driver meets Title 20 CEC efficiency standards
6" Sapphire III New Construction Frame-In - Compatible with Sapphire III Reflectors
Lumens / Wattage Input Voltage / Dimming Optional Emergency
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
· cULus Listed for Wet Locations when used with compatible frame-in 5-Year Limited Warranty
· ENERGY STAR certified RoHS Compliant FCC Compliant
Type
Project
Catalog No.
Color Temperature
2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 56° Narrow Flood or 72° Flood
NCH3-6L1
NCH3-6L2
NCH3-6L3
NCH3-6L4
NCH3-6L5
NCH3-6L6
Wall Wash Reflector NTG-6 6" Decorative Glass
Compatible Frame-In
NCHR3-6L1
NCHR3-6L2
NCHR3-6L3
NCHR3-6L4
Lifetime 50,000 hours @ L70
NCHR3-6L5
NCHR3-6L6
TYPE C1-EM SPEC
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
D10 Minimum dimming 10% driver for use with JOT
D1 Minimum dimming 1% driver for use with JOT
EZ10-10V eldoLED driver with smooth and flickerfree deep dimming performance down to 1%
EDAB eldoLED DALI SOLDRIVE dim to dark
(blank) No Emergency Needed
EL Battery pack (10W constant power), non-T20 compliant, integral test switch
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
NICKELODEON
NCH3-6
6" Sapphire III New Construction Frame-In
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
Galvanized steel new construction frame-in riveted to 0.064" steel junction box and driver tray. Plaster frame opening includes (3) “butterfly ” spring clips to hold reflector assembly in place.
Mounting: Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2 " conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2 " from adjacent building component.
Junction Box: Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector: Phase dimming drivers require an external thermal device, which is located on the junction box; Other drivers are thermally protected.
Driver: Isolated driver separates the primary side from the secondary side. ELECTRICAL
Input
Compatible Reflectors
Emergency LED Driver
NC3-61L1
NC3-66L1
NC3-68L1
or
NC3-61L2
NC3-66L2
NC3-68L2
Up to 7W emergency illumination with LEDs
Illumination Time: 90 minutes
Vol tage: 120-277VAC, 50/60Hz
Ou tput Voltage: 10-60 VDC
· Available with remote or integral test switch (must specify)
LABELS AND LISTINGS
NC3-61L3
NC3-66L3
NC3-68L3
NC3-61L4
NC3-66L4
NC3-68L4
NC3-61L5
NC3-66L5
NC3-68L5
cULus Listed for Damp Locations (Wet Locations when used with compatible reflector)
· 5-Year Limited Warranty
RoHS Compliant
FCC Compliant
Emergency LED Driver meets Title 20 CEC efficiency standards
6" Sapphire III New Construction Frame-In - Compatible with Sapphire III Reflectors
Lumens / Wattage Input Voltage / Dimming Optional Emergency
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Heavy-gauge aluminum housing.
Ceiling mount for direct installation to 4" octagonal or square junction box.
Pendant mount entry for 3/8" National Pipe Thread stem; wires supplied by others.
Textured polyester powder paint finish standard.
Multiple ceiling, pendant, cord, and wall mount options available.
OPTICS — LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image. Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available. 347V available option; transformer must be field-installed to an accessible remote-mounted junction box.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled. 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional).
GOVERNEMENT PROCUREMENT — BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Source: 40W LED 2000lm
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
FCC Compliant
Project
Catalog No.
TYPE CD-A SPEC
Design Select options indicated by this color background.
Lead times will vary depending on options selected. Consult with your sales representative.
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
EZ10-10V eldoLED driver with smooth and flicker-free
nLight Options:
NPP16D ‡ nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1).
NPP16DER ‡ nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1). ER controls fixtures on emergency circuit.
NPS80EZER ‡ nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
Black
Glossy white
Accessories: Order as separate catalog number. (shipped separately)
CYS ‡ 3/8" stem and canopy with 5° "hang straight" swivel CRS ‡ 3/8" stem and canopy with 45° swivel
347/120 75VA12 ‡ 347V Step-down transformer
Option valueRestriction
LW4 Not available in ACC mount.
WR, BR Not available with finishes.
PM Supplied with 10" supply and dimming connections.
ACC, ACC180 White cord supplied with white housings. All other finishes supplied with black cord.
SF Must specify voltage 120V or 277V.
NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
(Maximum order quantity for design select lead times is 50)
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. Interface remote mounted. Access panel (supplied by others) recommended. See UL 924 Sequence of Operation table.
WL Not available with ACC & ACC180 mounting options.
Architectural ColorsAdditional architectural colors available; see www.lithonia.com/archcolors.
CYS, CRS Color and length of stem must be specified (from 6" to 240" in even increments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for interior use. Consult factory for exterior use.
SDT 347/120 75VAMust be field-installed to an accessible remote-mounted junction box
DWHG Matte white (standard)
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional. LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE — 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are ROHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN4 STATIC WHITE
DISTRIBUTIONS
Notes
Tested in accordance with IESNA LM-79-08
Tested to current IES and NEMA standards under stabilized laboratory conditions
Based on LDN4 AR LSS 35K 80CRI
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source: 13W to 46W 900lm to 4500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass · 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC3-48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Delivered Lumens 900lm1500lm2500lm3500lm4500lm
Wattage 13W max.18W max.26W max.38W max.46W max.
Color Temperature 2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
NCH3-4L1 NCHR3-4L1
NCH3-4L2 NCHR3-4L2
NCH3-4L3 NCHR3-4L3
Lifetime 50,000 hours @ L70
NCH3-4L4 NCHR3-4L4
NCH3-4L5 NCHR3-4L5
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-FC 4" Tempered Frosted Glass with Clear Center
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8” Open Center
LABELS AND LISTINGS
c ULus Listed for Wet Locations when used with compatible frame-in 5 -Year Limited Warranty
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
Options
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified 90CRI High CRI (90+)
SF ‡ Single fuse
Option value
Lumen Packages
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
(Maximum order quantity for design select lead times is 160.)
‡ Option Value Ordering Restrictions
Restriction
Overall height varies based on lumen package, refer to dimensional charts on page 4 WR, BR Not available with finish (LSS, LD, LS) TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TRW, TRBL Available with clear (AR) trim color only TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL
347 Not available with emergency options
All Emergency 12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER Not available with MVOLT. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
SF Must specify 120 or 277 volt N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ10 and EZ1 drivers. NPP16D, NPP16DER, NPPS80EZ, NPS80EZERSpecify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. NLTAIR2, NLTAIRER2, NLATAIREM2Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. NLTAIR2 When combined with EZ1 or EZ10 drivers, can be used as a normal power
JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
HAO Fixture height is 5-11/16" for all lumen packages with HAO.
CP Must specify voltage for 3000lm. Not available with emergency battery pack option. E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch.
NCH3-4
4" Sapphire III New Construction Frame-In
Type
Project
Catalog No.
Notes
Source: 13W to 46W 900lm to 4500lm PRODUCT IMAGES AND DIMENSIONS
PRODUCT DESCRIPTION
Galvanized steel new construction frame-in riveted to 0.064" steel junction box and driver tray. Plaster frame opening includes (3) “butterfly ” spring clips to hold reflector assembly in place.
Mounting: Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2 " conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2 " from adjacent building component.
Junction Box: Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector: Phase dimming drivers require an external thermal device, which is located on the junction box; Other drivers are thermally protected.
Driver: Isolated driver separates the primary side from the secondary side. ELECTRICAL
Compatible Reflectors
Emergency LED Driver
NC3-41L1
NC3-46L1
NC3-48L1
Up to 7W emergency illumination with LEDs
Illumination Time: 90 minutes
Voltage: 120-277VAC, 50/60Hz
Output Voltage: 10-60 VDC
Remote test switch included
LABELS AND LISTINGS
NC3-41L2
NC3-46L2
NC3-48L2
or
NC3-41L3
NC3-46L3
NC3-48L3
NC3-41L4
NC3-46L4
NC3-48L4
cULus Listed for Damp Locations (Wet Locations when used with compatible reflector)
5-Year Limited Warranty
RoHS Compliant
FCC Compliant
· Emergency LED Driver meets Title 20 CEC efficiency standards
4" Sapphire III New Construction Frame-In - Compatible with Sapphire III Reflectors
Lumens / Wattage Input Voltage / Dimming Optional Emergency
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
· Signify ® Fortimo COB LED technology
Specifiable beam spreads 6" deep cone reflectors, wall wash and deco glass
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
· cULus Listed for Wet Locations when used with compatible frame-in 5-Year Limited Warranty
· ENERGY STAR certified RoHS Compliant FCC Compliant
Type
Project
Catalog No.
Color Temperature
2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 56° Narrow Flood or 72° Flood
Compatible Frame-In
NCH3-6L1
NCHR3-6L1
NCH3-6L2
NCHR3-6L2
NCH3-6L3
NCHR3-6L3
NCH3-6L4
NCHR3-6L4
Lifetime 50,000 hours @ L70
NCH3-6L5
NCHR3-6L5
NCH3-6L6
NCHR3-6L6
Wall Wash Reflector
NC3-68 Decorative Glass
NTG-6 6" Decorative Glass NC3-61 Open Reflector
(Specify glass separately)
TYPE CN-A SPEC
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
D10 Minimum dimming 10% driver for use with JOT
D1 Minimum dimming 1% driver for use with JOT
EZ10-10V eldoLED driver with smooth and flickerfree deep dimming performance down to 1%
EDAB eldoLED DALI SOLDRIVE dim to dark
(blank) No Emergency Needed
EL Battery pack (10W constant power), non-T20 compliant, integral test switch
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
NICKELODEON
NCH3-6
6" Sapphire III New Construction Frame-In
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
Galvanized steel new construction frame-in riveted to 0.064" steel junction box and driver tray. Plaster frame opening includes (3) “butterfly ” spring clips to hold reflector assembly in place.
Mounting: Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2 " conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2 " from adjacent building component.
Junction Box: Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector: Phase dimming drivers require an external thermal device, which is located on the junction box; Other drivers are thermally protected.
Driver: Isolated driver separates the primary side from the secondary side. ELECTRICAL
Input
Compatible Reflectors
Emergency LED Driver
NC3-61L1
NC3-66L1
NC3-68L1
or
NC3-61L2
NC3-66L2
NC3-68L2
Up to 7W emergency illumination with LEDs
Illumination Time: 90 minutes
Vol tage: 120-277VAC, 50/60Hz
Ou tput Voltage: 10-60 VDC
· Available with remote or integral test switch (must specify)
LABELS AND LISTINGS
NC3-61L3
NC3-66L3
NC3-68L3
NC3-61L4
NC3-66L4
NC3-68L4
NC3-61L5
NC3-66L5
NC3-68L5
NC3-61L6
Type
Project
Catalog No. Notes
PRODUCT IMAGES AND DIMENSIONS
cULus Listed for Damp Locations (Wet Locations when used with compatible reflector)
· 5-Year Limited Warranty
RoHS Compliant
FCC Compliant
Emergency LED Driver meets Title 20 CEC efficiency standards
6" Sapphire III New Construction Frame-In - Compatible with Sapphire III Reflectors
Lumens / Wattage Input Voltage / Dimming Optional Emergency
NCH3-6L1 = 900lm / 13W
NCH3-6L2 = 1500lm / 18W
NCH3-6L3 = 2500lm / 26W
NCH3-6L4 = 3500lm / 38W
NCH3-6L5 = 4500lm / 46W
P01 = 120V; Phase Dimming (Triac/ELV) C12 = 120-277V; 0-10V Dimming /EM = Emergency Pack w/ Remote Test Switch /EMI = Emergency Pack w/ Integral Test Switch (Compatible with NC3-61 only, must specify on reflector)
= 277V; 0-10V Dimming /EM = Emergency Pack w/ Remote Test Switch /EMI = Emergency Pack w/ Integral Test Switch (Compatible with NC3-61 only, must specify on reflector)
Example: NCH3-6L6C02 = 6" Sapphire III New Construction Frame-In, 5500lm / 60W, 277V input; 0-10V dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
A slim profile for maximum light output. The 6100 takes up to two strips of LED tape delivering up to 1000 lumens per foot. This compact and versatile luminaire is ideal for larger alcoves and surface mounted installations.
FEATURES
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–Custom length by sections of 2 to 242 inches.
–It is surface mounted with the use of aluminum clips.
–Designed for high light output in indirect places.
–A Focus lens for a narrower beam angle or an asymmetric beam spread (Configured with one strip of LED only).
–A Prime lens for enhanced color and light output or an Opal lens to eliminate pixelation with LP4 or brighter.
–Suitable for dry or damp locations.
Cross-section dimensions:
LED TAPE COMPATIBILITY
Compatible with two LED strips up to 12mm wide each or 24mm in total.
LINEAR WEIGHT
0.106 lbs/ft, 1.578 kg/m, without lenses.
BLANK
6100 Profile ordering sheet 6000 Series
LENGTH
Custom length by sections of 2 to 240 inches (6 m).
2
TYPE CN-C SPEC NICKELODEON
FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 7.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN ACT— Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
NLWPSW-4L334W
4' Wraparound with Selectable Lumens & CCT
Source: 55W to 65W LED 7000lm to 8000lm
PRODUCT DESCRIPTION
4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8000lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
120-277V input
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8000lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES
NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16
4' Wraparound with Selectable Lumens & CCT
Description
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Options (blank) = Standard
/EM = Integral Emergency
/MS = Integral Motion Sensor
/EMMS = Integral Emergency and Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
PS1050 Emergency battery pack, 10W, CA Title 20 Noncompliant ‡
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
BGTD Generator transfer device, not available with PS1050 ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required)
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 14 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 14 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act Compliant
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
MBMatte black
SKGYW Smoke gray with white lens end caps
SKGYB Smoke gray with black lens end caps See Accessories and footnotes on next page
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
Design Select options indicated by this color background.
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
4" & 6" Can-less LED Downlight with Deep Reflector Accessories
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
Quick Connect Extension Linkable Cables
NEFLINTW-EW-4 4' Cable
NEFLINTW-EW-20 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Emergency Battery with Remote Test Switch
NEPK-20LEDUNV 120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
Tubular shaped White acrylic diffusers mount to frames of Polished Chrome, Satin Nickel, or Black. Powered by 3000K LED these fixtures work well in a variety of contract applications.
• Always consult a qualified electrician before installing any lighting product
MEASUREMENTS MODEL DIMENSION
18"W x 4.75"H x 2.5"Ext.
x 4.75”H x 2.5”Ext.
x
x
FINISHES OPTIONS:
MATERIAL: Aluminum, Acrylic
Polished Chrome (PC) Black (BK)
NO SPEC
Ø4-3/4” Ø6-3/8”
P. 1.855.855.8926
CANADA:19054 28TH AvenueSurrey - BCV3Z 6M3
USA: 3035 E. Lone MountainRd- Las Vegas, NV, 89081
BETTY PD473706
FIXTUREDIMENSIONS
D6-3/8" x H12"
LAMP TYPE E26
MAXWATTAGE 60W
BULBQTY 1
BULBS INCLUDED No
VOLTAGE 120V
MATERIAL Steel
GLASS DETAILS Matte Opal Glass
WIRE LENGTH 72" Max
MINIMUM HANGHEIGHT 16"
SLOPEDCEILING ADAPTABLE Yes
LOCATION Dry
CANOPY DIMENSIONS
D4-3/4" x H2-3/8"
PAINT FINISH AG01; MB01; [ D - Diameter, L - Length, W - Width, H - Height, E - Extension ]
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
4" & 6" Can-less LED Downlight with Deep Reflector Accessories
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
Quick Connect Extension Linkable Cables
NEFLINTW-EW-4 4' Cable
NEFLINTW-EW-20 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Emergency Battery with Remote Test Switch
NEPK-20LEDUNV 120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
NO SPEC
HELSINKI EW48003-UNV
WALL
EW48003-BK-UNV Black
SPECIFICATION DETAILS
Fixture Dimensions W3-1/4" x H6-3/4" x E5-3/8"
Light Source LED with DC Driver
Wattage 12W
Total Lumens 1020lm
Delivered Lumens 626lm
Voltage 120-277V Color Temperature 3000K
CRI (Ra) 90CRI
Optional Color Temps
PROJECT
2700K - 5000K Available, Minimum Order Quantities Apply
LED Rated Life 50,000 hours
Dimming
100% - 10%, TRIAC or ELV Dimmer (Not Included)
Glass Details Clear Glass
Location Wet, IP65
Illumination Direction Up and Down
Mounting Style All Orientation; Wall;
Canopy Dimensions W4-3/4" x H5-7/8" x E1-1/8" Paint Finish BK02
* For custom options, consult factory for details. *For warranty information, please visit www.kuzcolighting.com/warranty
CANADA: 19054 28TH AVENUE - SURREY, BC V3Z 6M3
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
Architectural exterior wall sconce, die-cast rectangular aluminum body with two adjustable flaps to change beam angle above and below the fixture.
COMMENT
NO SPEC
NICKELODEON TYPE DOWNLIGHT ALT
/
& 6" Can-less
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
4" & 6" Can-less LED Downlight with Deep Reflector Accessories
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
Quick Connect Extension Linkable Cables
NEFLINTW-EW-4 4' Cable
NEFLINTW-EW-20 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Emergency Battery with Remote Test Switch
NEPK-20LEDUNV 120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
L48 3000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525816
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
NLWPSW-4L334W
4' Wraparound with Selectable Lumens & CCT
Source: 55W to 65W LED 7000lm to 8000lm
PRODUCT DESCRIPTION
4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8000lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
120-277V input
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8000lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES
NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16
4' Wraparound with Selectable Lumens & CCT
Description
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Options (blank) = Standard
/EM = Integral Emergency
/MS = Integral Motion Sensor
/EMMS = Integral Emergency and Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch [LINK ] ‡
E10WSTAR Emergency battery pack, Enabled with STAR ‡
BGTDGenerator transfer device, not available with E10W ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required) ‡
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 9 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 14 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
MBMatte black
SKGYW Smoke gray with white lens end caps
SKGYB Smoke gray with black lens end caps
See Accessories and footnotes on next page
Design Select options indicated by this color background.
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
Description NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish NE-612LEDW = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW =
Optional
Accessory
= Waterproof Vandal Resistant Enclosure
= Replacement Battery for
= Replacement Batteries for
with Remote (RC)
/ 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
NO SPEC
LEDVANCE LUMINAIRES OPTI-SELECT CUT OFF WALL PACK
APPLICATION
The LEDVANCE Performance Class OPTI-SELECT Cut-Off Wall Pack delivers unmatched precision with its full cut-off design, eliminating uplight to reduce glare and light pollution, while the revolutionary OPTI-SELECT technology lets you instantly switch between T2, T3, and T4 distributions via switch — no lens swap required. With CCT and wattage selectability, an integrated photocell, and plug-and-play controls compatibility, it’s the ultimate solution for efficient, adaptive outdoor lighting.
BENEFITS & FEATURES
OPTI-SELECT: Adjustable types II, III and IV distribution, no lens swap needed
The Flair Cylinder family is a series of pendant, surface, and wall mounted decorative luminaires featuring refined proportions, attention to detail, and minimalist versatility. It consists of the Flair Sleeve, Flair Diffuser, and Flair Glow Ring. The Flair Diffuser is available in 2" or 3" diameters, while the Flair Sleeve and Flair Glow Ring are available in 3" diameters only.
Flair Cylinder Family (Refer to other spec sheets)
CAMEO 401432-LED PENDANTS
401432BN-LED BrushedNickel
401432WH-LED White 401432CH-LED Chrome 401432BK-LED Black
PoE (Power-overEthernet) compatible. Consult factory for details. 12 Available with 120V only.
SD1 - Single 0-10V
SELV 12 - ELV 120V
Project:
Type:
6 For SOLA/DUO, one of the following lenses must be specified: LSDL or LFDL.
14 - ELV 120V
14 Available with 120V only.
15 On-site commissioning is required.
16 For emergency battery, code will be like the following example: RD1+EB.
25
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads
6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1 /8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads
6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads
6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1 /8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI
5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1 /8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 6" deep cone reflectors, wall wash and deco glass
2700K, 3000K, 3500K and 4000K @ 90+ CRI
5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
/EMI = Integral Emergency Test Switch (Compatible with NC3-61 only must specify on frame-in)
092724P1
NO SPEC
/
4" & 6" Can-less
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
4" & 6" Can-less LED Downlight with Deep Reflector Accessories
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
Quick Connect Extension Linkable Cables
NEFLINTW-EW-4 4' Cable
NEFLINTW-EW-20 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Emergency Battery with Remote Test Switch
NEPK-20LEDUNV 120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
NO SPEC
NO SPEC
RAIL I Bath Vanity
52100 / 52102 / 52103 / 52104 / 52105 / 52132
• ETL,cETLIP65
• Suitablefordamplocations
• CRI90+
• DimmablewithTriacDimmer
• EnergyStar
• Title24JA8Compliant
PRODUCT DESCRIPTION
Job Name : Job Type : Quantity : Comments :
Tubular shaped White acrylic diffusers mount to frames of Polished Chrome, Satin Nickel, or Black. Powered by 3000K LED these fixtures work well in a variety of contract applications.
• Always consult a qualified electrician before installing any lighting product
MEASUREMENTS MODEL DIMENSION
18"W x 4.75"H x 2.5"Ext.
x 4.75”H x 2.5”Ext.
x
x
FINISHES OPTIONS:
MATERIAL: Aluminum, Acrylic
AVAILABLE SIZES:
RATINGS: ETL cETL IP65
Damp Location Energy Star Title 24 JA8 Compliant ADA Dimmable
(Integrated)
Polished
NO SPEC
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
NO SPEC
NO SPEC
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/8 0/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90%
THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
Trusted Warranty Program CERTIFICATIONS
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
NO SPEC
HELSINKI EW48006-UNV
WALL
EW48006-BK-UNV Black
SPECIFICATION DETAILS
Fixture Dimensions W5-5/8" x H5-3/8" x E4-1/2"
Light Source LED with DC Driver
Wattage 12W
Total Lumens 1020lm
Delivered Lumens BK-642lm
Voltage 120-277V
Color Temperature 3000K
CRI (Ra) 90CRI
PROJECT
Optional Color Temps 2700K - 5000K Available, Minimum Order Quantities Apply
LED Rated Life 50,000 hours
Dimming 100% - 10%, TRIAC or ELV Dimmer (Not Included)
Glass Details Clear Glass
Location Wet, IP65
Illumination Direction Up and Down
Mounting Style All Orientation; Wall;
Canopy Dimensions W5-5/8" x H4-1/4" x E5/8" Paint Finish BK02
* For custom options, consult factory for details.
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Heavy-gauge aluminum housing.
Ceiling mount for direct installation to 4" octagonal or square junction box.
Pendant mount entry for 3/8" National Pipe Thread stem; wires supplied by others.
Textured polyester powder paint finish standard.
Multiple ceiling, pendant, cord, and wall mount options available.
OPTICS — LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image. Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available. 347V available option; transformer must be field-installed to an accessible remote-mounted junction box.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled. 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional).
GOVERNEMENT PROCUREMENT — BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Source: 40W LED 2000lm
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
Type
Project
Catalog No.
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
FCC Compliant
TYPE MP-A SPEC
Design Select options indicated by this color background.
Lead times will vary depending on options selected. Consult with your sales representative.
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
EZ10-10V eldoLED driver with smooth and flicker-free
nLight Options:
NPP16D ‡ nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1).
NPP16DER ‡ nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1). ER controls fixtures on emergency circuit.
NPS80EZER ‡ nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
Accessories: Order as separate catalog number. (shipped separately)
CYS ‡ 3/8" stem and canopy with 5° "hang straight" swivel CRS ‡ 3/8" stem and canopy with 45° swivel
‡
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
(Maximum order quantity for design select lead times is 50)
Option valueRestriction
LW4 Not available in ACC mount.
WR, BR Not available with finishes.
PM Supplied with 10" supply and dimming connections.
ACC, ACC180 White cord supplied with white housings. All other finishes supplied with black cord.
SF Must specify voltage 120V or 277V.
NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. Interface remote mounted. Access panel (supplied by others) recommended. See UL 924 Sequence of Operation table.
WL Not available with ACC & ACC180 mounting options.
Architectural ColorsAdditional architectural colors available; see www.lithonia.com/archcolors.
CYS, CRS Color and length of stem must be specified (from 6" to 240" in even increments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for interior use. Consult factory for exterior use.
SDT 347/120 75VAMust be field-installed to an accessible remote-mounted junction box
DWHG Matte white (standard)
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Heavy-gauge aluminum housing.
Ceiling mount for direct installation to 4" octagonal or square junction box.
Pendant mount entry for 3/8" National Pipe Thread stem; wires supplied by others.
Textured polyester powder paint finish standard.
Multiple ceiling, pendant, cord, and wall mount options available.
OPTICS — LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image. Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available. 347V available option; transformer must be field-installed to an accessible remote-mounted junction box.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled. 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional).
GOVERNEMENT PROCUREMENT — BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source: 13W to 46W 900lm to 4500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass · 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC3-48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Delivered Lumens 900lm1500lm2500lm3500lm4500lm
Wattage 13W max.18W max.26W max.38W max.46W max.
Color Temperature 2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
NCH3-4L1 NCHR3-4L1
NCH3-4L2 NCHR3-4L2
NCH3-4L3 NCHR3-4L3
Lifetime 50,000 hours @ L70
NCH3-4L4 NCHR3-4L4
NCH3-4L5 NCHR3-4L5
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-FC 4" Tempered Frosted Glass with Clear Center
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8” Open Center
LABELS AND LISTINGS
c ULus Listed for Wet Locations when used with compatible frame-in 5 -Year Limited Warranty
NPS80EZER ‡ nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
(Maximum order quantity for design select lead times is 50)
Option valueRestriction
LW4 Not available in ACC mount.
WR, BR Not available with finishes.
PM Supplied with 10" supply and dimming connections.
ACC, ACC180 White cord supplied with white housings. All other finishes supplied with black cord.
SF Must specify voltage 120V or 277V.
NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. Interface remote mounted. Access panel (supplied by others) recommended. See UL 924 Sequence of Operation table.
WL Not available with ACC & ACC180 mounting options.
Architectural ColorsAdditional architectural colors available; see www.lithonia.com/archcolors.
CYS, CRS Color and length of stem must be specified (from 6" to 240" in even increments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for interior use. Consult factory for exterior use.
SDT 347/120 75VAMust be field-installed to an accessible remote-mounted junction box
DWHG Matte white (standard)
NICKELODEON
NCH3-4
4" Sapphire III New Construction Frame-In
Type
Project
Catalog No.
Notes
Source: 13W to 46W 900lm to 4500lm PRODUCT IMAGES AND DIMENSIONS
PRODUCT DESCRIPTION
Galvanized steel new construction frame-in riveted to 0.064" steel junction box and driver tray. Plaster frame opening includes (3) “butterfly ” spring clips to hold reflector assembly in place.
Mounting: Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2 " conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2 " from adjacent building component.
Junction Box: Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector: Phase dimming drivers require an external thermal device, which is located on the junction box; Other drivers are thermally protected.
Driver: Isolated driver separates the primary side from the secondary side. ELECTRICAL
Compatible Reflectors
Emergency LED Driver
NC3-41L1
NC3-46L1
NC3-48L1
Up to 7W emergency illumination with LEDs
Illumination Time: 90 minutes
Voltage: 120-277VAC, 50/60Hz
Output Voltage: 10-60 VDC
Remote test switch included
LABELS AND LISTINGS
NC3-41L2
NC3-46L2
NC3-48L2
or
NC3-41L3
NC3-46L3
NC3-48L3
NC3-41L4
NC3-46L4
NC3-48L4
cULus Listed for Damp Locations (Wet Locations when used with compatible reflector)
5-Year Limited Warranty
RoHS Compliant
FCC Compliant
· Emergency LED Driver meets Title 20 CEC efficiency standards
4" Sapphire III New Construction Frame-In - Compatible with Sapphire III Reflectors
Lumens / Wattage Input Voltage / Dimming Optional Emergency
LED Exit and Emergency Combination with Remote Capability and Self Diagnostics
Source: 3.8W Luminaire
PRODUCT DESCRIPTION
LED exit sign with dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
FEATURES
• Fully adjustable 1.5W high-intensity LED heads
• Universal Mounting - Wall or ceiling
• UL Listed and meets or exceeds UL924, NEC, OSHA and NFPA 101 Life Safety Code requirements
• Injection molded high impact and scratch resistant corrosion-proof and UL94 5V-O flame retardant housing.
• Manual test switch and indicator
• Maintenance free NiCad battery
• 120 or 277 VAC input
• Field selectable Chevrons
• 6" High and 3/4" Stroke letters
• External LED Status indicator
• Available in Red or Green lettering
ELECTRICAL
Voltage: 120V or 277V Input
Wattage: 3.8W
Lumens: 150lm total output, 75lm per emergency head
Color Temperature: 5700K
Light Source:
Exit: LED strip for normal operation
Emergency: LED Strip and 2 wedge base LED lamps
Operating Temperature: 10°C-40°C
Batteries: (2) 3.6V 900mAh Ni-Cad battery operates integral heads, exit LED sources and remote head. 90 minute emergency operation with internal solid state charging circuit.
BODY
• Injection-molded dual housing
FACE
• Single or dual configuration. Optional solid face panel is included.
• 6" high text with color diffusion
• Knockout directional chevrons
• Black or White finish
EMERGENCY
• Two easy snap-on, fully rotatable and adjustable lamp heads
• E mergency heads can be mounted only on the sides of exit sign
REMOTE CAPABILITY
Luminaire includes two 3.6V 900mAh batteries to power a remote emergency light. Upon power failure, battery requires 24 hours to recharge.
MOUNTING
• Wall or Ceiling
• Mounting hardware included
BATTERIES
• High temperature rated Ni-cad batteries
• Low voltage protection
• Test switch and battery charging indicator
• 24-hours recharge, more than 90 minutes discharge
TESTING
• High-charge/ready operation indicator light
• Manual test switch and indicator
• Self-testing and self-diagnostics
• Isolated surge/short circuit protection
LABELS AND LISTINGS
• UL Listed for Damp locations
• 5-Year Limited Warranty
LED Exit and Emergency Combination with Remote Capability and Self Diagnostics
NEX-712-LED/G = Battery Backup, Green Letters / White Housing
NEX-712-LED/R = Battery Backup, Red Letters / White Housing
NEX-712-LED/RB = Battery Backup, Red Letters / Black Housing
Example: NEX-712-LED/R = LED Exit and Emergency Combination with Remote Capability and Self Diagnostics, Red Letters / White Housing Description
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads
6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
6" High Performance Sapphire III Cylinder
Source: 11W to 58W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED cylinders are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
CONSTRUCTION
Cylinder Cap: High quality 0.040" steel cap with universal slots to allow for direct mounting to junction box for surface mount. Incorporates all thread in the center for the installation of a cable or pendant rod kit for the corresponding mounting method. Three screws on the bottom of cap secure cylinder body to cylinder cap. (Adjustable with flathead screw drive)
Cylinder Body: 0.040" steel cylindrical body with three keyhole slots allowing body to be installed to cylinder cap. Spring brackets accept torsion wing trim springs. Four butterfly clips also accommodated for spring-less trims.
INSTALLATION
Cable Mount: Cylinder comes with 8' of field cuttable aircraft cable and offset cable (5-wire) for power and dimming. Stem Mount: Cylinder includes a swivel canopy and 7' (consisting of (3) 12" and (2) 24") of internally threaded rod. Swivel canopy is compatible with sloped ceilings with a ceiling pitch from 1/12 to 10/12.
Surface & Wall Mount: Cylinder is supplied with hardware to mount directly over junction box.
Emergency: Cylinder can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK-07LEDUNV ). Not compatible with stem mount option.
LISTINGS AND WARRANTY
cULus Listed for Damp Locations (Wall Mount is Wet Location)
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
PHOTOMETRICS
6" High Performance Sapphire III Cylinder 5500lm / 60W
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996 Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are RoHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN6 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
• Tested in accordance with IESNA LM-79-08.
• Tested to current IES and NEMA standards under stabilized laboratory conditions.
• CRI: 80 typical.
See page 4 for other fixture dimensions
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 13W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads
6" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: NC 3-61 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
Lumens Overall height varies based on lumen package; refer to dimensional chart.
WR, BR Not available with finishes.
347 Not available with emergency options.
SF Must specify voltage 120V or 277V. TRW, TRBL Available with clear (AR) reflector only. EL, ELR, ELSD, ELRSD, E10WCP, E10WCPR
12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR, NLTAIR2, NLTAIRER2, NLTAIREM2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. not recommended for metal ceiling installations.
HAO Fixture height is 6.5" for all lumen packages with HAO. CP Must specify voltage for 3000lm and above. 5000lm with marked spacing 24 L x 24 W x 14 H. Not available with emergency battery pack option. JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA68 JZOversized trim ring with 8" outside diameter
SCA6 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA6 10D
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
(Maximum order quantity for design select lead times is 112.)
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
