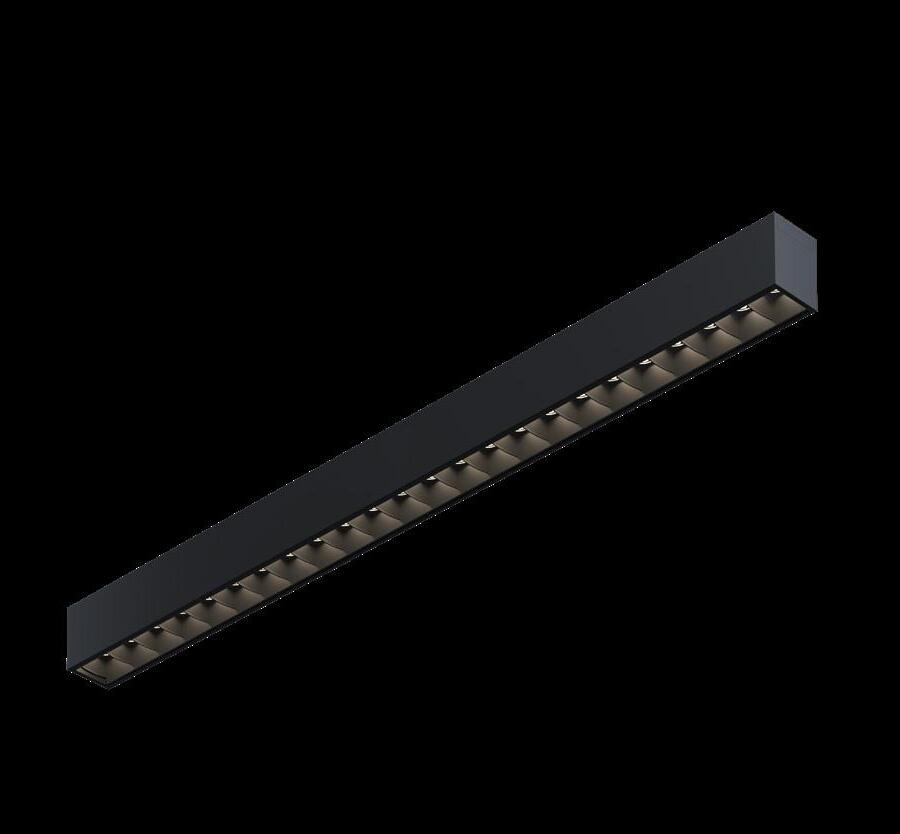

FLINDT PLAZA-(3) MODULES 35 DEGREE WITH HONEYCOMB LOUVER-CORTEN FINISH-1906 LUMENS
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER
MM3-SD360-R-C-30/LC12-C0350Z-UNV-B/PC17-02

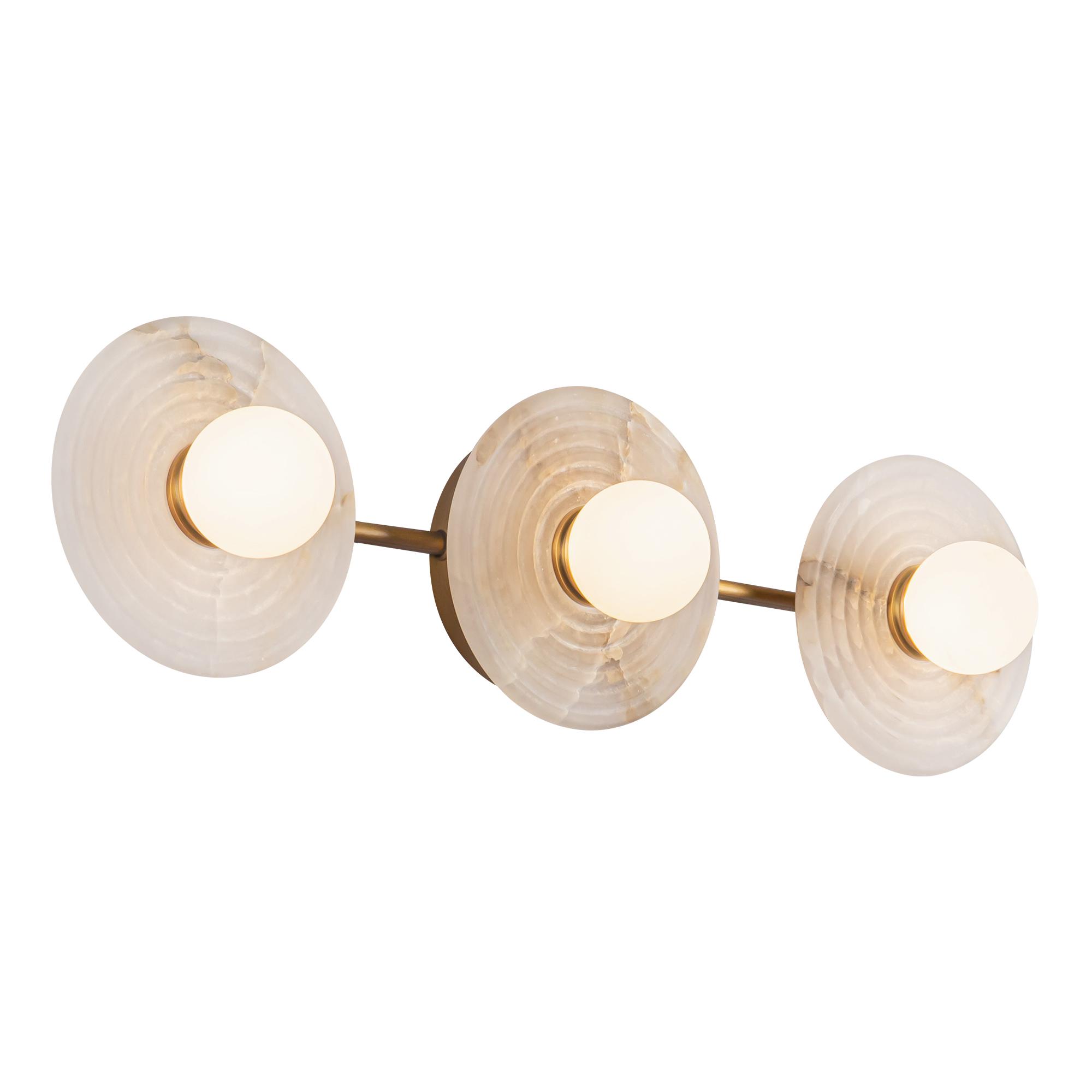

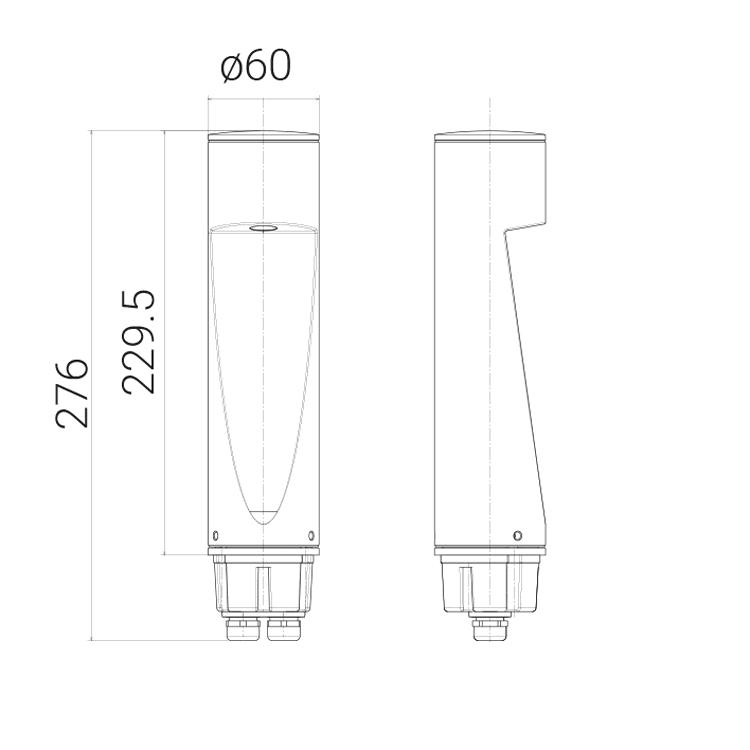

TBD - WALL SCONCE AT EAST FACADE 72079
TPR-ILL-4-3000K-15X50
490003-7W-15-3000K-MS 490041-MR16 4876716/490542
490003-7W-15-3000K-MS 490041-MR16 4876716

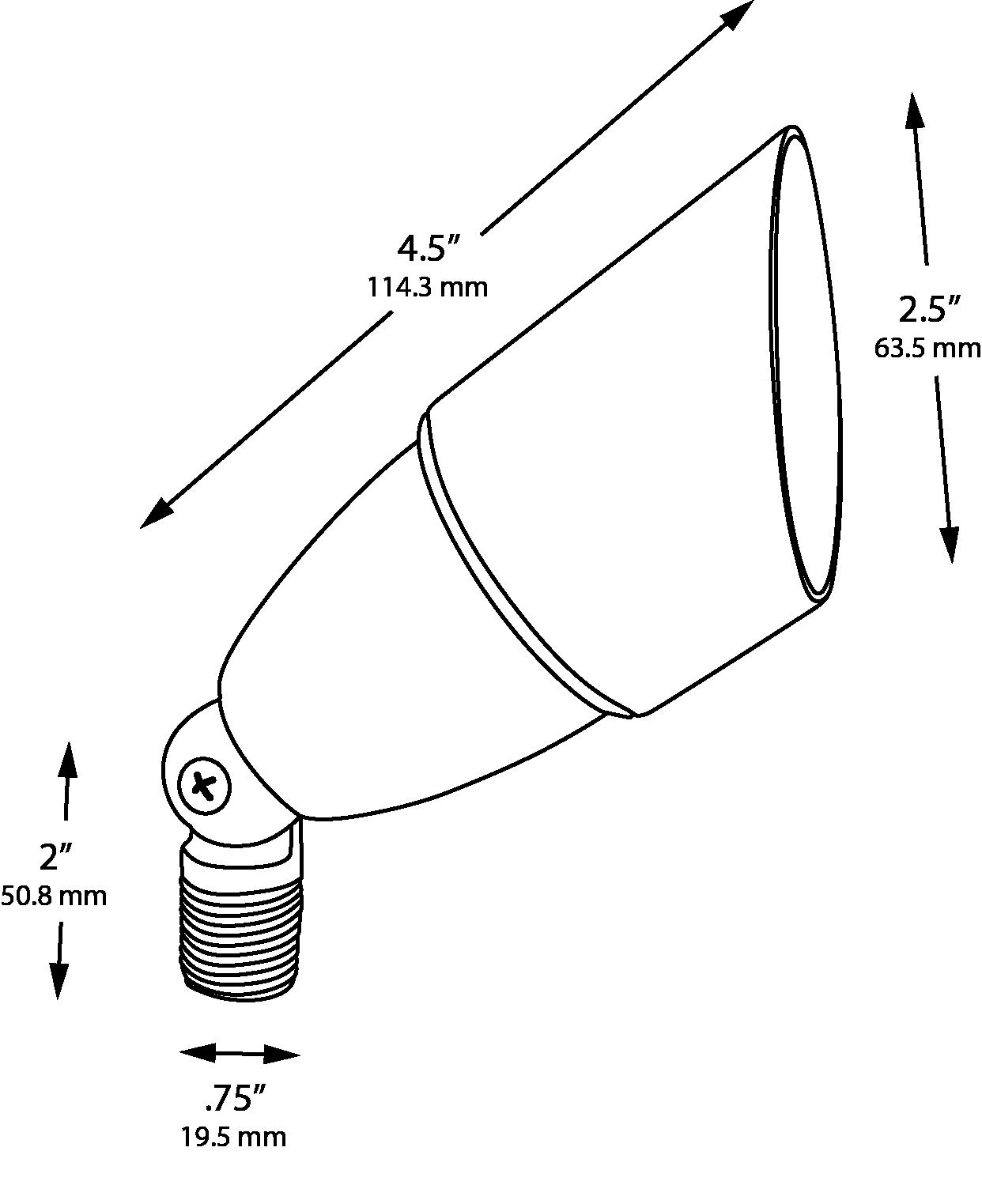

SL16D-PAR30-LED40-BRS FA08
NIOB-2RNDC30XMPW/NHIOICD-28LE4
NIOB-2RNDC30XMPW/NHIOICD-28LE4
L987071-A-POLE#3423-3000K-120V 0-10V DIMMING
TYPE F SPEC BLUFFS HARBORVIEW
FEATURES & SPECIFICATIONS

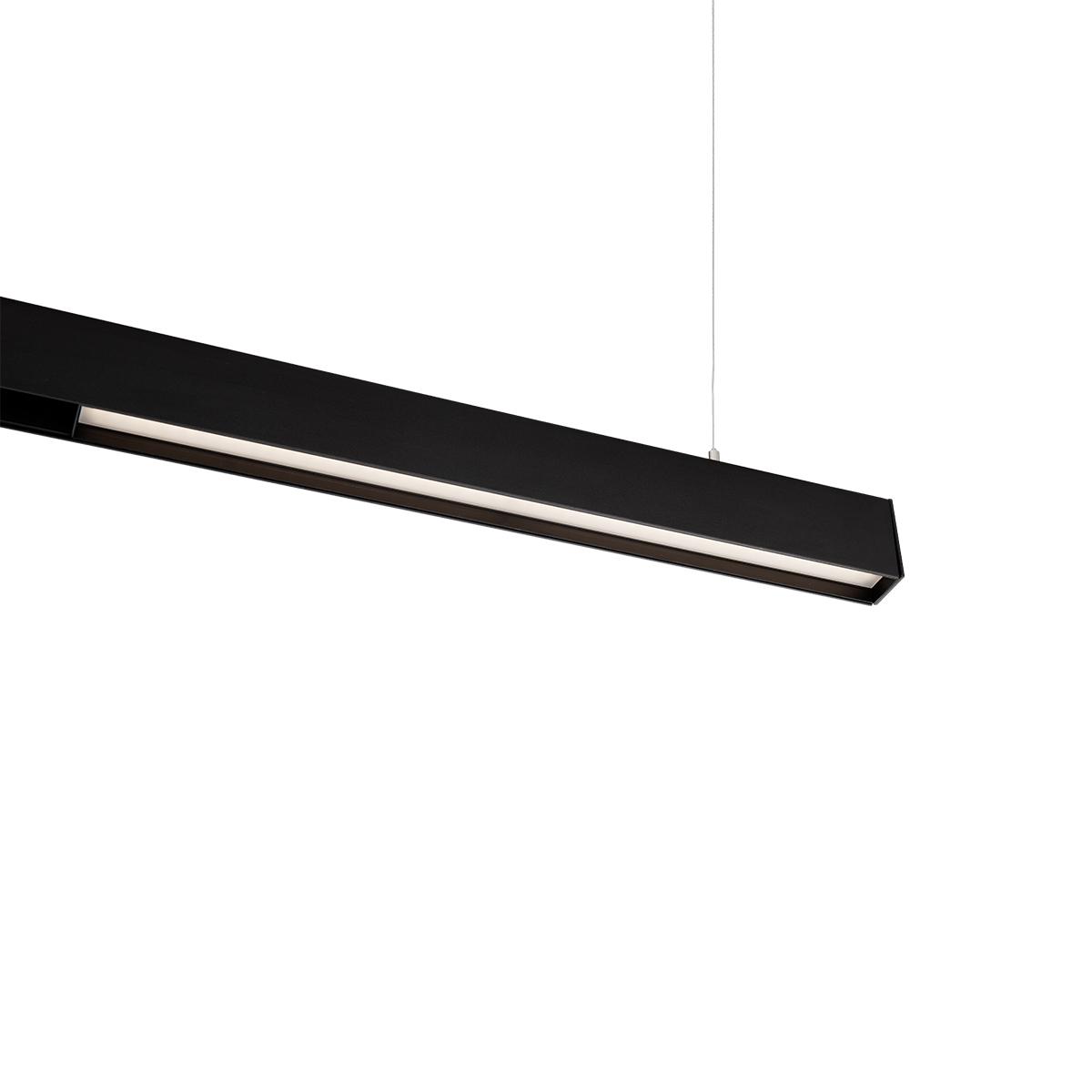

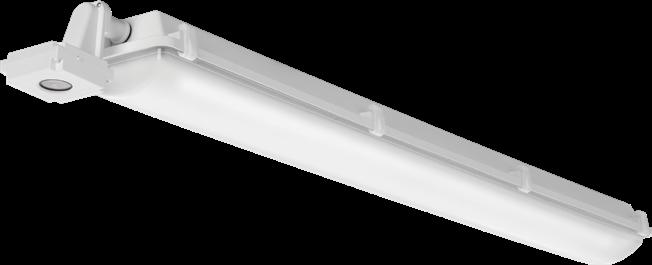

INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 7.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN ACT— Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
TYPE F SPEC BLUFFS HARBORVIEW
lumens
6,000 lumens
8,000 lumens
10,000 lumens
14,000 lumens
18,000 lumens
20,000 lumens
(Blank) General
ND Narrow ‡
WD Wide ‡
AD2 Aisle, 24° off center ‡
PS1050 Emergency battery pack, 10W, CA Title 20 Noncompliant ‡
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
BGTD Generator transfer device, not available with PS1050 ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required)
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 14 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 14 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act Compliant
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
MBMatte black
SKGYW Smoke gray with white lens end
SKGYB Smoke gray with black lens end
caps See Accessories and footnotes on next page
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
caps
Design Select options indicated by this color background.
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LED96/LINEAR/3CCT/3WO/UNV/D/HO
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
48”
48” 96”
TYPE T SPEC BLUFFS HARBORVIEW
FEATURES & SPECIFICATIONS
INTENDED USE — The CPX Series LED is a low-glare back-lit panel featuring an external driver. This cost-effective, reliable flat panel is visually comfortable and can be recessed mounted. Suitable for many applications such as schools, offices, retail, convenience stores, hospitals, healthcare facilities and other commercial spaces. A typically configured CPX features a Unified Glare Rating (UGR) starting at 17. Certain airborne contaminants can diminish the integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses U.S. Patent No. 10,681,784.
CONSTRUCTION — A metal frame with satin white lens provides excellent shielding and uniform luminance. CPX's low-profile design provides increased installation flexibility especially in restricted plenum spaces. The back plate includes integral T-bar clips for installation into T-grid ceilings.
ELECTRICAL — Direct-lit Panel with Long-Life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. Greater than 70% LED lumen maintenance at 60,000 hours (L80>60,000). 0-10V dimming driver. Options available for dimming to 1% or 10%. Contains non-isolated dimming leads.
Integrated Wireless Sensor (single room control) — SensorSwitch wireless dimming (JOT) or luminaire embedded occupancy sensor control (VPIR15) with JOT pairing for wall switch On/Off /Dimming control or auto off when the space is unoccupied. See page 8 for more details of the integrated wireless sensor.
Integrated Sensor (nLight® Wired Networking) — This sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software.
Integrated Smart Sensor (nLight Air Wireless Platform) — The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR or a microphonics (PDT) dual technology occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CLAIRITY+, which allows for simple sensor adjustment.
LISTINGS — CSA certified to meet US and Canadian standards. Damp location listed. IC rated. IP5X Rated. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified. Rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non-Food Zone. NOM Certified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
CPX LED PANEL
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products.
All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
marked by a shaded background qualify for the Design
or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
TYPE T SPEC Configurable CPX LED Flat Panel BLUFFS HARBORVIEW
Generic 0-10V Dimming
8500LM 8500 Lumens
10000 Lumens ‡
None SLD Step Level Dimming ‡ (blank) No battery E10WLCP EM Self-Diagnostic battery pack, 10W Constant Power, Certified in CA Title 20 MAEDBS ‡ E10WRSTAR Emergency battery pack, Enabled with STAR ‡ E7W Emergency Battery Pack, 7W, CA Title 20 Noncompliant ‡ GTD Generator Transfer Device ‡
(blank) No controls (blank) No sensor GLR Fast-blowing fuse ‡ GMF Slow-blowing Fuse ‡
SSE Sensor Switch Embedded APIR Occ sensing with passive infrared - on/off functionality and auto dimming photocell
APDT Occ sensor dual tech (passive infrared & microphonics) and auto dimming photocell
VAPIR15 Vertex low-profile on/off occupancy sensor with auto dimming photocell with VLP programming at 15ft mounting height
NLIGHT nLight enabled
NLIGHTER nLight enabled, for use with generator supply EM power
NLIGHTLM nLight enabled with lumen management
NLIGHTERLM nLight enabled with lumen management, for use with generator supply EM power
NLTAIR2 nLight AIR Generation 2 (wireless) enabled ‡
NLTAIREM2 nLight AIR Generation 2 (wireless) enabled and UL924 Emergency Operation, via power interrupt detection. ‡
JOT Wireless room control with "Just One Touch" pairing
(blank) No sensor, Control Input function only
PIR Occ sensing with passive infrared - on/off functionality PDT Occ sensor dual tech (passive infrared & microphonics)
APIR Occ sensing with passive infrared - on/off functionality and auto dimming photocell
APDT Occ sensor dual tech (passive and microphonics) and auto dimming photocell.
(blank) No sensor, Control Input function only
APIR Occ sensing with passive infrared - on/off functionality and auto dimming photocell
APDT Occ sensor dual tech (passive and microphonics) and auto dimming photocell
APIREM Occ sensing with passive infrared - on/off functionality and auto dimming photocell and UL924 Emergency operation, via power interrupt detection
APDTEM Occ sensing dual tech- ([passive infrared & microphonics) and auto dimming photocell and UL924 Emergency operation, via power interrupt detection
(blank) No sensor, Control Input function only
VAPIR15 Vertex low-profile on/off occupancy sensor with auto dimming photocell at 15ft mounting height
PWS1846 PWSLV Two cables: one 6' pre-wire, 3/8" diameter, 18 gauge, 2 circuits; one 6' pre-wire, 3/8" diameter, 18 gauge ‡
DWAM Anti-Microbial paint
CP Chicago plenum ‡
NPLT Narrow Pallet
BAA Buy America(n) Act and/or Build America Buy America Qualified
NOTE: ‡ indicates option chosen has ordering restriction or note. Please reference restrictions/notes chart on next page. Restriction notes are sorted in the sequence they appear in the ordering tree.
BLUFFS HARBORVIEW
LED2X2BPNL/3WO/3CCTW/D2
LED2X4BPNL/3WO/3CCTW/D2
LED1X4BPNL/3WO/3CCTW/D2
LED2X2BPNL/3WO/3CCTW/D2
LED2X4BPNL/3WO/3CCTW/D2
LED1X4BPNL/3WO/3CCTW/D2
TYPE T2 SPEC BLUFFS HARBORVIEW
FEATURES & SPECIFICATIONS
INTENDED USE — The CPX Series LED is a low-glare back-lit panel featuring an external driver. This cost-effective, reliable flat panel is visually comfortable and can be recessed mounted. Suitable for many applications such as schools, offices, retail, convenience stores, hospitals, healthcare facilities and other commercial spaces. A typically configured CPX features a Unified Glare Rating (UGR) starting at 17. Certain airborne contaminants can diminish the integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses U.S. Patent No. 10,681,784.
CONSTRUCTION — A metal frame with satin white lens provides excellent shielding and uniform luminance. CPX's low-profile design provides increased installation flexibility especially in restricted plenum spaces. The back plate includes integral T-bar clips for installation into T-grid ceilings.
ELECTRICAL — Direct-lit Panel with Long-Life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. Greater than 70% LED lumen maintenance at 60,000 hours (L80>60,000). 0-10V dimming driver. Options available for dimming to 1% or 10%. Contains non-isolated dimming leads.
Integrated Wireless Sensor (single room control) — SensorSwitch wireless dimming (JOT) or luminaire embedded occupancy sensor control (VPIR15) with JOT pairing for wall switch On/Off /Dimming control or auto off when the space is unoccupied. See page 8 for more details of the integrated wireless sensor.
Integrated Sensor (nLight® Wired Networking) — This sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software.
Integrated Smart Sensor (nLight Air Wireless Platform) — The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR or a microphonics (PDT) dual technology occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CLAIRITY+, which allows for simple sensor adjustment.
LISTINGS — CSA certified to meet US and Canadian standards. Damp location listed. IC rated. IP5X Rated. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified. Rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non-Food Zone. NOM Certified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
CPX LED PANEL
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products.
All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
marked by a shaded background qualify for the Design Select program and ship in 15
or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
TYPE T2 SPEC Configurable CPX LED Flat Panel BLUFFS HARBORVIEW
Generic 0-10V Dimming
8500LM 8500 Lumens
10000 Lumens ‡
None SLD Step Level Dimming ‡ (blank) No battery E10WLCP EM Self-Diagnostic battery pack, 10W Constant Power, Certified in CA Title 20 MAEDBS ‡ E10WRSTAR Emergency battery pack, Enabled with STAR ‡ E7W Emergency Battery Pack, 7W, CA Title 20 Noncompliant ‡ GTD Generator Transfer Device ‡
(blank) No controls (blank) No sensor GLR Fast-blowing fuse ‡ GMF Slow-blowing Fuse ‡
SSE Sensor Switch Embedded APIR Occ sensing with passive infrared - on/off functionality and auto dimming photocell
APDT Occ sensor dual tech (passive infrared & microphonics) and auto dimming photocell
VAPIR15 Vertex low-profile on/off occupancy sensor with auto dimming photocell with VLP programming at 15ft mounting height
NLIGHT nLight enabled
NLIGHTER nLight enabled, for use with generator supply EM power
NLIGHTLM nLight enabled with lumen management
NLIGHTERLM nLight enabled with lumen management, for use with generator supply EM power
NLTAIR2 nLight AIR Generation 2 (wireless) enabled ‡
NLTAIREM2 nLight AIR Generation 2 (wireless) enabled and UL924 Emergency Operation, via power interrupt detection. ‡
JOT Wireless room control with "Just One Touch" pairing
(blank) No sensor, Control Input function only
PIR Occ sensing with passive infrared - on/off functionality PDT Occ sensor dual tech (passive infrared & microphonics)
APIR Occ sensing with passive infrared - on/off functionality and auto dimming photocell
APDT Occ sensor dual tech (passive and microphonics) and auto dimming photocell.
(blank) No sensor, Control Input function only
APIR Occ sensing with passive infrared - on/off functionality and auto dimming photocell
APDT Occ sensor dual tech (passive and microphonics) and auto dimming photocell
APIREM Occ sensing with passive infrared - on/off functionality and auto dimming photocell and UL924 Emergency operation, via power interrupt detection
APDTEM Occ sensing dual tech- ([passive infrared & microphonics) and auto dimming photocell and UL924 Emergency operation, via power interrupt detection
(blank) No sensor, Control Input function only
VAPIR15 Vertex low-profile on/off occupancy sensor with auto dimming photocell at 15ft mounting height
PWS1846 PWSLV Two cables: one 6' pre-wire, 3/8" diameter, 18 gauge, 2 circuits; one 6' pre-wire, 3/8" diameter, 18 gauge ‡
DWAM Anti-Microbial paint
CP Chicago plenum ‡
NPLT Narrow Pallet
BAA Buy America(n) Act and/or Build America Buy America Qualified
NOTE: ‡ indicates option chosen has ordering restriction or note. Please reference restrictions/notes chart on next page. Restriction notes are sorted in the sequence they appear in the ordering tree.
BLUFFS HARBORVIEW TYPE
LED2X2BPNL/3WO/3CCTW/D2
LED2X4BPNL/3WO/3CCTW/D2
LED1X4BPNL/3WO/3CCTW/D2
LED2X2BPNL/3WO/3CCTW/D2
LED2X4BPNL/3WO/3CCTW/D2
LED1X4BPNL/3WO/3CCTW/D2
FEATURES & SPECIFICATIONS
INTENDED USE — For wall or ceiling mounting, vertical or horizontal. The WL combines digital LED lighting and controls technologies with high-performance optical design to offer the most advanced wall-mount luminaire for general ambient lighting applications. High-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable.
CONSTRUCTION — Housing is roll formed from code-gauge steel.
Refractor is retained in die cast ends providing secure installation and easy maintenance.
Decorative die-cast end caps provide added durability.
Finish: End caps are post-painted in white polyester powder coat for smooth finish. Post-painted channel available by selecting PAF option.
OPTICS — Impact modified linear faceted refractor. Optically engineered for superior light distribution and maximum efficacy.
Crescent-shape linear faceted refractor system obscures and integrates individual LED images and uniformly washes fixture surface with light.
ELECTRICAL — Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000). The LEDs have a CRI of 82.
eldoLED driver options deliver choice of dimming range and choice for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Driver disconnect provided where required to comply with US and Canadian codes.
Optional nLight® embedded controls continuously monitor system performance and allow for constant lumen management function.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing energy waste created by the traditional practice of over-lighting.
SENSOR — Integrated sensor (individual control): Sensor Switch MSD7 (Passive Infrared (PIR)) integrated occupancy sensor photocell allows the luminaire to power off when the space is unoccupied. See page 4 for more details on the integrated sensor.
Integrated Sensor (nLight Wired Networking): The sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired using CAT-5 cabling with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software. See page 4 for the nLight sensor options.
Interated Smart Sensor (nLight AIR Wireless Platform): The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR or a dual technology occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CLAIRITY, which allows for simple sensor adjustment. See page 4 for more details on the Integrated Smart Sensor.
LISTINGS — CSA certified to meet U.S. and Canadian standards. Suitable for damp location. Patents pending. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-andconditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Embed nLight® controls today. Prepare for tomorrow.
User-friendly install Scalability
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks when ordered with drivers marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stair ways
• Bi-l evel dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
TYPE S SPEC BLUFFS HARBORVIEW
WL4 Wall Bracket & Surface Mount LED
WL4 4' wall-mount LED 20L 2000 lumens
30L 3000 lumens
40L 4000 lumens (blank) MVOLT 347347V
EZ1eldoLED dims to 1%, 0-10V
EZB eldoLED dims to dark, 0-10V
GZ1Dims to 1% (0-10V dimming)2
GZ10 Dims to 10% (0-10V dimming)2
SLD Step-level dimming3
nLight Wired (blank) No nLight control
NES7 nLight® nES 7 PIR integral occupancy sensor 7
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control 7
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell 7 nLight Wireless
RES7 nLight AIR control with PIR integral occupancy sensor and automatic dimming photocell
RES7PDT nLight AIR control with PDT dual technology integral occupancy sensor and automatic dimming photocell
Individual Control
MSD7 Sensor Switch® MSD 7 PIR Integral Occupancy Control 8
(blank) Fixture turns off when unoccupied
DIM10 Fixture dims to approximately 10% light output when unoccupied
DIM50 Fixture dims to approximately 50% light output when unoccupied
NOC NOC Occupancy sensor disabled 10
3000 K
K
4000 K
5000 K
nLight Wired (blank) No nLight® interface
N80 nLight® with 80% lumen management
N80EMG nLight® with 80% lumen management. For use with generator supply EM power 4
N100 nLight® without lumen management
N100EMG nLight® without lumen management. For use with generator supply EM power 4
nLight Wireless (blank) No nLight® interface
NLTAIR2 nLight® Air Generation 2 enabled 5
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK ) 11
E10W Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS, CA Title 20 MAEDBS, User selectable SelfDiagnostic, AC Activate with Integral Test Switch (LINK ) 11
SC Surface conduit end cap provisions
BAA Buy America(n) Act and/or Build America Buy America Qualified
BDP Factory Installed Ballast Disconnect Plug13
Notes
1 Approximate lumen output.
2 Not available with any Controls or sensor options.
3 Not available with nLight Interface or Controls.
4 nLight EMG option requires a connection to existing nLight network. Power is provided from a separate N80 or N100 enabled fixture
5 Must order with RES7, RES7PDT, or module. Only availble with EZ1 driver.
6 See sensor options on page 4.
7 Requires N80, N100, N80EMG, or N100EMG.
8 Not available with nLight options or EZB.
9 Not available with nLight Wireless sensor options.
10 Can only be ordered in conjunction with EZ1, NLTAIR2, RES7/RES7PDT. Occupancy sensor disabled at factory but can be re-enabled upon commissioning.
11 Not available with 347V.
12 For additional paint finishes, refer to Architectural Colors
13 Not available with E10WLCP.
Capable options indicated by this color background.
Photocell controlsModel numberCat-5 cable (plenum rated) Model number
Full range dimmingnCM ADCX RJB10' cable CAT5 10FT J1 30' cable CAT5 30FT J1
nLight ® AIR Control Accessories:
Order as separate catalog number. Visit www.acuitybrands.com/products/controls/nlightair.
Wall switches Model number
On/Off single pole rPODB [color] G2
On/Off two pole rPODB 2P [color] G2
On/Off & raise/lower single polerPODB DX [color] G2
On/Off & raise/lower two polerPODB 2P DX [color] G2
On/Off & raise/lower single polerPODBZ DX WH G2
BLUFFS HARBORVIEW
Select Series Stair Lighter
Wireline Dimensions
Photometric Report
Based on photometric data for TCP item # STR4UZDA4CCT set at 55 watts and 3500K
Polar Graph
Coefficients of Utilization – Zonal Cavity Method
Spacing Criterion (0-180): 1.26
Spacing Criterion (90-270): 1.30
Zonal Lumen Summary
Luminaire Efficiency = N.A.%
TYPE SL SPEC BLUFFS HARBORVIEW
FEATURES & SPECIFICATIONS
INTENDED USE — The 4", 6" and 8" Wafer™ LED Downlight with Switchable White provides high-quality light output and efficiency featuring a switch for easy color temperature adjustment - while eliminating the need for recessed housings. The innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling. The Wafer LED downlight is wet location listed – making it ideal for use in a breadth of outdoor residential, hospitality, commercial and multifamily applications. The LED module maintains at least 70% light output for 50,000 hours.
CONSTRUCTION — Aluminum die cast outer frame. Durable, powder coat paint to prevent rust. FT4 plenum rated cable connector to connect from module to remote driver box. IC rated driver with convenience and value of two remote selectable color temperature options, each with a setting choice to chose either 2700K, 3000K, and 3500K or 3000K, 4000K, and 5000K using the switch. The isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pryout. Suitable for pulling wires with the 12 cubic-inch wiring compartment to accommodate up to (6) 14 gauge insulated conductors, or (4) 12 gauge insulated conductors; making the Wafer LED Downlights much easier to wire in 2in/2out (plus ground) daisy-chain applications and contractor friendly.
INSTALLATION — Ideal for shallow ceiling plenum; no housing required. Steel spring clip for easy installation. 4", 6" or 8" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 4-1/4" for the WF4, 6-1/4" for the WF6 and 8-1/4" for the WF8. Suitable for installation in t-grid and drop ceiling applications. 3" plenum space required for installation of the remote driver box.
OPTICS — Edge-lit LED technology uses light guided plate to distribute light. Polycarbonate lens provides even illumination throughout the space.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) proprietary remote LED driver/splice box, with two (2)additional low-voltage wires for 0-10v dimming, down to 10% (depending on dimmer model and application). High efficient driver with power factor > 0.9. Ambient operating temperature: -40°F (-40°C) to +104°F (+40°C). Replaces 65W incandescent (WF4), 75W incandescent (WF6) or 100W incandescent (WF8).
LISTINGS — CSA certified to US and Canadian safety standards. ENERGY STAR® certified. Wet location. Air Tight certified in accordance with ASTM E283-2004. NOM Certified. Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
4.9 (12.4)
opening: 6 (15.2)
trim: 6.7 (17)
1.1 (2.8)
BLUFFS HARBORVIEW
NEFLINTW-R6MPW
6" FLIN Round Wafer LED Downlight with Selectable CCT
Source: 13.5W Up to 1300lm
PRODUCT DESCRIPTION
FLIN is a thin recessed LED designed for easy installation into new construction or remodel applications. Luminaires include a selectable color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
No housing required and includes junction box with class 2 driver
Quick installation and cost savings
Junction box includes kelvin temperature switch IC Air-Tight rated
Field selectable color temperature
Triac or ELV dimming
cETLus Listed for Wet Locations
· 5-year limited warranty
SPECIFICATION
Construction: Die-cast aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM E283 Air-Tight requirements.
Lens: Regressed lens with sharp baffle cuts reduces aperture brightness. Special polymer lens produces more usable light and lumens per watt.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" trade size and two 3/8" trade size knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box.
[Fixture wire length: 5" and Junction box wire length: 9"]
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 15/16". New construction framein kits are available, see accessories.
Minimum clearance: “IC” Insulated ceiling housings are direct contact rated; no minimum clearance is required.
WF4 WF6 WF8 MVOLT Switchable White 4", 6" or 8" LED Wafer Module
27K30K35K
30K40K50K
2700K/10.5W/730L
3000K/10.5W/800L
3500K/10.5W/780L
3000K/10.5W/750L
4000K/10.5W/810L
5000K/10.5W/790L
3000K/14W/1150L
3500K/14W/1110L
30K40K50K 3000K/14W/1090L 4000K/14W/1190L
5000K/14W/1120L
WF8 8" wafer-thin LED
3000K/20.5W/1800L
3500K/20.5W/1740L
30K40K50K 3000K/20.5W/1690L
4000K/20.5W/1850L
5000K/20.5W/1820L
Accessories: Order as separate catalog number.
WF8643 PAN R6Universal New Construction Pan, Retail Pack of 6
WF8643 PAN UUniversal new construction pan, Unit Pack
WF4 PAN R124" new construction pan, retail pack of 12
WF6 PAN R126" new construction pan, retail pack of 12
WFJB U Remodel joist bar
WFEXC6 SW3PIN FT43-Pin 6ft Cable
WFEXC10 SW3PIN FT43-Pin 10ft Cable
WFEXC20 SW3PIN FT43-Pin 20ft Cable
WF4GR MW 4" round oversized trim ring
WF6GR MW 6" round oversized trim ring
WF8GR MW 8" round oversized trim ring
WF8643 New Construction Pan
Remodel Joist Bar
WFEXC6 Cable
BLUFFS HARBORVIEW
NEFLINTW-R6MPW
6" FLIN Round Wafer LED Downlight Accessories
Oversize Ring for Round
NEFLINTW-6OR-MPW
Oversize ring covers ceiling cut-outs up to 7-1/4”

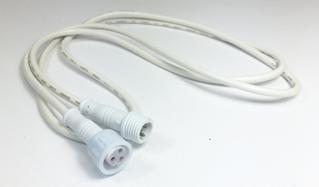

Quick Connect Extension Cables
NEFLINTW-EW-4
NEFLINTW-EW-20
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40’. For longer remote driver remote run length, consult factory.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
Type Project Catalog No. Notes
Universal New Construction Frame-In NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Frame-In with Collar
NQZ-6R-F
TYPE P SPEC BLUFFS HARBORVIEW
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (#316) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) for horizontal wall mount applications. LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Stock configurations are offered for shorter lead times:
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡
MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically. See Accessories and ordering restrictions on next page.
Design Select options indicated by this color background.
BLUFFS HARBORVIEW
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
(0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
TYPE EM SPEC BLUFFS HARBORVIEW
The APEL is an UL 924 listed emergency light with a minimum of 90 minutes of run time and 17 feet of emergency egress coverage. Key features include LED heads, a no maintenance nickel cadmium battery and a five year fixture warranty. The LED heads are fully adjustable to maximize design flexibility while the compact form factor optimizes aesthetics. The universal j-box mounting pattern and snap fit housing construction significantly reduce installation time. The APELH2 versions have remote capacity capable of powering two additional APWR LED heads.
SPECIFICATION FEATURES
Electrical
-Dual Voltage Input 120/277VAC, 60Hz
-240 VAC with 48 hour recharge time
- Line-latching
-Brownout circuit
-Low Voltage Disconnect
-Overload/Short Circuit Protection
- Test Switch/Power connector facilitates installation
-3.6V, .78W DC Long Lasting LED Heads
-Remote capacity option (H2) powers two APWR remotes
Housing Construction
- All components are injectionmolded, color stable, high impact thermoplastic material
-Designer textured finish standard
-Components are of snap-fit construction to facilitate under 5-minute installation
-Reinforcing ribs throughout to provide maximum strength
- Suitable for wall or ceiling mount applications
-Universal J-box mounting pattern
-Keyhole mounting slots
- Aesthetically designed with a thin profile
- Available in white or black color
Battery
-Sealed nickel cadmium
-Maintenance-free, long-life
-Full recharge time: 24 hrs (max.)
-Polarized battery terminals
Code Compliance
-UL 924 Damp Location Listed
-Life Safety NFPA 101
-NEC/OSHA
-Most State and Local Codes
-Operating temperature range 10 °C to 40 °C
-California Energy Code compliant
Head/Lamp Data
-Long Life LED Emergency Heads
- Two heads standard
-Fully adjustable
-High impact thermoplastic
-Matches housing finish
Warranty
-Five-year warranty
-Seven-year prorated battery warranty
BLUFFS HARBORVIEW
NE-700LEDRC
Dual Head LED Emergency Light with Remote Capability
Source: 1W LED 100lm per head
PRODUCT DESCRIPTION
Mini profile LED emergency light with remote capability and self diagnostics. Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power.
FEATURES
Plastic enclosure with 5VA flame retardant
Snap-together design for easy installation
Two fully adjustable glare-free square shape heads
Test switch and charge rate indicator
Maintenance-free, rechargeable Ni-Cad batteries Extra 3.6V battery for 3W remote capabilities
· Self-diagnostic and self-testing unit
Ceiling or wall mounted
Universal 120-277V input
HOUSING
Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Snap-together design for easy installation. Two fully adjustable glare-free square heads for emergency lighting
ELECTRICAL
Input Voltage: 120/277 VAC 60Hz
Lumens / Wattage: (2) 100lm / 1W
Color Temperature: 6000K
Operating Temp.: 10°C to 40°C ambient temperature
Batteries: (2) NiCad 3.6V 3W maintenance-free
OPERATION
Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24 hour maximum recharge time per battery.
REMOTE CAPABILITY
Luminaire includes an additional 3.6V / 3W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, additional battery requires an additional 24 hours to recharge.
MOUNTING
Plastic enclosure includes a top and side knockout for conduit applications. Suitable for wall mount or ceiling mount.
LABELS AND LISTINGS
3 year hour limited warranty
cULus Listed for damp locations
cULus Listed and meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code
Example: NE-700LEDRCW - 2W / 200lm Dual Head LED Emergency Light with Remote Capability, White
The WDGE LED family is designed to meet specifier’s every wall-mounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing true site-wide solution.
WDGE1 delivers up to 2,000 lumens with a soft, nonpixelated light source, creating a visually comfortable environment. The compact size of WDGE1, with its integrated emergency battery backup option, makes it an ideal over-the-door wall-mounted lighting solution.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
engines; see page 3 for details)7 DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately) BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
DSLE Dual Switching (1 Driver, 2 Light Engines)
CCE Coastal Construction4
PEAK
Color Changeable Full Cut-off Wall Pack
MODEL NO.
KEY FEATURES
•Modern rectilinear design
•Multiple distributions option available for different applications
*Delivered lumen may vary, refer to photometric for full performance data
DIMENSIONS
PROJECT/DATE
BLANK
PEAK
Color Changeable Full Cut-off Wall Pack
- (120-277V)
(7100lm, 45W) 110LC (11000lm, 70W)
(277V-480V)**
(General)* C0 - (ON & Off with 0-10V
C1 - (ON & Off with 0-10V driver & integrated photocell)
- (Bi-level Motion Sensor)*
- (Bi-level PIR Sensor)*
AOD (Adjustable Output Device)
Spitzer’s AOD allows us to customize the Wattage and Lumen output to match your exact needs. Talk to your Sales Rep today.
Custom lumens with AOD (please complete the selection when ordering)
TELESIS TEXZ - LED EXIT SIGNS
Universal Mount Edgelit
Economical
Innovative design, contemporary styling and ease of installation make the Telesis the sign of choice for all general interior applications. Slim design lends to the esthetic appeal, while an excellent price point and ease of installation satisfy the needs of distributors and contractors alike.
Soft curves and the low profile create a distinctive “floating” edgelit look. Quality construction includes a satin aluminum extruded housing with a high grade clear acrylic legend. The
• The 2M Double Face Mirror Background panel provides a Mirror reflector sealed between the two exit panels to simulate a clear background for Double Face exits. For field conversion the 2M model also includes a mirror reflector with two adhesive strips that can be applied externally to cover over one exit face to convert to a Single Face Mirror sign. For a purpose sealed Single Face Mirror panel order option TEXR1M or TEXG1M
• Clear acrylic edgelit lens is provided for single face signs and a mirrored background is standard for double face signs
• Unique pivoting housing allows for “hang straight” installation on sloped ceilings
• Universal surface mounting canopy for wall, ceiling, or end mounting
• Self-adhesive Chevron arrows with template enable on-site configuration
• Push to test switch and AC present indicator provided on EM models
• Suitable for indoor damp locations
• Operating temperature range is 10° C to 40° C
Electrical
• Solid state battery charging circuit re-charges the NiCad battery in just 24 hours after a 90 minute discharge
• Long life Nickel Cadmium maintenance free battery provides more than 90 minutes of emergency run time
• Universal 120/277 VAC 60 HZ field selectable input.
• Surge and brown out protection are standard
• Low voltage cut-off prevents battery damage and ensures positive charge acceptance following an extended discharge
Illumination
• Maintenance free LED Light source with low energy consumption and long life
• Red or Green LED’s with 6” letters and 3/4” stroke ensure code compliance
Certification
• Listed to UL 924, meets NFPA 101 Life Safety Code, NFPA 70-NEC and OSHA requirements
• California Energy Commission (CEC) Title 20 Compliant
Warranty
• 3 Year Limited Warranty
BLUFFS HARBORVIEW
Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
Type Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS NX-810-LED /
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6” high and 3/4” thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications.
MOUNTING
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8” profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277V (0.038A / 0.017A)
LED Wattage: 3 Watts normal / 5 Watts emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL
S ta te & Municipal
5 -Year Limited Warranty
C er tified to the energy efficiency standards of California Title 20
Telesis UL wet location listed LED exit signs feature low energy long life LED light sources, in an attractive and economical low profile, tough UV stabilized polycarbonate housing. Telesis wet location exits are single face or double face, and include a low profile mounting canopy and field selectable chevron indicators. Quick connect components provide fast, installer friendly installation and ease of maintenance.
Construction
• Attractive, Low Profile UV Stabilized Polycarbonate housing in a pure White, Black or Gray finish
• Vandal resistant, UV stabilized clear polycarbonate lens fully gasketed for use in wet locations
• Stainless steel captive screws secure the lens cover to the housing
• Single or double face to order, universal mounting canopy and hardware provided
• Universal mounting pattern for wall mount, with Field Selectable Chevron Directional Indicators
• Wet location listed as standard and suitable for NEMA 4X requirements
Electrical
• Exceptionally Low Energy Consumption at < 3.5 Watts avg.
• LED light source with 20+ years life expectancy
• High Intensity LED Array with 6” letter and 3/4” stroke in red or green, providing superior visual brightness and uniformity
• Field Selectable 120 or 277 VAC input
• Available with a full self-test / self-diagnostic option
• Integral AC Present Indicator and Push to Test Switch
• Electronic Control Circuit and Isolation Transformer provide current control and circuit protection ensuring optimum LED efficiency and life
• Maintenance free Nickel Cadmium Battery provides the required 90 minute minimum operating time
• Fully automatic two rate charger recharges the battery in 24 hours
• Operating temperature range -20°C to 50°C
• Low voltage cut-off prevents battery damage and ensures positive charge acceptance following an extended discharge
• Line-latch prevents unnecessary discharge of battery during installation
Certification
• UL 924 listed meets NFPA 101 Life Safety Code, NFPA 70-NEC, and OSHA requirements
• Calfornia Energy Commisison (CEC) Title 20 Compliant
Warranty
• 3 year limited warranty
BLUFFS HARBORVIEW TYPE
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
A+ Capable
indicated by this color background.
BLUFFS HARBORVIEW
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Project
Type
Catalog Number
OPTIONS (Factory Installed)
GL9-MS-MCT LED Selectable Canopy
TYPE PG1 SPEC BLUFFS HARBORVIEW
VCPG LED Parking Garage
Specifications
options
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
A+ Capable
indicated by this color background.
BLUFFS HARBORVIEW
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Type
OPTIONS (Factory Installed)
TYPE A SPEC BLUFFS HARBORVIEW
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Heavy-gauge aluminum housing.
Ceiling mount for direct installation to 4" octagonal or square junction box.
Pendant mount entry for 3/8" National Pipe Thread stem; wires supplied by others.
Textured polyester powder paint finish standard.
Multiple ceiling, pendant, cord, and wall mount options available.
OPTICS — LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available. 347V available option; transformer must be fieldinstalled to an accessible remote-mounted junction box. 0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled. 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional).
GOVERNEMENT PROCUREMENT — BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Design Select options indicated by this color background.
Lead times will vary depending on options selected. Consult with your sales representative.
LDN6CYL
Notes
1 Not available in ACC mount.
2 Not available with finishes.
3 Refer to TECH-240 for compatible dimmers.
4 Supplied with 10ft supply and dimming connections.
5 White cord supplied with white housings. All other finishes supplied with black cord.
6 Must specify voltage 120V or 277V.
NPP16D7,8 nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1).
NPP16DER7,8 nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1). ER controls fixtures on emergency circuit.
NPS80EZER7,8 nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
90CRI High CRI (90+)
WL9 Wet
7 Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
8 Interface remote mounted. Access panel (supplied by others) recommended.
9 Not available with ACC & ACC180 mounting options.
10 Additional architectural colors available; see www.lithonia.com/ archcolors
11 Color and length of stem must be specified (from 6" to 240" in even increments in maximum sections of 48"). Ex.: CYS06 DWHG. Ceiling attachment for interior use. Consult factory for exterior.
12 Must be field-installed to an accessible remote-mounted junction box.
BLUFFS HARBORVIEW
6" High Performance Sapphire III Cylinder
Source: 11W to 58W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED cylinders are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
CONSTRUCTION
Cylinder Cap: High quality 0.040" steel cap with universal slots to allow for direct mounting to junction box for surface mount. Incorporates all thread in the center for the installation of a cable or pendant rod kit for the corresponding mounting method. Three screws on the bottom of cap secure cylinder body to cylinder cap. (Adjustable with flathead screw drive)
Cylinder Body: 0.040" steel cylindrical body with three keyhole slots allowing body to be installed to cylinder cap. Spring brackets accept torsion wing trim springs. Four butterfly clips also accommodated for spring-less trims.
INSTALLATION
Cable Mount: Cylinder comes with 8' of field cuttable aircraft cable and offset cable (5-wire) for power and dimming. Stem Mount: Cylinder includes a swivel canopy and 7' (consisting of (3) 12" and (2) 24") of internally threaded rod. Swivel canopy is compatible with sloped ceilings with a ceiling pitch from 1/12 to 10/12.
Surface & Wall Mount: Cylinder is supplied with hardware to mount directly over junction box.
Emergency: Cylinder can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK-07LEDUNV ). Not compatible with stem mount option.
LISTINGS AND WARRANTY
cULus Listed for Damp Locations (Wall Mount is Wet Location)
· 5-Year Limited Warranty
ENERGY STAR certified
FCC Compliant
PRODUCT IMAGES
Compatible Trim
Delivered Lumens
Color Temperature
NYLS3-6x1L1
NYLS3-6x6L1
NYLS3-6x8L1
NYLS3-6x1L2
NYLS3-6x6L2
NYLS3-6x8L2
NYLS3-6x1L3
NYLS3-6x6L3
NYLS3-6x8L3
NYLS3-6x1L4
NYLS3-6x6L4
NYLS3-6x8L4
NYLS3-6x1L5
NYLS3-6x6L5
NYLS3-6x8L5
NYLS3-6x1L6
900lm1500lm2500lm3500lm4500lm 5500lm
2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 56° Narrow Flood or 72° Flood
Dimming Triac/ELV or 0-10V
Operating Temperature 0°C to 45°C0°C to 45°C0°C to 35°C0°C to 35°C0°C to 25°C0°C to 25°C
= Black / Matte Powder White CC = Clear / Clear † DB = Diffused Clear / Black DD = Diffused Clear / Diffused
DW = Diffused Clear / Matte Powder White
= 6" Sapphire III LED Cylinder, Surface Mount, 120-277V input; 0-10V dimming, 5500lm / 58W, 3000K, Spot Beam Spread, Haze Reflector / Black Flange with
6505 Gayhart Street, Commerce, CA 90040 Tel 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
NO SPEC
BLUFFS HARBORVIEW
NLOPAC-R6REGT24
6” Regressed AC Opal, LED Surface Mount
Source: 13W LED Up to 950lm
PRODUCT DESCRIPTION
Regressed AC Opal Series fixture is designed to surface mount over a standard junction box. Regressed light source gives the appearance of a recessed luminaire.
FEATURES
Recessed appearance
AC LED (No Driver)
2700K, 3000K or 4000K @ 90+ CRI
Can be used with recessed housings when used with optional retrofit kit cETLus Listed for Wet Locations
Certified to the high efficacy requirements of California Title 24 JA8-2022
SPECIFICATION
Construction: One piece die-cast aluminum formed luminaire. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes. Luminaires can also be mounted on 5" or 6" recessed housings using optional torsion spring kit (NLOPAC-56RECKIT-2).
Ratings: IC rated when used with 3" or 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
ELECTRICAL
Input Voltage: 120V
Input Frequency: 50/60Hz
Lumens / Wattage: Up to 950lm / 13W
Color Temperature: 2700K, 3000K, 4000K
Color Rendering Index: 90+ CRI
Beam Spread: 114° Wide Flood
Operating temperature: -20°C to 40°C
Dimming: Triac/ELV
ACCESSORIES
NLOPAC-56RECKIT-2: AC Opal can be mounted in 5" or 6" recessed housings using optional torsion spring kit.
LISTING
cETLus Listed for wet locations
· 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1). FCC Compliant
Color Temperature
NLOPAC-R6REGT2427W = 2700K
NLOPAC-R6REGT2430W = 3000K
NLOPAC-R6REGT2440W = 4000K
Example: NLOPAC-R6REGT2427W = 6" Regressed AC Opal, 2700K, White Finish

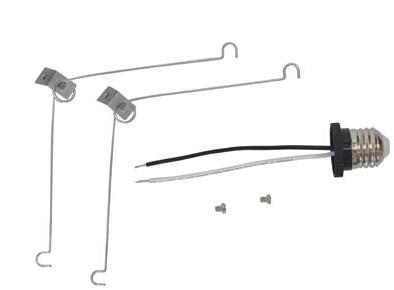

NLOPAC-56RECKIT-2 = Torsion Spring Kit / Recessed Retrofit Kit
6" Regressed AC Opal
NO SPEC
BLUFFS HARBORVIEW TYPE
NLOPAC-R6REGT24
6” Regressed AC Opal, LED Surface Mount
Source: 13W LED Up to 950lm
PRODUCT DESCRIPTION
Regressed AC Opal Series fixture is designed to surface mount over a standard junction box. Regressed light source gives the appearance of a recessed luminaire.
FEATURES
Recessed appearance
AC LED (No Driver)
2700K, 3000K or 4000K @ 90+ CRI
Can be used with recessed housings when used with optional retrofit kit cETLus Listed for Wet Locations
Certified to the high efficacy requirements of California Title 24 JA8-2022
SPECIFICATION
Construction: One piece die-cast aluminum formed luminaire. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes. Luminaires can also be mounted on 5" or 6" recessed housings using optional torsion spring kit (NLOPAC-56RECKIT-2).
Ratings: IC rated when used with 3" or 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
ELECTRICAL
Input Voltage: 120V
Input Frequency: 50/60Hz
Lumens / Wattage: Up to 950lm / 13W
Color Temperature: 2700K, 3000K, 4000K
Color Rendering Index: 90+ CRI
Beam Spread: 114° Wide Flood
Operating temperature: -20°C to 40°C
Dimming: Triac/ELV
ACCESSORIES
NLOPAC-56RECKIT-2: AC Opal can be mounted in 5" or 6" recessed housings using optional torsion spring kit.
LISTING
cETLus Listed for wet locations
· 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1). FCC Compliant
Color Temperature
NLOPAC-R6REGT2427W = 2700K
NLOPAC-R6REGT2430W = 3000K
NLOPAC-R6REGT2440W = 4000K
Example: NLOPAC-R6REGT2427W = 6" Regressed AC Opal, 2700K, White Finish
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
Note: For wet location applications, use NEMA box (by others)
NOTE: Please see our website for updated power supply specifications and information.
BLANK
BLUFFS HARBORVIEW
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CHANNELS - FIT CONNECTORS ON PG. 1
EXTRA DEEP
LED-CHL-XD
LED-CHL-XD-6
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
EXTRA DEEP FLANGED
LED-CHL-XD-F
LED-CHL-XD-F-6
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200 N/A
TYPE F3 SPEC BLUFFS HARBORVIEW
Stretta ST2A
The Stretta universal downlight offers the highest output from the smallest aperture. Stretta is an Italian phrase meaning "narrow" and "tight", it refers to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this light fixture with the perfect combination of features resulting in a sleek, minimalist downlight that makes a statement: elegance in simplicity. Round and square with beveled flange shown above.
MAIN FEATURES
•Universal 4" height housing for all trim types
•Forgiving rotating alignment tabs for perfect installation
•Tool-less and intuitive "hot" aiming
•40° tilt and 360° rotation for optimal adjustability
•Magnetic arm for tool-less module installation
•Built-in accessory holder for field-replaceable lenses and louvers
• Trims/collars embedded with magnetic poles for easy installation
•Notched collars for easy, precise alignment during installation
•Field-swappable modules
•Fully dimmable
•Enhanced 2-step MacAdams Ellipse color binning standard
•New construction ceilings only
•Tool-less driver assembly
POWER SUPPLIES
•Universal Input for all drivers: 120 - 277 Vac
•Proprietary Solais Driver (See page 4 for more info)
•TRIAC, ELV, or 0-10 V Dimming down to 1%
•Lutron Hi-lume® (click for more info)
•Dimming down to 1.0% with Lutron controls
•eldoLED SOLOdrive® (click for more info)
•0-10 V Dimming down to 0.1%
RATINGS + CERTIFICATIONS
•IC rated
• UL listed for dry and damp locations
• UL listed for wet locations with lensed trim or wall wash trim
•Spray foam rated
•Chicago Plenum rated
•Title 24 and JA8 compliant
• Airtight per ASTM E283
• Conforms to Washington State Energy Code
•Contain no lead or mercury
TRIM OFFERINGS
•Shapes: Round or Square
•Ceilings: gypsum, wood, specialty
•Thicknesses: ⅝" gypsum, ¾" for millwork, up to 1 ⅝" for specialty
TRIM TYPES
•Beveled with ⅜" flange or flangeless
•Flat-pinhole with ⅜" flange or flangeless
•Adjustable with ⅜" flange or flangeless
TRIM COLORS
•Perfect White: RAL 9003
•Black: RAL 9005
•Brown: RAL 8017
•Silver: "brushed aluminum" look
•Primer
PERFORMANCE
•Input Power and Delivered Lumens
• 13 W; 900 lumens
• 15 W; 1200 lumens
• 19 W; 1400 lumens
• 25 W; 2000 lumens
BEAM SPREADS
•VNSP - 9° •NFL - 24°
•NSP - 14° •FL - 35°
• SP - 19° •WFL - 60°
COLOR RENDERING
•80+, 90+ or 97+ CRI
• MonoWhite: Solais' exclusive color enhancing technology that intensifies contrast, brightens whites and makes colors pop by bridging the cyan color gap with higher gamut color rendering
COLOR TEMPERATURES
•Standard: 2200K, 2500K, 2700K, 3000K, 3500K or 4000K
•MonoWhite: 3000K or 3500K
•Dim to Warm: 3000K to 1800K
BLUFFS HARBORVIEW
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
Stretta ST2A
COMPONENT DETAILS
Trim Cone Finish PW - Perfect White BK - Black BR - Brown
- Silver
- Primer
Down flangeless
Beveled Adjustable with flange
Beveled Adjustable flangeless
Flat-pinhole Down with flange
Flat-pinhole Down flangeless
*Consult factory for lead time and availability
Notes: 1Dim to Warm available with NFL, FL or WFL and 1400 lumens only.
Mounting Bracket
Hanging Bars
Optional Accessory
Housing and Plate
Rotating Arm Module
Beam Spread 3VNSP - 9° (500 lumens only)
- 14°
/ Delivered Lumens
500 (VNSP only) 900 (SP unavailable)
- 3000K
- 3500K
- 4000K
M - MonoWhite
D - Dim to Warm
/
5
- 3000K
- 3500K 3018 - 3000K to 1800K
CRI, 1400 lumens only
Power Supply (Univ 120 - 277 V)
UNV - Solais 1% Univ Dimming
ES1 - eldoLED SOLOdrive® 0.1% 0-10 V Dimming
LDE1 - Lutron Hi-lume® 1.0% Dimming with Lutron controls
2CRI specification unavailable with MonoWhite or Dim to Warm; 90+ CRI Standard.
3VNSP unavailable with MonoWhite or Dim to Warm.
4MonoWhite and High CRI products produce up to 20% less measured lumens than their standard CCT; Although, perceived lumens will be noticeably higher.
5ST and FT trim options available with BD, BDT, FD and FDT trims only; not available for BA and BAT trims.
6WFL Beam Spread is achieved with NFL optic and WT trim accessory; not available for BA and BAT trims.
Collar
Trim
BLUFFS HARBORVIEW
2" Iolite Accessories
2" Iolite Round Adjustable Cone Reflector
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

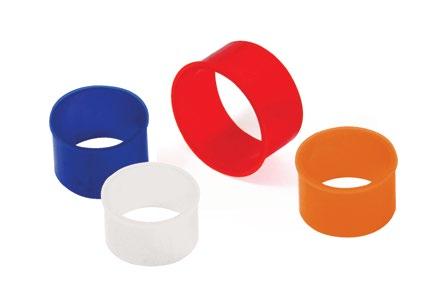

Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with reflector flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims.
Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
nora@noralighting.com
to change without notice.
TYPE F3A SPEC BLUFFS HARBORVIEW
Stretta ST2A
The Stretta universal downlight offers the highest output from the smallest aperture. Stretta is an Italian phrase meaning "narrow" and "tight", it refers to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this light fixture with the perfect combination of features resulting in a sleek, minimalist downlight that makes a statement: elegance in simplicity. Round and square with beveled flange shown above.
MAIN FEATURES
•Universal 4" height housing for all trim types
•Forgiving rotating alignment tabs for perfect installation
•Tool-less and intuitive "hot" aiming
•40° tilt and 360° rotation for optimal adjustability
•Magnetic arm for tool-less module installation
•Built-in accessory holder for field-replaceable lenses and louvers
• Trims/collars embedded with magnetic poles for easy installation
•Notched collars for easy, precise alignment during installation
•Field-swappable modules
•Fully dimmable
•Enhanced 2-step MacAdams Ellipse color binning standard
•New construction ceilings only
•Tool-less driver assembly
POWER SUPPLIES
•Universal Input for all drivers: 120 - 277 Vac
•Proprietary Solais Driver (See page 4 for more info)
•TRIAC, ELV, or 0-10 V Dimming down to 1%
•Lutron Hi-lume® (click for more info)
•Dimming down to 1.0% with Lutron controls
•eldoLED SOLOdrive® (click for more info)
•0-10 V Dimming down to 0.1%
RATINGS + CERTIFICATIONS
•IC rated
• UL listed for dry and damp locations
• UL listed for wet locations with lensed trim or wall wash trim
•Spray foam rated
•Chicago Plenum rated
•Title 24 and JA8 compliant
• Airtight per ASTM E283
• Conforms to Washington State Energy Code
•Contain no lead or mercury
TRIM OFFERINGS
•Shapes: Round or Square
•Ceilings: gypsum, wood, specialty
•Thicknesses: ⅝" gypsum, ¾" for millwork, up to 1 ⅝" for specialty
TRIM TYPES
•Beveled with ⅜" flange or flangeless
•Flat-pinhole with ⅜" flange or flangeless
•Adjustable with ⅜" flange or flangeless
TRIM COLORS
•Perfect White: RAL 9003
•Black: RAL 9005
•Brown: RAL 8017
•Silver: "brushed aluminum" look
•Primer
PERFORMANCE
•Input Power and Delivered Lumens
• 13 W; 900 lumens
• 15 W; 1200 lumens
• 19 W; 1400 lumens
• 25 W; 2000 lumens
BEAM SPREADS
•VNSP - 9° •NFL - 24°
•NSP - 14° •FL - 35°
•SP - 19° •WFL - 60°
COLOR RENDERING
•80+, 90+ or 97+ CRI
• MonoWhite: Solais' exclusive color enhancing technology that intensifies contrast, brightens whites and makes colors pop by bridging the cyan color gap with higher gamut color rendering
COLOR TEMPERATURES
•Standard: 2200K, 2500K, 2700K, 3000K, 3500K or 4000K
•MonoWhite: 3000K or 3500K
•Dim to Warm: 3000K to 1800K
BLUFFS HARBORVIEW
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
Stretta ST2A
COMPONENT DETAILS
Trim Cone Finish PW - Perfect White BK - Black BR - Brown
- Silver
- Primer
Down flangeless
Beveled Adjustable with flange
Beveled Adjustable flangeless
Flat-pinhole Down with flange
Flat-pinhole Down flangeless
*Consult factory for lead time and availability
Notes: 1Dim to Warm available with NFL, FL or WFL and 1400 lumens only.
Mounting Bracket
Hanging Bars
Optional Accessory
Housing and Plate
Rotating Arm Module
Beam Spread 3VNSP - 9° (500 lumens only)
- 14°
/ Delivered Lumens
500 (VNSP only) 900 (SP unavailable)
- 3000K
- 3500K
- 4000K
M - MonoWhite
D - Dim to Warm
/
5
- 3000K
- 3500K 3018 - 3000K to 1800K
CRI, 1400 lumens only
Power Supply (Univ 120 - 277 V)
UNV - Solais 1% Univ Dimming
ES1 - eldoLED SOLOdrive® 0.1% 0-10 V Dimming LDE1 - Lutron Hi-lume® 1.0% Dimming with Lutron controls
2CRI specification unavailable with MonoWhite or Dim to Warm; 90+ CRI Standard.
3VNSP unavailable with MonoWhite or Dim to Warm.
4MonoWhite and High CRI products produce up to 20% less measured lumens than their standard CCT; Although, perceived lumens will be noticeably higher.
5ST and FT trim options available with BD, BDT, FD and FDT trims only; not available for BA and BAT trims.
6WFL Beam Spread is achieved with NFL optic and WT trim accessory; not available for BA and BAT trims.
Collar
Trim
BLUFFS HARBORVIEW
2" Iolite Accessories
2" Iolite Round Adjustable Cone Reflector
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with reflector flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims.
Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
nora@noralighting.com
to change without notice.

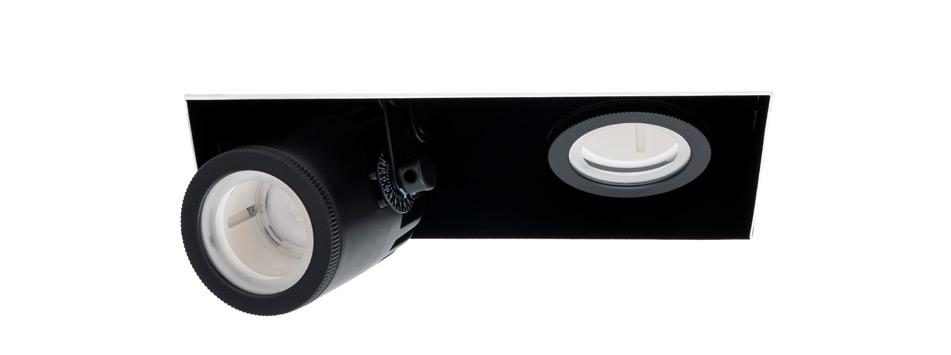

CS ILLUMINATION
: Round; 0.75"-1.38"
: BlackBDM : Beveled Down Microflange
MAIN FEATURES
▪ Designed for remodel installation. New construction tray and Chicago plenum/airtight housing options available
▪ 95 CRI Standard; 98+ CRI option available
▪ Delivering up to 900 lumens at 3000K, 95 CRI and 10W
▪ 40° tilt and 360° rotation for optimal adjustability
▪ Solais’ proprietary driver technology delivers smooth, flicker-free dimming (per IEEE 1789-2015) to 1% via phase-cut or 0-10V
▪ Custom TIR optic platform to ensure excellent light control
▪ Modular platform with easy maintenance for individual components
▪ Fixture accommodates up to 2 accessories. (1 per module and trim) Round and square with beveled flange shown above.
: Honeycomb Louver
: New construction tray (standard brackets)
: 8W EM backup microinverter S1 : Square; 0.5"-0.75"
: Brown
S2 : Square; 0.75"-1.38"
Beveled Down Flangeless
: Beveled Adjustable Flanged
: 3500K
: Linear Spread Lens
Trim Options
: Solite Lens
: New construction tray, pre-installed whip (standard brackets)
NCCW : New construction tray, pre-installed whip (commercial brackets) BAM : Beveled Adjustable Microflange
: Beveled Adjustable Flangeless
: Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
CPCW : Chicago plenum housing, pre-installed whip (commercial brackets)
: Clear Lens
: Linear Spread Lens
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options
Housing and trim can be ordered together or separate, but will always ship separately.
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim
Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI
Solais recommends no lens on trim for best performance
BLUFFS HARBORVIEW
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
CS ILLUMINATION
Stretta ST2A
The Stretta universal downlight offers the highest output from the smallest aperture. Stretta is an Italian phrase meaning "narrow" and "tight", it refers to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this light fixture with the perfect combination of features resulting in a sleek, minimalist downlight that makes a statement: elegance in simplicity. Round and square with beveled flange shown above.
MAIN FEATURES
•Universal 4" height housing for all trim types
•Forgiving rotating alignment tabs for perfect installation
•Tool-less and intuitive "hot" aiming
•40° tilt and 360° rotation for optimal adjustability
•Magnetic arm for tool-less module installation
•Built-in accessory holder for field-replaceable lenses and louvers
• Trims/collars embedded with magnetic poles for easy installation
•Notched collars for easy, precise alignment during installation
•Field-swappable modules
•Fully dimmable
•Enhanced 2-step MacAdams Ellipse color binning standard
•New construction ceilings only
•Tool-less driver assembly
POWER SUPPLIES
•Universal Input for all drivers: 120 - 277 Vac
•Proprietary Solais Driver (See page 4 for more info)
•TRIAC, ELV, or 0-10 V Dimming down to 1%
•Lutron Hi-lume® (click for more info)
•Dimming down to 1.0% with Lutron controls
•eldoLED SOLOdrive® (click for more info)
•0-10 V Dimming down to 0.1%
RATINGS + CERTIFICATIONS
•IC rated
• UL listed for dry and damp locations
• UL listed for wet locations with lensed trim or wall wash trim
•Spray foam rated
•Chicago Plenum rated
•Title 24 and JA8 compliant
• Airtight per ASTM E283
• Conforms to Washington State Energy Code
•Contain no lead or mercury
TRIM OFFERINGS
•Shapes: Round or Square
•Ceilings: gypsum, wood, specialty
•Thicknesses: ⅝" gypsum, ¾" for millwork, up to 1 ⅝" for specialty
TRIM TYPES
•Beveled with ⅜" flange or flangeless
•Flat-pinhole with ⅜" flange or flangeless
•Adjustable with ⅜" flange or flangeless
TRIM COLORS
•Perfect White: RAL 9003
•Black: RAL 9005
•Brown: RAL 8017
•Silver: "brushed aluminum" look
•Primer
PERFORMANCE
•Input Power and Delivered Lumens
• 13 W; 900 lumens
• 15 W; 1200 lumens
• 19 W; 1400 lumens
• 25 W; 2000 lumens
BEAM SPREADS
•VNSP - 9° •NFL - 24°
•NSP - 14° •FL - 35°
• SP - 19° •WFL - 60°
COLOR RENDERING
•80+, 90+ or 97+ CRI
• MonoWhite: Solais' exclusive color enhancing technology that intensifies contrast, brightens whites and makes colors pop by bridging the cyan color gap with higher gamut color rendering
COLOR TEMPERATURES
•Standard: 2200K, 2500K, 2700K, 3000K, 3500K or 4000K
•MonoWhite: 3000K or 3500K
•Dim to Warm: 3000K to 1800K
BLUFFS HARBORVIEW
NIO-4RC
4" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements
New Construction: 45° (800-1000lm) / 28° (1500-2500lm)
Remodel: 35° (800-1000lm)
Compatible Housings
= ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT
Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W NHIOICD-420 = ICAT New Construction / 2000lm / 24W NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W NHIOICD-425 = ICAT
Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Stretta ST2A
Trim Cone Finish
PW - Perfect White BK - Black BR - Brown
SV - Silver PR - Primer
Beveled Down flangeless
Beveled Adjustable with flange 56 BAT
Beveled Adjustable flangeless
Flat-pinhole Down with flange
Flat-pinhole Down flangeless
*Consult factory for lead time and availability
Mounting Bracket
Hanging Bars
Optional Accessory
Housing and Plate
Rotating Arm
Beam Spread
3VNSP - 9° (500 lumens only) NSP - 14°
- 19°
500 (VNSP only)
Notes: 1Dim to Warm available with NFL, FL or WFL and 1400 lumens only.
2CRI specification unavailable with MonoWhite or Dim to Warm; 90+ CRI Standard.
3VNSP unavailable with MonoWhite or Dim to Warm.
WFL - 60° / Delivered Lumens
/
900 (SP unavailable)
- 3500K
- 3000K to 1800K
CRI, 1400 lumens only
Power Supply (Univ 120 - 277 V)
UNV - Solais 1% Univ Dimming
ES1 - eldoLED SOLOdrive® 0.1% 0-10 V Dimming
LDE1 - Lutron Hi-lume® 1.0% Dimming with Lutron controls
4MonoWhite and High CRI products produce up to 20% less measured lumens than their standard CCT; Although, perceived lumens will be noticeably higher.
5ST and FT trim options available with BD, BDT, FD and FDT trims only; not available for BA and BAT trims.
6WFL Beam Spread is achieved with NFL optic and WT trim accessory; not available for BA and BAT trims.
BLUFFS HARBORVIEW
Iolite Accessories
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC
•3W per foot
•UL
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION
White
NV24S-3W-27K-16 16'-4" 215lm 2700K
NV24S-3W-27K-32 32'-8" 215lm 2700K
NV24S-3W-30K-16 16'-4" 230lm 3000K
NV24S-3W-30K-32 32'-8" 230lm 3000K
NV24S-3W-40K-16 16'-4" 215lm 4000K
NV24S-3W-40K-32 32'-8" 215lm 4000K
Colors
NV24S-3W-AM-16 16'-4" N/A Amber
NV24S-3W-AM-32 32'-8" N/A Amber
NV24S-3W-BL-16 16'-4" N/A Blue
NV24S-3W-BL-32 32'-8" N/A Blue
NV24S-3W-GR-16 16'-4" N/A Green
NV24S-3W-GR-32 32'-8" N/A Green
NV24S-3W-RD-16 16'-4" N/A Red
NV24S-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.
▪ IC rated for remodel installations (without tray or housing)
▪ UL listed for dry and damp locations
▪ UL listed for wet locations with lensed trim or wall wash trim
▪ Title 24 and JA8 compliant
▪ Conforms to Washington State Energy Code
▪ Contain no lead or mercury
▪ Spray foam rated with housing option (CPCW only)
▪ Chicago Plenum rated with housing option (CPCW only)
▪ Airtight per ASTM E283 with housing option (CPCW only)
WARRANTY
▪ 5-year warranty
ST2ARM : 2" Downlight
to 0.75"
R2 : Round; 0.75" to 1.38"
: BlackBDM : Beveled Down Microflange
S1 : Square; 0.5" to 0.75" BR : BrownBDT : Beveled Down Flangeless
S2 : Square; 0.75" to 1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
BAT : Beveled Adjustable Flangeless
: Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim
Dim to Warm is 98+ CRI; Unavailable with NSP
2200K, 2500K are only available with '9' and are 90+ CRI
Solais recommends no lens on trim for best performance / / / / /
8655 Corporate Drive Frisco, TX 75033
Stretta: Italian phrase meaning "narrow" and "tight", referring to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this family of fixtures with the perfect combination of features resulting in sleek, minimalist downlights that make a statement: elegance in simplicity.
Round and square with beveled flange shown above.
BLUFFS HARBORVIEW
NIOB-2RPHA
2" Iolite Round Adjustable Pinhole
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Adjustable pinhole focuses the beam spread through small opening.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the luminaire and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Example: NIOB-2RPHA50XBB = 2" Iolite Round Adjustable Pinhole, 5000K, Black Pinhole / Black Flange, 800lm / 14W
▪ IC rated for remodel installations (without tray or housing)
▪ UL listed for dry and damp locations
▪ UL listed for wet locations with lensed trim or wall wash trim
▪ Title 24 and JA8 compliant
▪ Conforms to Washington State Energy Code
▪ Contain no lead or mercury
▪ Spray foam rated with housing option (CPCW only)
▪ Chicago Plenum rated with housing option (CPCW only)
▪ Airtight per ASTM E283 with housing option (CPCW only)
WARRANTY
▪ 5-year warranty
Stretta: Italian phrase meaning "narrow" and "tight", referring to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this family of fixtures with the perfect combination of features resulting in sleek, minimalist downlights that make a statement: elegance in simplicity.
Round and square with beveled flange shown above.
BAM : Beveled Adjustable Microflange
: Beveled Adjustable Flangeless
: Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim
Dim to Warm is 98+ CRI; Unavailable with NSP
2200K, 2500K are only available with '9' and are 90+ CRI
Solais recommends no lens on trim for best performance / / / / /
8655 Corporate Drive Frisco, TX 75033
BLUFFS HARBORVIEW
NIOB-2RPHA
2" Iolite Round Adjustable Pinhole
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Adjustable pinhole focuses the beam spread through small opening.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the luminaire and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Example: NIOB-2RPHA50XBB = 2" Iolite Round Adjustable Pinhole, 5000K, Black Pinhole / Black Flange, 800lm / 14W
Our Perimeter Glow luminaires regress into ceilings at the edges of spaces, providing subtle, even, vertical illumination. Custom lengths and patterns are tailored to suit any modern space.
Dimensions
Optics
Grüv® 2.5”
Recessed Linear LED
PROJECT:
Features
Small in scale, big on performance: Grüv® 2.5” LED, 5 or 10 watts/foot, delivers superior performance that makes it ideal for ambient lighting in ceiling and wall applications. At only 2.5” in width and less than 6” in depth: and providing superior visual aesthetic with snap-in hybrid micro-linear lens Grüv 2.5” LED is big enough for ambient lighting and small enough to add visual accent to your designs.
Product Overview
Type: Recessed Linear, Direct
Wattage: 5W/ft, 10W/ft (other wattages available see p2)
▪ IC rated for remodel installations (without tray or housing)
▪ UL listed for dry and damp locations
▪ UL listed for wet locations with lensed trim or wall wash trim
▪ Title 24 and JA8 compliant
▪ Conforms to Washington State Energy Code
▪ Contain no lead or mercury
▪ Spray foam rated with housing option (CPCW only)
▪ Chicago Plenum rated with housing option (CPCW only)
▪ Airtight per ASTM E283 with housing option (CPCW only)
WARRANTY
▪ 5-year warranty
Stretta: Italian phrase meaning "narrow" and "tight", referring to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this family of fixtures with the perfect combination of features resulting in sleek, minimalist downlights that make a statement: elegance in simplicity.
Round and square with beveled flange shown above.
: Round; 0.75" to 1.38"
: BlackBDM : Beveled Down Microflange
S1 : Square; 0.5" to 0.75" BR : BrownBDT : Beveled Down Flangeless
S2 : Square; 0.75" to 1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
BAT : Beveled Adjustable Flangeless
FD : Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI Solais recommends no lens on trim for best performance
8655 Corporate Drive Frisco, TX 75033
BLUFFS HARBORVIEW
NIOB-2RPHA
2" Iolite Round Adjustable Pinhole
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Adjustable pinhole focuses the beam spread through small opening.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the luminaire and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Example: NIOB-2RPHA50XBB = 2" Iolite Round Adjustable Pinhole, 5000K, Black Pinhole / Black Flange, 800lm / 14W
▪ IC rated for remodel installations (without tray or housing)
▪ UL listed for dry and damp locations
▪ UL listed for wet locations with lensed trim or wall wash trim
▪ Title 24 and JA8 compliant
▪ Conforms to Washington State Energy Code
▪ Contain no lead or mercury
▪ Spray foam rated with housing option (CPCW only)
▪ Chicago Plenum rated with housing option (CPCW only)
▪ Airtight per ASTM E283 with housing option (CPCW only)
WARRANTY
▪ 5-year warranty
Stretta: Italian phrase meaning "narrow" and "tight", referring to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this family of fixtures with the perfect combination of features resulting in sleek, minimalist downlights that make a statement: elegance in simplicity.
Round and square with beveled flange shown above.
: Round; 0.75" to 1.38"
BlackBDM : Beveled Down Microflange
S1 : Square; 0.5" to 0.75" BR : BrownBDT : Beveled Down Flangeless
S2 : Square; 0.75" to 1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
BAT : Beveled Adjustable Flangeless
FD : Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI Solais recommends no lens on trim for best performance
8655 Corporate Drive Frisco, TX 75033
BLUFFS HARBORVIEW
NIOB-2RPHA
2" Iolite Round Adjustable Pinhole
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Adjustable pinhole focuses the beam spread through small opening.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the luminaire and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Example: NIOB-2RPHA50XBB = 2" Iolite Round Adjustable Pinhole, 5000K, Black Pinhole / Black Flange, 800lm / 14W
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
CERTIFICATION
•ETL (12V) / UL (24V)
•Title 24 compliant when used with used with specific drivers. Consult factory
•Class 2
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC
•3W per foot
•UL
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION
White
NV24S-3W-27K-16 16'-4" 215lm 2700K
NV24S-3W-27K-32 32'-8" 215lm 2700K
NV24S-3W-30K-16 16'-4" 230lm 3000K
NV24S-3W-30K-32 32'-8" 230lm 3000K
NV24S-3W-40K-16 16'-4" 215lm 4000K
NV24S-3W-40K-32 32'-8" 215lm 4000K
Colors
NV24S-3W-AM-16 16'-4" N/A Amber
NV24S-3W-AM-32 32'-8" N/A Amber
NV24S-3W-BL-16 16'-4" N/A Blue
NV24S-3W-BL-32 32'-8" N/A Blue
NV24S-3W-GR-16 16'-4" N/A Green
NV24S-3W-GR-32 32'-8" N/A Green
NV24S-3W-RD-16 16'-4" N/A Red
NV24S-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.
Amber 3000K
Blue Green Red
SideFlex Cutaway
BLANK
BLUFFS HARBORVIEW
NeoVision24 SideFlex
Flexible Neon LED Tape Specification Sheet
CONNECTORS AND ACCESSORIES
NV24S-PF-EF8
NV24S-PF-BF8
NV24S-SP
NV24S-CHL-A4
NV24S-CHL-A6
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.
Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 6 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"
NV24S-FLEX-CHL Flexible Mounting Channel, 39.5"
NV24S-EC End Cap
NV24-CT
Tape Cutting Tool
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 SideFlex Neon Tape and are ordered separately.
Splice Connector
NV24S-SP
NV24S-EC
Bottom Feed
NV24S-PF-BF8
Tape Configuration Example
Aluminum Channel
NV24S-CHL-A4
NV24S-CHL-A6
2-1/2" Minimum Bend Radius
NV24S-CHL-A4
NV24S-CHL-A6
NOTE: Each run requires an end cap (sold separately)
NV24S-FLEX-CHL
NV24S-EC
NV24S-PF-EF8 End Cap
NV24S-SP
Mounting Clips
NV24S-MC-A
Tape-to-Tape Connector
NV24S-TTC12 |
NV24S-TTC6
NV24S-TTC24
Flexible Mounting Channel
NV24S-FLEX-CHL
NV24S-PF-EF8
NV24S-EC
NV24S-MC-A
NV24S-FLEX-CHL
NV24S-PF-BF8
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
NV24S-CHL-A4
NV24S-CHL-A6
CS ILLUMINATION
• For use with C.R. Laurence handrail or hardware designed and manufactured to appropriate specifications
• Installer is responsible for confirming field measurements.
• iLight provides LED light engine, housing, lens, and connection hardware. Handrail and additional hardware to be supplied by others (by C.R. Laurence when specified)
• Easy to assemble and install
• Multiple handrail diameter options
• Dimmable
• Meets A.D.A requirements for handrail diameters
Technical
• Cap Rail Housing available in 1' increments up to 6'. Cap Rail Housing, LED Light Engine, and Lens are field cuttable in 4" increments.
• Max run length in Series of 10'. Max total run length per power supply of 20'.
• 80 CRI+
• 50,000 hour LED life
• Low voltage 24VDC, Class 2
• Cool to the touch
• Suitable for wet locations
• Proven high quality
• 5 year warranty
iLight Handrail Handrail White
RL SERIES - LED Handrail Lights
RLR242 - LED Round Handrail Lights
Date:Job: Type:
Notes:
Quantity:
The RLR242 handrail lights for round handrails add a discreet in-rail lighting solution for walkways and stairs. Symmetric and asymmetric beam spreads along with CCT, single colors including turtle friendly amber, RGBW and self-addressing RGBDMX options cover most handrail applications.
BLANK
Technical Specifications:
Operating Voltage
Power Consumption - Single Color / RGBW / RGBDMX 1.5W / 2.5W / 2W
Lens Material - Symmetrical / Asymmetrical PMMA / Polycarbonate
Vandal Resistance Rating IK10
Maximum # of Fixtures 50pcs (20 AWG + 96W Driver)
Warranty 5 years
Distributions:
BLANK
Ordering Code:
HANDRAIL SIZE
- 1.50” (38mm) dia. 0.120” Wall Tube
- 1.66” (42mm) dia. Schedule 40 Pipe
- 1.90” (48mm) dia. Schedule 40 Pipe Dimensions:
NO SPEC
NO SPEC
BLUFFS HARBORVIEW
Carisma 2”
Linear Direct/Indirect
PROJECT:
Features
TYPE:
Carisma Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type: Direct/Indirect distributrion with Pendant or Wall Mounting
Performance lens down/Batwing lens up
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard)
Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
Dimming (wireless): Enlighted Sensor
Lutron Athena (integral wireless RF node)
Fixture Summary
Performance Data
Certifications
Data is based on 4’ fixture, 3500K-80 120V IES files available on website.
Electrical Data Runs
Individual Runs: 2’ - 8’ (specify in 1’ increments)
Continuous Runs: > 8’ (specify to the nearest foot).
Custom: Made to measure lengths available (specify to nearest 1/8” of field dimensions). Requires approval drawings. Added cost & lead time.
Electronic multi-volt (120-277VAC), constant current LED driver.
Standard Patterns
CAR2-DI
CS ILLUMINATION
customization:
Customization is always encouraged. Please feel free to inquire about any interesting designs or specifcations that might be appealing. We are excited to help bring your vision to light.
Carisma 2”
Linear Direct/Indirect
4
PL performance lens
ASY asymmetric lens
Pendant Mount (aircraft cable suspension)
ASW04 through ceiling tile or gyp board, white, 4’*
ASW10 through ceiling tile or gyp board, white, 10’ Indirect
BAT batwing lens
2 dual circuit, direct & indirect controlled independently 10/10
ASW20 through ceiling tile or gyp board, white, 20’
ASB04 through ceiling tile or gyp board, black, 4’*
ASB10 through ceiling tile or gyp board, black, 10’
ASB20 through ceiling tile or gyp board, black, 20’
ASW04T over ceiling tee, white, 4’*
ASW10T over ceiling tee, white, 10’
ASW20T over ceiling tee, white, 20’
ASB04T over ceiling tee, black, 4’*
ASB10T over ceiling tee, black, 10’
ASB20T over ceiling tee, black, 20’
* 4’ (xxx04) is standard length, other lengths are additional charge
4000K-80+ 359 3500K-90+ ST silver texture
Note: 3’ & below lengths must use single circuit. 10/5 409 4000K-90+ For other RAL color, consult factory Optional
Specify both direct & indirect wattages, each between 3 & 10 W/ft.
Note: If specifying different wattage for direct & indirect, then must specify dual circuit,
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
BLUFFS HARBORVIEW
Carisma 2”
Linear Direct
PROJECT:
Features
TYPE:
Carisma Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
Individual Runs: 2’ - 8’ (specify in 1’ increments)
Continuous Runs: > 8’ (specify to the nearest foot).
Custom: Made to measure lengths available (specify to nearest 1/8” of field dimensions). Requires approval drawings. Added cost & lead time.
Data is based on 4’ fixture, 3500K-80 120V IES files available on website.
Electrical Data
Electronic multi-volt (120-277VAC), constant current LED driver.
Standard Patterns
CAR2-D
CS ILLUMINATION
customization:
Customization is always encouraged. Please feel free to inquire about any interesting designs or specifcations that might be appealing. We are excited to help bring your vision to light.
Carisma 2”
Linear Direct
8 Length
Length A Length B Length C
- all patterns - all patterns - PU
- IND - PR (2 lengths of 2) - PZ
- CON
- CUS
ASW04 through ceiling tile or gyp board, white,
ASW10 through ceiling tile or gyp board, white, 10’
ASW20 through ceiling tile or gyp board, white, 20’
ASB04 through ceiling tile or gyp board, black, 4’*
ASB10 through ceiling tile or gyp board, black, 10’
ASB20 through ceiling tile or gyp board, black, 20’
ASW04T over ceiling tee, white, 4’*
ASW10T over ceiling tee, white, 10’
ASW20T over ceiling tee, white, 20’
ASB04T over ceiling tee, black, 4’*
ASB10T over ceiling tee, black, 10’
ASB20T over ceiling tee, black, 20’ * 4’ (xxx04) is standard length, other lengths are additional charge
9 Configuration
IND1 individual fixture, 2’ to 8’ in 1’ increments
PZ Z shape, (3) straight lengths + (2) 90° corners x x
CON continuous run > than 8’, specify to nearest foot
CUS custom made to measure lengths (specify to nearest 1/8” of field dimensions)
Standard Patterns (see pg 6 for details)
PLL L left, (2) straights + (1) 90° corner, leg right
PLR L right, (2) straights + (1) 90° corner, leg left
PU U shape, (3) straight lengths + (2) 90° corners
▪ IC rated for remodel installations (without tray or housing)
▪ UL listed for dry and damp locations
▪ UL listed for wet locations with lensed trim or wall wash trim
▪ Title 24 and JA8 compliant
▪ Conforms to Washington State Energy Code
▪ Contain no lead or mercury
▪ Spray foam rated with housing option (CPCW only)
▪ Chicago Plenum rated with housing option (CPCW only)
▪ Airtight per ASTM E283 with housing option (CPCW only)
WARRANTY
▪ 5-year warranty
Stretta: Italian phrase meaning "narrow" and "tight", referring to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this family of fixtures with the perfect combination of features resulting in sleek, minimalist downlights that make a statement: elegance in simplicity.
Round and square with beveled flange shown above.
: Round;
to 1.38"
S1 : Square; 0.5" to 0.75" BR : BrownBDT : Beveled Down Flangeless
S2 : Square; 0.75" to 1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
: Beveled Adjustable Flangeless
FD : Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim
Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI Solais recommends no lens on trim for best performance
8655 Corporate Drive Frisco, TX 75033
BLUFFS HARBORVIEW
NIOB-2SNDSQ
2" Iolite Square Reflector with Square Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
▪ IC rated for remodel installations (without tray or housing)
▪ UL listed for dry and damp locations
▪ UL listed for wet locations with lensed trim or wall wash trim
▪ Title 24 and JA8 compliant
▪ Conforms to Washington State Energy Code
▪ Contain no lead or mercury
▪ Spray foam rated with housing option (CPCW only)
▪ Chicago Plenum rated with housing option (CPCW only)
▪ Airtight per ASTM E283 with housing option (CPCW only)
WARRANTY
▪ 5-year warranty
: Round;
S1 : Square; 0.5" to 0.75"
Stretta: Italian phrase meaning "narrow" and "tight", referring to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this family of fixtures with the perfect combination of features resulting in sleek, minimalist downlights that make a statement: elegance in simplicity.
Round and square with beveled flange shown above.
: BlackBDM : Beveled Down Microflange
: BrownBDT : Beveled Down Flangeless
S2 : Square; 0.75" to 1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
BAT : Beveled Adjustable Flangeless
FD : Flat Pinhole Down Flanged
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI Solais recommends no lens on trim for best performance
8655 Corporate Drive Frisco, TX 75033
BLUFFS HARBORVIEW
NIOB-2SNDSQ
2" Iolite Square Reflector with Square Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Our Easy Cove luminaires are designed for quick, simple installation in custom or prefabricated architectural coves.
Dimensions
Representative distribution and peak candela. For other options see order information or IES files here
Optics
BLUFFS HARBORVIEW
LTR-P Professional Series
5.8W, 24VDC LED Tape
Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
•24V
•5.8 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
CLOSET
TYPE F18 SPEC BLUFFS HARBORVIEW
Reverse Phase 1% (120V only) For compatible dimmers see here Forward Phase (120V only) For compatible dimmers see here
Lutron Digital EcoSystem DALI-2 driver Power over ethernet. Dual channel, 0-10V for tunable white. 0-10V warm dim DMX512 All DMX drivers set to default address 001 and provided in remote enclosers. Contact us for other addressing needs
LED-CHL2-6-WH White channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2-6-BK Black channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2 LENS-4-BK Lens in black for LED-CHL2-4
LED-CHL2 LENS-6-BK Lens in black for LED-CHL2-6
LED-CHL2-ECG (2) End caps for LED-CHL2-CA: light gray, one solid, one with hole
LED-CHL2-ECW (2) End caps for LED-CHL2-WH: white, one solid, one with hole
LED-CHL2-ECB (2) End caps for LED-CHL2-BK: black, one solid, one with hole
LED-CHL2-MC (2) Mounting clips and (2) screws
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws
Magneto Recessed
Magnetic track system
Magneto is an innovative and dynamic track system designed for ease and flexibility. Featuring snap-in magnetic mounting that allows you to rearrange several different modules. Fully customizable to suit your specific needs.
BLUFFS HARBORVIEW
VENTRIX
Example: S2CL04-FE-BK Example: S2CL08-BK
PRODUCT DESCRIPTION
The only lighting, power, and control system complete with lighting elements designed for discriminating performance. Configure VENTRIX for your retail, restaurant, commercial office, or residential lighting plan without custom lead times - get exactly what you want, when you want it.
FEATURES
• Heavy duty grade 48VDC trimless recessed channel with data bus.
• Operating Current: Max circuit is rated 12.5A
• Magnetic infrastructure allows you to slide elements within the VENTRIX and adjust lighting effects while powered
• Black copper bus bars for power and communications
• 5 Year warranty
SPECIFICATIONS
Construction:
Input:
Mounting:
Finish:
Standards:
Extruded aluminum with solid copper alloy bus bars 48 VDC
Recessed into drywall, can be mounted on ceiling or wall vertically or horizontally
Electrostatically Powder Coated Black UL, cUL, Dry Location Listed, IC
Project:
Location:
FINISHES
LINE DRAWING
Magneto Recessed Track
BLUFFS HARBORVIEW
VENTRIX
Recessed Trimless Channels
CHANNEL COVER
Example: S2C-COV08-BK
CONNECTORS
Example: S2CRS-I-BK
Channel Cover 8ft 8ft length may be field cut, Suitable for bottom channel coverage.
Accessories
Feed End Junction Box
5in junction box with side and top knockouts. Includes BK and WT covers
I Connector with Feed
Feeds and joins two sections of channel with electrical continuity. Includes field cuttable 96" wire and conduit.
I Connector
Joins two sections of channel with electrical continuity
Dead I Connector
Joins two sections of channel without electrical continuity
Below Bus Bar I Connector
Joins two sections of field cut channel with electrical continuity. Installs onto underside of channel bus bar for interrputed bus bar
End Cap
Additional end cap
L Connector
Use to join two sections 90°. I connectors sold seperately.
T Connector
Use to join three sections. I connectors sold seperately.
X Connector
Use to join four channel sections. I connectors sold seperately.
Inside Corner
Joins ceiling to wall sections. I connectors sold seperately.
Outside Corner
Joins wall to wall sections. I connectors sold seperately.
Surface/Suspended to Recessed Corner
Joins suspended or surface mounted channel to recessed trimless channel. I connectors sold seperately.
Fixture Type:
Catalog Number:
Project:
Location:
Model Finish
S2C-COV08 BK WT Black White
BK Black
S2CSR-I BK Black
S2C-ID BK Black
S2C-IB BK Black
S2CL-EC BK Black
S2CL-L BK Black
S2CL-T BK Black
S2CL-X BK Black
S2CL-IC BK Black
S2CL-OC BK Black
S2CPSL-IC BKBK WTBK Black Surface/Suspended, Black Recessed White Surface/Suspended, Black Recessed
S2CL-FEB
S2CR-FI
BLANK
BLUFFS HARBORVIEW
VENTRIX
Recessed Trimless Channels
SUSPENSION HARDWARE
Example: S2CR-CLIP-BK
Mount Clip
Support recessed channel with 1/4 - 20 threaded rod (rod by others)
Cable Suspension
Suspend channel from plenum ceiling. Includes 96in aircraft cable; may be field cut
Stem Suspension
Suspend channel from plenum ceiling. Includes two 48in stem; may be field cut
Suspension Loop
Mechanical loop Supports up to 15 lb
Fixture Type:
Catalog Number:
Project:
Location:
BK NI Black Nickel
BK WT Black White
BK Black
S2CR-CLIP BK Black
S2C-C96
S2C-S96
S2C-LOOP
BLANK
Trimless Channels BLUFFS HARBORVIEW
VENTRIX
Recessed
BUILD IT
CHOOSE YOUR CHANNELS AND CONNECTORS
• Power feed from feed end channel or feed end junction box to energize your run.
Fixture Type:
Catalog Number:
Project:
Location:
• Support VENTRIX with screws into rear blocking, 1/4"-20 tie rod (by others), or stem or aircraft cables to plenum ceiling.Minimum two supports per 4ft section. Minimum three supports per 6ft, 8ft and 12ft section.
• For patterns, choose L, T, X, or corners and I connector sold separately.
Note: VENTRIX is field cut at end of run or between channels using below bus bar connector S2C-IB-BK. For patterns and custom length channels, consult factory.
CHOOSE YOUR ELEMENTS
• Refer to element specifications to appropriately select elements.
• Total the wattage of the system.
CHOOSE YOUR CONNECTED POWER UNIT (CPU)
• Select remote mount CPU.
• Select appropriate wattage based on total system wattage. Note: recommended sizing up as feasible for increased system capability.
ACCESSORIZE
• Add channel covers, lenses, or glare control accessories as desired.
A S2CL08-FE 8FT FEED END RECESSED TRIMLESS CHANNEL G S2CL-OC RECESSED TRIMLESS OUTSIDE CORNER
B S2CL04 4FT RECESSED TRIMLESS CHANNEL H S2CR-CLIP 1/4"-20 TIE ROD MOUNTING CLIP
C S2CL08 8FT RECESSED TRIMLESS CHANNEL I S2C-C96 CABLE SUSPENSION
D S2CSR-I I CONNECTOR J S2C-S96 STEM SUSPENSION
E S2CL-IC RECESSED TRIMLESS INSIDE CORNER K S2CPU-R600-S-BK REMOTE CPU
F S2CL-L RECESSED TRIMLESS L CONNECTOR L BY OTHERS FIELD WIRING TO CPU
CS ILLUMINATION
Features
• Magnetically held and easily repositioned on site
• Available in lengths up to 8' (6'' increments)
• Extruded, recycled, premium aluminum housing
• Aluminum core LED boards, specifiable optics
• Specifiable color temperature. CRI > 90, R9 >50
• 5 Year, 50,000 hour warranty
Sharp module
The Sharp module uses specially designed beam shaping optical cells for glare free and effective lighting.
Multi Stealth Downlights feature a quiet aperture for a nearly glare free environment. With multiple lumen packages, beam and finish options, these downlights complement other elements in your VENTRIX array. Three output selections provide up to 1120 lumens per foot.
FEATURES
• Three power levels for precision output
• Low glare multi-cell trim with 40° cutoff angle
• Interchangeable trim available in 5 finishes
• May be installed side by side for seamless appearance
• To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction Extrudedaluminumwithinjectionmoldedlowglaretrim Power: 3.5W,5W,5.5W,6W,8W,10W,10.5W,15.5W,21.5W
• Magnetically held and easily repositioned on site
• Available in lengths up to 8' (5.5'' increments)
• Extruded, recycled, premium aluminum housing
• Specifiable color temperature. CRI > 90, R9 >50
• 5 Year, 50,000 hour warranty
Linear bevel module is available in custom lengths and colors for general and task lighting with reduced glare.
Dimensions
BLUFFS HARBORVIEW
VENTRIX
Regressed Direct Element
Model&sizePowerWattBeam
Fixture Type:
Catalog Number:
Project:
Location:
S2DR1212" 1 7W F95° 9272700K-90 310 BKBlack
17W F95° 9303000K-90 330
17W F95° 9353500K-90 340
17W F95° 9404000K-90 350
210WF95° 9272700K-90 450
210WF95° 9303000K-90 470
210WF95° 9353500K-90 490
210WF95° 9404000K-90 500
314.5WF95° 9272700K-90 610
314.5WF95° 9303000K-90 640
314.5WF95° 9353500K-90 670
314.5WF95° 9404000K-90 690
S2DR2424"
112.5WF95° 9272700K-90 650
112.5WF95° 9303000K-90 690
112.5WF95° 9353500K-90 720
112.5WF95° 9404000K-90 740
218.5WF95° 9272700K-90 930
218.5WF95° 9303000K-90 980
218.5WF95° 9353500K-90 1030
218.5WF95° 9404000K-90 1050
327WF95° 9272700K-90 1250
327WF95° 9303000K-90 1310
327WF95° 9353500K-90 1380
327WF95° 9404000K-90 1410
S2DR4848" 124.5WF95° 9272700K-90 1310
124.5WF95° 9303000K-90 1380
124.5WF95° 9353500K-90 1450
124.5WF95° 9404000K-90 1470
237WF95° 9272700K-90 1860
237WF95° 9303000K-90 1960
237WF95° 9353500K-90 2050
237WF95° 9404000K-90 2090
353WF95° 9272700K-90 2500
353WF95° 9303000K-90 2630
353WF95° 9353500K-90 2760
353WF95° 9404000K-90 2810
Example: S2DR12-1-F927BK
DESCRIPTION
The only lighting, power, and control system complete with lighting elements designed for discriminating performance. Configure VENTRIX for your retail, restaurant, commercial office, or residential lighting plan.
FEATURES
• Reduced glare linear line of light with deep cutoff
• To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction Extrudedaluminumwithpolycarbonateendcapsandlens
The Stretta universal downlight offers the highest output from the smallest aperture. Stretta is an Italian phrase meaning "narrow" and "tight", it refers to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this light fixture with the perfect combination of features resulting in a sleek, minimalist downlight that makes a statement: elegance in simplicity.
MAIN FEATURES
•Universal 4" height housing for all trim types
•Forgiving rotating alignment tabs for perfect installation
•Tool-less and intuitive "hot" aiming
•40° tilt and 360° rotation for optimal adjustability
•Magnetic arm for tool-less module installation
•Built-in accessory holder for field-replaceable lenses and louvers
• Trims/collars embedded with magnetic poles for easy installation
•Notched collars for easy, precise alignment during installation
•Field-swappable modules
•Fully dimmable
•Enhanced 2-step MacAdams Ellipse color binning standard
•New construction ceilings only
•Tool-less driver assembly
POWER SUPPLIES
•Universal Input for all drivers: 120 - 277 Vac
•Proprietary Solais Driver (See page 4 for more info)
•TRIAC, ELV, or 0-10 V Dimming down to 1%
•Lutron Hi-lume® (click for more info)
•Dimming down to 1.0% with Lutron controls
•eldoLED SOLOdrive® (click for more info)
•0-10 V Dimming down to 0.1%
RATINGS + CERTIFICATIONS
•IC rated
• UL listed for dry and damp locations
• UL listed for wet locations with lensed trim or wall wash trim
•Spray foam rated
•Chicago Plenum rated
•Title 24 and JA8 compliant
• Airtight per ASTM E283
• Conforms to Washington State Energy Code
•Contain no lead or mercury
Round and square with beveled flange shown above.
TRIM OFFERINGS
•Shapes: Round or Square
•Ceilings: gypsum, wood, specialty
•Thicknesses: ⅝" gypsum, ¾" for millwork, up to 1 ⅝" for specialty
TRIM TYPES
•Beveled with ⅜" flange or flangeless
•Flat-pinhole with ⅜" flange or flangeless
•Adjustable with ⅜" flange or flangeless
TRIM COLORS
•Perfect White: RAL 9003
•Black: RAL 9005
•Brown: RAL 8017
•Silver: "brushed aluminum" look
•Primer
PERFORMANCE
•Input Power and Delivered Lumens
• 13 W; 900 lumens
• 15 W; 1200 lumens
• 19 W; 1400 lumens
• 25 W; 2000 lumens
BEAM SPREADS
•VNSP - 9° •NFL - 24°
•NSP - 14° •FL - 35°
•SP - 19° • WFL - 60°
COLOR RENDERING
•80+, 90+ or 97+ CRI
• MonoWhite: Solais' exclusive color enhancing technology that intensifies contrast, brightens whites and makes colors pop by bridging the cyan color gap with higher gamut color rendering
COLOR TEMPERATURES
•Standard: 2200K, 2500K, 2700K, 3000K, 3500K or 4000K
•MonoWhite: 3000K or 3500K
•Dim to Warm: 3000K to 1800K
BLUFFS HARBORVIEW
NIOB-2RPHA
2" Iolite Round Adjustable Pinhole
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Adjustable pinhole reflector focuses the beam spread through small opening.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C ambient temperature
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28
ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
ENERGY STAR certified 5-Year Limited Warranty
· RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
Stretta ST2A
COMPONENT DETAILS
Trim Cone Finish
PW - Perfect White
BK - Black BR - Brown
SV - Silver
PR - Primer
Down flangeless
56 BA
Beveled Adjustable with flange
56 BAT
Beveled Adjustable flangeless
FD
Flat-pinhole Down with flange FDT
Flat-pinhole Down flangeless
*Consult factory for lead time and availability
Notes: 1Dim to Warm available with NFL, FL or WFL and 1400 lumens only.
3VNSP unavailable with MonoWhite or Dim to Warm.
Mounting Bracket
Hanging Bars
Optional Accessory
Housing and Plate
Rotating Arm
Spread
- 9° (500 lumens only)
/ Delivered Lumens 500 (VNSP only)
(SP unavailable)
/
2CRI specification unavailable with MonoWhite or Dim to Warm; 90+ CRI Standard.
Power Supply (Univ 120 - 277 V)
UNV - Solais 1% Univ Dimming
ES1 - eldoLED SOLOdrive® 0.1% 0-10 V Dimming
LDE1 - Lutron Hi-lume® 1.0% Dimming with Lutron controls
4MonoWhite and High CRI products produce up to 20% less measured lumens than their standard CCT; Although, perceived lumens will be noticeably higher.
5ST and FT trim options available with BD, BDT, FD and FDT trims only; not available for BA and BAT trims.
6WFL Beam Spread is achieved with NFL optic and WT trim accessory; not available for BA and BAT trims.
BLUFFS HARBORVIEW
2" Iolite Accessories
2" Iolite Round Adjustable Pinhole
FIELD CHANGEABLE OPTICS
Type Project
Catalog No.
Notes
Iolite reflectors include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast reflector. Replacement optics include an optional frosted lens. Note: Frosted filter-optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Filter-Optic
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast reflector. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Reflector
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
FLUSH MOUNT
2" Iolite reflectors can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring. LED Module Accessory
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with reflector flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R reflectors.
The Stretta universal downlight offers the highest output from the smallest aperture. Stretta is an Italian phrase meaning "narrow" and "tight", it refers to a musical composition performed with an acceleration in tempo to end in a crescendo. Solais created this light fixture with the perfect combination of features resulting in a sleek, minimalist downlight that makes a statement: elegance in simplicity.
MAIN FEATURES
•Universal 4" height housing for all trim types
•Forgiving rotating alignment tabs for perfect installation
•Tool-less and intuitive "hot" aiming
•40° tilt and 360° rotation for optimal adjustability
•Magnetic arm for tool-less module installation
•Built-in accessory holder for field-replaceable lenses and louvers
• Trims/collars embedded with magnetic poles for easy installation
•Notched collars for easy, precise alignment during installation
•Field-swappable modules
•Fully dimmable
•Enhanced 2-step MacAdams Ellipse color binning standard
•New construction ceilings only
•Tool-less driver assembly
POWER SUPPLIES
•Universal Input for all drivers: 120 - 277 Vac
•Proprietary Solais Driver (See page 4 for more info)
•TRIAC, ELV, or 0-10 V Dimming down to 1%
•Lutron Hi-lume® (click for more info)
•Dimming down to 1.0% with Lutron controls
•eldoLED SOLOdrive® (click for more info)
•0-10 V Dimming down to 0.1%
RATINGS + CERTIFICATIONS
•IC rated
• UL listed for dry and damp locations
• UL listed for wet locations with lensed trim or wall wash trim
•Spray foam rated
•Chicago Plenum rated
•Title 24 and JA8 compliant
• Airtight per ASTM E283
• Conforms to Washington State Energy Code
•Contain no lead or mercury
Round and square with beveled flange shown above.
TRIM OFFERINGS
•Shapes: Round or Square
•Ceilings: gypsum, wood, specialty
•Thicknesses: ⅝" gypsum, ¾" for millwork, up to 1 ⅝" for specialty
TRIM TYPES
•Beveled with ⅜" flange or flangeless
•Flat-pinhole with ⅜" flange or flangeless
•Adjustable with ⅜" flange or flangeless
TRIM COLORS
•Perfect White: RAL 9003
•Black: RAL 9005
•Brown: RAL 8017
•Silver: "brushed aluminum" look
•Primer
PERFORMANCE
•Input Power and Delivered Lumens
• 13 W; 900 lumens
• 15 W; 1200 lumens
• 19 W; 14 00 lumens
• 25 W; 2000 lumens
BEAM SPREADS
•VNSP - 9° •NFL - 24°
•NSP - 14° •FL - 35°
•SP - 19° •WFL - 60°
COLOR RENDERING
•80+, 90+ or 97+ CRI
• MonoWhite: Solais' exclusive color enhancing technology that intensifies contrast, brightens whites and makes colors pop by bridging the cyan color gap with higher gamut color rendering
COLOR TEMPERATURES
•Standard: 2200K, 2500K, 2700K, 3000K, 3500K or 4000K
•MonoWhite: 3000K or 3500K
•Dim to Warm: 3000K to 1800K
BLUFFS HARBORVIEW
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
Trim Cone Finish PW - Perfect White BK - Black BR - Brown
- Silver
- Primer
Down flangeless
Beveled Adjustable with flange
Beveled Adjustable flangeless
Flat-pinhole Down with flange
Flat-pinhole Down flangeless
*Consult factory for lead time and availability
Notes: 1Dim to Warm available with NFL, FL or WFL and 1400 lumens only.
Mounting Bracket
Hanging Bars
Optional Accessory
Housing and Plate
Rotating Arm
Beam Spread 3VNSP - 9° (500 lumens only)
- 14°
/ Delivered Lumens
500 (VNSP only)
900 (SP unavailable)
- 3500K
- 3000K to 1800K
CRI, 1400 lumens only
Power Supply (Univ 120 - 277 V)
UNV - Solais 1% Univ Dimming
/
2CRI specification unavailable with MonoWhite or Dim to Warm; 90+ CRI Standard.
3VNSP unavailable with MonoWhite or Dim to Warm.
ES1 - eldoLED SOLOdrive® 0.1% 0-10 V Dimming
LDE1 - Lutron Hi-lume® 1.0% Dimming with Lutron controls
4MonoWhite and High CRI products produce up to 20% less measured lumens than their standard CCT; Although, perceived lumens will be noticeably higher.
5ST and FT trim options available with BD, BDT, FD and FDT trims only; not available for BA and BAT trims.
6WFL Beam Spread is achieved with NFL optic and WT trim accessory; not available for BA and BAT trims.
BLUFFS HARBORVIEW
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted filter-optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Filter-Optic
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
Our linear architectural luminaires offer a wide range of profiles and mounting options. Custom lengths and patterns are tailored to suit any modern space.
Dimensions
Carisma 3”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
CS ILLUMINATION
S1 : Square; 0.5"-0.75"
S2 : Square; 0.75"-1.38"
Beveled Down Flangeless
: Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
MAIN FEATURES
▪ Designed for remodel installation; new construction tray and Chicago plenum/airtight housing optional
▪ 95 CRI Standard; 98+ CRI option available
▪ Delivering up to 900 lumens at 3000K, 95 CRI and 10W
▪ 40° tilt and 360° rotation for optimal adjustability
▪ Solais’ proprietary driver technology delivers smooth, flicker-free dimming (per IEEE 1789-2015) to 1% via phase-cut or 0-10V
▪ Custom TIR optic platform to ensure smooth beams and excellent light control with no need for a solite lens
▪ Modular platform with easy maintenance for individual components
▪ Fixture accommodates up to 2 accessories. (1 per module and trim)
Options (1 max)
Round and square with beveled flange shown above.
[blank] : No tray; for retrofit installations
CASPC : Casambi Wireless Phasecut Node
: Honeycomb Louver NC : New construction tray (standard brackets) CAS10 : Casambi Wireless 0-10V Node
LS : Linear Spread Lens
Trim Options (1 max)
: 3500K
: 4000K
NCW : New construction tray, pre-installed whip (standard brackets) EMI-8W : 8W EM backup microinverter
NCCW : New construction tray, pre-installed whip (commercial brackets)
: Solite Lens
CPCW : Chicago plenum housing, pre-installed whip (commercial brackets) BAT : Beveled Adjustable Flangeless
: Clear Lens FD : Flat Pinhole Down Flanged
: Linear Spread Lens
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options
Housing and trim can be ordered together or separate, but will always ship separately
NSP options are 90+ CRI when selecting '9'
WFL is achieved by NFL module with Wide Flood Lens on trim; Additional trim options unavailable
Dim to Warm is 98+ CRI, 3000K to 1800K; Unavailable with NSP
2200K, 2500K are only available with '9' and are 90+ CRI
Solais recommends no lens on trim for best performance
BLUFFS HARBORVIEW
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
(Note: Specifications are subject to change without notice) 14mm COB PERFORMANCE DATA LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM880LM @30K/80CRI9W
15LM1290LM @30K/80CRI13W
20LM1700LM @30K/80CRI17W
25LM2120LM @30K/80CRI23W
30LM2540LM @30K/80CRI29W
10LM740LM @30K/90CRI9W
15LM1080LM @30K/90CRI13W
20LM1430LM @30K/90CRI17W
25LM1780LM @30K/90CRI23W
30LM2130LM @30K/90CRI29W
Notes Delivered lumens based on 25C optic with No lens, (see page 2)
DIMMING AND CONTROLS
• 0-10V dimming to 1%
• Leading & trailing edge (Triac / ELV) dimming to 1%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• Non-conductive, dead-front construction (shower approved)
• Made in the USA - meets the requirements of the Buy American provision within the ARRA
• NSF/ANSI-2 with lens
• 5 Year Limited warranty
CONSTRUCTION
• Lexan™ (PC) highly resistant to impact and heat (240°F)
• Optimal material for wireless BLE signal connectivity
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 0.4" to 2.0"
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
BLUFFS HARBORVIEW TYPE
DALS LIGHTING
NAME
4'' 5CCT 1" deep regressed panel
The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.
LIGHT DISTRIBUTION
NOTES
(W) Delivered lumens*
Voltage (v)
Beam angle (deg)
Cut hole size (in)
Lifespan (hrs)
FT rating
Binning
Output
CS ILLUMINATION
TYPE
RDLP round downlight lopro
RDTLP round downlight trimless lopro
RDTMWLP round downlight trimless millwork lopro
10LM 880 lm
LED SW standard white DELIVERED LUMENS
15LM 1290 lm
20LM 1700 lm
25LM 2120 lm
30LM 2540 lm
Standard
ORDERING CODE MOUNTING OPTIONS SEE PAGE 5 6 NC new construction with ceiling fitting plate IC5 insulation contact housing
RET retrofit, no ceiling fitting plate
VOLTAGE 120 120V UNV 120V-277V
DIMMING
ELECTRICAL OPTIONS
ELV16 leading & trailing edge (Triac/ELV) dimming to 1% DIM10 0-10V dimming to 1%
EM7 emergency battery backup, 90 minutes at 7W to LED EM12 emergency battery backup, 90 minutes at 12W to LED EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL
New Construction Bar Hangers (included)
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Follow the steps to specify your fixture, example:
MOUNTING INFO
Mounting Length: 14-3/4" to 26"
Extends a pair of Bar Hangers
Total Mounting Length: 29" to 48"
SEE PAGE 3 HCL2 honeycomb louver
to bezel
LENS SEE PAGE 3 NL3,4 no lens
BK black
WH white
TRIM
COLOR
SEE PAGE 3
BEZEL
COLOR
SEE PAGE 3
MC matte chrome
BZ bronze
WT wheat
Not applicable to trimless option. Do not include in trimless ordering code.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat YOUR COMPLETED
NOTES
1. 15C available in 10LM/15LM/20LM.
2. HCL not available with lens. Multiplier: Delivered Lumens (0.78) / Beam Spread (0.80).
3. NL option doe s not meet requirement for AT/DF/WET/NSF listings.
4. NL option available for 15C/20C/25C/40C/55C.
5. IC not available in 15C/20LM or 30LM.
6. ELV1 dimming available in 120V.
BLUFFS HARBORVIEW
Junction box
3x Push-in wire connectors Mounting
RECOMMENDED DIMMER LIST*
Lutron
Lutron
Lutron
Lutron
Low-End Adjustment Feature
Minimal buzzing noise may occur with some dimmers
Universal drilling plate
Drilling plate
REC-CC-EXT8FT
DALS offers a 5-year warranty from the date of purchase which covers repairs or replacement of defective parts of the housing, optics, and electronics. To contact DALS customer service call 1-877-430-1818 or send an e-mail to info@dals.com.
notice) 14mm COB PERFORMANCE DATA LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM880LM @30K/80CRI9W
15LM1290LM @30K/80CRI13W
20LM1700LM @30K/80CRI17W
25LM2120LM @30K/80CRI23W
30LM2540LM @30K/80CRI29W
10LM740LM @30K/90CRI9W
15LM1080LM @30K/90CRI13W
20LM1430LM @30K/90CRI17W
25LM1780LM @30K/90CRI23W
30LM2130LM @30K/90CRI29W
Notes Delivered lumens based on 25C optic with No lens, (see page 2)
DIMMING AND CONTROLS
• 0-10V dimming to 1%
• Leading & trailing edge (Triac / ELV) dimming to 1%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• Non-conductive, dead-front construction (shower approved)
• Made in the USA - meets the requirements of the Buy American provision within the ARRA
• NSF/ANSI-2 with lens
• 5 Year Limited warranty
CONSTRUCTION
• Lexan™ (PC) highly resistant to impact and heat (240°F)
• Optimal material for wireless BLE signal connectivity
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction Accommodates ceiling thickness from 0.4" to 2.0"
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
The SIGMA 2 series boasts a sleek modern look with a broad offering of shapes, including pinspots, slots, and slopes. In addition, choose between multiples, regressed optics and tailed beam angles to match the intended look and feel of your architectural space. Add a hex cell louver, a softening, or a linear spread lens to further customize your fi xture to further meet desired optical performance.
Description Technical Drawings
Remodel
* Required for Non-IC models only.
Ordering Guide
A : 700 (IC Rated)10 B : 700 (IC Box)10
: 1100 (IC Rated)
: 1100 (IC Box)10
: 1600 (Non-IC)
: 1600 (IC Box)10
: 900 (DTW, Non-IC)2 N : 900 (DTW, IC Box)2,10 Example: S201WS-A30MC-T1-RM1
Example items for “Ship Rough-in First”:
First: S201WS-C30MC-T1-NC2
Second: S201WS-C30MC2
Notes:
1 Delivered lumens provided are based on 3000 K with wide reflector.
2 Only available for DTW models.
3 DTW models are only IC rated with an IC Box (Source Lumens Per Head option N).
4 Above ceiling access or remote mount required.
5 Only available in 120V (Voltage option 1).
6 Not available in 347V.
7 Available with Source Lumens Per Head option; A, B, C, D, F or N only.
8 Not available with IC Box (option B, D, F or N).
11 Only available with IC Box (option B, D, F or N).
12 Adapter ships separately. QuickShip option is available on orders of 100 pieces or less. QuickShip lead time may vary for orders greater than 100 pieces. No additional shipment rates apply. Subject to availability. For additional options please consult your A-Line representative. All trademarks are the property of their respective owners. Due to our continued efforts to improve our products, product specifications are subject to change without notice.
CS ILLUMINATION
RDLP round downlight lopro
TYPE
RDTLP round downlight trimless lopro
RDTMWLP round downlight trimless millwork lopro
10LM 880 lm
LED SW standard white DELIVERED LUMENS
15LM 1290 lm
20LM 1700 lm
25LM 2120 lm
30LM 2540 lm
Standard
SEE PAGE 3 HCL2 honeycomb louver Attached to bezel
BEZEL LENS
SEE PAGE 3 NL3,4 no lens
TRIM
COLOR
SEE PAGE 3
BEZEL
COLOR
SEE PAGE 3
BK black WH white MC matte chrome
BZ bronze
WT wheat
Not applicable to trimless option. Do not include in trimless ordering code.
BK black WH white MC matte chrome BZ bronze
WT wheat
15°- 60° BEAM ORDERING CODE
MOUNTING OPTIONS
SEE PAGE 5, 6 NC new construction with ceiling fitting plate IC5 insulation contact housing RET retrofit, no ceiling fitting plate
VOLTAGE 120 120V UNV 120V-277V
DIMMING ELV16 leading & trailing edge (Triac/ELV) dimming to 1% DIM10 0-10V dimming to 1%
ELECTRICAL OPTIONS
EM7 emergency battery backup, 90 minutes at 7W to LED EM12 emergency battery backup, 90 minutes at 12W to LED EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL MOUNTING INFO
New Construction Bar Hangers (included)
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Mounting Length: 14-3/4" to 26"
Extends a pair of Bar Hangers
Total Mounting Length: 29" to 48"
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example: NU3 - RDLP - SW - 20LM - 30K - 90 - 20C - WH - WH - NC - DIM10
NOTES
1. 15C available in 10LM/15LM/20LM.
2 HCL not available with lens. Multiplier: Delivered Lumens (0.78) / Beam Spread (0.80).
3. NL option does not meet requirement for AT/DF/WET/NSF listings.
4. NL option available for 15C/20C/25C/40C/55C.
5. IC not available in 15C/20LM or 30LM.
6. ELV1 dimming available in 120V.
BLUFFS HARBORVIEW
Features
Beam Angle
Multi-faceted reflector available for fi xed CCT models in spot (15°), medium (40°) or wide (50°) beam angles.
Dim-to-Warm CCT option is equipped with a multi-faceted TIR lens which eliminates hot spots and provide for a sharp cut-off. This option is available with 15°, 24°, 38° and 60° beam angles.
LED Characteristics
Available with high powered BRIDGELUX® LED chip that maintains high lumens per watt with a typical 90 CRI.
LED Characteristics – Dim-toWarm
Available with high powered LED chip that dims from 3000 K to 2000 K with a typical 90 CRI.
LED Optics
Integrated clear protective lens with fi xed CCT models. Optional honeycomb, soft lens, and light bending films are also available. Dim-to-Warm models contain an integrated TIR lens.
Dimming
Multiple dimming options are available. 100~10% dimming with TRIAC/ELV, 100~1% dimming with 0-10V, and dim
LED Driver Options
(T) TRIAC : Dimming for 120V only, 100~10% dimming.
to off with compatible devices. See LED Driver Options for details. Compatible with OnCloud dimmer. Consult factory for compatible dimmers.
Thermal Performance
Extruded aluminum heat sink ensures optimal heat dissipation and LED life.
LED Driver
The LED driver is remote mounted to allow for a lower operating temperature of the LED, longer life, and serviceable separate from the fi xture. Includes an 18" (457mm) plenum rated FT6 wire with DC 2.1 connector from the driver to fi xture. Inrush current for all drivers is compliant with NEMA 410. See LED Driver Options for more specific details.
System Protection
Integral thermal protection provided on Non-IC models to indicate improper installations. Mounted to the junction box and will disconnect if insulation is detected. Insulation must maintain 3" (76mm) clearance from top or sides.
IC Box and New Construction
Chicago Plenum
Single wall aluminum housing allows fi xture to be installed in insulated ceiling applications. The housing is
equipped with rigid hanger bars for easy installation without warping or moving. With Mounting option “NP” the fi xture is built in accordance with City of Chicago Environmental Air (CCEA).
Hanger Bars – New Construction and IC Box
Rigid hanger bars extend up to 25" (635mm). Score lines on the hanger bars allow for tool-less shortening down to 12" (305mm). Built-in line-up foot allows for accurate housing height during installation. Integrated T-bar clips easily snap onto T-bars.
Hanger Bars – Architectural C-Channel
Architectural frame bracket accepts C-channel and EMT conduit. Vertically adjustable.
Trimless Option
Trimless adapter provides a flush and seamless ceiling mount. Trimless adapter is also available prefabricated in level 5 drywall for ease of installation.
Shipping
Fixtures can be shipped complete or with rough-in components first, and the remainder once requested. Drywall options ship separately.
(C) TRIAC/ELV/0-10V : TRIAC/ELV dimming for 120V only, 100~10% dimming. 1% Dimming over 0-10V is optional, but required for 277V & 347V dimming.
(B) Rated -40 : Low temperature driver operation. Dimming to 1% over 0-10V.
(D) DALI : DALI soft dimming to 1%. Dim-to-off with standby power <0.3W. Rated to -40.
(M) DMX : DMX/RDM soft dimming to 0.1%. Dim-to-off with standby power <0.3W.
(E) Emergency Backup : Integrated emergency battery with switchable output of 5W for 180 minutes, or 10W for 90 minutes of operation during an outage.
(L) : Lutron EcoSystem : Suitable for integration into a planned or existing EcoSystem® lighting control solution. Dimming down to 1% with compatible controls.
(Q) Casambi Enabled : Casambi wireless module included. Wireless dimming to 1% provided over 0-10V signal from module.
Accessories
Trimless P-3010
75mm round pre-mounting plate for Sigma 2 fi xtures.
ALB-27
27" Linear hanger bar, 2-pack.
SIGMA-EXT-10
10' Single CCT Sigma driver extension, FT6.
SIGMA-EXT-50
50' Single CCT Sigma driver extension, FT6.
LC-CRTL-DIM-1
Smart Wi-Fi dimmer, 150W, 120V.
P-3510
90mm round pre-mounting plate for Sigma 2 fi xtures.
Environment
Suitable for use in damp locations.
Warranty 5-Year warranty.
QuickShip Made-To-Order
Made-To-Order products ship within seven business days of an order being released.
Lens Options
S2-HC-LVR Honeycomb louver.
* Compatible with TRIAC Driver. ONLINEPRODUCTDETAILS ANDDOCUMENTATION
Technical Drawings
Mounting: New Construction
S2-ZCR-1
75mm Sigma 2 round trimless adapter.
S2-PDW1R-1
Trimless adapter in ½" drywall.
S2-PDW5R-1
Trimless adapter in 5⁄8" drywall.
S2-SL-LENS
Soft lens.
S2-LS60-LENS
Linear spread film (60° wide).
S2-LB20-LENS
Light bending film (20° directional).
Mounting: IC Box / New Construction Chicago Plenum
notice) 14mm COB PERFORMANCE DATA LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM880LM @30K/80CRI9W
15LM1290LM @30K/80CRI13W
20LM1700LM @30K/80CRI17W
25LM2120LM @30K/80CRI23W
30LM2540LM @30K/80CRI29W
10LM740LM @30K/90CRI9W
15LM1080LM @30K/90CRI13W
20LM1430LM @30K/90CRI17W
25LM1780LM @30K/90CRI23W
30LM2130LM @30K/90CRI29W
Notes Delivered lumens based on 25C optic with No lens, (see page 2)
DIMMING AND CONTROLS
• 0-10V dimming to 1%
• Leading & trailing edge (Triac / ELV) dimming to 1%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• Non-conductive, dead-front construction (shower approved)
• Made in the USA - meets the requirements of the Buy American provision within the ARRA
• NSF/ANSI-2 with lens
• 5 Year Limited warranty
CONSTRUCTION
• Lexan™ (PC) highly resistant to impact and heat (240°F)
• Optimal material for wireless BLE signal connectivity
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction Accommodates ceiling thickness from 0.4" to 2.0"
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
The SIGMA 2 series boasts a sleek modern look with a broad offering of shapes, including pinspots, slots, and slopes. In addition, choose between multiples, regressed optics and tailed beam angles to match the intended look and feel of your architectural space. Add a hex cell louver, a softening, or a linear spread lens to further customize your fi xture to further meet desired optical performance.
Description Technical Drawings
Remodel
* Required for Non-IC models only.
Ordering Guide
A : 700 (IC Rated)10 B : 700 (IC Box)10
: 1100 (IC Rated)
: 1100 (IC Box)10
: 1600 (Non-IC)
: 1600 (IC Box)10
: 900 (DTW, Non-IC)2 N : 900 (DTW, IC Box)2,10 Example: S201WS-A30MC-T1-RM1
Example items for “Ship Rough-in First”:
First: S201WS-C30MC-T1-NC2
Second: S201WS-C30MC2
Notes:
1 Delivered lumens provided are based on 3000 K with wide reflector.
2 Only available for DTW models.
3 DTW models are only IC rated with an IC Box (Source Lumens Per Head option N).
4 Above ceiling access or remote mount required.
5 Only available in 120V (Voltage option 1).
6 Not available in 347V.
7 Available with Source Lumens Per Head option; A, B, C, D, F or N only.
8 Not available with IC Box (option B, D, F or N).
11 Only available with IC Box (option B, D, F or N).
12 Adapter ships separately. QuickShip option is available on orders of 100 pieces or less. QuickShip lead time may vary for orders greater than 100 pieces. No additional shipment rates apply. Subject to availability. For additional options please consult your A-Line representative. All trademarks are the property of their respective owners. Due to our continued efforts to improve our products, product specifications are subject to change without notice.
CS ILLUMINATION
RDLP round downlight lopro
TYPE
RDTLP round downlight trimless lopro
RDTMWLP round downlight trimless millwork lopro
10LM 880 lm
LED SW standard white DELIVERED LUMENS
15LM 1290 lm
20LM 1700 lm
25LM 2120 lm
30LM 2540 lm
Standard
SEE PAGE 3 HCL2 honeycomb louver Attached to bezel
BEZEL LENS
SEE PAGE 3 NL3,4 no lens
TRIM
COLOR
SEE PAGE 3
BEZEL
COLOR
SEE PAGE 3
BK black WH white MC matte chrome
BZ bronze
WT wheat
Not applicable to trimless option. Do not include in trimless ordering code.
BK black WH white MC matte chrome BZ bronze
WT wheat
15°- 60° BEAM ORDERING CODE
MOUNTING OPTIONS
SEE PAGE 5, 6 NC new construction with ceiling fitting plate IC5 insulation contact housing RET retrofit, no ceiling fitting plate
VOLTAGE 120 120V UNV 120V-277V
DIMMING ELV16 leading & trailing edge (Triac/ELV) dimming to 1% DIM10 0-10V dimming to 1%
ELECTRICAL OPTIONS
EM7 emergency battery backup, 90 minutes at 7W to LED EM12 emergency battery backup, 90 minutes at 12W to LED EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL MOUNTING INFO
New Construction Bar Hangers (included)
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Mounting Length: 14-3/4" to 26"
Extends a pair of Bar Hangers
Total Mounting Length: 29" to 48"
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example: NU3 - RDLP - SW - 20LM - 30K - 90 - 20C - WH - WH - NC - DIM10
NOTES
1. 15C available in 10LM/15LM/20LM.
2 HCL not available with lens. Multiplier: Delivered Lumens (0.78) / Beam Spread (0.80).
3. NL option does not meet requirement for AT/DF/WET/NSF listings.
4. NL option available for 15C/20C/25C/40C/55C.
5. IC not available in 15C/20LM or 30LM.
6. ELV1 dimming available in 120V.
BLUFFS HARBORVIEW
Features
Beam Angle
Multi-faceted reflector available for fi xed CCT models in spot (15°), medium (40°) or wide (50°) beam angles.
Dim-to-Warm CCT option is equipped with a multi-faceted TIR lens which eliminates hot spots and provide for a sharp cut-off. This option is available with 15°, 24°, 38° and 60° beam angles.
LED Characteristics
Available with high powered BRIDGELUX® LED chip that maintains high lumens per watt with a typical 90 CRI.
LED Characteristics – Dim-toWarm
Available with high powered LED chip that dims from 3000 K to 2000 K with a typical 90 CRI.
LED Optics
Integrated clear protective lens with fi xed CCT models. Optional honeycomb, soft lens, and light bending films are also available. Dim-to-Warm models contain an integrated TIR lens.
Dimming
Multiple dimming options are available. 100~10% dimming with TRIAC/ELV, 100~1% dimming with 0-10V, and dim
LED Driver Options
(T) TRIAC : Dimming for 120V only, 100~10% dimming.
to off with compatible devices. See LED Driver Options for details. Compatible with OnCloud dimmer. Consult factory for compatible dimmers.
Thermal Performance
Extruded aluminum heat sink ensures optimal heat dissipation and LED life.
LED Driver
The LED driver is remote mounted to allow for a lower operating temperature of the LED, longer life, and serviceable separate from the fi xture. Includes an 18" (457mm) plenum rated FT6 wire with DC 2.1 connector from the driver to fi xture. Inrush current for all drivers is compliant with NEMA 410. See LED Driver Options for more specific details.
System Protection
Integral thermal protection provided on Non-IC models to indicate improper installations. Mounted to the junction box and will disconnect if insulation is detected. Insulation must maintain 3" (76mm) clearance from top or sides.
IC Box and New Construction
Chicago Plenum
Single wall aluminum housing allows fi xture to be installed in insulated ceiling applications. The housing is
equipped with rigid hanger bars for easy installation without warping or moving. With Mounting option “NP” the fi xture is built in accordance with City of Chicago Environmental Air (CCEA).
Hanger Bars – New Construction and IC Box
Rigid hanger bars extend up to 25" (635mm). Score lines on the hanger bars allow for tool-less shortening down to 12" (305mm). Built-in line-up foot allows for accurate housing height during installation. Integrated T-bar clips easily snap onto T-bars.
Hanger Bars – Architectural C-Channel
Architectural frame bracket accepts C-channel and EMT conduit. Vertically adjustable.
Trimless Option
Trimless adapter provides a flush and seamless ceiling mount. Trimless adapter is also available prefabricated in level 5 drywall for ease of installation.
Shipping
Fixtures can be shipped complete or with rough-in components first, and the remainder once requested. Drywall options ship separately.
(C) TRIAC/ELV/0-10V : TRIAC/ELV dimming for 120V only, 100~10% dimming. 1% Dimming over 0-10V is optional, but required for 277V & 347V dimming.
(B) Rated -40 : Low temperature driver operation. Dimming to 1% over 0-10V.
(D) DALI : DALI soft dimming to 1%. Dim-to-off with standby power <0.3W. Rated to -40.
(M) DMX : DMX/RDM soft dimming to 0.1%. Dim-to-off with standby power <0.3W.
(E) Emergency Backup : Integrated emergency battery with switchable output of 5W for 180 minutes, or 10W for 90 minutes of operation during an outage.
(L) : Lutron EcoSystem : Suitable for integration into a planned or existing EcoSystem® lighting control solution. Dimming down to 1% with compatible controls.
(Q) Casambi Enabled : Casambi wireless module included. Wireless dimming to 1% provided over 0-10V signal from module.
Accessories
Trimless P-3010
75mm round pre-mounting plate for Sigma 2 fi xtures.
ALB-27
27" Linear hanger bar, 2-pack.
SIGMA-EXT-10
10' Single CCT Sigma driver extension, FT6.
SIGMA-EXT-50
50' Single CCT Sigma driver extension, FT6.
LC-CRTL-DIM-1
Smart Wi-Fi dimmer, 150W, 120V.
P-3510
90mm round pre-mounting plate for Sigma 2 fi xtures.
Environment
Suitable for use in damp locations.
Warranty 5-Year warranty.
QuickShip Made-To-Order
Made-To-Order products ship within seven business days of an order being released.
Lens Options
S2-HC-LVR Honeycomb louver.
* Compatible with TRIAC Driver. ONLINEPRODUCTDETAILS ANDDOCUMENTATION
Technical Drawings
Mounting: New Construction
S2-ZCR-1
75mm Sigma 2 round trimless adapter.
S2-PDW1R-1
Trimless adapter in ½" drywall.
S2-PDW5R-1
Trimless adapter in 5⁄8" drywall.
S2-SL-LENS
Soft lens.
S2-LS60-LENS
Linear spread film (60° wide).
S2-LB20-LENS
Light bending film (20° directional).
Mounting: IC Box / New Construction Chicago Plenum
Our Lalina luminaire is field-curvable to conform to rounded architectural coves. A wall-facing, precision engineered asymmetric optic provides even and effective wall washing. Nominal lengths are field-cuttable.
Dimensions Optics
BLUFFS HARBORVIEW
VorteXLED Specification Series ®
5.8W, 24VDC ASYMMETRIC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6 inches increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• Asymmetric distribution, 45° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
OPTICS
•90+ CRI
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed.
Note: For compatible channels, see next page. Accessories included in factory assembled components. See selecting feed direction in this document to choose power feed. ACCESSORIES
VTX-PCHW8 8ft. hardwired power feed
VTX-PCHW8-AF 8ft. hardwired power feed - alternate feed
Our Lalina luminaire is field-curvable to conform to rounded architectural coves. A wall-facing, precision engineered asymmetric optic provides even and effective wall washing. Nominal lengths are field-cuttable.
Dimensions Optics
BLUFFS HARBORVIEW
VorteXLED Specification Series ®
5.8W, 24VDC ASYMMETRIC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6 inches increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• Asymmetric distribution, 45° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
OPTICS
•90+ CRI
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed.
Note: For compatible channels, see next page. Accessories included in factory assembled components. See selecting feed direction in this document to choose power feed. ACCESSORIES
VTX-PCHW8 8ft. hardwired power feed
VTX-PCHW8-AF 8ft. hardwired power feed - alternate feed
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DATE: LOCATION:
TYPE: PROJECT:
• 4ft and 8ft lengths
• Switchable Lumen Technology
• Switchable CCT, 3500/4000/5000K
• Captive Lens/LED engine assembly
• 80+ CRI
• 0–10V dimming to 10%
• Surface mount on wall or ceiling
• Universal voltage (120–347V)
• Junction box cover included
• Field Installable behind-the-lens microwave sensor accessory
OPTICS
• Frosted polycarbonate lens
INSTALLATION
• Fully assembled for quick installation
ELECTRICAL
• 50,000 hour LEDs at L90 for reduced maintenance
CERTIFICATIONS
• All luminaires are built to UL1598 standards and bear appropriate ETL labels
• Damp location label standard
• DLC® (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
• 5 year warranty
BLANK
BLUFFS HARBORVIEW
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED96/WLINEAR/3CCT/3WO/UNV/D/HO
- 137
- 141
- 142
- 143
3500K - 138 4000K - 139 5000K - 140
3500K - 135
- 136
- 137
- 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
Features
• Optional uplight component
• Extruded recycled aluminum housing
• Specifiable color temperature. CRI > 90, R9 >50
• 5 Year, 50,000 hour warranty
Magnetic, 2-circuit track with optional uplight circuit designed to fit several 'plug and play' modules.
Dimensions
BLUFFS HARBORVIEW
VENTRIX
Example: S2CL04-FE-BK Example: S2CL08-BK
PRODUCT DESCRIPTION
The only lighting, power, and control system complete with lighting elements designed for discriminating performance. Configure VENTRIX for your retail, restaurant, commercial office, or residential lighting plan without custom lead times - get exactly what you want, when you want it.
FEATURES
• Heavy duty grade 48VDC trimless recessed channel with data bus.
• Operating Current: Max circuit is rated 12.5A
• Magnetic infrastructure allows you to slide elements within the VENTRIX and adjust lighting effects while powered
• Black copper bus bars for power and communications
• 5 Year warranty
SPECIFICATIONS
Construction:
Input:
Mounting:
Finish:
Standards:
Extruded aluminum with solid copper alloy bus bars 48 VDC
Recessed into drywall, can be mounted on ceiling or wall vertically or horizontally
Electrostatically Powder Coated Black UL, cUL, Dry Location Listed, IC
Channel Cover 8ft 8ft length may be field cut, Suitable for bottom channel coverage.
Accessories
Feed End Junction Box
5in junction box with side and top knockouts. Includes BK and WT covers
I Connector with Feed
Feeds and joins two sections of channel with electrical continuity. Includes field cuttable 96" wire and conduit.
I Connector
Joins two sections of channel with electrical continuity
Dead I Connector
Joins two sections of channel without electrical continuity
Below Bus Bar I Connector
Joins two sections of field cut channel with electrical continuity. Installs onto underside of channel bus bar for interrputed bus bar
End Cap
Additional end cap
L Connector
Use to join two sections 90°. I connectors sold seperately.
T Connector
Use to join three sections. I connectors sold seperately.
X Connector
Use to join four channel sections. I connectors sold seperately.
Inside Corner
Joins ceiling to wall sections. I connectors sold seperately.
Outside Corner
Joins wall to wall sections. I connectors sold seperately.
Surface/Suspended to Recessed Corner
Joins suspended or surface mounted channel to recessed trimless channel. I connectors sold seperately.
Fixture Type:
Catalog Number:
Project:
Location:
Model Finish
S2C-COV08 BK WT Black White
BK Black
BK Black
S2C-ID BK Black
BK Black
S2CL-EC BK Black
BK Black
S2CL-T BK Black
S2CL-X BK Black
S2CL-IC BK Black
S2CL-OC BK Black
S2CPSL-IC BKBK WTBK Black Surface/Suspended, Black Recessed White Surface/Suspended, Black Recessed
S2CL-FEB
S2CR-FI
S2CSR-I
S2C-IB
S2CL-L
BLANK
HARBORVIEW
VENTRIX
Recessed
Trimless Channels
BUILD IT
CHOOSE YOUR CHANNELS AND CONNECTORS
• Power feed from feed end channel or feed end junction box to energize your run.
Fixture Type:
Catalog Number:
Project:
Location:
• Support VENTRIX with screws into rear blocking, 1/4"-20 tie rod (by others), or stem or aircraft cables to plenum ceiling.Minimum two supports per 4ft section. Minimum three supports per 6ft, 8ft and 12ft section.
• For patterns, choose L, T, X, or corners and I connector sold separately.
Note: VENTRIX is field cut at end of run or between channels using below bus bar connector S2C-IB-BK. For patterns and custom length channels, consult factory.
CHOOSE YOUR ELEMENTS
• Refer to element specifications to appropriately select elements.
• Total the wattage of the system.
CHOOSE YOUR CONNECTED POWER UNIT (CPU)
• Select remote mount CPU.
• Select appropriate wattage based on total system wattage. Note: recommended sizing up as feasible for increased system capability.
ACCESSORIZE
• Add channel covers, lenses, or glare control accessories as desired.
A S2CL08-FE 8FT FEED END RECESSED TRIMLESS CHANNEL G S2CL-OC RECESSED TRIMLESS OUTSIDE CORNER
B S2CL04 4FT RECESSED TRIMLESS CHANNEL H S2CR-CLIP 1/4"-20 TIE ROD MOUNTING CLIP
C S2CL08 8FT RECESSED TRIMLESS CHANNEL I S2C-C96 CABLE SUSPENSION
D S2CSR-I I CONNECTOR J S2C-S96 STEM SUSPENSION
E S2CL-IC RECESSED TRIMLESS INSIDE CORNER K S2CPU-R600-S-BK REMOTE CPU F S2CL-L RECESSED TRIMLESS L CONNECTOR L BY OTHERS FIELD WIRING TO CPU
CS ILLUMINATION
Medium Spot module
Features
• Magnetically held and easily repositioned on site
The only lighting, power, and control system complete with lighting elements designed for discriminating performance. Configure VENTRIX for your retail, restaurant, commercial office, or residential lighting plan.
FEATURES
• Adjustable accent elements with your choice of 15°-40° Dynamic Focus or Fixed Beam high lumen output elements at 15° Spot, 25° Narrow Flood, or 35° Flood via factory installed TIR lens.
• Stealth armature with 360° horizontal rotation and 90° vertical aiming
•Accepts one lens and glare control accessory
•To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
•Driver concealed within the fixture •5 year warranty
SPECIFICATIONS
Construction Die-castaluminumwithrotatablefrontface
Leto 21 Double - Recessed Adjustable downlight. LETO 21 Double is a rectangle trimless recessed LED fixture. It is fully adjustable to 30°, designed to be architecturally pleasing with trimless application. It can be used for general lighting, or to highlight specific design areas.
L-810 LED Night Vision Compatible Steady-Bur ning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package.
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots. In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
TYPE
BLANK
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
2" Pole Mount3
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 2-3/8" O.D. tenon adjustable for 2.25"-2.75" poles. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part
FL-81020
FL-81021
FL-81021-2
FL-81022
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Outdoor lighting fixture for pole mounting. Pole-top in lowcopper grade primary aluminum alloy, equipped with two M16 cable glands to allow through wiring.
Power input: 4.6W
Light emmission direction: Direct
Pole Options:
Steel Pole with achoring plate:
#3401: 375mm (14.76”)
#3402: 800mm (31.49”)
Steel Pole with ground fixing base: #3421: 375mm (14.76”)
#3422: 800mm (31.49”) #3423: 1875mm (73.81”)
Materials: Aluminum structure
Electrical: High efficiency electronic power supply, rated 50,000 hours 120V-277V
Dimming: Power supply compatible with 0-10V or LTE dimming
ORDERING INFO
PROJECT NAME:
Structure finish: Anthracite, Aluminum Grey
Outdoor lighting fixture for pole mounting
Pole-top in low-copper grade primary aluminum alloy, equipped with two M16 cable glands to allow through wiring; it c an be inst alled on aluminum poles or on any st andard Ø 60mm (2.36") pole
Light source: LED
3000K: 80CRI
4000K: 80CRI
Light source: shielded LED inside the diffuser / CRI 80
Driver incorporated in t he pole-top
Source lumens: 430 lm
Lumen Output: 115 lm
Double varnished f inishafter pickling, chromic passivation (trivalentchromium), epoxy primer and polyester powder c oating
PULSAR Architectural LED Post Mount Luminaire, suitable for wet locations. Perfect for lighting up Residential Exteriors, Walkways, Perimeters, School Campuses, Industrial/Commercial Spaces, Parking Lots, Recreational Parks.
-Dark Sky compliant
-10 Year /100,000 warranty.
FEATURES:
•Energy Savings: Over 66% compared to HID light sources
▪ Designed for remodel installation. New construction tray and Chicago plenum/airtight housing options available
▪ 95 CRI Standard; 98+ CRI option available
▪ Delivering up to 900 lumens at 3000K, 95 CRI and 10W
▪ 40° tilt and 360° rotation for optimal adjustability
▪ Solais’ proprietary driver technology delivers smooth, flicker-free dimming (per IEEE 1789-2015) to 1% via phase-cut or 0-10V
▪ Custom TIR optic platform to ensure excellent light control
▪ Modular platform with easy maintenance for individual components
▪ Fixture accommodates up to 2 accessories. (1 per module and trim) Round and square with beveled flange shown above.
: Beveled Down Flanged
: 120-277V Universal Module Options
[blank] : No tray; for retrofit installations CAS : Casambi Wireless 0-10V Node R2 : Round; 0.75"-1.38"
S1 : Square; 0.5"-0.75"
S2 : Square; 0.75"-1.38"
: BlackBDM : Beveled Down Microflange
: Brown BDT : Beveled Down Flangeless
: Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
: Honeycomb Louver
: New construction tray (standard brackets) EMI-8W : 8W EM backup microinverter
: Linear Spread Lens NCW : New construction tray, pre-installed whip (standard brackets)
Trim Options
: 3500K ST : Solite Lens
: 4000K
NCCW : New construction tray, pre-installed whip (commercial brackets)
CPCW : Chicago plenum housing, pre-installed whip (commercial brackets) BAT : Beveled Adjustable Flangeless
: 5000K
: Clear Lens FD : Flat Pinhole Down Flanged
: Linear Spread Lens
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options
Housing and trim can be ordered together or separate, but will always ship separately.
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim Dim to Warm is 98+ CRI; Unavailable with NSP
2200K, 2500K are only available with '9' and are 90+ CRI
Solais recommends no lens on trim for best performance
BLUFFS HARBORVIEW
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
▪ Designed for remodel installation. New construction tray and Chicago plenum/airtight housing options available
▪ 95 CRI Standard; 98+ CRI option available
▪ Delivering up to 900 lumens at 3000K, 95 CRI and 10W
▪ 40° tilt and 360° rotation for optimal adjustability
▪ Solais’ proprietary driver technology delivers smooth, flicker-free dimming (per IEEE 1789-2015) to 1% via phase-cut or 0-10V
▪ Custom TIR optic platform to ensure excellent light control
▪ Modular platform with easy maintenance for individual components
▪ Fixture accommodates up to 2 accessories. (1 per module and trim) Round and square with beveled flange shown above.
: Beveled Down Flanged
: 8WUNV2 : 120-277V Universal Module Options
: No tray; for retrofit installations
: Casambi Wireless 0-10V Node R2 : Round; 0.75"-1.38" BK : BlackBDM : Beveled Down Microflange
S1 : Square; 0.5"-0.75"
: Brown
: Beveled Down Flangeless
S2 : Square; 0.75"-1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
:
: Honeycomb Louver
: New construction tray (standard brackets) EMI-8W : 8W EM backup microinverter
: Linear Spread Lens NCW : New construction tray, pre-installed whip (standard brackets)
Trim Options
: 3500K ST : Solite Lens
: 4000K
NCCW : New construction tray, pre-installed whip (commercial brackets)
CPCW : Chicago plenum housing, pre-installed whip (commercial brackets) BAT : Beveled Adjustable Flangeless
: Clear Lens FD : Flat Pinhole Down Flanged
: Linear Spread Lens
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options
Housing and trim can be ordered together or separate, but will always ship separately.
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim
Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI Solais recommends no lens on trim for best performance
BLUFFS HARBORVIEW TYPE
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
Recessed wall luminaire with forward throw light distribution for the illumination of ground surfaces, stairs and pathways.
Materials
BEGA Tricoat ®, a 3-layer finishing technology for increased corrosion protection
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 3.1 lbs.
Electrical
Operating voltage
120-277V AC
Minimum start temperature -30° C
LED module wattage 4.8 W
System wattage 7.0 W
Controllability
0-10V dimmable
Color rendering index Ra > 80
Luminaire lumens 581 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.
Available colors
Black (BLK) Bronze (BRZ) Silver (SLV) White (WHT) RAL: CUS:
Type:
BEGA Product:
Project:
Modified:
Available options CUSCustom finish MGUMarine grade undercoat RALRAL finish
Included (available for pre-shipment) BB24216Installation housing
BLUFFS HARBORVIEW TYPE
KRYSEN OUTDOOR WALL/STEP LIGHT
The Krysen wall and step light features a minimal, contemporary design with a hidden LED source. Light is aimed downward to light stairs or graze walls with minimal glare. Ideal for wayfinding and added safety after dark. Available in two finishes, Black and Bronze.
• Selectable CCT (2700K/3000K)
• 120V or 12V
• Outstanding protection against the elements: -Wet Listed IP66 Rated -Stainless Steel Mounting Hardware -Powder Coat Finishes
SPECIFICATIONS
DELIVERED LUMENS 200 (2700) WATTS 12.7
VOLTAGE 12V (Transformer sold separately) or 120V
DIMMING 12V ELV and MLV; 120V not dimmable
LIGHT DISTRIBUTION Symmetric OPTICS Not applicable
Colour Temperature Warm White - 2700K and 3000K Neutral White - 4000k
CRI 90+ CRI
Efficiency 70 lm/w - Delivered from Luminaire with unobstructed beam
Input 60-360mA Constant current (Remote) 12V AC (Integral)
Warranty Electronics Warranty 5 Years
Body Warranty 10 years Copper and Stainless Steel
LED Life Expectancy 50,000 Hours B Number 94.05
MICRO
MICRO SPIKE DIAMOND 300MM CONFIGURATION
SPECIFICATIONS
Power Up to 1 Watt, (60-360mA)
Ingress Protection IP68 Rating
Cable H05RN-F 2x 0.75mm
Material Natural Copper 316 Stainless Steel
Removable Light Pin Mounted
Engine 1W Cree XPG-3 Chip
Colour Temperature Warm White - 2700K and 3000K Neutral White - 4000k
CRI 90+ CRI
Efficiency 70 lm/w - Delivered from Luminaire with unobstructed beam
Input 60-360mA Constant current (Remote) 12V AC (Integral)
Warranty Electronics Warranty 5 Years
Body Warranty 10 years Copper and Stainless Steel
LED Life Expectancy 50,000 Hours B Number 94.05
BLANK
BLUFFS HARBORVIEW
GENERAL INFORMATION
LED Drive Type Constant Current, Class 2
Maximum Wattage 12W
Input Voltage 120V AC (+/- 10%) Dedicated, or 120-277 VAC (+/- 10%)
Input Frequency 50/60 Hz
Power Factor @ Full Load >0.9
Efficiency @ Full Load Up to 78% (See Chart Below)
THD <20%
Start-Up Time <750ms
Line Regulation +/- 1%
Load Regulation (Max Load) +/- 2%
Dimming Triac/ELV or 0-10V
Output Over Current Protection Hiccup Mode
Output Short-Circuit Protection Hiccup Mode
Over Temperature Protection Hiccup Mode
EMI Compliance FCC Part 15 Class B
ELECTRICAL SPECIFICATIONS
17-34 VDC
17-34 VDC
12-24 VDC
700mA 8-17 VDC
Custom output current available on Made to Order basis
CONSTANT CURRENT LED DRIVER CASE STYLE B: POLYCARBONATE
ENVIRONMENTAL SPECIFICATIONS
Minimum Operating Temp. -40° C
Maximum Case Temp. +90° C
Maximum Storage Temp. +85° C
Maximum Relative Humidity 95% non-condensing
Transient Protection 2kV
UL Environment Rating Dry and Damp
Sound Rating Class A
APPROVALS
WARRANTY -5 year limited warranty
NO SPEC
NO SPEC
CS ILLUMINATION
In-grade luminaire · Asymmetric
Application
Linear in-grade luminaires with asymmetric distribution for the illumination of architectural features such as building facades and other vertical surfaces. These luminaires are designed to bear pressure loads up to 11,000 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
LWW120-SL Linear Wall washer series is a powerful 120V LED flood light typically used for building facades, signs or any wall washing application Available in multiple optical lens options to provide endless lighting solutions. Available in narrow, medium, wide and elliptical optic options.
SPECIFICATIONS
INPUT VOLTAGE
OPERATING FREQUENCY POWER CONSUMPTION
LUMEN OUTPUT
COLOR TEMPERATURE
BEAM ANGLE
MAX RUN CRI
DIMMING
HOUSING IP RATING CERTIFICATIONS
LUMEN MAINTENANCE
WARRANTY
AC 50/ 60 Hz 9W per Foot
100 Lm./ W (35K)
27K/ 30K/ 35K/ 40K/ 50K 15°/ 20°/ 35°/ 50°/ 10° x 40° Linkable up to 60 ft.
The TPR IlluzionTm Single Color is a low profile extruded Aluminum fixture for Architectural and Entertainment markets. It is Line Voltage 90–277 and is available in four beam angles. This fixture is supplied with swivel foot mount brackets and comes with a tempered glass lens. It is available in 1’, 2’ and 4’ lengths, and is IP65 rated for outdoor weather.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
SPECIFICATION SHEET
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
BLANK
BLUFFS HARBORVIEW
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-FS (floating socket)
490003-FS-BLK (floating socket)
(incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036
Round pier mount 490057
Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
BLANK
SPECIFICATION SHEET
300W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490542
SPECIFICATIONS
OUTPUT:
300W, 25A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT:
120V, 60Hz, 2.5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 25A breaker, heavy-duty grounded 5-foot power cord. Suitable for interior or exteriror use.
AGENCY LISTINGS: ETL approved. Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490542-DT200LT
DIMENSIONS:
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
CS ILLUMINATION
NITE STAR II LED
*Designed for use with LED transformer. Requires magnetic low voltage dimmer.
**Specify wireless or manual control. Please see Adjust-e-Lume photometry to determine desired intensity.
***The 360SL cost is already included in the price of UPM, UPM dual, and Power Canopy.
CATALOG NUMBER LOGIC
Example: B - NSII - LED - e64 - SP - A9 - SAP - 12 - 11 - 360SL
MATERIAL
(Blank) - Aluminum B - Brass S - Stainless Steel SERIES
NSII - Nite Star II
SOURCE
LED - with Integral Dimming Driver (25W min. load when dimmed)*
LED TYPE
e64 - 7W LED/2700K
e79 - 7W LED/2700K 90CRI
e65 - 7W LED/3000K e80 - 7W LED/3000K 90CRI
e66 - 7W LED/4000K e81 - 7W LED/3500K 80CRI
e74 - 7W LED/Amber OPTICS
NSP - Narrow Spot (13°)
MFL - Medium Flood (23°)
SP - Spot (16°) WFL - Wide Flood (31°)
ADJUST-E-LUME**
A9 (Standard), A8, A7, A6, A5, A4, A3, A2, A1
FINISH (See page 2 for full-color swatches)
Standard Finishes (BZP, BZW, BLP, BLW, WHP, WHW, SAP, VER)
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
SPECIFICATION SHEET
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
BLANK
BLUFFS HARBORVIEW
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-FS (floating socket)
490003-FS-BLK (floating socket)
(incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036
Round pier mount 490057
Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
CS ILLUMINATION
CATSKILL LED (INTEGRAL)
*Accommodates up to 2 lens/shielding media. **120V only.
CATALOG NUMBER LOGIC
Example: CK - LED - TR - x98 - SP - BZW - 9 - 11 - A - INC - 120 MATERIAL
ELV - Dimming Driver (For use with Electronic Low Voltage Dimmer)**
INC - Dimming Driver (For use with Incandescent Dimmer)**
010 - 0-10V Dimming Driver (Dimming ≤3-100%)
INPUT VOLTAGE
120 - 120 VAC
277 - 277 VAC
BLANK
BLUFFS HARBORVIEW
WALL MOUNT
SPECIFICATIONS
CONSTRUCTION: Extruded aluminum or brass cylinder; matching die cast canopy
LENS: High impact clear tempered flat glass (Only on top of up/down SL16-PAR30)
O-RING: None
LAMP SUPPLIED: None (50w max); Use only outdoor rated PAR30 lamps LED OPTION: 15w 600 lumen Arrow PAR30 LED, 50,000 hour rated life
SOCKET: High temperature ceramic medium base with 250° C silicone lead wires
WIRING: Standard 120 volt Black, White and Ground 9" lead wires
MOUNTING: FA-24-LGCST canopy 4.75" OD x 1.125" with universal 4-O box mounting hardware supplied
FINISH: Aluminum - Black texture polyester powder coat, optional finishes available
Brass - Unfinished, optional finishes available
ORDERING INFORMATION
CS ILLUMINATION
ORDERING CODE BREAKDOWN
ST2ARMR1 : Round; 0.5"- 0.75"
: Perfect White
MAIN FEATURES
▪ Designed for remodel installation. New construction tray and Chicago plenum/airtight housing options available
▪ 95 CRI Standard; 98+ CRI option available
▪ Delivering up to 900 lumens at 3000K, 95 CRI and 10W
▪ 40° tilt and 360° rotation for optimal adjustability
▪ Solais’ proprietary driver technology delivers smooth, flicker-free dimming (per IEEE 1789-2015) to 1% via phase-cut or 0-10V
▪ Custom TIR optic platform to ensure excellent light control
▪ Modular platform with easy maintenance for individual components
▪ Fixture accommodates up to 2 accessories. (1 per module and trim) Round and square with beveled flange shown above.
: Beveled Down Flanged
: 8WUNV2 : 120-277V Universal Module Options
[blank] : No tray; for retrofit installations CAS : Casambi Wireless 0-10V Node R2 : Round; 0.75"-1.38"
S1 : Square; 0.5"-0.75"
S2 : Square; 0.75"-1.38"
: BlackBDM : Beveled Down Microflange
: Brown BDT : Beveled Down Flangeless
: Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
: Honeycomb Louver
: New construction tray (standard brackets) EMI-8W : 8W EM backup microinverter
: Linear Spread Lens NCW : New construction tray, pre-installed whip (standard brackets)
Trim Options
: 3500K ST : Solite Lens
: 4000K
NCCW : New construction tray, pre-installed whip (commercial brackets)
CPCW : Chicago plenum housing, pre-installed whip (commercial brackets) BAT : Beveled Adjustable Flangeless
: 5000K
: Clear Lens FD : Flat Pinhole Down Flanged
: Linear Spread Lens
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options
Housing and trim can be ordered together or separate, but will always ship separately.
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim Dim to Warm is 98+ CRI; Unavailable with NSP
2200K, 2500K are only available with '9' and are 90+ CRI
Solais recommends no lens on trim for best performance
BLUFFS HARBORVIEW TYPE
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
▪ Designed for remodel installation. New construction tray and Chicago plenum/airtight housing options available
▪ 95 CRI Standard; 98+ CRI option available
▪ Delivering up to 900 lumens at 3000K, 95 CRI and 10W
▪ 40° tilt and 360° rotation for optimal adjustability
▪ Solais’ proprietary driver technology delivers smooth, flicker-free dimming (per IEEE 1789-2015) to 1% via phase-cut or 0-10V
▪ Custom TIR optic platform to ensure excellent light control
▪ Modular platform with easy maintenance for individual components
▪ Fixture accommodates up to 2 accessories. (1 per module and trim) Round and square with beveled flange shown above.
: Beveled Down Flanged
: BlackNFL :
: 8WUNV2 : 120-277V Universal Module Options [blank] : No tray; for retrofit installations
: Casambi Wireless 0-10V Node R2 : Round; 0.75"-1.38" BK : BlackBDM : Beveled Down Microflange
S1 : Square; 0.5"-0.75"
: Brown
: Beveled Down Flangeless
S2 : Square; 0.75"-1.38" BA : Beveled Adjustable Flanged
BAM : Beveled Adjustable Microflange
: Honeycomb Louver
: New construction tray (standard brackets) EMI-8W : 8W EM backup microinverter
: Linear Spread Lens NCW : New construction tray, pre-installed whip (standard brackets)
Options
: 3500K ST : Solite Lens
: 4000K
NCCW : New construction tray, pre-installed whip (commercial brackets)
CPCW : Chicago plenum housing, pre-installed whip (commercial brackets) BAT : Beveled Adjustable Flangeless
: Clear Lens FD : Flat Pinhole Down Flanged
: Linear Spread Lens
FDM : Flat Pinhole Down Microflange
FDT : Flat Pinhole Down Flangeless
Notes: POs of 12 or less fixtures will be shipped as kits. Larger orders will be bulk packaged. See spec sheet for field-installed options
Housing and trim can be ordered together or separate, but will always ship separately.
NSP options are 90+ CRI when selecting '9' WFL is achieved by NFL module with Wide Flood Lens on trim
Dim to Warm is 98+ CRI; Unavailable with NSP 2200K, 2500K are only available with '9' and are 90+ CRI Solais recommends no lens on trim for best performance
BLUFFS HARBORVIEW TYPE
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
•Pole-top in primary low-copper grade aluminium alloy
•Shielded LED inside the diffuser
•Driver incorporated in the pole-top
Poles
Smooth poles in extruded aluminum. Available in 2 heights: 375 mm and 800 mm (1875 mm only available for ground fixing base pole)
The pole-top is equipped with two M16 cable glands to allow through wiring.
Purity of shape
The clean cylindrical volume of ����S �� is expressed in the cut of the light source, to enhance the effect of the inclined plane in a balance of light and shadow. The accuracy of the project allows it to be identical in the double emission version specularly.
Outdoor lighting fixture for pole mounting. Pole-top in lowcopper grade primary aluminum alloy, equipped with two M16 cable glands to allow through wiring.
Power input: 4.6W
Light emmission direction: Direct
Pole Options:
Steel Pole with achoring plate:
#3401: 375mm (14.76”)
#3402: 800mm (31.49”)
Steel Pole with ground fixing base: #3421: 375mm (14.76”)
#3422: 800mm (31.49”) #3423: 1875mm (73.81”)
Materials: Aluminum structure
Electrical: High efficiency electronic power supply, rated 50,000 hours 120V-277V
Dimming: Power supply compatible with 0-10V or LTE dimming
ORDERING INFO
4.6W
AG: Aluminum Grey
PROJECT NAME:
Structure finish: Anthracite, Aluminum Grey
Outdoor lighting fixture for pole mounting
Pole-top in low-copper grade primary aluminum alloy, equipped with two M16 cable glands to allow through wiring; it c an be inst alled on aluminum poles or on any st andard Ø 60mm (2.36") pole
Light source: LED
3000K: 80CRI
4000K: 80CRI
Light source: shielded LED inside the diffuser / CRI 80
Driver incorporated in t he pole-top
Source lumens: 430 lm
Lumen Output: 115 lm
Double varnished f inishafter pickling, chromic passivation (trivalentchromium), epoxy primer and polyester powder c oating
+ Achoring Plate#5518
Pole#3421 with ground fixing base
Pole#3422 with ground fixing base
Pole#3423 with ground fixing base
*See pole
Model L987071
5747926620
5747929449
5747929452
5747929465
5747929478
5747929481
5747929494
5747931783
5747931796
5747931806
5747931819
5747931822
5747931835
5747931848
5747931851
5747931864
5747931877
5747931880
5747931893
FLINDTPLAZA
DesignedbyChristianFlindt
CORTENCOLOR -/-/-IN/0.2LB
CORTENCOLOR,954
CORTENCOLOR,954
CORTENCOLOR,954
CORTENCOLOR,954
CORTENCOLOR,954
CORTENCOLOR,954
NATPAINTALU,162
CORTENCOLOR,954
NATPAINTALU,162
CORTENCOLOR,954
NATPAINTALU,162
CORTENCOLOR,954
NATPAINTALU,162
CORTENCOLOR,954
NATPAINTALU,162
CORTENCOLOR,954
NATPAINTALU,162
CORTENCOLOR,954
5.5/19.7/5.5IN/15.5LB
5.5/19.7/5.5IN/15.5LB
5.5/19.7/5.5IN/15.5LB
5.5/19.7/5.5IN/15.5LB
5.5/19.7/5.5IN/15.5LB
5.5/19.7/5.5IN/15.5LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
5.5/19.7/5.5IN/15.1LB
BLUFFS HARBORVIEW
IANUS™ 60 BI
Outdoor lighting fixture for pole mounting. Pole-top in lowcopper grade primary aluminum alloy, equipped with two M16 cable glands to allow through wiring.
Power input: 8W
Light emmission direction: Direct
Pole Options:
Steel Pole with achoring plate:
#3401: 375mm (14.76”)
#3402: 800mm (31.49”)
Steel Pole with ground fixing base:
#3421: 375mm (14.76”)
#3422: 800mm (31.49”)
#3423: 1875mm (73.81”)
Materials: Aluminum structure
I
Electrical: High efficiency electronic power supply, rated 50,000 hours 120V-277V
Dimming: Power supply compatible with 0-10V or LTE dimming
ORDERING INFO
Model (Order Code)
L987071 8W AG: Aluminum Grey
PROJECT NAME:
Model L987072
Structure finish: Anthracite, Aluminum Grey
Outdoor lighting fixture for pole mounting
Pole-top in low-copper grade primary aluminum alloy, equipped with two M16 cable glands to allow through wiring; it c an be inst alled on polesor on any st andard Ø 60mm (2.36") pole
Light source: LED
3000K: 80CRI
4000K: 80CRI
Light source: shielded LED inside the diffuser / CRI 80
Driver incorporated in t he pole-top
Source lumens: 860 lm
Lumen Output: 230 lm
Double varnished f inishafter pickling, chromic passivation (trivalentchromium), epoxy primer and polyester powder c oating
