LTR-S-TW-12V-2.2W-27K-16
LTR-P-24V-1.5W-27K-XX / LED-CHL-SLIM
LTR-P-24V-3.0W-27K-XX / LED-CHL-SLIM
LTR-P-24V-3.0W-27K-XX / LED-CHL-SLIM
S12X12-HO-27 / S12X12-SSC
NV24S-3W-30K-XX / NV24S-FLEX-CHL
LTR-P-24V-3.0W-27K-XX / LED-CHL-45-1200
LTR-P-24V-3.0W-27K-XX / LED-CHL-45-1200
CAR2-D.ASY.SM.5.279.HW.120/277.XX.XXX.0-10V
490091-7W-45-2700K / 490541-PPC8
490091-7W-45-2700K
BSS750-X-30-D-L-SM-SN-AW
FM3511-BK-5CCT
LTR-P-WP-24V-3.0W-27K-100 / LED-CHL-W-X
LTR-P-WP-24V-3.0W-27K-XX / LED-CHL-W
CL1515V-27-IP65-FH3-WSE-QOXXX
NTE-865L927NW
NT-302W / NT-310W / NT-352W
H-1035-F-827-WT
H-1035-F-827-WT
WT4-RT-WT / WEDL-RT-WT / WPC-RT-WT / WEC-WH
TYPE MFG
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER
T.GH83E.HW-PER ID.JU on track 0.650-PER DWG-PER ID
DUAL-CIRCUIT TRACK PER GC
K2-GAL2J-13-27-B-3-X-PER ID-Z-2T-D
C5X-MO-27K-DL-EXA-18-PER DWG-DIM-PER ID-PER ID-LV
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
NTE-860L927M10W
NT-2302W / NT-2316W / NT-2310W
NT-302W / NT-310W / NT-352W
NTE-875L927X18W
BSS501-83-27-D-L-L-6-WBR-XX-MB
THE WESTIN TYPE EGA ALT

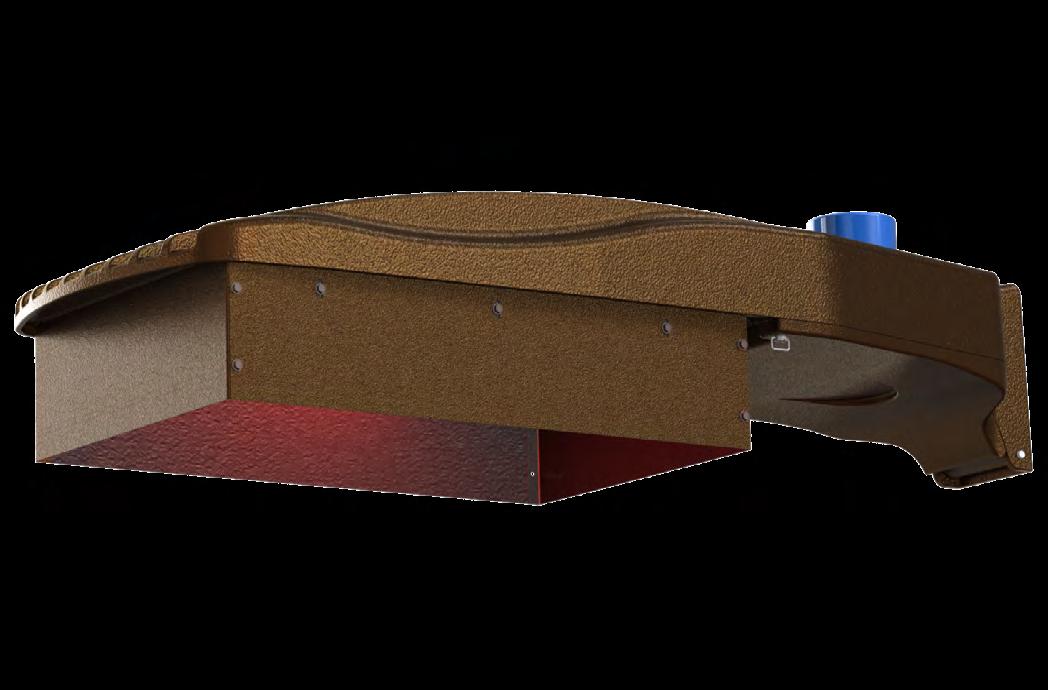

VIENTO AREA SITE LED LARGE LUMINAIRE
WILDLIFE FRIENDLY VNTL
FEATURES
APPLICATIONS
• Ecologically sensitive areas
• Sea turtle nesting beaches
• Migratory Corridors
• Dark-Sky friendly communities
APPROVALS
• FWC #2019-115
• Shielded, long wavelength, Dark Sky Friendly LED Luminiare
• Wildlife Lighting certified by the Florida Fish and Wildlife Conservation Commission
• Outstanding photometric performance results in sites with excellent uniformity, optimal pole spacing and lower power density.
• Optics are completely sealed against moisture and environmental contaminants (IP66).
• Low profile architectural design offers a contemporary appearance with excellent light output.
• Field serviceable luminaire utilizing Lumileds LED technology.
• Controls ready luminaire for independent operation or remote management.
• Operating temperature -40°C to +40°C (-40°F to +104°F).
CONSTRUCTION
• Housing: One-piece die-cast aluminum has integral heat sink fins to optimize thermal management through conductive and convective cooling.
• The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life.
• Housing and door are protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
• Powder coat finish in bronze, white or custom colors (consult factory).
• Post painted matte black interior/fixture finish exterior wildlife shield standard to meet FWC requirements
• Parking Lots
• Parks & Recreation Areas
• Security Areas
• Mall & Retail Spaces
• Complies with UL 1598 and CSA C22.2#250.0.0:2008
• Suitable for wet locations
• 3G Vibration Rated for Bridge/Overpass Applications per ANSI C136.31-2010, Test Level 2
• IP 66 Optics and Housing
• BAA Compliant.
• RoHS Compliant.
• Appropriate parts/test guidelines were performed by ATAL www.ata-labs.com
• Select models DLC Qualified. For a complete list of DLC Qualified products, please visit: www.xtralight.com/dlc or www.designlights.org/qpl
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Nut plate eliminates loose hardware and reduces installation labor.
OPTICS
• Precision molded optics for superior uniformity, minimal light trespass and maximum pole spacing.
• Optical grade polymer is UV stabilized and impact resistant.
• IP66 rated LED light engines prevent dust and moisture from degrading performance.
• Distributions: Type II, Type III, Type IV and Type V. Types II, III, and IV available rotated right or left 90°, factory installed.
• Long wavelength amber (590nm) or red (620nm) LEDs with a targeted spectrum
• Zero uplight (U0)is dark sky friendly, reduces wasted light.
• Shielded, long wavelength, Dark Sky Friendly LED Luminiare
• Wildlife Lighting certified by the Florida Fish and Wildlife Conservation Commission
• Outstanding photometric performance results in sites with excellent uniformity, optimal pole spacing and lower power density.
• Optics are completely sealed against moisture and environmental contaminants (IP66).
• Low profile architectural design offers a contemporary appearance with excellent light output.
• Field serviceable luminaire utilizing Lumileds LED technology.
• Controls ready luminaire for independent operation or remote management.
• Operating temperature -40°C to +40°C (-40°F to +104°F).
CONSTRUCTION
• Housing: One-piece die-cast aluminum has integral heat sink fins to optimize thermal management through conductive and convective cooling.
• The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life.
• Housing and door are protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
• Powder coat finish in bronze, white or custom colors (consult factory).
• Post painted matte black interior/fixture finish exterior wildlife shield standard to meet FWC requirements
• Parking Lots
• Parks & Recreation Areas
• Security Areas
• Mall & Retail Spaces
• Complies with UL 1598 and CSA C22.2#250.0.0:2008
• Suitable for wet locations
• 3G Vibration Rated for Bridge/Overpass Applications per ANSI C136.31-2010, Test Level 2
• IP 66 Optics and Housing
• BAA Compliant.
• RoHS Compliant.
• Appropriate parts/test guidelines were performed by ATAL www.ata-labs.com
• Select models DLC Qualified. For a complete list of DLC Qualified products, please visit: www.xtralight.com/dlc or www.designlights.org/qpl
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Nut plate eliminates loose hardware and reduces installation labor.
OPTICS
• Precision molded optics for superior uniformity, minimal light trespass and maximum pole spacing.
• Optical grade polymer is UV stabilized and impact resistant.
• IP66 rated LED light engines prevent dust and moisture from degrading performance.
• Distributions: Type II, Type III, Type IV and Type V. Types II, III, and IV available rotated right or left 90°, factory installed.
• Long wavelength amber (590nm) or red (620nm) LEDs with a targeted spectrum
• Zero uplight (U0)is dark sky friendly, reduces wasted light.
• Shielded, long wavelength, Dark Sky Friendly LED Luminiare
• Wildlife Lighting certified by the Florida Fish and Wildlife Conservation Commission
• Outstanding photometric performance results in sites with excellent uniformity, optimal pole spacing and lower power density.
• Optics are completely sealed against moisture and environmental contaminants (IP66).
• Low profile architectural design offers a contemporary appearance with excellent light output.
• Field serviceable luminaire utilizing Lumileds LED technology.
• Controls ready luminaire for independent operation or remote management.
• Operating temperature -40°C to +40°C (-40°F to +104°F).
CONSTRUCTION
• Housing: One-piece die-cast aluminum has integral heat sink fins to optimize thermal management through conductive and convective cooling.
• The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life.
• Housing and door are protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
• Powder coat finish in bronze, white or custom colors (consult factory).
• Post painted matte black interior/fixture finish exterior wildlife shield standard to meet FWC requirements
• Parking Lots
• Parks & Recreation Areas
• Security Areas
• Mall & Retail Spaces
• Complies with UL 1598 and CSA C22.2#250.0.0:2008
• Suitable for wet locations
• 3G Vibration Rated for Bridge/Overpass Applications per ANSI C136.31-2010, Test Level 2
• IP 66 Optics and Housing
• BAA Compliant.
• RoHS Compliant.
• Appropriate parts/test guidelines were performed by ATAL www.ata-labs.com
• Select models DLC Qualified. For a complete list of DLC Qualified products, please visit: www.xtralight.com/dlc or www.designlights.org/qpl
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Nut plate eliminates loose hardware and reduces installation labor.
OPTICS
• Precision molded optics for superior uniformity, minimal light trespass and maximum pole spacing.
• Optical grade polymer is UV stabilized and impact resistant.
• IP66 rated LED light engines prevent dust and moisture from degrading performance.
• Distributions: Type II, Type III, Type IV and Type V. Types II, III, and IV available rotated right or left 90°, factory installed.
• Long wavelength amber (590nm) or red (620nm) LEDs with a targeted spectrum
• Zero uplight (U0)is dark sky friendly, reduces wasted light.
75W, 6.25A. Connectors for 12V and 15V. One common tap.
INPUT:
120V, 60Hz, 0.625A
HOUSING:
Stainless steel housing and removable front panel. Pre-punched bottom and side panels.
FEATURES:
Breaker, analog timer, heavy-duty grounded 5-foot power cord. Photocell plug. Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL approved (5013561). Conforms to ANSI/UL-1838.
WARRANTY:
Three years.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490549-ppc6
DIMENSIONS:
Type:
Model:
THE WESTIN TYPE EGE ALT
UMC-20001

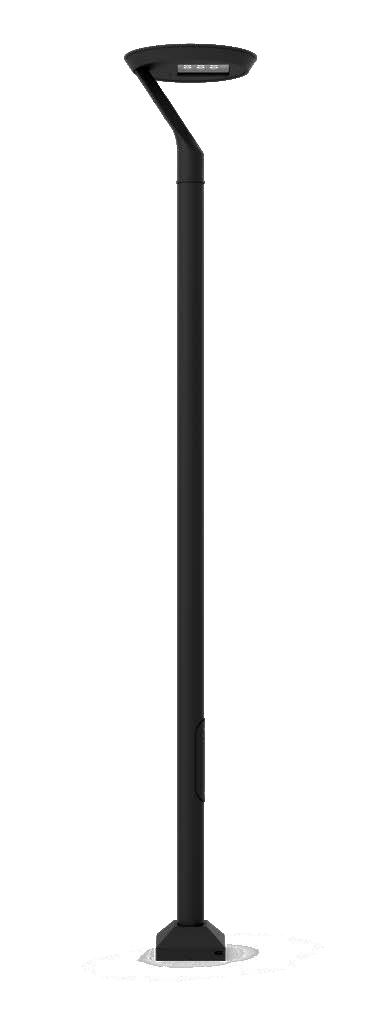

Macaron 1 Post Top
50w
Construction
Aluminum
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “ t for purpose” long life high temperature memory retentive silicon gaskets.
Maintains the gaskets exact pro le and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous ux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all xtures.
BUG Rating
B1 - U0 - G1
Finishing
All Ligman products go through an extensive nishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain nish.
This patented technology enables the simulation of wood grain, and even marble or granite nish through the use of decorative powder coating.
The wood grain nish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the nalized metal decoration.
The component is then wrapped with a sheet of non-porous lm with the selected decoration pattern printed on it using special high temperature inks.
This printed lm transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into di erent forms within the paint layer before it becomes solid. Finally, the lm is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with di erent colors, designs, etc.
Our powder coatings are certi ed for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Bene ts
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
• Super durable (UV restant) • TGIC free (non-toxic)
Hardware
Provided Hardware is
LIGHTING USA
Modern, contemporary post top
Beautiful modern urban post top in either single or V-arm con guration, o ering powerful street lighting and asymmetric beam performance choices.
A modern style die-cast aluminum post top decorative lantern with excellent downward light distribution that complies with dark sky requirements. Outstanding visual appeal and precision optical system gives very low glare rating, whilst reducing light pollution. This luminaire is available in two con gurations, namely a single or v-arm option to suit aesthetic design requirements.
Color temperature 2700K, 3000K, 3500K and 4000K, LED CRI >80 and life time 50,000 Hours. Stainless steel screws. Durable silicone rubber gasket and clear tempered glass. Powder paint with high corrosion resistance with chemical chromatised protection. Integral control gear.
Customer speci c wattages can be provided, please contact the factory for more information.
Available with a selection of dimmable integral electronic drivers, as well as a provision to install wireless lighting controls to integrate with building management systems. (WATT-ADJ) This luminaire is provided with a programmable driver so that speci c wattage requirements can be achieved. These settings are done at the factory during assembly.
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected.
Ligman’s
The variable optic system allows for the designer to create hybrid distributions for precise lighting requirements.
THE WESTIN TYPE EGF ALT
HPNLS-LO
Line Voltage Linear LED Strip Fixture
PRODUCT SPECIFICATIONS:
·Compact, variable light fixture for dry, damp or wet location use
·Fixture comes in 6” increments (12” minimum).
·Many options in optics, color temperature and accessories.
·Three different types of lenses.
·Boca Flasher’s patented CleanDim® technology ensures even dimming from 0-100%.
·Uses standard line voltage dimmers.
·Fixtures are compatible with both forward and reverse phase dimming or can use Boca’s SDS module for 0-10V or DMX Dimming.
·Clear anodized aluminum or black finish, check factory for availability.
·Contact Boca Flasher for tips with custom installations.
transmission. ·Lens is 1/8” (.09) thick, adds 1/16” to overall height of fixture. Call factory for more information.
GROUND MATERIALS Gravel, concrete with drainage system
MAXIMUM WEIGHT 3,000 lbs. (over average car tire)
RATINGS IP50, IP66
ENVIRONMENTAL Operating temperature--40°F-140°F Ambient(-40°C-60°C)** Storage temperature -40°F-140°F Ambient indoor fixtures operation limited to =<50% relative humidity
** Military spec available under special request-lead times may be impacted.
Project:
·Medium Duty Vehicle Load - Class 6 defined as a vehicle with a gross weight of: 11.75 tons. (26,000lbs)
·High heel load - 300lbs High heel size: 10 mm diameter Area: 78.54 mm^2 (0.122in^2)
·Glass set to Boron Silicate
·Glass: 33 MPA
·Highest Stress on Glass: 25 MPA
·Aluminum for the frame: 6061-T6.
·Aluminum: 276 MPA Yield
·Aluminum: 310 MPA Ultimate
·Corrosion Resistant Rivets
·Copper Blind Rivets with Steel Mandrel
·Maximum Stress: 75.7 MPA - Found on the
·Aluminum structure that holds the glass.
·Stress well below Yield
·Housing for HPNLS/HPNFC body style Boca Flasher products
DIMENSIONS:
THE WESTIN TYPE EPB ALT
Type
Project
Source:
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· ENERGY STAR® certified 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· ENERGY STAR certified 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
Catalog No.
NO SPEC
THE WESTIN TYPE ERB ALT

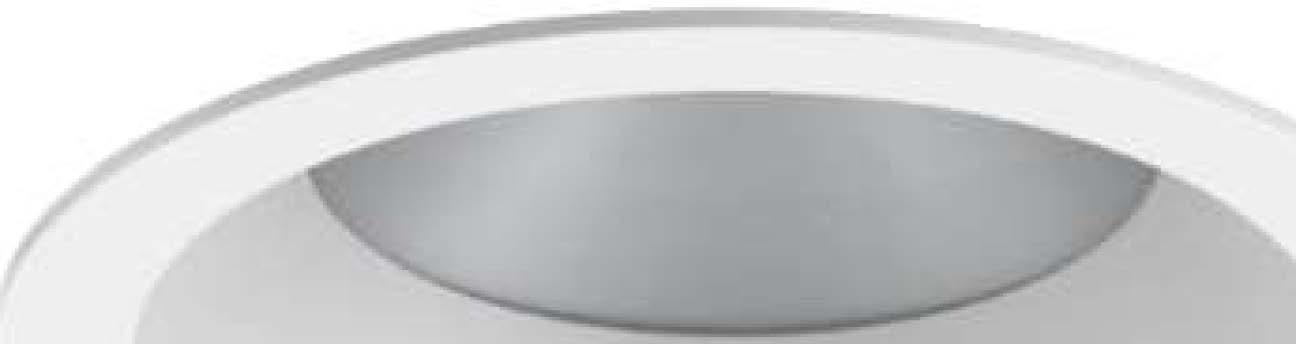

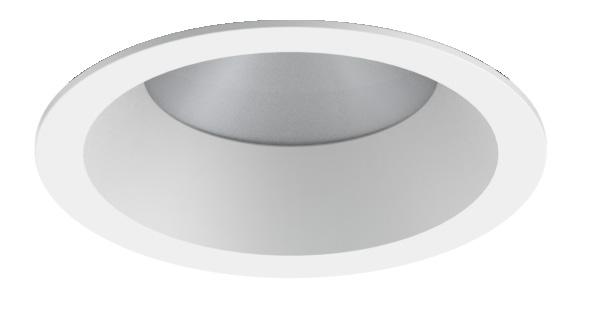

4" ROUND DEEP DOWNLIGHT WILDLIFE FRIENDLY
Full Shielding.
Die-cast aluminum trim with a wide variety of options.
Deep regressed trim.
Universal housing accepts all trim types, including N-Line trimless.
5 year warranty on fixture and electronics. Sustainable fixture.
THE WESTIN TYPE ERC ALT
Regolo IP65 Rated
RXT-F-D

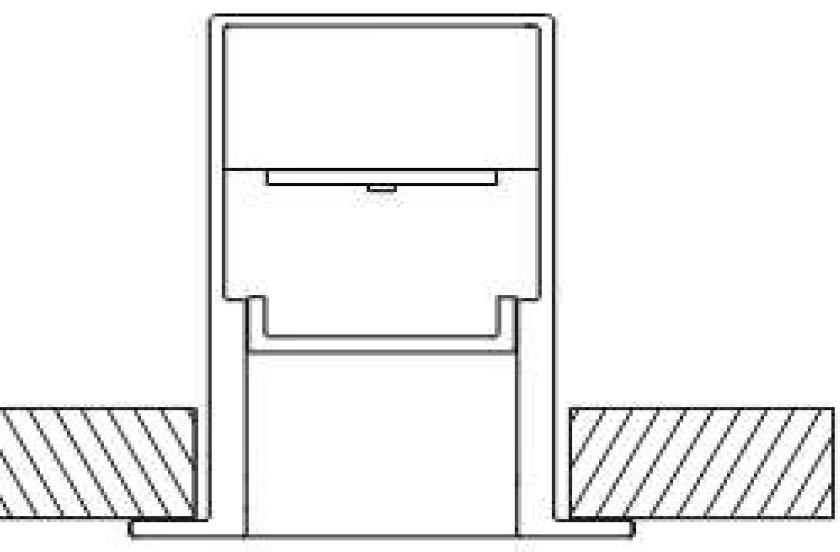

Recessed/Flange
The RXT-F-D IP65 wet location rated linear lighting system brings the elegance of the Regolo product series into harsh outdoor environments where moisture, wind and dust can be an enemy to a light fixture.

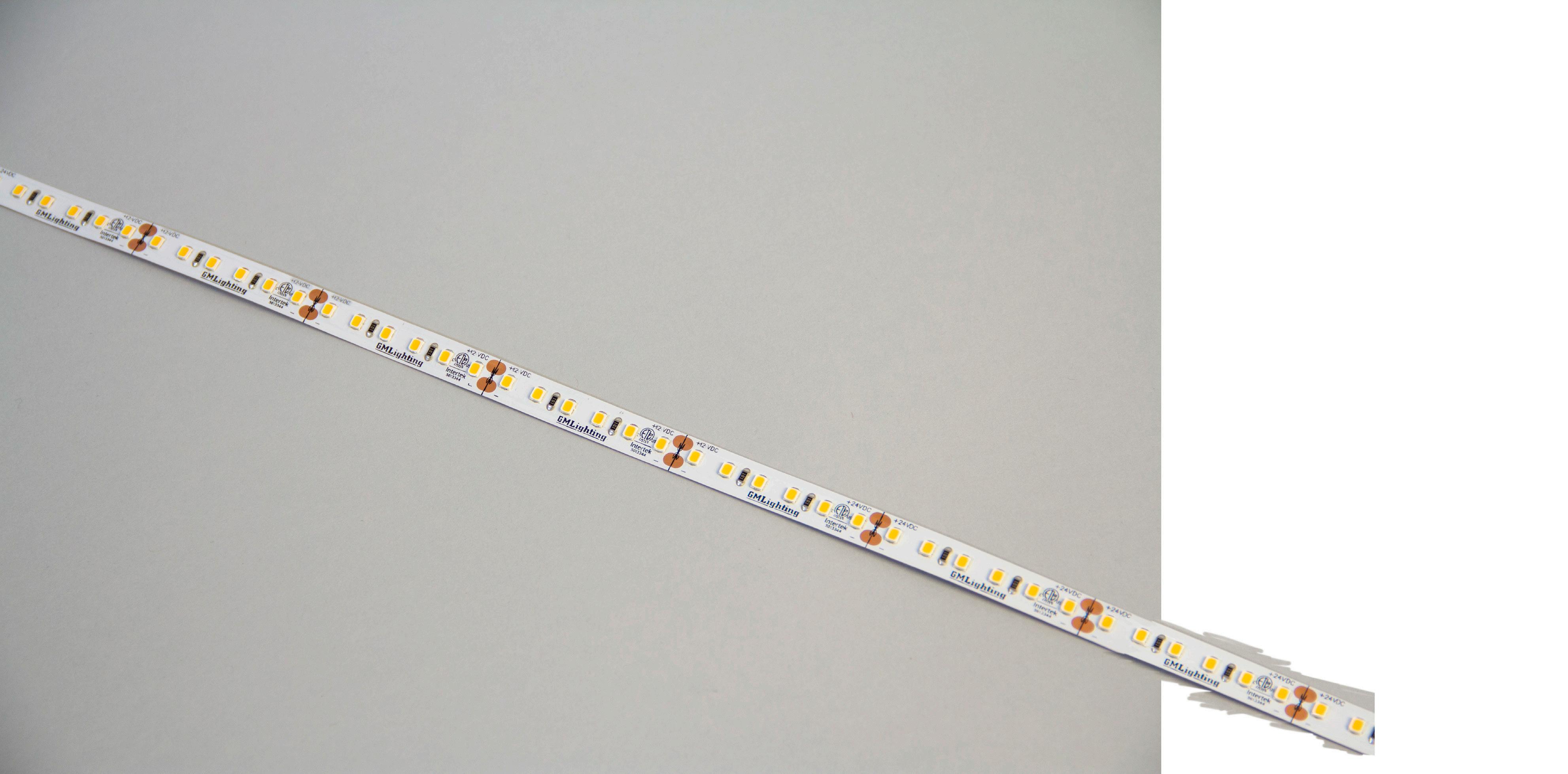

A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•24VDC operation
•Wet location - IP65
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Dimmable
•Wireless control with LUXcontrol App and controller
•3000K or 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32’-8”
•Field cuttable and joinable in 2 inch increments while retaining IP65
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use 1 per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3.0 watts per foot
OPTICS
•90+ CRI
WARRANTY
•5-year warranty when paired with GM power supply
CERTIFICATION
•24VDC UL compliant
•IP65
ACCESSORIES
•LineDRIVE 24V Power
Supplies
•Aluminum Channels (below)
•Connectors (below)
•Tape Cutting Tool (below)
Amber (AM)
Blue (BL)
NV24S-FLEX-CHL
NV24-CT
NV24S-EC
CONTROLLERS
THE WESTIN TYPE ESB ALT
NeoVision120 SideFlex
120VAC Neon LED Tape
Specification Sheet
PRODUCT OVERVIEW
120VAC operation for higher power and brightness from one linear run. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables side-to-side bending for curvilinear lines. NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options: End Feed
Left or Right Side Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in) -4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
Project Name Type
Catalog # Date
3000K
Amber Green
Blue Red
THE WESTIN TYPE ESB ALT
NeoVision120 SideFlex 120VAC Neon LED Tape
Specification Sheet
1.Select Tape
ACCESSORIES
2.Pick Feed
NV120S-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
NV120S-HW-8-SFL Hardwire Side Feed Left w/Filter & 8A Fuse
NV120S-HW-8-SFR Hardwire Side Feed Right w/Filter & 8A Fuse
NV120S-PC-8-EF Plug-in End Feed w/Filter & 8A Fuse
NV120S-PC-8-SFL Plug-in Side Feed Left w/Filter & 8A Fuse
NV120S-PC-8-SFR Plug-in Side Feed Right w/Filter & 8A Fuse
All cords are 8ft long
Left Feed for
NV120S-HW-8-SFL
NV120S-HW-PC-8-SFL
All NeoVision 120 tape configurations will be cut and sealed by GM Lighting to your specifications. No field modifications allowed.
*Included with every tape section

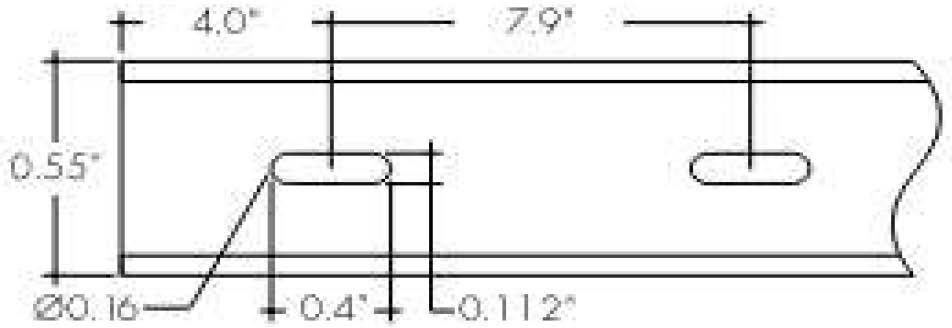

3.Pick Mounting Options
NV120S-MC-FC Front Clip, 20 Clips/40 Screws
NV120S-MC-A Back Mounting Clip, 20 Clips/20 Screws
NV120S-CHL-A4 4 ft Channel with 4 Screws
NV120S-CHL-A6 6 ft Channel with 8 Screws
NV120S-FLEX-CHL-10 SideFlex 10 ft Channel with 22 Screws
• Head and back plate are precision machined from corrosion-resistant 6061-T6 aluminum
• A universal mounting plate and one piece silicone key hole gasket is provided for adaption to junction box or surface
• Stainless steel hardware is included
Mounting
• The luminaire mounts directly to a standard 4” square junction box
For further mounting information see technical notes section on page 3
Optical
LightBARTM and optical assembly are sealed by a diffused, impact resistant tempered glass lens
• The optical assembly is available in three distributions: T2 (lateral throw), T4 (forward throw) and T5X (Extra Wide Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
An edge-lit option is available
Electrical
• The 15.5W 303-W1-LEDB2 is standard with an ELV trailing edge phase dimmable driver that accepts a universal input (120-277, 50/60Hz)
• It will operate in -40°C to 50°C [-40°F to 122°F] The driver incorporates surge protection
• An optional 0-10V dimming driver is also available.
Finish
• The luminaires are double protected by a RoHS compliant chemical film undercoating and polyester powder coat paint finish, surpassing the rigorous demands of the outdoor environment
• A variety of standard colors are available RAL and custom color matches available upon request
• Luminaries can also be brushed with a clear coat finish
• The LightBARTM cover plates are standard white and may be specified to match finish of luminaire housing (LCF)
Approvals
• UL and cUL listed, standard wet label
• Tested according to IESNA LM-79 and LM-80 procedures
• ROHS Compliant IP66 Ingressed Protection rated
Warranty
• Lumiere warrants the EON series of fixtures against defects in material and workmanship for five (5) years. Auxiliary equipment such as LED drivers carries the original manufacturer’s warranty
THE WESTIN TYPE EWA ALT
Order Information
SAMPLE ORDER NUMBER: 303-W1-LEDB2-2700-UNV-T2-DIM10-BK-EDGE-LCF
• Head and back plate are precision machined from corrosion-resistant 6061-T6 aluminum
• A universal mounting plate and one piece silicone key hole gasket is provided for adaption to junction box or surface
• Stainless steel hardware is included
Mounting
• The luminaire mounts directly to a standard 4” square junction box
For further mounting information see technical notes section on page 3
Optical
LightBARTM and optical assembly are sealed by a diffused, impact resistant tempered glass lens
• The optical assembly is available in three distributions: T2 (lateral throw), T4 (forward throw) and T5X (Extra Wide Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
An edge-lit option is available
Electrical
• The 15.5W 303-W1-LEDB2 is standard with an ELV trailing edge phase dimmable driver that accepts a universal input (120-277, 50/60Hz)
• It will operate in -40°C to 50°C [-40°F to 122°F] The driver incorporates surge protection
• An optional 0-10V dimming driver is also available.
Finish
• The luminaires are double protected by a RoHS compliant chemical film undercoating and polyester powder coat paint finish, surpassing the rigorous demands of the outdoor environment
• A variety of standard colors are available RAL and custom color matches available upon request
• Luminaries can also be brushed with a clear coat finish
• The LightBARTM cover plates are standard white and may be specified to match finish of luminaire housing (LCF)
Approvals
• UL and cUL listed, standard wet label
• Tested according to IESNA LM-79 and LM-80 procedures
• ROHS Compliant IP66 Ingressed Protection rated
Warranty
• Lumiere warrants the EON series of fixtures against defects in material and workmanship for five (5) years. Auxiliary equipment such as LED drivers carries the original manufacturer’s warranty
• Head and back plate are precision machined from corrosion-resistant 6061-T6 aluminum
• A universal mounting plate and one piece silicone key hole gasket is provided for adaption to junction box or surface
• Stainless steel hardware is included
Mounting
• The luminaire mounts directly to a standard 4” square junction box
For further mounting information see technical notes section on page 3
Optical
LightBARTM and optical assembly are sealed by a diffused, impact resistant tempered glass lens
• The optical assembly is available in three distributions: T2 (lateral throw), T4 (forward throw) and T5X (Extra Wide Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
An edge-lit option is available
Electrical
• The 15.5W 303-W1-LEDB2 is standard with an ELV trailing edge phase dimmable driver that accepts a universal input (120-277, 50/60Hz)
• It will operate in -40°C to 50°C [-40°F to 122°F] The driver incorporates surge protection
• An optional 0-10V dimming driver is also available.
Finish
• The luminaires are double protected by a RoHS compliant chemical film undercoating and polyester powder coat paint finish, surpassing the rigorous demands of the outdoor environment
• A variety of standard colors are available RAL and custom color matches available upon request
• Luminaries can also be brushed with a clear coat finish
• The LightBARTM cover plates are standard white and may be specified to match finish of luminaire housing (LCF)
Approvals
• UL and cUL listed, standard wet label
• Tested according to IESNA LM-79 and LM-80 procedures
• ROHS Compliant IP66 Ingressed Protection rated
Warranty
• Lumiere warrants the EON series of fixtures against defects in material and workmanship for five (5) years. Auxiliary equipment such as LED drivers carries the original manufacturer’s warranty
THE WESTIN TYPE EWA1 ALT
Order Information
SAMPLE ORDER NUMBER: 303-W1-LEDB2-2700-UNV-T2-DIM10-BK-EDGE-LCF
• Head and back plate are precision machined from corrosion-resistant 6061-T6 aluminum
• A universal mounting plate and one piece silicone key hole gasket is provided for adaption to junction box or surface
• Stainless steel hardware is included
Mounting
• The luminaire mounts directly to a standard 4” square junction box
For further mounting information see technical notes section on page 3
Optical
LightBARTM and optical assembly are sealed by a diffused, impact resistant tempered glass lens
• The optical assembly is available in three distributions: T2 (lateral throw), T4 (forward throw) and T5X (Extra Wide Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
An edge-lit option is available
Electrical
• The 15.5W 303-W1-LEDB2 is standard with an ELV trailing edge phase dimmable driver that accepts a universal input (120-277, 50/60Hz)
• It will operate in -40°C to 50°C [-40°F to 122°F] The driver incorporates surge protection
• An optional 0-10V dimming driver is also available.
Finish
• The luminaires are double protected by a RoHS compliant chemical film undercoating and polyester powder coat paint finish, surpassing the rigorous demands of the outdoor environment
• A variety of standard colors are available RAL and custom color matches available upon request
• Luminaries can also be brushed with a clear coat finish
• The LightBARTM cover plates are standard white and may be specified to match finish of luminaire housing (LCF)
Approvals
• UL and cUL listed, standard wet label
• Tested according to IESNA LM-79 and LM-80 procedures
• ROHS Compliant IP66 Ingressed Protection rated
Warranty
• Lumiere warrants the EON series of fixtures against defects in material and workmanship for five (5) years. Auxiliary equipment such as LED drivers carries the original manufacturer’s warranty
THE WESTIN TYPE EWB ALT
VIENTO WALL PACK LED
APPLICATIONS
• Ecologically sensitive areas
• Sea turtle nesting beaches
• Migratory Corridors
• Dark-sky friendly communities
APPROVALS
• FWC #2019-118
• Sidewalks
• Security Lighting
• Accent Lighting
• General Exterior Lighting
• ETL listed. Complies with UL 1598 and CCSA C22.2#250.0.0:2008
• Suitable for wet locations
• 3G Vibration Rated for Bridge/Overpass Applications per ANSI C136.31-2010, Test Level 2
• IP 66 Optics and Housing
• BAA Compliant
• RoHS Compliant
• Appropriate parts/test guidelines were performed by ATAL www. ata-labs.com
• Select models DLC Qualified. For a complete list of DLC Qualified products, please visit: https://www.xtralight.com/dlc or https:// qpl.designlights.org
FEATURES
• Shielded, long wavelength, Dark Sky Friendly LED Luminiare
• Wildlife Lighting certified by the Florida Fish and Wildlife Conservation Commission
• Uniform light distribution, ideal for building facades, entry ways, sidewalks and general security or accent lighting
• LED provides a significant energy savings over HID
• Operating temperature: -40°C to +40°C (-40°F to +104°F)
• Custom colors are available (consult factory)
• Designed for ease of installation OPTICS
• Optical grade polymer is UV stabilized and impact resistant
• IP66 rated LED light engines prevent dust and moisture from degrading performance
• Distributions: Type II Short, Type II Medium, Type III Medium and Type IV Short
• Precision molded optics for superior uniformity, minimal light trespass and maximum spacing
• Long wavelength amber (590nm) or red (620nm) LEDs with a targeted spectrum
• Zero uplight (U0)is dark sky friendly, reduces wasted light WARRANTY
• Backed by XtraLight’s industry leading 5-year warranty
CONSTRUCTION
• Housing: Two-piece die-cast aluminum has integral heat sink fins to optimize thermal management through conductive and convective cooling
• Housing and back box are protected with a thermoset TGICpolyester powder coat finish
• The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life
• Silicone gasket is included to prevent leakage and provide weather-tight protection
• All fasteners are stainless steel
• Post painted matte black interior/fixture finish exterior wildlife shield standard to meet FWC requirements
• Emergency battery backup option (EM) is available for some models; CEM suited for cold weather, has external test button and LED indicator light to notify when the heater is on
• 20kA surge protection standard
FSP3 Programmable Occupancy Sensor, 20’H/40’D
PC Photocell, Button, 120-277V
RWS 4 Remove Wildlife Shield
https://www.xtralight.com
1. Maximum operating temperature with EM for Model 25 (40°C/104°F), Model 60 (35°C/95°F) Model 80 (30°C/86°F).
2. Minimum temperature for EM (0°C/32°F)
3. Minimum temperature for CEM (-20°C/-4°F)
4. For FWC compliance, wildlife shield must be used
BLANK
ALLOWANCE
THE WESTIN TYPE EWE ALT
VIENTO WALL PACK LED
APPLICATIONS
• Ecologically sensitive areas
• Sea turtle nesting beaches
• Migratory Corridors
• Dark-sky friendly communities
APPROVALS
• FWC #2019-118
• Sidewalks
• Security Lighting
• Accent Lighting
• General Exterior Lighting
• ETL listed. Complies with UL 1598 and CCSA C22.2#250.0.0:2008
• Suitable for wet locations
• 3G Vibration Rated for Bridge/Overpass Applications per ANSI C136.31-2010, Test Level 2
• IP 66 Optics and Housing
• BAA Compliant
• RoHS Compliant
• Appropriate parts/test guidelines were performed by ATAL www. ata-labs.com
• Select models DLC Qualified. For a complete list of DLC Qualified products, please visit: https://www.xtralight.com/dlc or https:// qpl.designlights.org
FEATURES
• Shielded, long wavelength, Dark Sky Friendly LED Luminiare
• Wildlife Lighting certified by the Florida Fish and Wildlife Conservation Commission
• Uniform light distribution, ideal for building facades, entry ways, sidewalks and general security or accent lighting
• LED provides a significant energy savings over HID
• Operating temperature: -40°C to +40°C (-40°F to +104°F)
• Custom colors are available (consult factory)
• Designed for ease of installation OPTICS
• Optical grade polymer is UV stabilized and impact resistant
• IP66 rated LED light engines prevent dust and moisture from degrading performance
• Distributions: Type II Short, Type II Medium, Type III Medium and Type IV Short
• Precision molded optics for superior uniformity, minimal light trespass and maximum spacing
• Long wavelength amber (590nm) or red (620nm) LEDs with a targeted spectrum
• Zero uplight (U0)is dark sky friendly, reduces wasted light WARRANTY
• Backed by XtraLight’s industry leading 5-year warranty
CONSTRUCTION
• Housing: Two-piece die-cast aluminum has integral heat sink fins to optimize thermal management through conductive and convective cooling
• Housing and back box are protected with a thermoset TGICpolyester powder coat finish
• The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life
• Silicone gasket is included to prevent leakage and provide weather-tight protection
• All fasteners are stainless steel
• Post painted matte black interior/fixture finish exterior wildlife shield standard to meet FWC requirements
• Emergency battery backup option (EM) is available for some models; CEM suited for cold weather, has external test button and LED indicator light to notify when the heater is on
• 20kA surge protection standard
FSP3 Programmable Occupancy Sensor, 20’H/40’D
PC Photocell, Button, 120-277V
RWS 4 Remove Wildlife Shield
https://www.xtralight.com
1. Maximum operating temperature with EM for Model 25 (40°C/104°F), Model 60 (35°C/95°F) Model 80 (30°C/86°F).
2. Minimum temperature for EM (0°C/32°F)
3. Minimum temperature for CEM (-20°C/-4°F)
4. For FWC compliance, wildlife shield must be used
THE WESTIN TYPE EWG ALT
Model: WL-LED200
LEDme® Step Light
PRO DU C T D ESCRIPTIO N
Vertical rectangle LEDme® Step Light. Designed for safety and style on stairways, patios, decks, balcony areas, walkways and building perimeters.
indoor and outdoor lighting solutions. Creates an attractive, romantic impression at night.
FE ATURE S
• 316 marine grade cast stainless steel (SS) available
• Direct wiring, no driver needed
• Title 24 JA8 - 2016 Compliant (120V only)
• • 54,000 hour rated life
• Balanced lighting, free of shadows with minimum glare
• • 5 year WAC Lighting product warranty
OR DE R NUMB ER
*Brushed Nickel Finish is for interior use only
Example: WL-LED200F-AM-BZ
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Construction: Die-cast aluminum or 316 marine grade cast stainless steel Power: Direct wiring, no remote driver needed. Input voltage: 120V or 277V AC 50/60Hz
Light Source: 2700K or 3000K CCT Samsung HV-AC High Power LED, CRI: 85 Optional color lenses. Total power consumption of 3.5W
Mounting: Fits into 2” × 4” J-Box with minimum inside dimensions of 3"L × 2"W × 2"H Includes bracket for J-Box mount.
Dimming: Dim to 10% with electronic low voltage (ELV) dimmer
Standards: IP66, UL & cUL Listed for wet locations, Title 24 Compliant (120V only)
2"NPT threaded hole
BLANK
THE WESTIN TYPE EWH

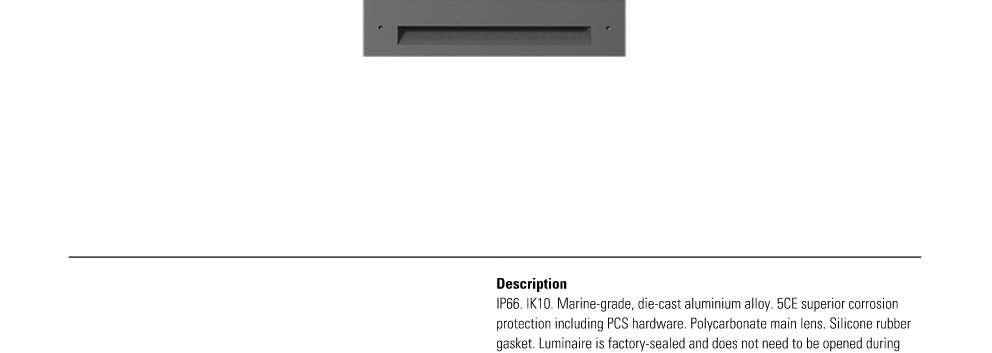

Rado 3 Recessed URA-40551
(LLTH # URA-40552)
Aluminum Casting
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating B0 - U3 - G1
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
Crystal Clear Low Iron Glass Lens
Provided with tempered, impact resistant crystal clear low iron glass ensuring no green glass tinge.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light. LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)
Sturdy classic wall-recessed pathway and stair luminaire. Simple pleasing aesthetic and sturdy construction, perfect for retrofit applications with its multiple sizes offered.
A range of rectangular and square wall recessed luminaires, with an indirect optical system, offering high vandal resistance. Suitable for indoor or outdoor applications. The recessed LED eliminates all discomfort glare as light is directed to the ground providing illumination where it is needed and minimizing light spill. This luminaire is provided with a powdercoated high pressure die-cast aluminum back box and can be pre shipped to the jobsite for concrete pour or masonry applications.
This fixture is suitable for lighting footpaths, stairs, squares and entrances.
The Rado range has a matching bollard offering to complement the recessed product. See bollard section on the Ligman website.
All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environ-
Peak wavelength between 585 & 595 nanometers and a full width of
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating B0 - U2 - G1
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Hardware Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
Crystal Clear Low Iron Glass Lens Provided with tempered, impact resistant crystal clear low iron glass ensuring no green glass tinge.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light. LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)
Sturdy classic wall-recessed pathway and stair luminaire. Simple pleasing aesthetic and sturdy construction, perfect for retrofit applications with its multiple sizes offered.
A range of rectangular and square wall recessed luminaires, with an indirect optical system, offering high vandal resistance. Suitable for indoor or outdoor applications. The recessed LED eliminates all discomfort glare as light is directed to the ground providing illumination where it is needed and minimizing light spill. This luminaire is provided with a powdercoated high pressure die-cast aluminum back box and can be pre shipped to the jobsite for concrete pour or masonry applications.
This fixture is suitable for lighting footpaths, stairs, squares and entrances.
The Rado range has a matching bollard offering to complement the recessed product. See bollard section on the Ligman website.
All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.
Collection of recessed luminaires for ceiling orwall applications. Waterproof construction suitableforwet locations like bathrooms showers and wellness centers. The milky polycarbonate screen provides omnidirectional diffused light. Suitablefor decorative applications, wayfindlng and to compose graphic light patterns
Edgeless LED luminaires are designed with a low profile and slim trim. They are engineered for smooth, glare-free, consistent illumination. A welcome addition to ceilings and walls for various applications.
FEATURES
• Multiple LED array for uniform illumination
• Designed with slim trim to maximize light emitting surface
• 5-CCT Switchable between 2700K and 5000K
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction: Aluminum with white acrylic diffuser
Power: 15W, 20W, 30W
Input: 120 VAC, 50/60Hz
Dimming: ELV: 100-5% , TRIAC: 100-5%
Light Source: Integrated LED
Lens: Acrylic Diffuser
Rated Life: 50000 Hours
Mounting: Installs over a 3", 4" or 3/0-4/0 hybrid junction box, Can be mounted on ceiling or wall in all orientations
Finish: Electrostatically Powder Coated: White, Black
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards: ETL, cETL, Wet Location Listed, Energy Star 2.0, Title 24 JA8 Compliant, ADA
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
(CAN/CSA-C22.2 No. 250.7)
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
BLANK
THE WESTIN TYPE GA ALT
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 120°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
BLANK
THE WESTIN TYPE GA ALT
SPECIFICATION SHEET
150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
4" Iolite can-less downlights can be installed in new construction or remodel applications. Fixed pinhole trims focuses the beam spread through a small opening
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 950lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Performance Data
Part Number Lumens CCT Optic
NIOC-4RPH40XMPW 983lm4000KSpot
NIOC-4RPH40XMPW 967lm4000KNarrow
NIOC-4RPH40XMPW 933lm4000KFlood
Delivered lumens will vary depending on CCT, optic and finish
NIOC-4RPHMPW = Matte Powder White Pinhole & Flange 4" Iolite Can-less Round Pinhole Trim
HZMPW Haze Pinhole / Matte Powder White Flange MPW Matte Powder White Pinhole & Flange
NIOC-4RPHHZMPW = Haze Pinhole & Matte Powder White Flange
PRODUCT IMAGES & DIMENSIONS Three field changeable optics included
Color
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
NIOC-24LED9CDX = Comfort Dim (3100K~2000K) Wattage
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
Example: NIOC-4RPHMPW / NIOC-24LED930X / NJCB-12 = 4" Iolite Can-less Pinhole Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Recessed LED module with interchangeable 2-inch round or square open pinhole apertures are available in various finishes to suit many décors. Use with 4-inch nominal recessed housings suitable for residential and shallow plenum commercial construction or can be used to retrofit existing installations. Field interchangeable primary optics provide various distribution patterns and spacing to mounting height ratios. Use for general and task lighting in low to medium height ceilings where energy savings, long life and optical control are required.
Specification Features
Module
• Field interchangeable and upgradable LED module consists of LED array, primary optic and driver
• Integral die cast aluminum heat sink provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
Retention
• Stainless steel springs hold module securely in the housing, can be removed thru the aperture for service or replacement
LED Array
• Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
• Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity
• Die formed steel trims are available in 2-inch round or square pinhole apertures and can be interchanged in the field
• Available in a broad range of painted or plated finishes, can be painted in the field to match any décor
• Magnetic attachment holds trim tightly to ceiling and eliminates light leaks.
Media
• Integral media holder provided accepts (1) 2” diameter 3.0mm thick color filters, lens or louvers
• Order media separately
Primary Optic
• Precision molded TIR optic organizes source flux into useful beams without stray lumens in the field
• Two-piece construction with matte black mounting ring and polarized turn and lock mounting aligns optic to source and minimizes backlight in the housing
• Exceeds ENERGY STAR® color angular uniformity requirements, color deviation is typically less than 0.002 u’ v’.
• Available in spot, narrow flood, flood and wide flood distributions, ships with narrow flood or flood factory installed, order alternate distributions or replacement separately
• Integral media holder accepts (1) lens or louver
VividTune
• D2W™ dim-to-warm option shifts color temperature from 3000 K to 1850 K as fixture dims mimicking the black body dimming response of halogen sources
Driver
• Integral UNV 120 - 277V 50/60 Hz constant current driver provides noise free operation and can be replaced in the field
• Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
• Optional UNV 120-277V 50/60 Hz driver with 0 -10V analog dimming from 100% to 5%, provided with inline electrical quick connect for low voltage connections
• Medium base (E26) to CJT adapter (provided) provides mains connection.
Compliance
• cULus listed for use with Halo housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability
• Damp location listed
• Airtight per ASTM-E283
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
• Certified to State of California Title 20, State-regulated LED Lamp; reference Modernized Appliance Efficiency Database System (MAEDBS) for State-regulate d LED Lamp
• ENERGY STAR® certified, reference Certified Light Fixtures database.
Warranty
Five year limited warranty, consult website for details. www.cooperlighting.com
THE WESTIN TYPE RB ALT
NIOC-4RPH
4" Iolite Can-less Round Pinhole
Source: 12W LED 950lm
PRODUCT DESCRIPTION
4" Iolite can-less downlights can be installed in new construction or remodel applications. Fixed pinhole trims focuses the beam spread through a small opening
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 950lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Performance Data
Part Number Lumens CCT Optic
NIOC-4RPH40XMPW 983lm4000KSpot
NIOC-4RPH40XMPW 967lm4000KNarrow
NIOC-4RPH40XMPW 933lm4000KFlood
Delivered lumens will vary depending on CCT, optic and finish
NIOC-4RPHMPW = Matte Powder White Pinhole & Flange 4" Iolite Can-less Round Pinhole Trim
HZMPW Haze Pinhole / Matte Powder White Flange MPW Matte Powder White Pinhole & Flange
NIOC-4RPHHZMPW = Haze Pinhole & Matte Powder White Flange
& 4" Iolite Can-less LED Module
PRODUCT IMAGES & DIMENSIONS Three field changeable optics included
Color
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
NIOC-24LED9CDX = Comfort Dim (3100K~2000K) Wattage
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming
Example: NIOC-4RPHMPW / NIOC-24LED930X / NJCB-12 = 4" Iolite Can-less Pinhole Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Ordering Information
SAMPLE NUMBER: ML4D09NFL927E - TL41RMW
A complete luminaire consists of a housing, LED module and trim, order separately.
TIR45MH12PK=replacement media holder, package of 12 L100 Series=2.0” lens and filters, see spec sheet
Accessories
T24HWKIT=Title 24 hard wire kit, converts incandescent, low voltage and compact fluorescent housings to LED
Requires Edison Base Adapter for retrofit (order separately)
1. For 0-10V control the "E010=UNV 120 - 277V 50-60Hz, 0 - 10V analog 5% dimming" option must be used with either H45ICATD010 or H45RICATD010 housings
2. Actual lumens for D2W.
HE26LED*
BLANK
Description
Recessed LED module with interchangeable 2-inch round or square open pinhole apertures are available in various finishes to suit many décors. Use with 4-inch nominal recessed housings suitable for residential and shallow plenum commercial construction or can be used to retrofit existing installations. Field interchangeable primary optics provide various distribution patterns and spacing to mounting height ratios. Use for general and task lighting in low to medium height ceilings where energy savings, long life and optical control are required.
Specification Features
Module
• Field interchangeable and upgradable LED module consists of LED array, primary optic and driver
• Integral die cast aluminum heat sink provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
Retention
• Stainless steel springs hold module securely in the housing, can be removed thru the aperture for service or replacement
LED Array
• Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
• Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity
• Die formed steel trims are available in 2-inch round or square pinhole apertures and can be interchanged in the field
• Available in a broad range of painted or plated finishes, can be painted in the field to match any décor
• Magnetic attachment holds trim tightly to ceiling and eliminates light leaks.
Media
• Integral media holder provided accepts (1) 2” diameter 3.0mm thick color filters, lens or louvers
• Order media separately
Primary Optic
• Precision molded TIR optic organizes source flux into useful beams without stray lumens in the field
• Two-piece construction with matte black mounting ring and polarized turn and lock mounting aligns optic to source and minimizes backlight in the housing
• Exceeds ENERGY STAR® color angular uniformity requirements, color deviation is typically less than 0.002 u’ v’.
• Available in spot, narrow flood, flood and wide flood distributions, ships with narrow flood or flood factory installed, order alternate distributions or replacement separately
• Integral media holder accepts (1) lens or louver
VividTune
• D2W™ dim-to-warm option shifts color temperature from 3000 K to 1850 K as fixture dims mimicking the black body dimming response of halogen sources
Driver
• Integral UNV 120 - 277V 50/60 Hz constant current driver provides noise free operation and can be replaced in the field
• Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
• Optional UNV 120-277V 50/60 Hz driver with 0 -10V analog dimming from 100% to 5%, provided with inline electrical quick connect for low voltage connections
• Medium base (E26) to CJT adapter (provided) provides mains connection.
Compliance
• cULus listed for use with Halo housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability
• Damp location listed
• Airtight per ASTM-E283
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
• Certified to State of California Title 20, State-regulated LED Lamp; reference Modernized Appliance Efficiency Database System (MAEDBS) for State-regulate d LED Lamp
• ENERGY STAR® certified, reference Certified Light Fixtures database.
Warranty
Five year limited warranty, consult website for details. www.cooperlighting.com
THE WESTIN TYPE RB3 ALT
NIOC-4RPH
4" Iolite Can-less Round Pinhole
Source: 12W LED 950lm
PRODUCT DESCRIPTION
4" Iolite can-less downlights can be installed in new construction or remodel applications. Fixed pinhole trims focuses the beam spread through a small opening
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 950lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Performance Data
Part Number Lumens CCT Optic
NIOC-4RPH40XMPW 983lm4000KSpot
NIOC-4RPH40XMPW 967lm4000KNarrow
NIOC-4RPH40XMPW 933lm4000KFlood
Delivered lumens will vary depending on CCT, optic and finish
NIOC-4RPHMPW = Matte Powder White Pinhole & Flange 4" Iolite Can-less Round Pinhole Trim
HZMPW Haze Pinhole / Matte Powder White Flange MPW Matte Powder White Pinhole & Flange
NIOC-4RPHHZMPW = Haze Pinhole & Matte Powder White Flange
& 4" Iolite Can-less LED Module
PRODUCT IMAGES & DIMENSIONS Three field changeable optics included
Color
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
NIOC-24LED9CDX = Comfort Dim (3100K~2000K) Wattage
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming
Example: NIOC-4RPHMPW / NIOC-24LED930X / NJCB-12 = 4" Iolite Can-less Pinhole Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Ordering Information
SAMPLE NUMBER: ML4D09NFL927E - TL41RMW
A complete luminaire consists of a housing, LED module and trim, order separately.
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type:
Direct distribution with recessed mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft & 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type:
Direct distribution with recessed mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft & 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type:
Direct distribution with recessed mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft & 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type:
Direct distribution with recessed mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft & 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass · 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC3-48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Delivered Lumens 900lm1500lm2500lm3500lm4500lm
Wattage 13W max.18W max.26W max.38W max.46W max.
Color Temperature 2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
NCH3-4L1 NCHR3-4L1
NCH3-4L2 NCHR3-4L2
NCH3-4L3 NCHR3-4L3
Lifetime 50,000 hours @ L70
NCH3-4L4 NCHR3-4L4
NCH3-4L5 NCHR3-4L5
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-FC 4" Tempered Frosted Glass with Clear Center
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8” Open Center
LABELS AND LISTINGS
c ULus Listed for Wet Locations when used with compatible frame-in 5 -Year Limited Warranty
This fixture is universal 120-277V when using the standard 0-10V dimming driver and optional LDE, DAL and DMX. Voltage designation (1) to be used with optional 2-wire dimming that is 120V only.
Prewired and grounded junction box with galvanized snap-on covers. Listed f or through branch circuit wiring.
Electrogalvanized plated steel hanger bars are included as factory standard. Bars extend to 24" and offer self-nailing and additional mounting features
10-year limited warranty on Bridgelux Vero ® BXRC LED array. Full component warranty details at atlantic-lighting.com/main/support.
Bridgelux Vero 18 Array Series
80+ CRI
90 CRI option offered. Lower lumen output and reduced lumens per watt will be experienced with this option.
Rated Life: 50,000 hours at 70% lumen maintenance (L70) when maintained in a 45 °C ambient environment with open air flow. Ambient temperatures lower than 45°C may extend life of module.
OPTOTRONIC® by eldoLED Driver
This LED fixture is intended for non-IC applica tions, insulation must be kept 3" away from fixture on all sides. Not for use within enclosures.
Dimmable, instant 100% light, (1%-100%) via: 0-10V protocol. Contact factory for optional dim-to-off and soft-start programming. See driver spec.
Listed for Damp Location. Listed to UL 1598 and Canadian standards Photometrics at atlantic-lighting.com
Specifications and dimensions subject to change without notice.
Precision spun .052 aluminum self-flanged reflector offered in semi-specular clear, haze clear and in white. Flange is white as factory standard, optional polished flange will match reflector finish.
VR10 1080 951894-970571
VR15 14.980 14581371-1487583
VR20 19.980 19661848-2005590
VR30 29.980 29172742-2975583
VR40 39.980 39313695-4010590
VR55 54.880 53895066-5497588
VR65 64.880 63405960-6467585
VR10 1090 780733-795468
VR15 14.990 11961124-1219478
VR20 19.990 16121515-1644484
VR30 29.990 23922248-2440478
VR40 39.990 32233030-3288484
VR55 54.890 44194154-4507482
VR65 64.890 51994887-5303480 *Lumens shows true delivered values for 35K color temp, adjusted shows the range from 27K-5K
KIT
2700K
VOLTAGE
U Universal 120V-277V 1 1 120V
DIMMING
0-10V DC standard, leave box blank
LDE Lutron® EcoSystem® (100%-1%, Fade-to-BlackTM ) not available on VR40 or higher
DAL DALI-2 driver, 100%-0.1%. (Type 6, IEC62386) not availa ble on VR55 or higher
DMX DMX Driver, 100%-0.1% (RDM Capability) not available on VR55 or higher
2WR 2-wire, phase cut (100%-1%) (120V only) not available on VR40 or higher
Must specify voltage 1 with 2WR option.
OPTIONS
9CR 90 CRI, effects lumens per watt.
EM6 6W emergency battery pack
IEM6 Internal EM with test button in reflector
Ambient range for EM is 0°C to 45°C
TRIM KIT Refer to left for part numbers. Specify finish & other below.
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Adjustable pinhole reflector focuses the beam spread through small opening.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C ambient temperature
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28
ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
ENERGY STAR certified 5-Year Limited Warranty
· RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Iolite reflectors include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast reflector. Replacement optics include an optional frosted lens. Note: Frosted filter-optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Filter-Optic
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast reflector. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Reflector
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
FLUSH MOUNT
2" Iolite reflectors can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring. LED Module Accessory
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with reflector flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R reflectors.
4" Iolite can-less downlights can be installed in new construction or remodel applications. Fixed pinhole trims focuses the beam spread through a small opening
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 950lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite can-less downlights can be installed in new construction or remodel applications. Fixed pinhole trims focuses the beam spread through a small opening
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 950lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
The 8870 Pro profile is designed to disappear into the structure so that the light source merges with the surface. The LED trays are perfectly smooth and allow the installation of two strip tapes (5.9 W/ft) side by side for maximum lighting power, or face to face for optimal light diffusion. A new feature: it can be used with all type B joiners to build a solid structure, and it fits directly with standard gypsum panels for an impeccable finish. Its refined look harmonizes perfectly with any design.
FEATURES
– Available in 96 in (2.43 m) lengths; profile can be cut on-site for easy and accurate installation
–Fits directly over standard 5/8" gypsum panels; can also accept ½" panels with 1/8" shims installed on-site
–On each side of the extrusion, the edges have grooves that reduce the space between the screws and the surface
–LED trays designed for two light sources installed side-by-side (5.9 W/ft) for maximum light output or face-to-face for optimal light distribution
–10 LED light sources to choose from 2400 K to 6200 K, including WarmDim, RGB and RGBW –Application guide for light sources of 10 mm (0.394") or less in IP22
–Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation
–Indoor use
Cross-section dimensions:
– Bonus: P VC protector included with each profile OPTIONS
LED ENGINE COMPATIBILITY
Compatible with LED engines up to 30mm wide in total for direct light options and up to 5mm wide on either side for edge light options.
WD1 - 2200-2700K 14W Lumen Package selection is not available for WD, TW and RGB color options.
RGB1 - RGB 14W
RGB2 - RGB 19W
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
E - Non-dimming DC plug in
F - DMX
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
RGBW2- 3000K 4in1 NO - No driver No - No strip
-
24 - 2400K LP0 - 119 LM / 1.5W FT / 90+CRI HW3 - Hardwire 3 FT I - IP22 indoor dry location
27 - 2700K LP1 - 137 LM / 1.5W FT / 90+CRI HW6 - Hardwire 6 FT
30 - 3000K
FT
- ELV dimming 120V AC
- Non-dimming Total lenght of LED engine in inches - See Appendix 3 (page 259) on how to calculate length.
D - 0/10V dimming 120/277 VAC
42 - 4200K LP4 - 488 LM / 5.8W FT / 90+CRI NO - No lead E - Non-dimming DC plug in
53 - 5300K (LHP only) LHP - 668 LM / 7.0W FT / 95+CRI F - DMX
62 - 6200K (LP only) No - No strip G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K 14W
TW2 - Tunable White 19W
Lumen Package selection is not available for WD , TW and RGB color options.
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
WD1 - 2200-2700K 14W For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
W:WetIP65(In caseof outdoor applicalion withoutc1ir conditionng. use9-wattheat sinkoptionbut runat3-watt powerinorder toincrease heat dissipation) ** only if access from above ceiling is available
Alternates: Page: of 2
THE WESTIN TYPE RAC ALT
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
DATE: 12August
2022
WESTIN COCOA BEACH
COCOABEACH, FLORIDA
Specifications
This specification Grade LEO downlight offers a wide selection of LED modu es options to
Many additional custom options are available; please contact manufacturer for detalls.
LED source
Tool-free field-replaced LED module. Propriety high performance aluminum die cast heatsink for maximum LED life
Source
Computer-optim zed reflector design. High reflected finish aluminum. Tool-free fieldinterchangeable reflectors and lens. 0-20°(0 version), 0-40°U ver-sion) vertical and 360° horizontal adjustment
Body
Die-cast aluminum frame and body.
Dimming compatibility Trim Die-case alumlnum CNC machlne finished Minma thickness. White can be field painted to match adjacent finishes Fixture retention Two torsion springs hold the fixture tight to the ceiling accommodating ceiling
from 1/16" to 1 ". Special springs for thicker ceiling available on request. Life Rated for 50,000 hours at 70% lumen maintenance.
Zaniboni fixture are compatible with all major dimming protocol in the industry Please refer to zanibooiJiahtinocom for general compatibility and wiring diagrams. Zaniboni recommends testing your unique dimming configuration as the exact full configurat on (Dimmer, drivers, fixture quantities voltage) may affect dimming performance.
N: Non-Oimmable
110-277V, 50/60Hz. Economic so ution for ON-OFF app cations not requiring dimming.
E: ELV Oimmable
110-277V, S0/60Hz.
For ELV(Electronic Low Voltage) dimmers. Best for new construction application. Dims down to less than 10% light output(most cases}. Consult dimming manufacturer for installat on instructions Must meet dimmer Minimum load Requirements
Z: 0-10V Oimmable
110-277, S0/60Hz.
Prevalent solution on commercial projects Integrates into a variety of building management and day lighting controls. Dims down to less than1% light output(most cases). Must meet dimmer Minimum Load Requirements Consult dimming manufacturer for installation instructions.
L: Lutron Hi-Lume A LOE
120-277V, 50/60Hz. For LUTRON EcoSystem drivers only. Continuous dimming to 1% Consult dimming manufacturer for Installation lnstructions. Requires access from above on all fixtures with a cutout below 81 mm.
T: Lutron Hi-Lume A LTE 120V, S0/60Hz_ For 2-wire Forward Phase Controls. Continuous dimming to 1% Consult dimming manufacturer for installation instructions. Requires access from above on all fixtures with a
BLANK
DATE: 12August
WESTIN COCOA BEACH
COCOABEACH, FLORIDA
WS:Matte White
BK:Matte Black
WK:White Trim/ Black Splc1y
BP:Black Pearl
SN:Satin Nickel
BZ:Bronze
0:No Driver Z:0-IOVOimmableto1% E:ELVDimmable
Installation 00:No Accessories (Option when productis installed in Low T:Lucron™ (Phase Voltage-Class2) Dimming)
D:Dry IP 20 W:WetIP65(In caseof outdoor applicalion withoutc1ir conditionng. use9-wattheat sinkoptionbut runat3-watt powerinorder toincrease heat dissipation) ** only if access from above ceiling is available
Alternates: Page: of 2
THE WESTIN TYPE RAC1 ALT
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
DATE: 12August
2019
WESTIN COCOA BEACH
COCOABEACH, FLORIDA
Specifications
This specification Grade LEO downlight offers a wide selection of LED modu es options to address design requirements in the spaces it illuminates.
Many additional custom options are available; please contact manufacturer for detalls.
LED source
Tool-free field-replaced LED module. Propriety high performance aluminum die cast heatsink for maximum LED life
Source
Computer-optim zed reflector design. High reflected finish aluminum. Tool-free fieldinterchangeable reflectors and lens. 0-20°(0 version), 0-40°U ver-sion) vertical and 360° horizontal adjustment
Body
Die-cast aluminum frame and body.
Dimming compatibility Trim Die-case alumlnum CNC machlne finished Minma thickness. White can be field painted to match adjacent f nishes Fixture retention Two torsion springs hold the fixture tight to the ceiling accommodating ceiling thickness from 1/16" to 1 ". Special springs for thicker ceiling available on request.
Rated for 50,000 hours at 70% lumen maintenance.
trim.
Zaniboni fixture are compatible with all major dimming protocol in the industry Please refer to zaniboniJiahtinocom for general compatibility and wiring diagrams. Zanibon recommends testing your unique dimming configuration as the exact full configurat on (Dimmer, drivers, fixture quantities voltage) may affect dimming performance.
N: Non-Oimmable
110-277V, 50/60Hz. Economic so ution for ON-OFF app cations not requiring dimming.
E: ELV Oimmable
110-277V, S0/60Hz.
For ELV(Electronic Low Voltage) dimmers. Best for new construction application. Dims down to less than 10% light output(most cases}. Consult dimming manufacturer for installat on instructions Must meet dimmer Minimum load Requ rements
Z: 0-10V Oimmable
110-277, S0/60Hz.
Prevalent solution on commercial projects Integrates into a variety of building management and day lighting controls. Dims down to less than1% light output(most cases). Must meet dimmer Minimum Load Requirements Consult dimming manufacturer for installation instructions.
L: Lutron Hi-Lume A LOE 120-277V, 50/60Hz. For LUTRON EcoSystem drivers only. Continuous dimming to 1% Consult dimming manufacturer for Installation lnstructions. Requires access from above on all fixtures with a cutout below 81 mm.
T: Lutron Hi-Lume A LTE 120V, S0/60Hz_ For 2-wire Forward Phase Controls. Continuous dimming to 1% Consult dimming manufacturer for installation instructions. Requires access from aboveon all fixtures with a cutout below 81mm
W:WetIP65(In caseof outdoor applicalion withoutc1ir conditionng. use9-wattheat sinkoptionbut runat3-watt powerinorder toincrease heat dissipation) ** only if access from above ceiling is available
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
DATE: 12August
2022
Specifications
specification
LEO
WESTIN COCOA BEACH
COCOABEACH, FLORIDA
Many additional custom options are available; please contact manufacturer for detalls.
LED source
Tool-free field-replaced LED module. Propriety high performance aluminum die cast heatsink for maximum LED life
Source
Computer-optim zed reflector design. High reflected finish aluminum. Tool-free fieldinterchangeable reflectors and lens. 0-20°(0 version), 0-40°U ver-sion) vertical and 360° horizontal adjustment
Body
Die-cast aluminum frame and body.
Dimming compatibility
maintenance.
Zaniboni fixture are compatible with all major dimming protocol in the industry Please refer to zanibooiJiahtinocom for general compatibility and wiring diagrams. Zanibon recommends testing your unique dimming configuration as the exact full configurat on (Dimmer, drivers, fixture quantties, voltage) may affect dimming performance.
N: Non-Oimmable
110-277V, 50/60Hz. Economic solution for ON-OFFappl cations not requiring dimming.
E: ELV Oimmable
110-277V, S0/60Hz.
For ELV(Electronic Low Voltage) dimmers. Best for new construction application. Dims down to less than 10% light output(mostcases}. Consult dimming manufacturer for installat on instructions Must meet dimmer Minimum load Requ rements
&
Z: 0-10V Oimmable
110-277, S0/60Hz.
Prevalent solution on commercial projects Integrates into a variety of building management and day lighting controls. Dims down to less than 1% light output(most cases). Must meet dimmer Minimum Load Requirements Consult dimming manufacturer for installation instructions.
L: Lutron Hi-Lume A LOE
120-277V, 50/60Hz. For LUTRON EcoSystem drivers only. Continuous dimming to 1% Consult dimming manufacturer for Installation lnstructions. Requires access from above on all fixtures with a cutout below 81 mm.
T: Lutron Hi-Lume A LTE 120V, S0/60Hz_ For 2-wire Forward Phase Controls. Continuous dimming to 1% Consult dimming manufacturer for installation instructions. Requires access from above on all fixtures with a cutout
BLANK
COCOA BEACH
COCOA BEACH, FLORIDA
THE WESTIN TYPE RAD ALT
Carisma 2"
Recessed Linear LED
Features
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type:
Direct distribution with recessed mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft & 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
Carisma Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). Wide range of ceiling trim options accommodate most ceiling types.
The Carisma Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type:
Direct distribution with recessed mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft & 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
12VDC Twist-Task (TW) LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Specification Series Flexible Twist-Task LED Tape features segmented construction that enables the tape itself to conform to curves, sharp angles and irregular shapes that challenge typical linear tape. Available in 16’-4” (5M) reels.
FEATURES
• 12VDC
• 2700K, 3000K, 3500K, and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• LM80 / IP20
• Segmented construction
• Cuttable every 4”
• Premium 2835 diodes
• Dry location
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
• Custom lengths available - consult factory
SPECIFICATIONS
ELECTRICAL
•12V
•2.2 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
Segment construction allows twist task to conform to gentle curves and angles
CERTIFICATION 0° - 90°
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and
WARRANTY
•5-year warranty when paired with GM power supply.
(no
LED Tape Specification Checklist:
BLANK
LTR-S Specification Series ®
12VDC Twist-Task (TW)
LED Tape Specification Sheet
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 6-7
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 6-7
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 24VDC see page 8
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 8
12VDC Twist-Task (TW) LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Specification Series Flexible Twist-Task LED Tape features segmented construction that enables the tape itself to conform to curves, sharp angles and irregular shapes that challenge typical linear tape. Available in 16’-4” (5M) reels.
FEATURES
• 12VDC
• 2700K, 3000K, 3500K, and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• LM80 / IP20
• Segmented construction
• Cuttable every 4”
• Premium 2835 diodes
• Dry location
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
• Custom lengths available - consult factory
SPECIFICATIONS
ELECTRICAL
•12V
•2.2 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
Segment construction allows twist task to conform to gentle curves and angles
CERTIFICATION 0° - 90°
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and
WARRANTY
•5-year warranty when paired with GM power supply.
(no
LED Tape Specification Checklist:
BLANK
LTR-S Specification Series ®
12VDC Twist-Task (TW)
LED Tape Specification Sheet
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 6-7
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 6-7
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 24VDC see page 8
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 8
RECOMMENDED DRIVERS
Please see our website for updated power supply specifications and information.
1.5W, 12VDC and 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M), 100’ (30M) and 250’ (76M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Dry location
• Remote control with GM’s LUXcontrol™ App and controllers
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”(12V) and 60’(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
•12V/24V
•1.5 watts per foot
•90+ CRI
BLANK
LTR-P Professional Series ®
1.5W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-ED-UNV LineDrive Electronic Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 150W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LD-ED010 LineDrive Electronic Dimmable 0-10V Power Supply, 12VDC or 24VDC 60W, 96W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels. ELECTRICAL
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels. ELECTRICAL
Lamina is a 24VDC flexible light sheet that can be cut in the field into geometric or irregular shapes, creating limitless illumination for signage, light panels, retail display, backlighting and themed lighting applications. Easy installation with no heat sink required. Standard 12” x 12” sheets make it easy to plan your layout and install (see next page).
FEATURES
•Flexible - conforms to curvilinear shapes like round columns
•Dimmable
•12” x 12” with 48” leads and sheet to sheet connectors
•1/8” depth
•Connectible via integral push-in connectors
•3M backing layer adheres to most flat or curved surfaces
•3M tape, staple or screw mounting options
• Invisible Stand-Off support option allows even illumination with translucent panels (easily raises diffusion translucent panels 0.91” - 2.0” above Lamina. For hoizontal surface use only).
•Not intended for outdoor use
•Operating temp. -4°F - 122°F*
SPECIFICATIONS
ELECTRICAL LABEL
• 24VDC
• SO: 5W / Sq. Ft.
• ETL
• Closet Rated HO: 10W / Sq. Ft.
• Connectors every 4” around perimeter
OPTICS WARRANTY
• 2700K, 3000K, 3500K, 4000K
• 90+ CRI
• 5-years
* Do not install in an application that is outside of the products listed ambient temperature and in an area that is not easily accessed for service requirements.
ORDERING INFORMATION
S12X12-HO-30
CONNECTORS
Project Name Type
Catalog # Date
Tight diode to diode spacing for even illumination and no hot spots.
NOTE: Even illumination will vary depending on materials, please verify offset for even illumination.
1” Cut Lines (shown in horizontal format direction)
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•24VDC operation
•Wet location - IP65
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Dimmable
•Wireless control with LUXcontrol App and controller
•3000K or 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32’-8”
•Field cuttable and joinable in 2 inch increments while retaining IP65
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use 1 per foot)
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels. ELECTRICAL
•12V/24V
•3 watts per foot
•90+ CRI
BLANK
PRODUCT DESCRIPTION
Extruded 45° aluminum channel with snap on semi-frosted diffusion lens that provides a rigid linear mounting platform that accommodates the following GM Lighting LED Ribbons
FOR LTR SERIES TAPE (DRY & WET LOCATION) LTR-P, LTR-S and LTR-E
FEATURES
•Includes 2 mounting clips and screws
•Includes acrylic frosted lens
•End caps sold separately
Note: Accept Suretites ESTW & STW & LTC-EZ Does not accept WP connectors.
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels. ELECTRICAL
•12V/24V
•3 watts per foot
•90+ CRI
BLANK
PRODUCT DESCRIPTION
Extruded 45° aluminum channel with snap on semi-frosted diffusion lens that provides a rigid linear mounting platform that accommodates the following GM Lighting LED Ribbons
FOR LTR SERIES TAPE (DRY & WET LOCATION) LTR-P, LTR-S and LTR-E
FEATURES
•Includes 2 mounting clips and screws
•Includes acrylic frosted lens
•End caps sold separately
Note: Accept Suretites ESTW & STW & LTC-EZ Does not accept WP connectors.
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
One fixed ceramic bi-pin socket with stainless steel retaining springs.
IP RATING:
IP66 Rated
LAMP TYPE:
One 12V MR16. LED recommended. 35W halogen or 7W LED maximum.
MOUNTING:
Surface mount.
WIRING:
Pre-wired with 25' pigtail of 18/2 cable.
WARRANTY: Lifetime.
The cast brass wall sconce utilizes one MR16 LED lamp to provide a wide range of effects. By choosing the desired lamp options, you can set the intensity, warmth and beam coverage (from 15° to 40°).
One fixed ceramic bi-pin socket with stainless steel retaining springs.
IP RATING:
IP66 Rated
LAMP TYPE:
One 12V MR16. LED recommended. 35W halogen or 7W LED maximum.
MOUNTING:
Surface mount.
WIRING:
Pre-wired with 25' pigtail of 18/2 cable.
WARRANTY: Lifetime.
The cast brass wall sconce utilizes one MR16 LED lamp to provide a wide range of effects. By choosing the desired lamp options, you can set the intensity, warmth and beam coverage (from 15° to 40°).
Highlighted fields denote QuickShip Options. See complete 7-Day QuickShip Terms and Conditions available at www.bartcolighting.com/quickship-products/ Purchase order must reference “QuickShip”.
FEATURES
The BSS750 is a corner mount, linear LED luminaire well suited for perimeter and stairwell lighting. The 3” x 3” extruded aluminum housing tucks into architectural junctures and is fitted with a two-sided, frosted acrylic lens. When installed, virtually no fixture housing is visible, leaving the evenly illuminated lens to make a strong visual statement.
Fixture with certain options available for 7-Day QuickShip.
SPECIFICATIONS
Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and sheet aluminum end caps
Model variations offered for surface and pendant mount applications
Standard finishes as shown below
Available in nominal lengths of 2’–8’ single fixtures and continuous runs
Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.)
One Ø 7/8” knock-out provided on both the top and back sides at the left end of the fixture
SECTION
PERFORMANCE
Note: All data reflects fixtures with 3500K LEDs
Standard 120-277V integral driver offered with 0-10V dimming or non-dim (other dimming driver options available)
Integral 120-277V emergency battery backup available for 4’ or 8’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers)
Standard light outputs are 750, 970 or 1275 lumens per foot
LEDs available in 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical
Life: 50,000 hours L70
Limited five year warranty
UL and C-UL listed for dry and damp locations
CORRELATED COLOR TEMPERATURE
* Actual dimension dependent on mounting option and run configuration. DRIVER
MOUNT
NOMINAL FIXTURE LENGTH* LIGHT OUTPUT (lumens per foot) RUN CONFIGURATION
2: 22-9/16”
3: 33-5/8”
4: 44-11/16”
6: 66-13/16”
7: 77-7/8”
8: 88-15/16”
30: 3000K-80+ CRI
35: 3500K-80+ CRI
40: 4000K-80+ CRI
ND: non-dimming [Dimming]
D: 0-10V, 1%
DTR: triac, 1%, (120V ONLY)
DLV: electronic low voltage, 1%, (120V ONLY)
HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
L: low – 750 R: regular – 970 H: high – 1275 CF: consult factory for custom output
EL: eldoLED ECOdrive 0-10V, 1%
ES: eldoLED SOLOdrive 0-10V, 0.1%
ELD: eldoLED ECOdrive DALI, 1%
ESD: eldoLED SOLOdrive DALI, 0.1%
SM: surface mount
PM18: pendant mount 18” stem length
PM24: pendant mount 24” stem length
PM30: pendant mount 30” stem length
CF: consult factory for custom mounting
SN: single
starter
adder TR: terminator
OPTIONS
ED: emergency driver (4’ or 8’ nondim or 0-10V only)
FINISH
AW: architectural white (semi-matte)
WH: white (semi-gloss)
BL: black (semi-matte)
MB: matte black
ESS: environmental satin silver
BZ: bronze
PR: primer
CF: consult factory for custom finish
SA : satin anodize (may require additional lead time)
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
• Custom lengths available - consult factory
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
WARRANTY
•5-year warranty when paired with GM power supply
Length: 16 = 16’-4” *5.8W (*FT) is custom cut only in 2 in increments
BLANK
THE WESTIN TYPE SQ ALT
PRODUCT DESCRIPTION
Extruded wide aluminum channel with snap on semi-frosted diffuseion lens that provides a rigid linear mounting platform wide enough to accomodate the following GM Lighting LEDTask Flexible LED Linear Ribbons:
FEATURES
•Includes 2 mounting clips and screws
•Includes acrylic frosted lens •End caps sold seperately
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
• Custom lengths available - consult factory
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
WARRANTY
•5-year warranty when paired with GM power supply
Length: 16 = 16’-4” *5.8W (*FT) is custom cut only in 2 in increments
BLANK
THE WESTIN TYPE SQ1 ALT
PRODUCT DESCRIPTION
Extruded wide aluminum channel with snap on semi-frosted diffuseion lens that provides a rigid linear mounting platform wide enough to accomodate the following GM Lighting LEDTask Flexible LED Linear Ribbons:
FEATURES
•Includes 2 mounting clips and screws
•Includes acrylic frosted lens •End caps sold seperately
COCOA BEACH, FLORIDA
Kurbo
Applications
Ordering Code MODEL
�fV-l<urtoSr.,.:il'ca> �rn,c,;il8-,rd
Section S1on, t:r>dteOO
22K-'.220Ci( 24K-2400I<. 27K-27cc+:: 30K30CC+35K-3500k 401(40C(W 5E1C110nfnd, End feed
ACTUALLENGTH S.:ol'DW'BI"Co�w!"lphon1obleoni:oga, J ki, =•1.:ihie 1,-rgr,� ' ;
Manufacturer: Specification: Luminii - Optic Arts KBS-F-V-27K-PEREC-PEREC-PERDWG.Provide1%0-10V dimmablepowersuppliesinquantitiesasrequied.Provideallmounting clipsandaccessoriesforacompleteandworkinginstallation.
Lamping: Integraltofixture.Allow1.4wattsperfoot.
E S G N Alternates: Page: of 6
LUXLINE ACCENT 1515V
The Luxline Accent 1515V is a line voltage 120V flexible silicone channel that bends up and down on the vertical axis. It provides a beautifully diffused uniform linear light. Designed to illuminate along curved surfaces. Resistant to water and UV light.
PRODUCT FEATURES
• Architectural grade
• High-qualit y silicone construction rated for outdoor use (IP65)
• 120VA C, 15x15mm, Vertical Bend
• Direc t connection with line voltage and driver-free installation ensures added savings
• Integral fuse ensures overvoltage protection
• ET L certification for USA and Canada, conforms to UL STD 2388, certified to CSA STD C22.2#37
• Maximum r un up to 164 feet
• Can be cut every 3”
• Available in three colour temperatures: 2700K, 3000K and 4000K at CRI 90+
• Patent-pending PowerUp-DC technology available for the unique benefits of 120VDC, including driverless, flicker-free dimming using various protocols (e.g. 0-10V, MLV, ELV, Triac) and high-voltage applications (120-277VAC range)
Take your installation to the next level with our professional-grade sheer cutter. Engineered for precision, this tool delivers clean, effortless cuts on both LED tape and silicone sleeves, ensuring a flawless finish. With an adjustable cutting angle, it offers flexibility for custom applications while maintaining accuracy. The perfect add-on for seamless lighting integration.
Quantity:
DATE: 22March
WESTIN COCOA BEACH
COCOA BEACH, FLORIDA
Kurba Small Vertical Flexible LED strip 24 VDC
Power Supplies
OMX Dimming Power Supplies 120VAC • 277VAC MODEL POWER OUTPUT I 1-1
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
One / Two Circuit Conversion: Positive contact (opposite neutral and ground contacts) is preset to “down” position at factory, but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.
OPTIONAL ACCESSORIES
NTE-855BD: Barndoor
NT-366: Round Monopoint Canopy
NT-319: Square Monopoint Canopy
LABELS AND LISTINGS
cETLus Listed for dry locations
· 5-Year Limited Warranty FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Low profile, extruded aluminum track with 20-Amp rated flat, solid integral conductors. Variety of connectors and accessory parts available.
NOTE: Nora Track is not approved for use with remote transformers. Low voltage fixtures require a transformer for each fixture, can be purchased as a separate item or a fixture with transformer included.
SPECIFICATION
Extrusion: 0.030 die cast aluminum construction with 0.045 PVC insulators holding 12-gauge flat conductor wiring. Polarity groove is located on face of track to indicate location of grounding conductor.
Polarity Groove: Each track section includes a groove on the surface of the extrusion. This groove must be continous throughout the track run. Track heads also have a polarity groove, which must coincide with the track’s polarity groove.
Mounting: The track may be surface, stem, or cable mounted. All lengths of track can be field cut. Surface mounting hardware included with each track section.
Compatibility: Nora track system is compatible with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brand configured to Halo 3-wire track configuration.
NOTE: Wands and monopoint canopies are generally not compatible with other manufacturers.
ELECTRICAL
Input Voltage: 120V
Wattage: 2400W each circuit
Dimming: Nora track may be dimmed with any approved incandescent, magnetic low voltage, or electronic low voltage controls, depending on the track fixtures being used. If using two dimming switches on NT-2300 two-circuit track, only apply a single phase neutral to the shared common wire on the track rail. Do not attempt to use 3-way or multi-phase neutral if dimming.
LISTING
cULus Listed for Dry Locations
One-Circuit Track System
Track Length / Finish
NT-301B = 2' Track, Black (actual length: 24-1/4")
To start a run. Adds 2-3/4" to length. Left hand polarity available for daisy chain applications (NT-2316/L).
NT-328 = One-Circuit
= Two-Circuit
Accepts standard 1/2" conduit fitting. Use the surface conduit feed trade-size conduit fitting. Left hand polarity available for daisy chain applications (NT-328/L).
NT-348 = One-Circuit NT-2348 = Two-Circuit
To start a run. Top three knockouts. Mounting hardware included.
NT-313 = One-Circuit NT-2313 = Two-Circuit
Connects two track sections at 90°. Field adjustable for right or left hand polarity. Cover included to change to I-Connector.
NT-311 = One-Circuit
NT-2311 = Two-Circuit B = Black
NT-307 = One-Circuit
= Silver
= White
Live end to start a run. Mounting hardware included.
Live End Feed with Canopy Circuit Finish
NT-352 = One-Circuit
NT-2352 = Two-Circuit
B = Black S = Silver W = White
Live end to start a run. Mounting hardware included.
Straight Connector Circuit Finish
NT-310 = One-Circuit
NT-2310 = Two-Circuit B = Black S = Silver W = White
Joins two track sections end to end. Cannot be used as a power feed. Adds 1/8" to length.
T-Connector Circuit Finish
NT-314 = One-Circuit
NT-2314* = Two-Circuit
B = Black S = Silver W = White
Connects three track sections in a T configuration. Can be used as a powder feed.
* Note: All two-circuit track connectors are supplied as right polarity, for left polarity add “/L” suffix
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
NT-2307 = Two-Circuit
B = Black S = Silver W = White
Connects track to existing outlet box anywhere along the track. Mounting hardware included
Current Limiting Feed with Circuit Breaker Circuit Finish Breaker
NT-348 = One-Circuit End Feed
NT-358 = One-Circuit In-Line Feed
NT-2348 = Two-Circuit End Feed
NT-2358 = Two-Circuit In-Line Feed
Flexible Connector Circuit Finish
NT-309 = One-Circuit
NT-2309 = Two-Circuit
W = White
= Black S = Silver W = White
Connecting two tracks at any angle up to 90°. Can be used as a power feed. Adds 7-1/2" to length.
X-Connector Circuit Finish
NT-315 = One-Circuit
NT-2315* = Two-Circuit
= Two-Circuit
B = Black S = Silver W = White
Connects four track sections in a cross configuration. Can be used as a powder feed. Adds 4" to length.
Suspends track from high ceiling applications with 1/4" - 20 threaded coupling. Supplied with T-Bar mounting clip, ceiling plate, aircraft cable and couplers.
NT-370 = QuickJack Adapter B = Black S = Silver W = White
Contains female QuickJack adapter. Accepts all fixtures with male QuickJack adapter. Includes electronic transformer/driver rated for 0-60W.
Monopoint for Line Voltage Fixtures
Description Finish
NT-319 = Square Monopoint
NT-366 = Round Monopoint B = Black S = Silver W = White
Allows the installation of line voltage track fixture/pendant without a track - not suitable for all products. Mounts permanently to outlet box.
Extension Rod Length Finish
NT-322/12 = 12" B = Black W = White
NT-322 = 18"
NT-323 = 24"
NT-324 = 36"
NT-325 = 48" B = Black S = Silver W = White
Extends track fixture from track. Also available by special order, factory installed extension rods to 48".
Monopoint for Versa Low Voltage Fixtures
Description Finish
NT-337 = Square Monopoint B = Black S = Silver W = White
Allows the installation of one NTLE-200 Versa series track fixture without a track. Mounts permanently to outlet box. 10 lbs. max weight.
18" Flexible Extension Rod Length Finish
NT-330 = 18" Flexible B = Black W = White
For use only with NTH-618. Extends track fixture from track. Cannot be used with NTL-200 series low voltage track fixtures.
Monopoint for Double Locking Fixtures
Description Finish
NT-380 = Round Monopoint B = Black W = White
Allows the installation of double locking track fixture without a track - not suitable for all products. Mounts permanently to outlet box. Compatible fixtures: NTE-854, NTE-855, NTE-880, NTH-910, NTH-920, NTH-930
Used to extend track fixture on a slope ceiling *NT-335 not available in silver finish
Monopoint for Aiden Track Head (NTE-850)
Description Finish
NT-379 = Round Monopoint B = Black S = Silver W = White
Allows the installation of Aiden Track Head without a track - not suitable for all products. Mounts permanently to outlet box. Compatible fixture: NTE-850
Architectural grade recessed track with flangeless option with two independently controllable circuits.
FEATURES
• Power per Circuit: 1920W max (120V) , 4432W max (277V)
• Operating Current: Each circuit is rated 20A (2 x 20A = 40A max)
•Extruded aluminum construction
• May be field cut
•UL & CUL listed
•5 year WAC Lighting product warranty
Each section includes two matching end caps.
Example: WHT4-RT-PT
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Materials: Solid copper alloy bus bars with a rectangular cross-sectional area of 4.2 mm2
Electrical: Electric feed capability through all jointers/feeders (except Power Connector and Flexible Connector) using standard 2 inch knock-outs
Mounting: Fixtures may be installed or removed anywhere along the track. Minimum fixture spacing is 1 foot. Track fixture has safety interlocks when installed/removed. Polarization is guaranteed throughout the system
Finish: Available in black powder coat (BK), white powder coat (WT), and platinum anodized (PT) finishes
Source: 10W LED Up to 850lm (Dedicated CCT) or Up to 650lm (Comfort Dim)
PRODUCT DESCRIPTION
The MAY LED Track fixture has an eclectic style to fit any decor. The die-cast aluminum body helps dissipate heat and improve life. Small track head resembles line voltage fixtures without large driver enclosures.
FEATURES
Over 75% energy savings when compared to incandescent Up to 850 lumens / 10W
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90 CRI
Narrow flood beam spread
Available in black or white finishes
One or two circuit track capable
Available in standard H-Style, J-Style or L-Style adapters Dimmable
CONSTRUCTION
Housing: Die-cast aluminum construction dissipates heat for longer life.
Adjustability: 315° horizontal and 359° vertical adjustment
ELECTRICAL
Input Voltage: 120V
Delivered Lumens / Wattage:
Dedicated CCT = Up to 850lm / 10W
Comfort Dim = Up to 650lm / 10W
Color Temperature: 2700K, 3000K, 3500K, 4000K or Comfort Dim (2900K ~ 1800K)
Color Rendering Index: 90+ CRI
Beam Spread: 34° Narrow Flood
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 2900K, to a romantic and comfortable 1800K on a gradual, even curve. Available in 650lm only.
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
One / Two Circuit Conversion: Positive contact (opposite neutral and ground contacts) is preset to “down” position at factory, but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.
LABELS AND LISTINGS
cETLus Listed for dry locations
5-Year Limited Warranty FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
NTE-860L927M10B
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Performance Data
NTE-860L927M10W 753lm 2700K
NTE-860L930M10W 801lm3000K
NTE-860L935M10W 848lm3500K
NTE-860L940M10W 866lm4000K
NTE-860L9CDM10W 661lmComfort Dim Delivered lumens will vary depending on finish
Low profile, extruded aluminum track with 20-Amp rated flat, solid integral conductors. Variety of connectors and accessory parts available.
NOTE: Nora Track is not approved for use with remote transformers. Low voltage fixtures require a transformer for each fixture, can be purchased as a separate item or a fixture with transformer included.
SPECIFICATION
Extrusion: 0.030 die cast aluminum construction with 0.045 PVC insulators holding 12-gauge flat conductor wiring. Polarity groove is located on face of track to indicate location of grounding conductor.
Polarity Groove: Each track section includes a groove on the surface of the extrusion. This groove must be continous throughout the track run. Track heads also have a polarity groove, which must coincide with the track’s polarity groove.
Mounting: The track may be surface, stem, or cable mounted. All lengths of track can be field cut. Surface mounting hardware included with each track section.
Compatibility: Nora track system is compatible with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brand configured to Halo 3-wire track configuration.
NOTE: Wands and monopoint canopies are generally not compatible with other manufacturers.
ELECTRICAL
Input Voltage: 120V
Wattage: 2400W each circuit
Dimming: Nora track may be dimmed with any approved incandescent, magnetic low voltage, or electronic low voltage controls, depending on the track fixtures being used. If using two dimming switches on NT-2300 two-circuit track, only apply a single phase neutral to the shared common wire on the track rail. Do not attempt to use 3-way or multi-phase neutral if dimming.
LISTING
cULus Listed for Dry Locations
One-Circuit Track System
Track Length / Finish
NT-301B = 2' Track, Black (actual length: 24-1/4")
To start a run. Adds 2-3/4" to length. Left hand polarity available for daisy chain applications (NT-2316/L).
NT-328 = One-Circuit
= Two-Circuit
Accepts standard 1/2" conduit fitting. Use the surface conduit feed trade-size conduit fitting. Left hand polarity available for daisy chain applications (NT-328/L).
NT-348 = One-Circuit
= Two-Circuit
To start a run. Top three knockouts. Mounting hardware included.
NT-313 = One-Circuit NT-2313 = Two-Circuit
Connects two track sections at 90°. Field adjustable for right or left hand polarity. Cover included to change to I-Connector.
NT-311 = One-Circuit
NT-2311 = Two-Circuit B = Black
NT-307 = One-Circuit
= Silver
= White
Live end to start a run. Mounting hardware included.
Live End Feed with Canopy Circuit Finish
NT-352 = One-Circuit
NT-2352 = Two-Circuit
B = Black S = Silver W = White
Live end to start a run. Mounting hardware included.
Straight Connector Circuit Finish
NT-310 = One-Circuit
NT-2307 = Two-Circuit
B = Black S = Silver W = White
Connects track to existing outlet box anywhere along the track. Mounting hardware included
Current Limiting Feed with Circuit Breaker Circuit Finish Breaker
NT-348 = One-Circuit End Feed
NT-358 = One-Circuit In-Line Feed
NT-2348 = Two-Circuit End Feed
NT-2358 = Two-Circuit In-Line Feed
Flexible Connector Circuit Finish
W = White
NT-2310 = Two-Circuit B = Black
NT-309 = One-Circuit
= Silver
= White
Joins two track sections end to end. Cannot be used as a power feed. Adds 1/8" to length.
T-Connector Circuit Finish
NT-314 = One-Circuit
NT-2314* = Two-Circuit
B = Black S = Silver W = White
Connects three track sections in a T configuration. Can be used as a powder feed.
* Note: All two-circuit track connectors are supplied as right polarity, for left polarity add “/L” suffix
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
NT-2309 = Two-Circuit
= Black S = Silver W = White
Connecting two tracks at any angle up to 90°. Can be used as a power feed. Adds 7-1/2" to length.
X-Connector Circuit Finish
NT-315 = One-Circuit
NT-2315* = Two-Circuit
= Two-Circuit
B = Black S = Silver W = White
Connects four track sections in a cross configuration. Can be used as a powder feed. Adds 4" to length.
Suspends track from high ceiling applications with 1/4" - 20 threaded coupling. Supplied with T-Bar mounting clip, ceiling plate, aircraft cable and couplers.
NT-370 = QuickJack Adapter B = Black S = Silver W = White
Contains female QuickJack adapter. Accepts all fixtures with male QuickJack adapter. Includes electronic transformer/driver rated for 0-60W.
Monopoint for Line Voltage Fixtures
Description Finish
NT-319 = Square Monopoint
NT-366 = Round Monopoint B = Black S = Silver W = White
Allows the installation of line voltage track fixture/pendant without a track - not suitable for all products. Mounts permanently to outlet box.
Extension Rod Length Finish
NT-322/12 = 12" B = Black W = White
NT-322 = 18"
NT-323 = 24"
NT-324 = 36"
NT-325 = 48" B = Black S = Silver W = White
Extends track fixture from track. Also available by special order, factory installed extension rods to 48".
Monopoint for Versa Low Voltage Fixtures
Description Finish
NT-337 = Square Monopoint B = Black S = Silver W = White
Allows the installation of one NTLE-200 Versa series track fixture without a track. Mounts permanently to outlet box. 10 lbs. max weight.
18" Flexible Extension Rod Length Finish
NT-330 = 18" Flexible B = Black W = White
For use only with NTH-618. Extends track fixture from track. Cannot be used with NTL-200 series low voltage track fixtures.
Monopoint for Double Locking Fixtures
Description Finish
NT-380 = Round Monopoint B = Black W = White
Allows the installation of double locking track fixture without a track - not suitable for all products. Mounts permanently to outlet box. Compatible fixtures: NTE-854, NTE-855, NTE-880, NTH-910, NTH-920, NTH-930
Used to extend track fixture on a slope ceiling *NT-335 not available in silver finish
Monopoint for Aiden Track Head (NTE-850)
Description Finish
NT-379 = Round Monopoint B = Black S = Silver W = White
Allows the installation of Aiden Track Head without a track - not suitable for all products. Mounts permanently to outlet box. Compatible fixture: NTE-850
Low profile, extruded aluminum track with 20-Amp rated flat, solid integral conductors. Variety of connectors and accessory parts available.
NOTE: Nora Track is not approved for use with remote transformers. Low voltage fixtures require a transformer for each fixture, can be purchased as a separate item or a fixture with transformer included.
SPECIFICATION
Extrusion: 0.030 die cast aluminum construction with 0.045 PVC insulators holding 12-gauge flat conductor wiring. Polarity groove is located on face of track to indicate location of grounding conductor.
Polarity Groove: Each track section includes a groove on the surface of the extrusion. This groove must be continous throughout the track run. Track heads also have a polarity groove, which must coincide with the track’s polarity groove.
Mounting: The track may be surface, stem, or cable mounted. All lengths of track can be field cut. Surface mounting hardware included with each track section.
Compatibility: Nora track system is compatible with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brand configured to Halo 3-wire track configuration.
NOTE: Wands and monopoint canopies are generally not compatible with other manufacturers.
ELECTRICAL
Input Voltage: 120V
Wattage: 2400W each circuit
Dimming: Nora track may be dimmed with any approved incandescent, magnetic low voltage, or electronic low voltage controls, depending on the track fixtures being used. If using two dimming switches on NT-2300 two-circuit track, only apply a single phase neutral to the shared common wire on the track rail. Do not attempt to use 3-way or multi-phase neutral if dimming.
LISTING
cULus Listed for Dry Locations
One-Circuit Track System
Track Length / Finish
NT-301B = 2' Track, Black (actual length: 24-1/4")
To start a run. Adds 2-3/4" to length. Left hand polarity available for daisy chain applications (NT-2316/L).
NT-328 = One-Circuit
= Two-Circuit
Accepts standard 1/2" conduit fitting. Use the surface conduit feed trade-size conduit fitting. Left hand polarity available for daisy chain applications (NT-328/L).
NT-348 = One-Circuit NT-2348 = Two-Circuit
To start a run. Top three knockouts. Mounting hardware included.
NT-313 = One-Circuit NT-2313 = Two-Circuit
Connects two track sections at 90°. Field adjustable for right or left hand polarity. Cover included to change to I-Connector.
NT-311 = One-Circuit
NT-2311 = Two-Circuit B = Black
NT-307 = One-Circuit
= Silver
= White
Live end to start a run. Mounting hardware included.
Live End Feed with Canopy Circuit Finish
NT-352 = One-Circuit
NT-2352 = Two-Circuit
B = Black S = Silver W = White
Live end to start a run. Mounting hardware included.
Straight Connector Circuit Finish
NT-310 = One-Circuit
NT-2310 = Two-Circuit B = Black S = Silver W = White
Joins two track sections end to end. Cannot be used as a power feed. Adds 1/8" to length.
T-Connector Circuit Finish
NT-314 = One-Circuit
NT-2314* = Two-Circuit
B = Black S = Silver W = White
Connects three track sections in a T configuration. Can be used as a powder feed.
* Note: All two-circuit track connectors are supplied as right polarity, for left polarity add “/L” suffix
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
NT-2307 = Two-Circuit
B = Black S = Silver W = White
Connects track to existing outlet box anywhere along the track. Mounting hardware included
Current Limiting Feed with Circuit Breaker Circuit Finish Breaker
NT-348 = One-Circuit End Feed
NT-358 = One-Circuit In-Line Feed
NT-2348 = Two-Circuit End Feed
NT-2358 = Two-Circuit In-Line Feed
Flexible Connector Circuit Finish
NT-309 = One-Circuit
NT-2309 = Two-Circuit
W = White
= Black S = Silver W = White
Connecting two tracks at any angle up to 90°. Can be used as a power feed. Adds 7-1/2" to length.
X-Connector Circuit Finish
NT-315 = One-Circuit
NT-2315* = Two-Circuit
= Two-Circuit
B = Black S = Silver W = White
Connects four track sections in a cross configuration. Can be used as a powder feed. Adds 4" to length.
= One-Circuit
= Two-Circuit
To end a run. Two are
THE WESTIN TYPE TN ALT
and
Series
System Accessories
Pendant Assembly Kit
Length Finish
NT-305 = 18"
NT-306 = 24"
NT-336 = 36"
NT-329 = 48"
B = Black S = Silver W = White
Suspends track from ceiling. 4' maximum distance between pendant assembly kits.
Wire Way Cover
Description Finish
NT-326 = Wire Way Cover B = Black S = Silver W = White
For track to be wired through stem. Use one for each live end used.
Outlet Adapter
Description Finish
NT-327 = Outlet Adapter B = Black S = Silver W = White
Allows a power outlet to be placed on the track. (Not UL Listed)
Replacement Stem for Pendant Assmebly
Length Finish
NRA-132/24 = 24"
NRA-132/48 = 48”
NRA-132/72 = 72”
NRA-132/96 = 96”
NRA-82 = Stem Coupler B = Black S = Silver W = White
To replace existing or field damaged stem in pendant assembly kit. Use NRA-82 coupler to join two stems together.
Outlet Box Cover
Description Finish
NT-320 = Outlet Box Cover B = Black S = Silver W = White
Can be used at any feed connection (live, straight, L, T or X). Screws included.
Utility Hook
Description Finish
NT-308 = Utility Hook B = Black S = Silver W = White
For chain hung fixtures up to 30 lbs.
Slope Pendant Adapter
Description Finish
NT-349 = Slope Pendant B = Black S = Silver W = White
Allows pendant assembly kit (NT-305, NT-306, NT-336, NT-329) to hang straight down from ceiling. Can be used to feed power to track.
T-Bar Attachment Clip
Size
NT-332 = 15/16" T-Bar Clip
To attach track to T-Bar drop ceiling.
Pendant Adapter
Description Finish
NT-368 = Pendant Adapter B = Black S = Silver W = White
Allows a pendant to be powered from track. Adapter extends 2" from the track.
Suspends track from high ceiling applications with 1/4" - 20 threaded coupling. Supplied with T-Bar mounting clip, ceiling plate, aircraft cable and couplers.
THE WESTIN TYPE TN ALT
Series
Versa QuickJack Adapter
Description Finish
NT-370 = QuickJack Adapter B = Black S = Silver W = White
Contains female QuickJack adapter. Accepts all fixtures with male QuickJack adapter. Includes electronic transformer/driver rated for 0-60W.
Monopoint for Line Voltage Fixtures
Description Finish
NT-319 = Square Monopoint
NT-366 = Round Monopoint B = Black S = Silver W = White
Allows the installation of line voltage track fixture/pendant without a track - not suitable for all products. Mounts permanently to outlet box.
Extension Rod Length Finish
NT-322/12 = 12" B = Black W = White
NT-322 = 18"
NT-323 = 24"
NT-324 = 36"
NT-325 = 48" B = Black S = Silver W = White
Extends track fixture from track. Also available by special order, factory installed extension rods to 48".
Monopoint for Versa Low Voltage Fixtures
Description Finish
NT-337 = Square Monopoint B = Black S = Silver W = White
Allows the installation of one NTLE-200 Versa series track fixture without a track. Mounts permanently to outlet box. 10 lbs. max weight.
18" Flexible Extension Rod Length Finish
NT-330 = 18" Flexible B = Black W = White
For use only with NTH-618. Extends track fixture from track. Cannot be used with NTL-200 series low voltage track fixtures.
Monopoint for Double Locking Fixtures
Description Finish
NT-380 = Round Monopoint B = Black W = White
Allows the installation of double locking track fixture without a track - not suitable for all products. Mounts permanently to outlet box. Compatible fixtures: NTE-854, NTE-855, NTE-880, NTH-910, NTH-920, NTH-930
Used to extend track fixture on a slope ceiling *NT-335 not available in silver finish
Monopoint for Aiden Track Head (NTE-850)
Description Finish
NT-379 = Round Monopoint B = Black S = Silver W = White
Allows the installation of Aiden Track Head without a track - not suitable for all products. Mounts permanently to outlet box. Compatible fixture: NTE-850
BLANK
THE WESTIN TYPE TP ALT
MAC XL LED Track Head
PRODUCT DESCRIPTION
The MAC XL LED Track fixture has an eclectic style to fit any decor. The die-cast aluminum body helps dissipate heat and improve life. Unique design allows the beam spreads to be changed in field; spot and flood optics installed. Small track head resembles line voltage fixtures without large driver enclosures.
FEATURES
Over 75% energy savings when compared to incandescent
Up to 1250lm / 18W
Field adjustable beam spreads (Flood and spot optics included)
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90 CRI
Comfort Dim (warm dim from 3000K to 1800K)
Available in black, silver and white finishes
One or two circuit track capable
Available in standard H-Style, J-Style or L-Style adapters
Dimmable
CONSTRUCTION
Housing: Die-cast aluminum construction dissipates heat for longer life.
Adjustability: 350° horizontal and 90° vertical adjustment
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage:
Dedicated CCT = Up to 1250lm / 18W
Comfort Dim = Up to 1000lm / 15W
Color Temperature: 2700K, 3000K, 3500K, 4000K or Comfort Dim
Color Rendering Index: 90+ CRI
Optics: Flood (installed) and spot (included)
Lifetime: 44,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1800K on a gradual, even curve. Available in 1000lm only.
Dimming: ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
Accessories: Luminaire will accommodate a honeycomb louver (ordered separately)
LABELS AND LISTINGS
cULus Listed for dry locations
5-Year Limited Warranty
Source: 18W (Dedicated CCT) or 15W (Comfort Dim) Up to 1250lm (Dedicated CCT) or Up to 1000lm (Comfort Dim) Example: NTE-875L927X18B = MAC XL
NTE-875L9CDX is certified to the high efficacy requirements of California Title 24 JA8-2019
NTE-875L927X18 1069lm 2700K
NTE-875L930X18 1211lm3000K
NTE-875L935X18 1232lm3500K
NTE-875L940X18 1252lm4000K
NTE-875L9CDX15 1023lmComfort Dim Delivered lumens will vary depending on beam spread and finish
Part of the Tubular family of LED luminaires, the BSS501 is an arm mounted model ideally suited for wall wash and stack lighting. Slender aluminum arms project the Ø1-3/8” extruded aluminum housing from a wall or ceiling, while machined aluminum couplers allow a generous range of rotation for flexible aiming. The BSS501 is fitted with 90+ CRI LEDs and is available with a Lambertian or asymmetric lens optic.
SPECIFICATIONS
Fixture housing constructed of an extruded aluminum tube, frosted acrylic extruded lens and sheet aluminum end caps
Fixture arms are constructed of steel pipe, Ø5/8” extruded aluminum sleeves and machined aluminum end cap couplers.
Mounting plate options include a Ø4-3/4” aluminum plate for mounting to 4” octagonal wall boxes or Ø1-3/8” aluminum plate for mounting to accessible panels.
Standard finishes as shown below
Single and continuous run fixtures available with arm center distances of 24”–90”
Arms allow fixture to project from a wall or ceiling nominally 3”, 6”, 12” or 18”
Fixture housing rotates 332° and is locked in place with hex fastener
Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)
Extruded acrylic lens options available for Lambertian or asymmetric light distributions
PERFORMANCE
Fixture wired with 10’, low voltage leads (measured from the end cap)
Standard outputs range from 400 to 535 lumens per foot, dependent on optic
LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical
Life: 50,000 hours L70
Limited five year warranty
UL and C-UL listed for dry and damp locations
ARM CENTER DISTANCE
CRI
DRIVER LIGHT OUTPUT (lumens per foot w/optic option L)
ND: non-dimming [Dimming]
D: 0-10V, 1%
DTR: triac, 1%
DLV: electronic low voltage, 1%
HES: Lutron EcoSystem, soft-on fade-to-black, 1%
EL: eldoLED ECOdrive 0-10V, 1%
Note: Each fixture includes a remote driver matched for fixture length and light output.
R: regular – 520 CF: consult factory for custom output
WBR: wall box plate TP: trim plate
CF: consult factory for custom arm length
L: Lambertian distribution A: asymmetric distribution
SN: single ST: starter
AD: adder
TR: terminator
AW: architectural white (semi-matte)
WH: white (semigloss)
BL: black (semimatte)
MB: matte black
ESS: environmental satin silver
BZ: bronze
PR: primer
CF: consult factory for custom finish
SA : satin anodize (may require additional lead time)
